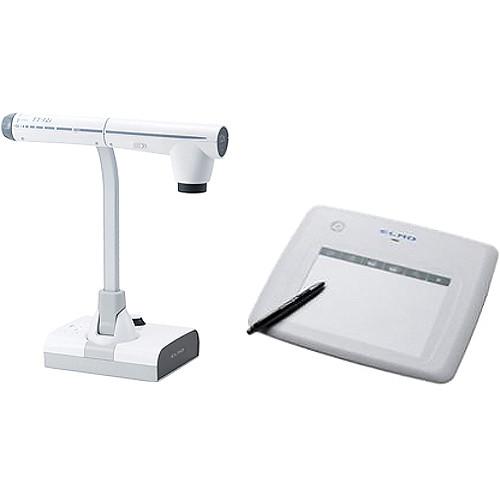

Product description The Elmo Vision Bundle includes the TT-12i interactive classroom document camera and the CRA-1 Wireless Tablet, which allows you to apply effects and perform select functions from up to 50 ft away, meaning you can walk around the classroom and operate the camera.
The TT-12i shoots photos and videos in up to 1080p Full HD resolution, can be used as a webcam with services like Skype on a Mac or PC, and features Live View mode, which lets you display a document, image, or object live on a projection screen or TV. The included software allows you to apply annotations and various effects to images as well as to images and live objects place beside one another in a split screen. Effects include 96x distortion-free Zoom, Focus, Highlight, Mask, Mosaic (which provides an engaging way for letting students guess the answer to a question), and much, much more. The TT-12i is a highly interactive classroom tool offering a large collection of features for creatively enhancing classroom lessons.
The CRA-1 Wireless Tablet includes a battery-operated pen that lets you navigate through all the features being displayed on your whiteboard or TV, click on the features as if with a mouse, and make annotations such as lines and circles. The tablet is also battery-operated and runs for 16 hours on a single charge. - TT-12i Interactive Document Camera The Elmo TT-12i Interactive Document Camera connects to a projector and allows teachers to project classroom material with constructive features/effects applied. It can also be connected to a TV set and the TV used as a display. It's USB Video Class compliant (UVC), meaning it can be used as a webcam with services like Skype by USB connection to a Mac or PC. All you'll have to do is select it as the camera of choice in the webcam service you use.
The camera functionality captures video and photos in up to 1080p Full HD resolution. The most commonly used function, however, is Live View mode, which allows you to display any document, image, or object live via a connected projector or TV. The video/photo capture functions typically serve as secondary to Live View mode. For example, you may want to project a live image of an object along with an image of the object's back side. To do this, you'll need to take a photo of the back side and then project the photo with a Live View of the front side in a split screen or picture-in-picture setup.
Most of the controls are available on the main body and on the included remote control. Two of these controls are Zoom and Focus. The camera is capable of enlarging an image or object by up to 96x without any distortion, and the auto-focus button will bring the image/object into crisp focus within a second or two. You'll be able to zoom in on something as small as a penny and show even its tiniest details clearly. Moreover, the camera is adjustable at the head, arm, and neck so that you can bring it within inches of an object and then zoom by 96x. The head rotates a full 360° so you can point the camera down, up, and anywhere in between; the neck can be swung to the back or front 300° so you can point at the sides, (like out of the window), and it bends downward 45° so that you can close in right overhead an object; and the arm rotates 180° to accommodate both left- and right-handed users (as the zoom dial and focus button are at the tip of the camera head).
Another control is Highlight, which shades out every part of an image except a square portion in the center. This square can be resized and moved around to highlight other parts of the image. Another control is Mask, which is useful for going over tests. It covers your image completely, like covering a test paper with another sheet of paper, and at your command it reveals more and more of the image (the test answers) underneath. Capture controls let you capture video or photos to an optional USB flash drive or SD card, both of which the TT-12i has slots for, and the Play control brings up a library of all your captured media so you can select and play back a clip or image. The Pause control is useful for having the class follow along with a particular text. For example, you can place a textbook under the camera in Live View mode, hit the Pause button, and then remove the textbook. An image of the textbook will remain displayed as if the book is still under the camera eye. You can then read from the book and the class can follow along the paused image. The Mosaic control provides an engaging way for letting students guess. It places a blur over an image and lets you lessen the blur little by little to reveal the image.
All these controls are also available on an included software called Image Mate, which you can use by connecting the TT-12i to a computer, Mac or PC. Connection to a computer brings up your computer's desktop on your projection display or TV. If you open Image Mate, a window will come up with a live image of whatever's under your camera eye, and a toolbox within the window will offer you the abovementioned controls and also additional ones that will let you annotate and image with lines, circles, and other markings. Image Mate also allows you to perform time-lapse photography with your camera with user-defined interval settings. Additional to a remote control and Image Mate, the TT-12i also comes with a USB cable, RGB cable, power supply, and AAA batteries. - Key Features
- The TT-12i connects to a projector and allows teachers to project classroom material with constructive features/effects applied. It can also be connected to a TV set and the TV used as a display.
USB Video Class Compliant The TT-12i is UVC compliant, meaning that it can be used as a webcam with services such as Skype by simple USB connection to a Mac or PC.
96x Zoom The TT-12i's 12x optical zoom combines with its 8x digital zoom to enlarge images up to 96 times. The result is a clear, distortion-free display of even tiny details.
3.4MP CMOS Sensor A 3.4MP image sensor captures photos of everything from fine text to 3D objects in Full HD 1080p resolution.
Adjustable Camera Head and Arm The adjustable camera head and arm can be freely raised, lowered, and rotated to focus attention from above, the sides, and up close.
Zoom Dial & AF Button A simple turn of the zoom dial adjusts zoom in and out, and an AF (Auto Focus) button enables easy, one-touch auto focusing.
Multiple Video Output Resolutions The TT-12i allows you to select between several output resolutions with a simple flip of a switch. Your choices include 1080p, 720p, SXGA, WXGA, XGA, and NTSC/PAL SD resolutions.
Audio Input and Output Audio enhancements can be applied to classroom presentations via the built-in microphone or external microphone input. Audio output can be routed through the external HDMI port or Audio Line Out port.
Presentation Support Tools The TT-12i comes with an ergonomically designed wireless remote control conveniently featuring Highlight, Mask, Split Screen, Picture-in-Picture, and other functions.
External Memory Still images and audio video files can be saved on an optional USB flash drive or SD memory card for future use. Files may also be saved to a PC or Mac using the included Image Mate Software.
Record and Upload for Absent Students Video with audio, time-lapse photography, and still images can be saved on a computer for review with the whole class and uploaded online for absent students.
30 fps Video The TT-12i captures and reproduces video at 30 frames per second.
Functions - White Balance: Auto, One-Push, Manual - Image Mode: Text1, Text2, Text3, Graphics1, Graphics2 - Edge Enhancement (for graphics mode) - Pause - Still Image Storage - Movie Storage - USB Image Output: Standard and USB Video Class - Standard USB image output - 8x Digital Zoom - Gamma Settings (for graphics mode) - Graphical On-Screen Display - Slide Show (image data) - Image Save: SD/SDHC memory card, USB flash drive - State Presets: up to 3 user settings - Annotation (supports optional CRA-1 and CRB-1) - Brightness Control: Auto (with level adjustment), Manual - Support Functions: Highlight, Mask, Scroll (in digital zoom), Mosaic, Split screen, Picture-in-Picture, Color Filter, Microscope, Image Rotation (0º/180º), Positive/Negative Conversion, Color/B&W - CRA-1 Wireless Tablet The CRA-1 Wireless Tablet from Elmo is a wireless tablet, perfect for use in educational settings. The tablet can operate for up to 16 hours thanks to a rechargeable Lithium-Ion battery. It communicates with a Windows-based system wirelessly thanks to the included USB transceiver.
You'll be able to control a digital whiteboard with the tablet, and easily add stamps, text, and images to it via the included software. It's a matter of ease to switch between control over your computer screen and the image shown on the projector, perfect for multitasking during lessons and presentations.
An optional document camera is available for use with the tablet, which further expands its functionality. When used with the camera, the tablet allows you to draw on the live image captured by the camera, control the camera and its functions, and to create lesson materials that contain real objects and digital images. Easy - Functional platform to create an interactive whiteboard experience
- Various recording modes and convenient functions -- including stamp, text input, and image insertion
Optional Document Camera - Draw on the live image that is being captured by the document camera
- Easily control the document camera and its functions
- Create lesson materials containing real objects and digital images
Useful - Compatible with Elmo's TT02RX, CO-10, P10S, and P30S
- Features a 50' (15 m) wireless range
- Operates for up to 16 hours on a full charge
UPC: 008404102771 In the Box Bundle Items TT-12i Interactive Document Camera yrbzfcaqdbwwewfzrvcu - USB Cable (for Connection to PC)
- Set of AAA Batteries (for Remote Control)
- Image Mate Software Installation Manual
CRA-1 Wireless Tablet Table of Contents
|
Upload User Manual
Have you got an user manual for the Elmo Vision Bundle: TT-12i Document Camera & CRA-1 Wireless Tablet in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - TT-12i Interactive Document Camera
| Sensor | 1/2.8" CMOS sensor; 3,400,000 pixels | Resolution | Analog RGB: 800 x 800 TV lines or more Video output: 500 (H) TV lines or more | Frame Rate | 30 fps | Total Pixels | 2144 x 1588 | Effective Pixels | 1920 x 1536 | Zoom | Powered, 12x optical; 8x digital | Input Terminals | 1x RGB input mini D-sub 15-pin female 1x Mic In/Line Out (shared) 1/8" (3.5 mm) stereo mini jack | Output Terminals | 1x RGB mini D-sub 15-pin female 1x Composite video RCA pin jack / 75Ω unbalanced 1x HDMI NTSC/PAL 1x Line Out 1/8" (3.5 mm) stereo mini jack | Input Selection | Main / External | HDMI Output | Image output: 1080p/720p Audio output: PCM 44.1 kHz sampling frequency | Analog RGB Output | 1920 x 1080 @ 60 Hz 1280 x 720 @ 60 Hz SXGA: 1280 x 1024 @ 60 Hz WXGA: 1280 x 800 @ 60 Hz XGA: 1024 x 768 @ 60 Hz | Video Output Selection Switch | Available; NTSC/PAL | Memory Interface | 1x SD memory card slot 1x USB host Type A (2.0 compliant) | External Control Terminal | 1x USB device Mini-B (2.0 compliant / UVC compliant) | | Lens | F3.2-3.6, f=4.0 - 48.0 mm | Shooting Area | 1080p: Max. 16.6 x 9.2" (42 x 23.3 cm) Min. 1.9 x 1" (4.8 x 2.7 cm)
720p: Max. 16.6 x 9.2" (42 x 23.3 cm) Min. 1.9 x 1" (4.8 x 2.7 cm)
SXGA: Max. 16.6 x 13.1" (42 x 33.4 cm) Min. 1.9 x 1.5" (4.8 x 3.8 cm)
WXGA: Max. 16.6 x 10.2" (42 x 26 cm) Min. 1.9 x 1.2" (4.8 x 3 cm)
XGA: Max. 16.6 x 12.3" (42 x 31 cm) Min. 1.9 x 1.4" (4.8 x 3.6 cm) | Focus | Auto / Manual / Zoom Sync | | Input Selection | Main / External | Memory Interface | 1x SD memory card slot 1x USB host Type A (2.0 compliant) | | Lamp | White LED | Security Lock Slot | Available | Power Source | 12 VDC (AC adapter AC 100-240 V) | Power Consumption | 16.2 W (AC adapter included) | Dimensions | Open for use: 14 x 14.7 x 16.2" (35.5 x 37.4 x 42.7 cm) Folded: 7.7 x 11.6 x 18.4" (19.5 x 29.4 x 47 cm) | Weight | Main unit: Approx. 7.1 lb (3.2 kg) | | Box Dimensions (LxWxH) | 21.2 x 15.4 x 9.2" | - CRA-1 Wireless Tablet
| Active Area | 5 x 3" / 12.7 x 7.6 cm | Connectivity Ports | 1 x Mini-USB | Dimensions (W x H x D) | 12.4 x 0.9 x 10.1" / 31.4 x 2.2 x 25.7 cm | | Battery Type | Lithium-Ion | Maximum Battery Life | 16 Hours | Charging Time | 4 Hours | Operating System Support | Windows | Weight | 1.48 lb / 0.67 kg | | Box Dimensions (LxWxH) | 14.3 x 12.4 x 3.1" |
