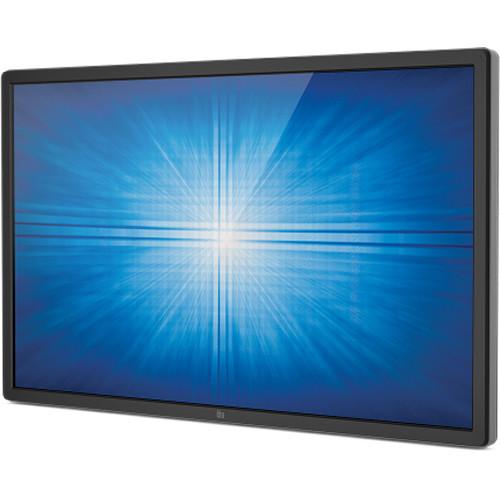

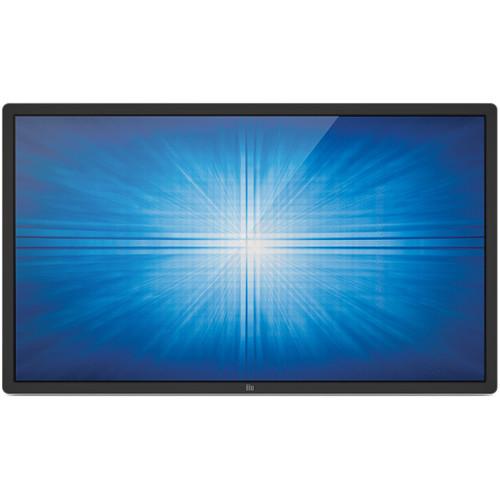

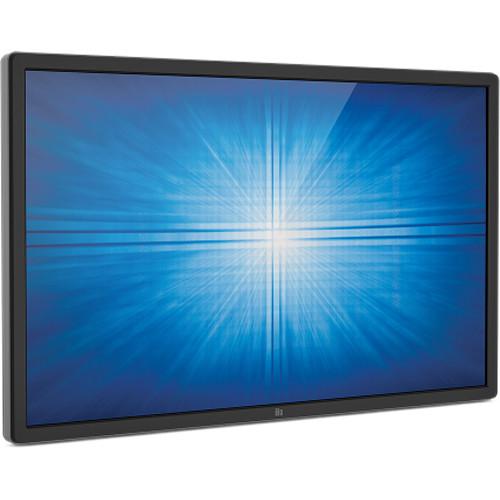

User Manual for Elo Touch 5502L 55" Interactive Digital Signage Display with Infrared Touch Technology Click to enlarge the picture
Contents of the user manual for the Elo Touch 5502L 55" Interactive Digital
- Product category: Commercial Monitors Elo Touch
- Brand: Elo Touch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elo Touch Commercial Monitors
 |
User manual for the Elo Touch 5502L 55" Interactive Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elo Touch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elo Touch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elo Touch product will considerably shorten its lifespan!
|

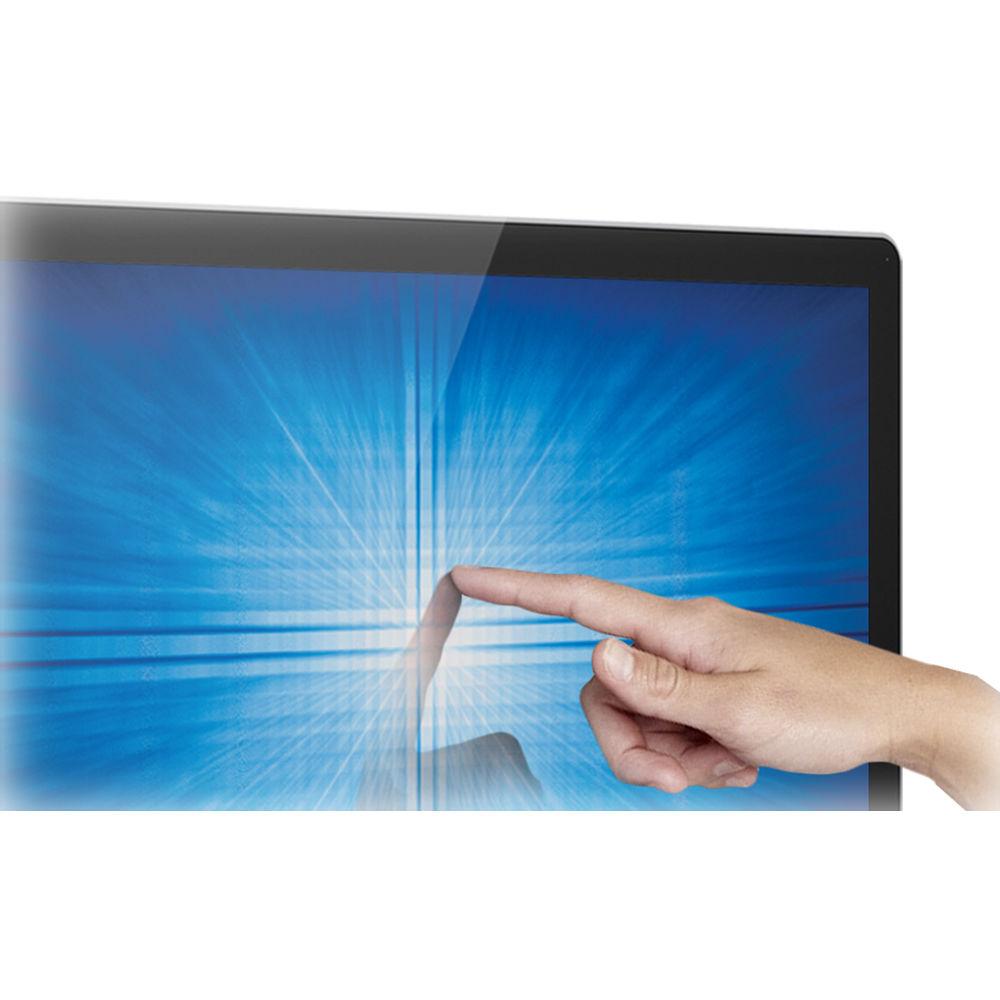

Product description The black Elo Touch 5502L 55" Interactive Digital Signage Display uses Infrared Touch technology that enables up to 20 simultaneous touches for multi-user interaction. The touch technology is compatible with Microsoft Windows 7, Windows 8, Windows 10, and Android operating systems. The display offers a maximum resolution of 1920 x 1080 and brightness rating of 405 cd/m2.

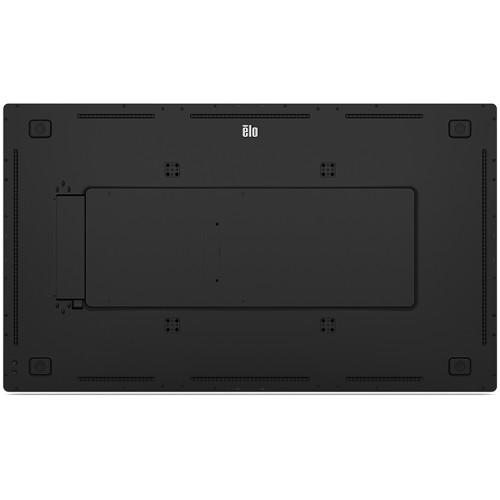

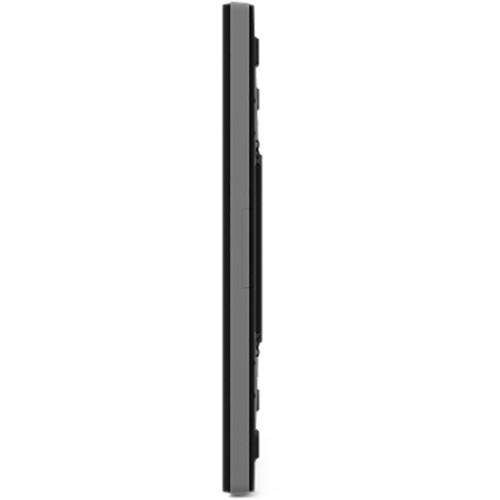

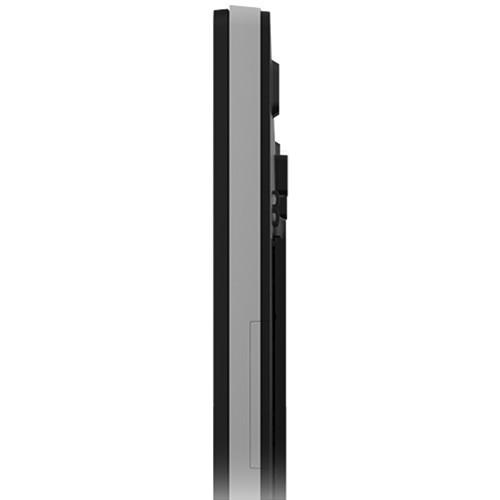

At just two inches thin, the 5502L is compliant with the ADA and IBC requirements of less than 4" protrusion for wall-mounted products when mounted with an Elo Low-profile wall-mounting kit (sold separately). The signage uses HD display technology including a high-contrast/brightness LED-backlit LCD panel, extended color gamut with movie/gaming/photo modes, black-level adjustment, and on-screen menu enhancements.
Commercial-grade optional computer modules help in turning the 5502L into a completely integrated all-in-one computer without needing any cables or additional mounting hardware. The commercial-grade computer modules are available for Microsoft Windows using Intel Core processor or Android using Qualcomm Snapdragon processor. The full set of 02-series accessories are compatible with the 5502L making it easy to snap in an RFID reader, barcode reader, EMV cradle, magstripe reader, NFC reader, or web camera. - Enhanced ease of operation along with a second HDMI port and GPIO are suitable for corporate applications
- Touch On-Screen Display (if desired, an optional wired remote can be used)
- Commercial-grade touchscreen suitable for kiosks, wayfinding, and office applications
- IR touch technology with glass surface offer clear optical clarity and touch durability that pass IK07 and UL-60950 requirements
- Supports portrait and landscape installations
- ENERGY STAR 7.0 certified and EU Energy Efficiency Class A rated
- Compatible with Windows, Linux, Mac (single touch only), Chrome, and other media players
UPC: 815335025310 In the Box Elo Touch 5502L 55" Interactive Digital Signage Display with Infrared Touch Technology HDMI Cable VGA-DB9 Serial Y-Cable USB Cable (Type-A to Type-B) Power Cable IEC 60320-C5 (NA plug) Power Cable IEC 60320-C5 (EU/KR plug) Power Cable IEC 60320-C5 (UK plug) 3.5mm Audio Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elo Touch 5502L 55" Interactive Digital Signage Display with Infrared Touch Technology in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElo Touch Elo 5502L Specs | | | Screen Size (Diagonal) | 54.6" | | Supported Display Resolutions | Minimum: 640 x 480 / 60 Hz
Maximum: 1920 x 1080 / 60 Hz | | Panel Type | TN LCD | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Brightness | 405 cd/m
