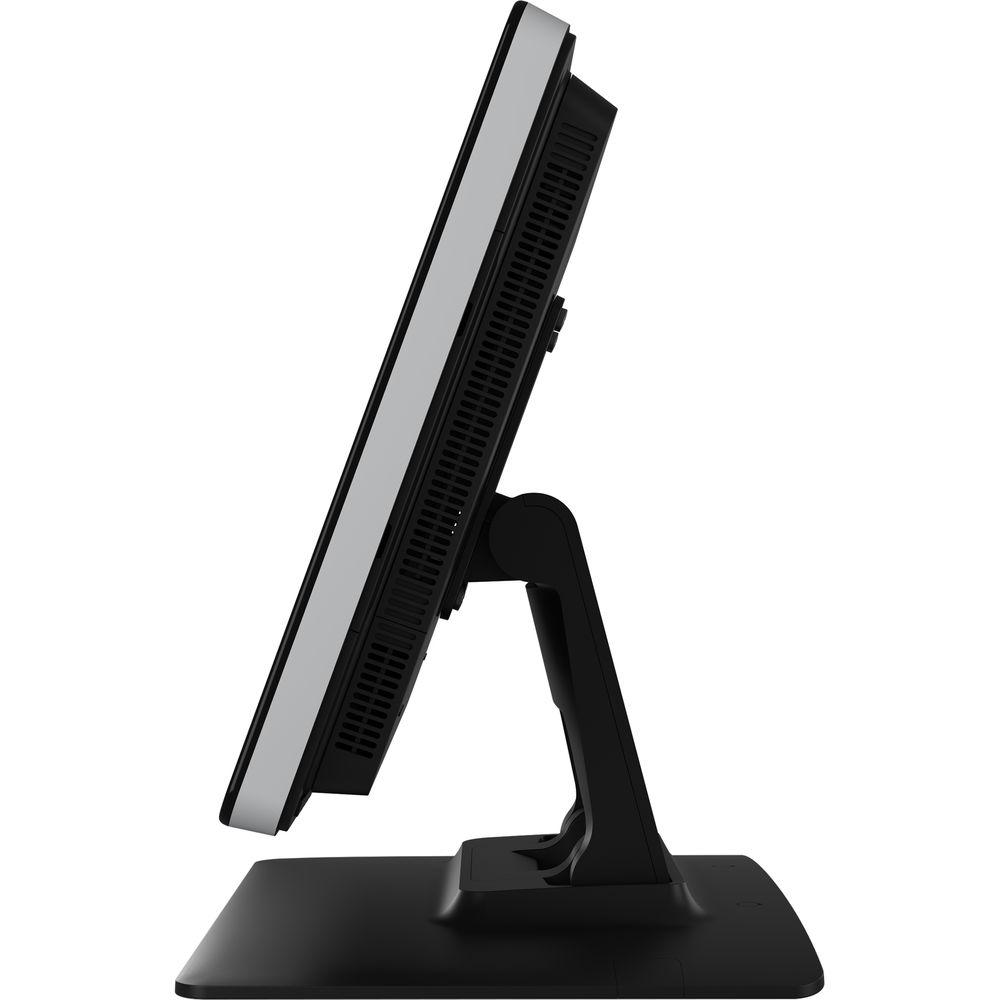

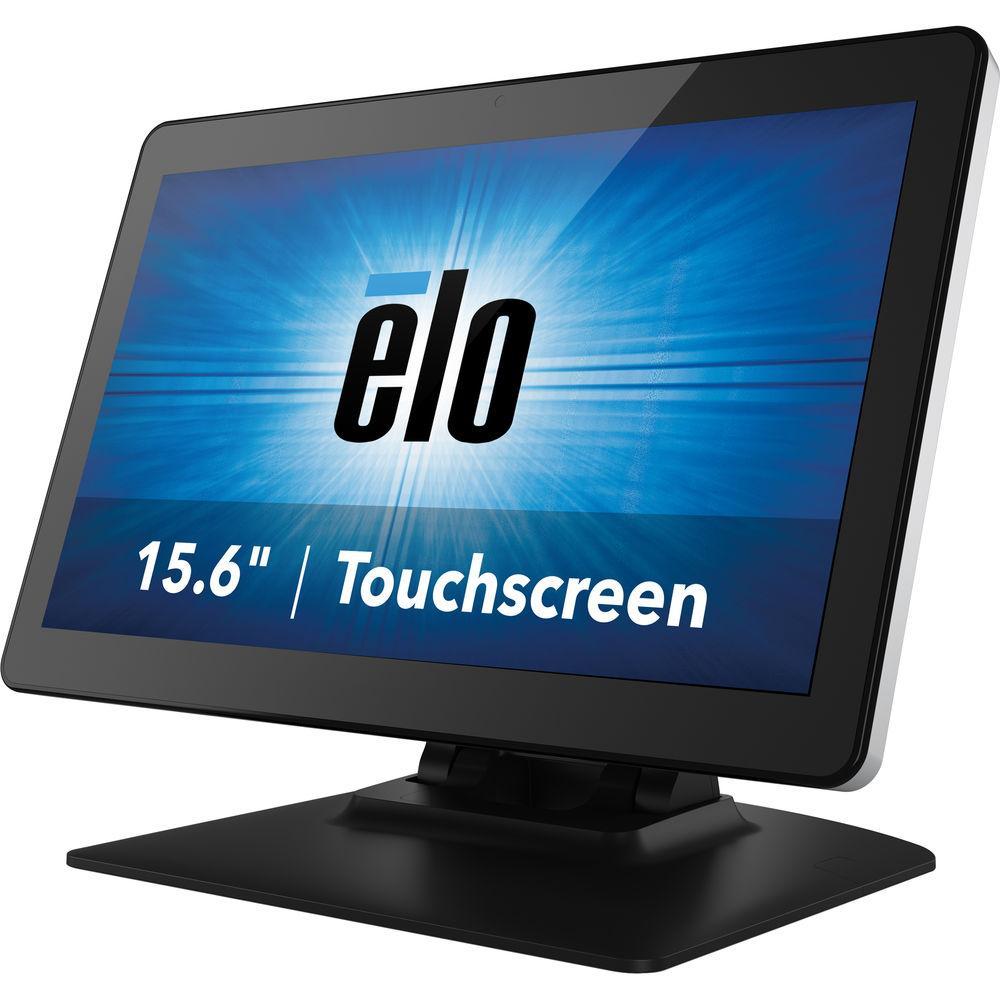

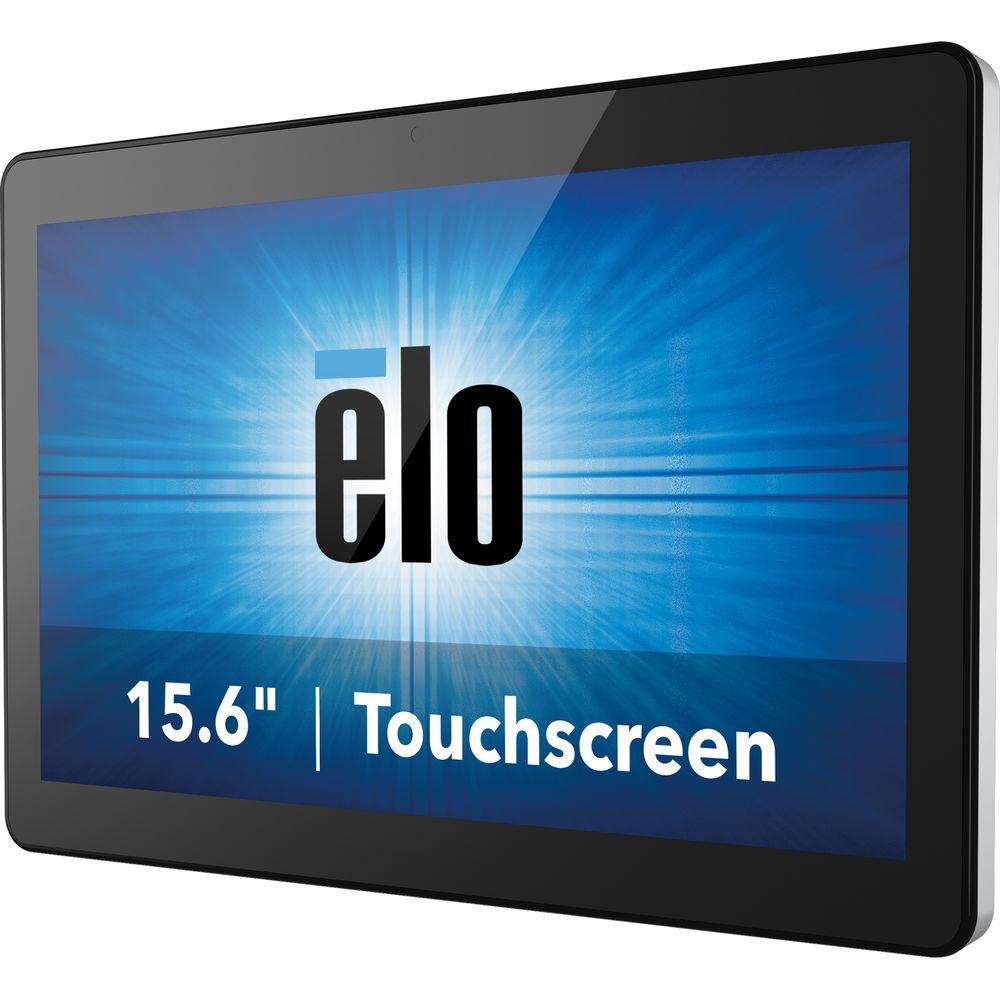

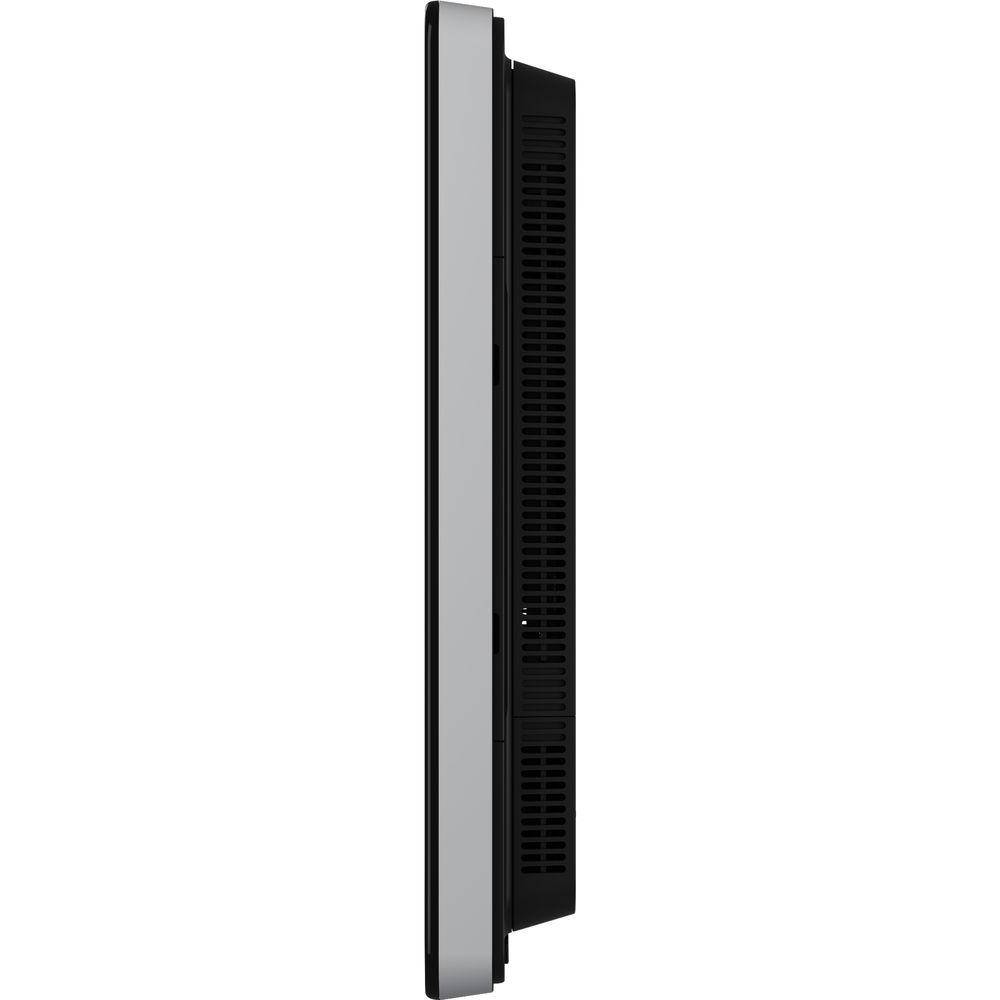

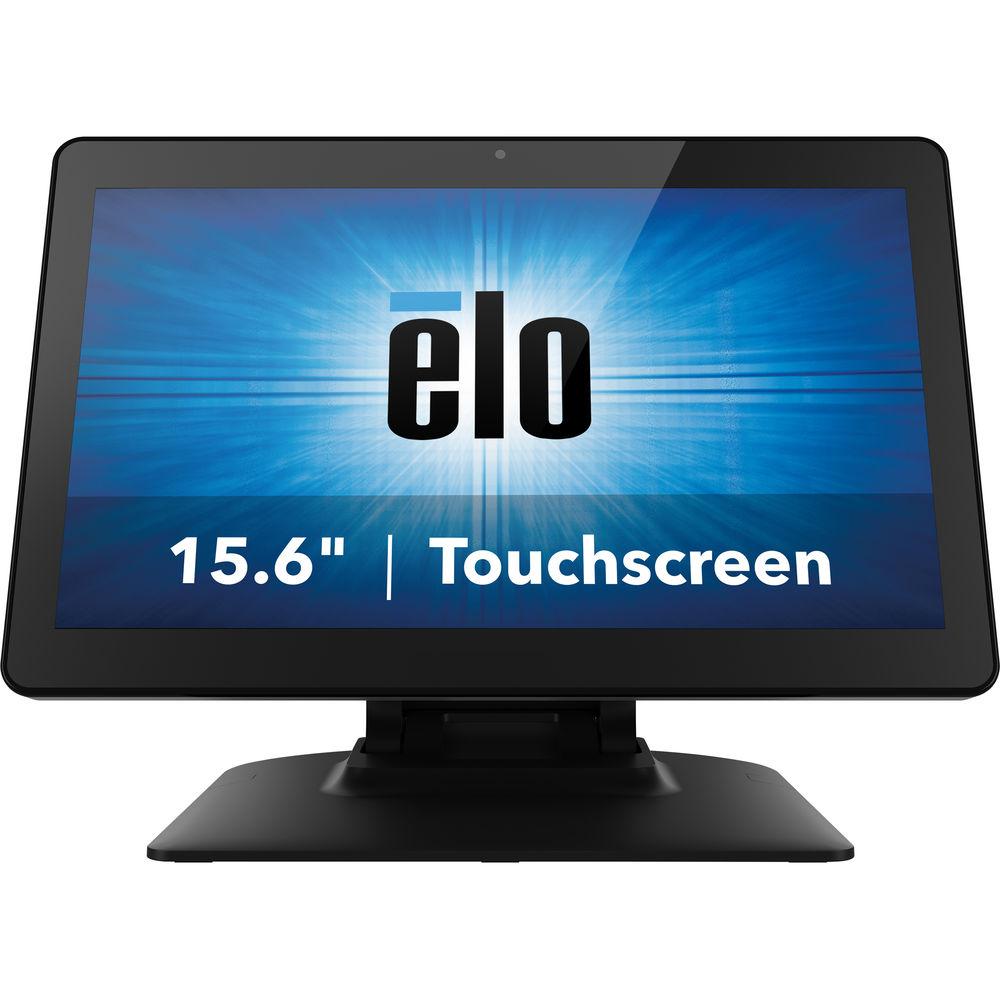

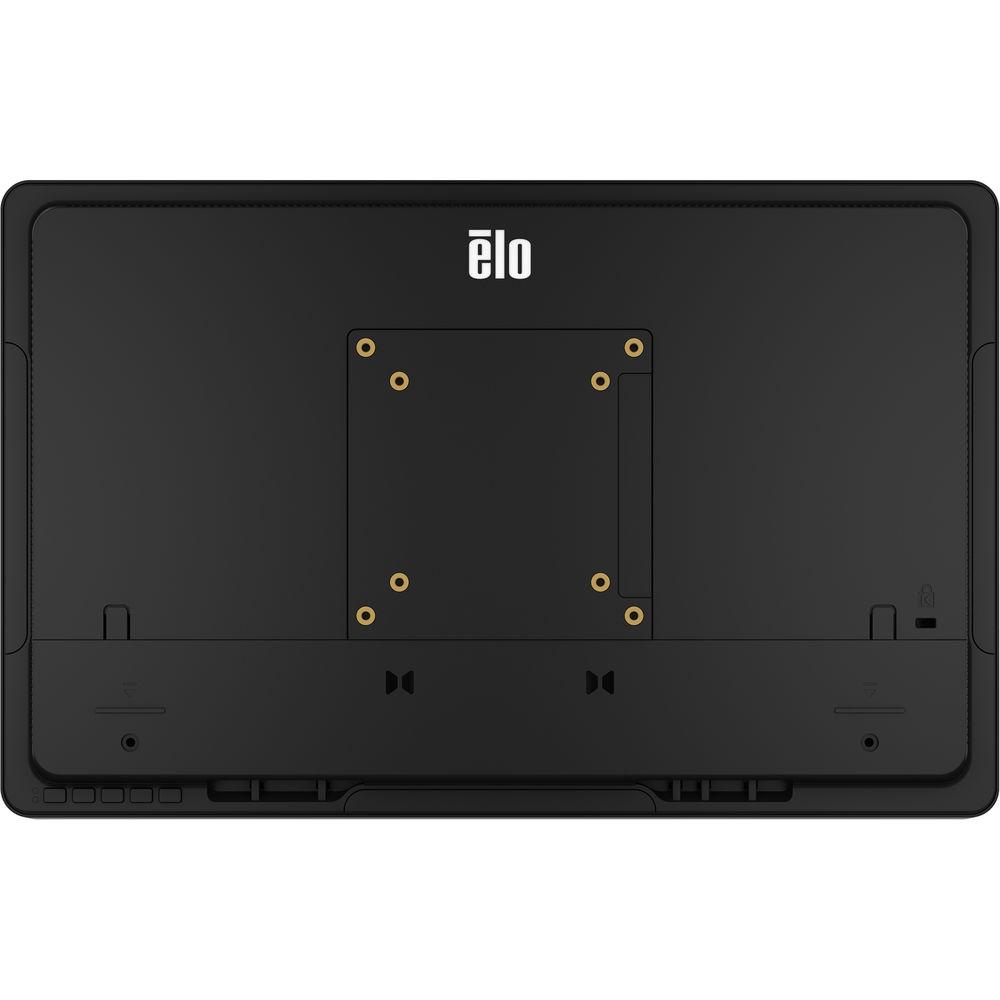

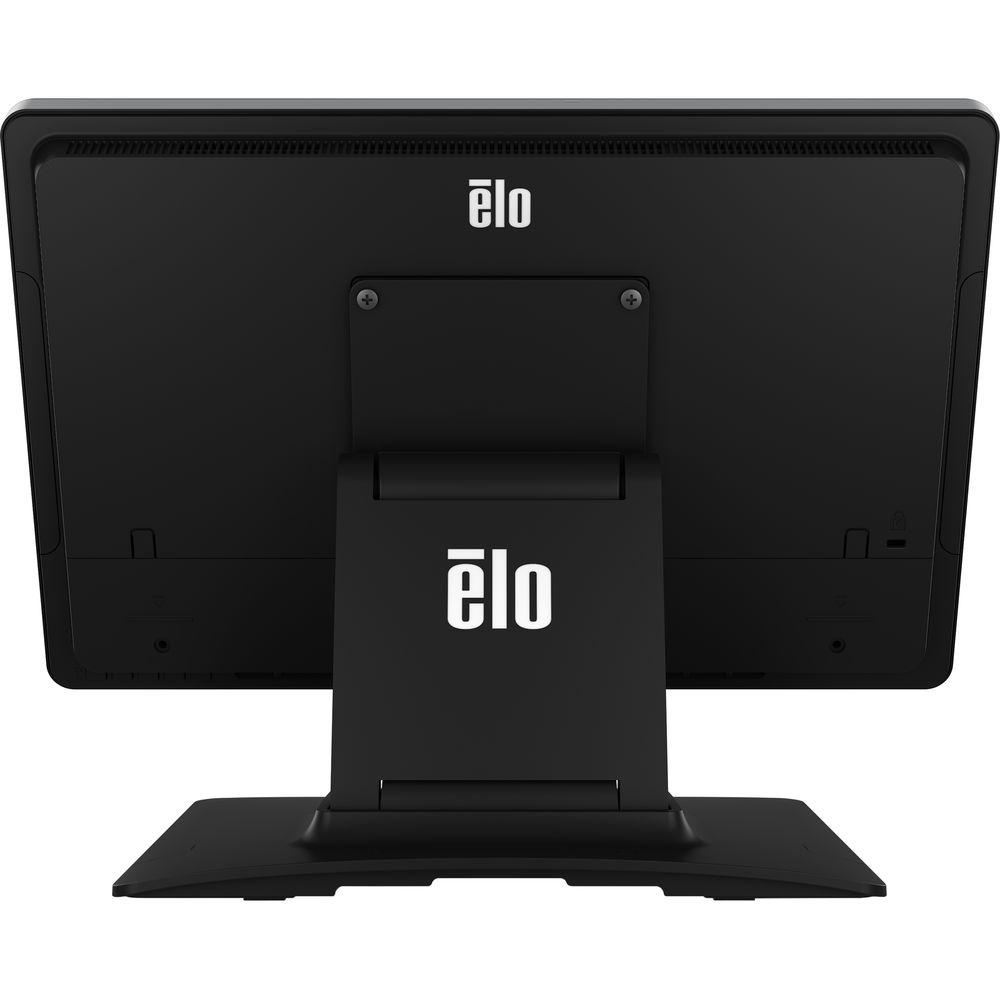

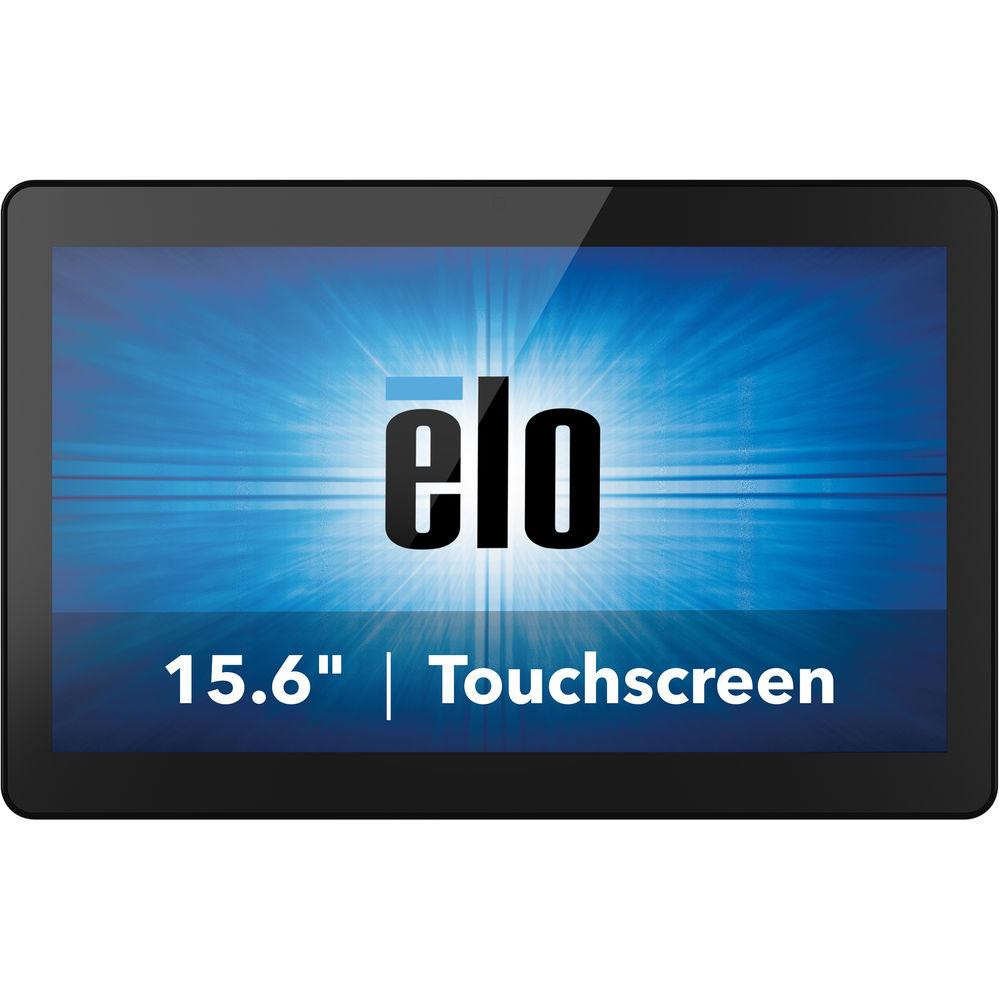

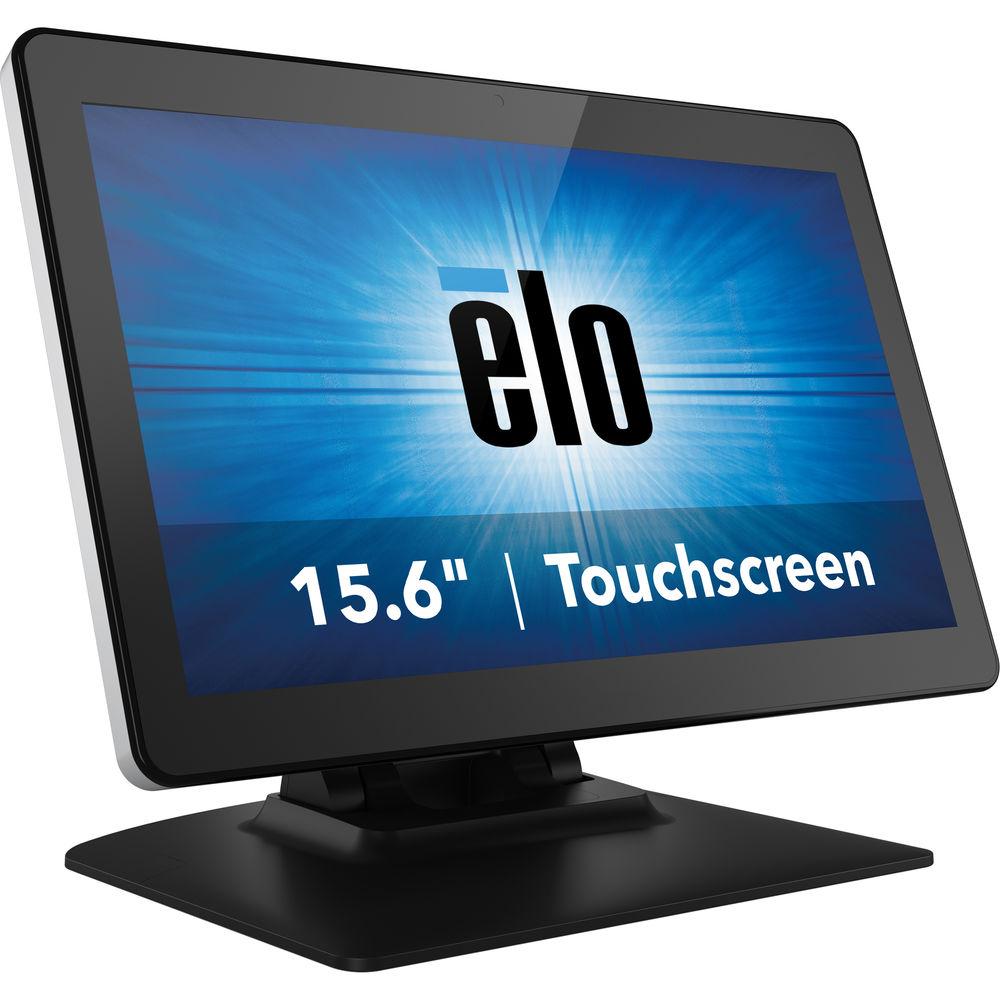

User Manual for Elo Touch I-Series for Windows 15" AiO Touchscreen Click to enlarge the picture
Contents of the user manual for the Elo Touch I-Series for Windows 15"
- Product category: Terminal & Thin Clients Elo Touch
- Brand: Elo Touch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elo Touch Terminal & Thin Clients
 |
User manual for the Elo Touch I-Series for Windows 15" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elo Touch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elo Touch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elo Touch product will considerably shorten its lifespan!
|
Product description Designed for use in retail locations as a point-of-sale terminal, the I-Series for Windows 15" AiO Touchscreen from Elo Touch features an intuitive TFT LCD display interface with a Full HD 1920 x 1080 resolution and a 700:1 contrast ratio to ensure images are displayed clearly. The screen also reaches a brightness of 300 cd/m2 and a max viewing angle of 170°. Additionally, it supports a response time of 25 ms along with up to 262,000 colors.
Furthermore, you can attach a variety of optional peripherals such as a mag stripe reader, barcode reader, fingerprint scanner, and more to make this a full-featured point-of-sale device. The I-Series can output video with its second micro-HDMI. - Processing Power
- This touchscreen computer offers the processing power needed to get work done with its 2.3 GHz Intel Core i5-6500TE quad-core processor. The I-Series for Windows can be pre-installed with Windows 10, Windows 8.1, or Windows 7, or with no OS.
- Integrated Touch
- Available in a wide-format 15" display, the I-Series for Windows all-in-one touchscreen features TouchPro projective capacitive (PCAP) technology, which provides a 10-touch tablet-like interactive experience. Moreover, with its edge-to-edge glass, it is easy to clean.
- Configured Perfection
- Create additional interactive touchpoints with built-in Bluetooth and optional peripherals, including near-field communication (NFC/RFID), magnetic stripe reader (MSR), barcode reader and other general-purpose analog I/O (GPIO) accessories. Or add a stand and a customer-facing display to create a seamless point of sale system.
- Commercial Grade
- The 15" I-Series is backed by a 3-year standard warranty, which is extendable up to five years. Unlike tablets, the product is designed for long-term commercial use with no mechanical components (such as fans or spinning drives) and no battery.
In the Box Elo Touch I-Series for Windows 15" AiO Touchscreen US Power Cable European Power Cable Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elo Touch I-Series for Windows 15" AiO Touchscreen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElo Touch E970665 Specs | Operating System | Windows 10 Home | | | | CPU | 2.3 GHz Intel Core i5-6500TE Quad-Core | | Maximum Boost Speed | 3.3 GHz | | Memory Type | 2133 MHz DDR4 | | Total Installed Memory | 4 GB | | Maximum Memory Capacity | 16 GB | | Available Memory Slots | 1 | | Graphics Type | Integrated | | GPU | Intel HD Graphics 530 | | | | Panel Type | TFT | | Size | 15.6" | | Aspect Ratio | 16:9 | | Resolution | 1920 x 1080 | | Maximum Brightness | 300 cd/m2 | | Response Time | 25 ms | | Viewing Angle (H x V) | 85 x 170° | | | | Total Drive Bays | Not Specified by Manufacturer | | Total Installed Capacity | 128 GB | | Solid State Storage | 1 x 128 GB 2.5" SATA | | Optical Drive | None | | | | Ports | 4 x USB Type-A (USB 3.1 Gen 1)
3 x Micro-USB | | Display | 1 x HDMI | | Audio | 1 x 1/8" / 3.5 mm Line Output | | Built-In Speakers | 2 | | Built-In Microphones | Yes | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac) | | Bluetooth | 4.0 | | NFC | Yes | | | | Dimensions | 15.2 x 9.8 x 1.5" / 386.1 x 248.9 x 38.1 mm | | Weight | 5.6 lb / 2.5 kg |
