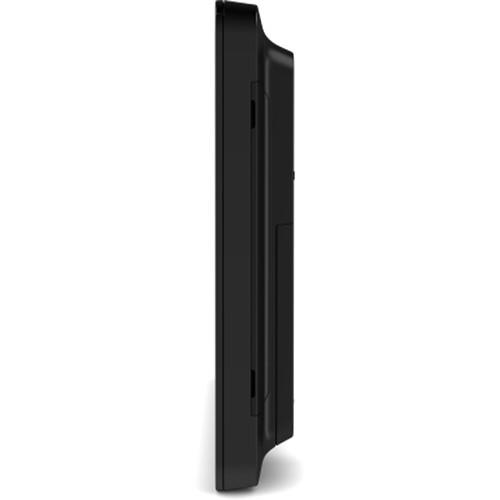

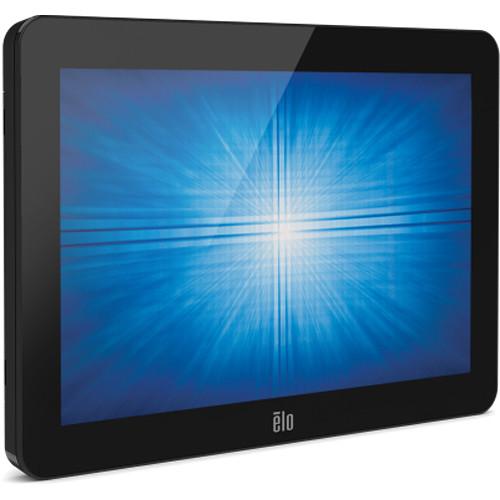

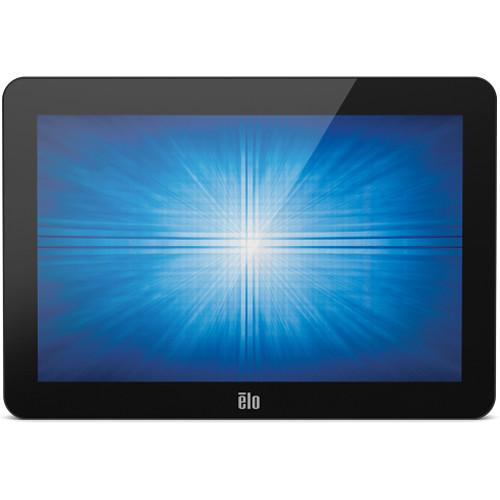

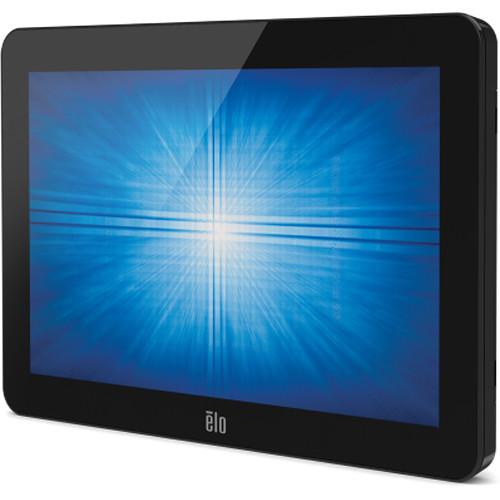

User Manual for Elo Touch M-Series 1002L 10.1" 16:10 Touchscreen LCD Monitor Click to enlarge the picture
Contents of the user manual for the Elo Touch M-Series 1002L 10.1" 16:10
- Product category: Computer Monitors Elo Touch
- Brand: Elo Touch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elo Touch Computer Monitors
 |
User manual for the Elo Touch M-Series 1002L 10.1" 16:10 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elo Touch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elo Touch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elo Touch product will considerably shorten its lifespan!
|

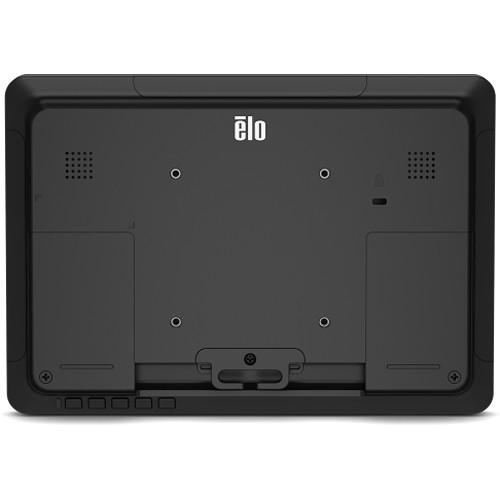

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Designed for use in retail locations as a point-of-sale terminal, the M-Series 1002L 10.1" 16:10 Touchscreen LCD Monitor from Elo features an intuitive touchscreen interface with a 1280 x 800 resolution and a 700:1 contrast ratio to ensure images are displayed clearly. This monitor comes compatible with the 75 x 75mm VESA mount standard, making it easy to install it in a variety of locations such as desks, tables, and more. Furthermore, you can attach a variety of optional peripherals such as a mag stripe reader, barcode reader, fingerprint scanner, and more to make this a full-featured point-of-sale device. - POS Ready
- The 1002L offers optional universal retail accessories with easy installation including a mag stripe reader (MSR), barcode reader, fingerprint scanner, customer-facing display, and near-field communication (NFC/RFID) adapter for mobile payments and increased compatibility with a variety of point of sale applications.
- Other Features
-
- Energy savings using LED technology
- TouchPro and non-touch models available
- Edge-to-edge glass display with anti-glare for retail interiors
- Installation flexibility with mounting in portrait, landscape, and table-top orientation
- Typical power consumption: 5.6W
- Power over USB using optional cable
- Lockouts: OSD, power
- Three-year standard warranty
UPC: 834619004292 In the Box Elo Touch M-Series 1002L 10.1" 16:10 Touchscreen LCD Monitor Power Brick Mini-VGA to VGA Cable USB Cable HDMI Cable Audio Cable 2 x Cable Clamp 2 x Tie Wrap Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elo Touch M-Series 1002L 10.1" 16:10 Touchscreen LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElo Touch 1002L Specs | | | Size | 10.1" | | Screen Area | 8.57 x 5.37" / 21.77 x 13.64 cm | | Panel Type | Unspecified LCD | | Touchscreen | Yes | | Resolution | 1280 x 800 | | Aspect Ratio | 16:10 | | Pixels Per Inch (ppi) | 149 ppi | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 700:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 31.5 to 60 kHz | | Bit Depth / Color Support | 6-Bit (262K Colors) | | HDR Compatibility | None | | Response Time | 25 ms | | Viewing Angle | Horizontal: 170°
Vertical: 170° | | Backlight Lifespan | 50,000 Hours | | | | Connectivity | 1 x Mini-VGA Input
1 x HDMI Input | | HDCP Support | Yes | | Built-In Speakers | Yes, 2 x 2 W | | Supported Languages | English
French
German
Italian
Japanese
Simplified Chinese
Spanish
Traditional Chinese | | | | Power Consumption | 5.6 W (Typical)
0.4 W (Standby)
7 W (Maximum) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | External | | DC Input Power | 12 VDC | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 20 to 80% | | Storage Humidity | 10 to 95% | | Certifications | BSMI, CE, FCC, IC, UL, VCCI, cUL, as per Manufacturer | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | None | | Mounting-Hole Pattern | 75 x 75 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 10.0 x 7.0 x 1.1" / 25.4 x 17.8 x 2.8 cm (Without Stand) | | Weight | 1.75 lb / 794 g | | | | Package Weight | 4.45 lb | | Box Dimensions (LxWxH) | 12.4 x 9.8 x 5.9" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 11 owners. Add your rating and experience with the product.
