User Manual for Elo Touch Windows 10 Intel i5 Computer Module for IDS 02 Series Displays Click to enlarge the picture
Contents of the user manual for the Elo Touch Windows 10 Intel i5
- Product category: Modules & Interface Cards Elo Touch
- Brand: Elo Touch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elo Touch Modules & Interface Cards
 |
User manual for the Elo Touch Windows 10 Intel i5 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elo Touch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elo Touch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elo Touch product will considerably shorten its lifespan!
|

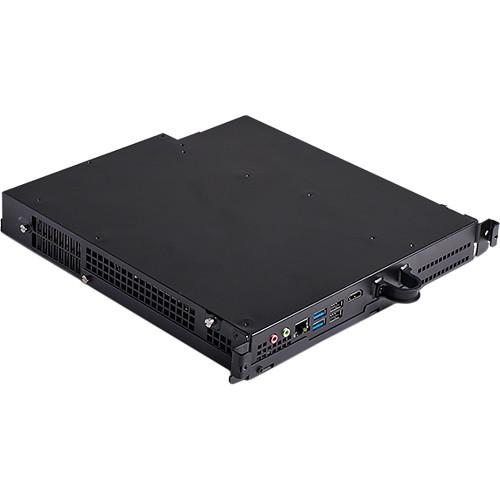

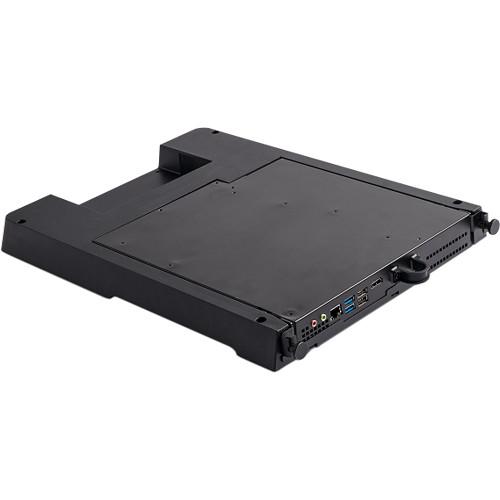

Product description Provided by third party: The Elo Computer Modules (ECM) featuring the Intel Core 6th Generation CPUs and enhanced graphics engine are available with Intel i3, i5 and i7 processors for Microsoft Windows 10, Windows 7 or no operating system. The commercial grade computer modules transform Elo's 3202L, 4202L, 4602L, 5502L, 5551L and 7001LT touchscreens into powerful touchcomputer platforms with compatibility to most content management servers, enabling customer engagement and immersive brand experiences by adding a new exciting dimension to traditional broadcast digital signage - the power of touch.
- Key Features
-

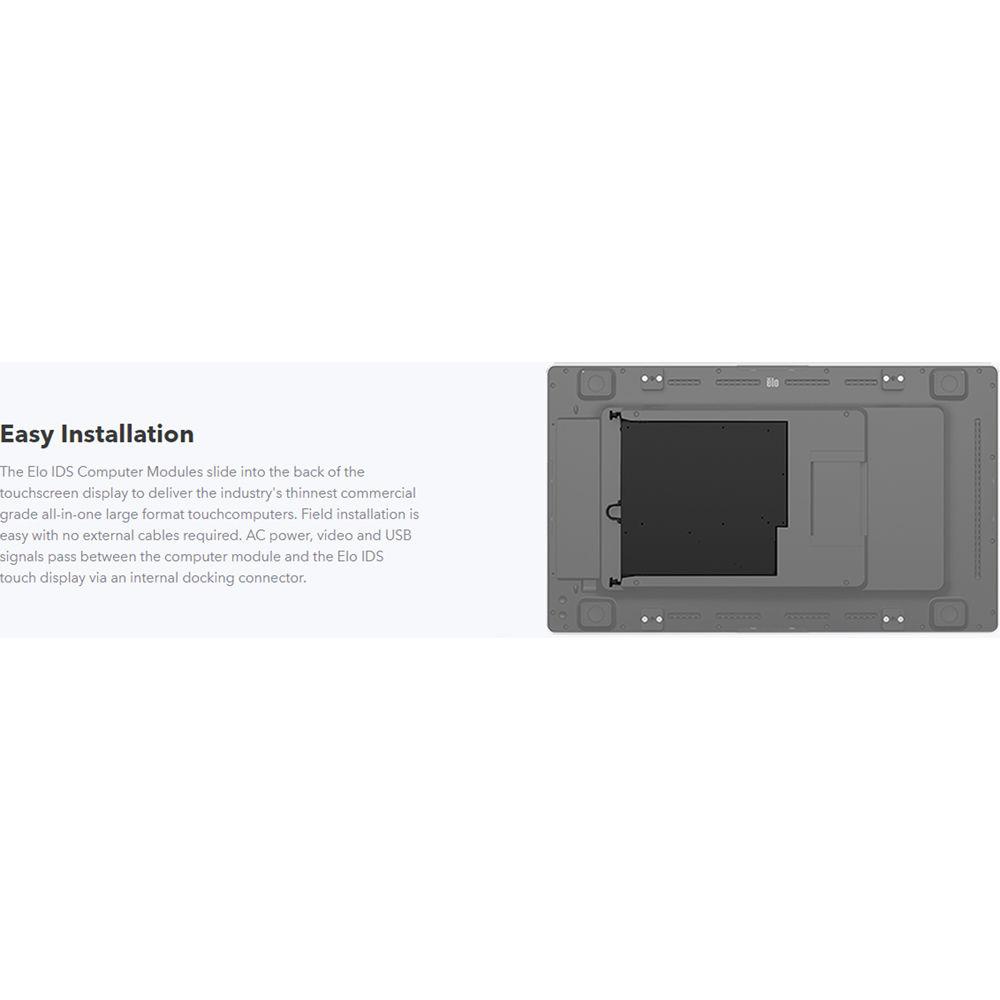

- No external cables required - AC power, video and USB signals pass between the computer module and the Elo IDS display via an internal docking connector
- Using Elo's computer modules instead of a separate external device can reduce complexity, provide added reliability, minimize mounting profile and reduce installation/maintenance costs

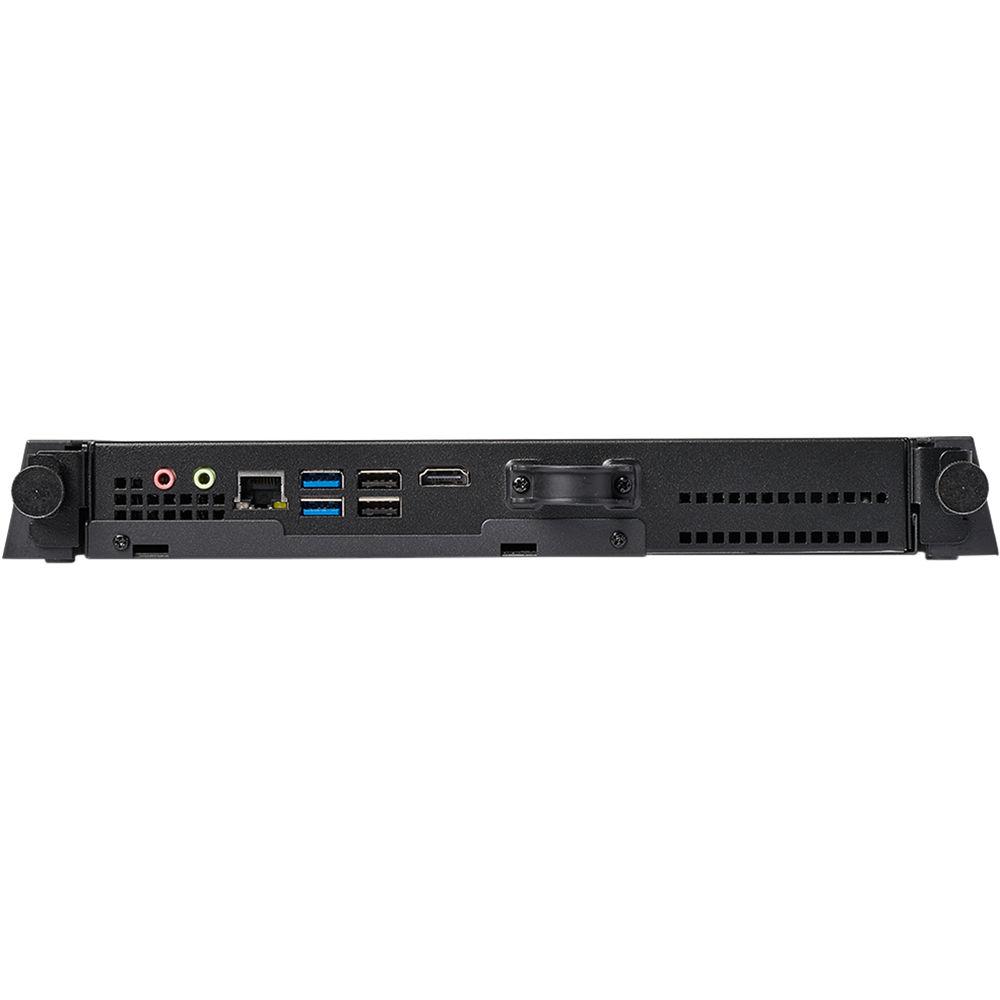

- Connections - LAN, 2x USB 2.0 Type A, 2x USB 3.0 Type A, HDMI, 3.5 mm line out & mic in
UPC: 815335026812 Table of Contents
|
Upload User Manual
Have you got an user manual for the Elo Touch Windows 10 Intel i5 Computer Module for IDS 02 Series Displays in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElo Touch E401558 Specs | | | Device Type | Digital signage player | | Width | 11.8 in | | Depth | 16.9 in | | Height | 1.5 in | | Weight | 6.88 lbs | | OS Provided | Windows 10 IOT LTSB 64-bit Edition | | Interfaces | USB 2.0, Gigabit Ethernet, USB 3.0 | | Key Features | Digital audio player, digital photo viewer, digital video player | | | | Manufacturer | Intel | | Type | Core i5 | | Installed Qty | 1 | | Processor Number | I5-6500 | | Number of Cores | Dual-Core | | Clock Speed | 3.6 GHz | | | | Technology | DDR4 SDRAM | | Installed Size | 4 GB | | Max Supported Size | 32 GB | | Slots Qty | 2 | | | | Storage Drive Type | SSD | | Capacity | 128 GB | | | | Graphics Processor | Intel HD Graphics 530 | | | | Storage Drive Capacity | 128 GB | | Storage Drive Form Factor | 2.5" | | | | Connections | HDMI output
2 x USB 3.0
2 x USB 2.0
LAN (Gigabit Ethernet)
Audio line-out - mini-jack
Microphone - mini-jack | | | | Compliant Standards | UL, VCCI, cUL, CB, FCC, AS/NZS | | | | Shipping Width | 16.5 in | | Shipping Depth | 21.1 in | | Shipping Height | 5.1 in | | Shipping Weight | 10.47 lbs | | | | Service & Support | Limited warranty - 3 years | | | | Min Operating Temperature | 32
