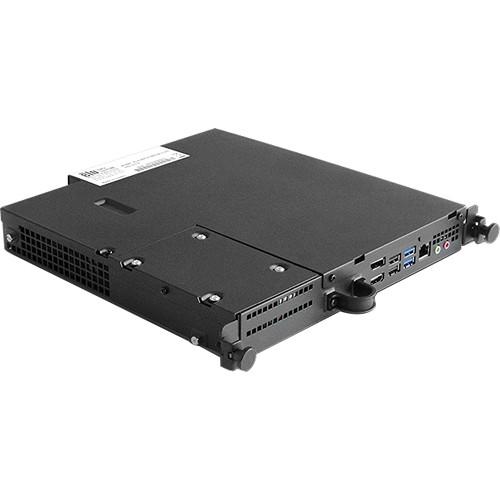

User Manual for Elo Touch Windows 10 Intel i7 Computer Module for IDS 01 Series Displays Click to enlarge the picture
Contents of the user manual for the Elo Touch Windows 10 Intel i7
- Product category: Modules & Interface Cards Elo Touch
- Brand: Elo Touch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elo Touch Modules & Interface Cards
|
User manual for the Elo Touch Windows 10 Intel i7 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elo Touch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elo Touch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elo Touch product will considerably shorten its lifespan!
|
Product description Provided by third party: The Elo Interactive Digital Signage (IDS) touch platform featuring the Intel Core 4th Generation CPUs with enhanced graphic engines enables increased customer engagement and immersive brand experiences by adding an exciting new dimension to traditional broadcast digital signage - the power of touch. Available with Windows 7, Windows 8.1, Windows 10 and No OS.
- Key Features
-
- Elo's ECMG2 computer modules, available for use with the Elo 3201L, 3202L, 4201L, 4202L, 4602L, 5501LT and 7001LT IDS touchscreens are well-suited for interactive media delivery and online collaboration for modern office environments. The computer modules are easily installed into the IDS display ? avoiding costs of in-wall installation of a traditional player or PC
- Computer modules are available in a choice of three models: ECMG2-i3 based on a 3.40GHz Intel Core i3 processor and HD4400 graphics; ECMG2-i5 based on a 3.70GHz Intel Core i5 processor and HD4600 graphics; and ECMG2-i7 based on a 4.00GHz IntelCore i7 processor and HD4600 graphics
- Centralized management and security capabilities of Microsoft Windows ensures compatibility with many content management servers and web-based consoles for seamless connection with the internet, digital marketing, interactive whiteboard, building directory, virtual receptionist, and point-of-information (POI) applications. The ECM can also support optimal partitioning of locally cached and network stored content, allowing developers to monitor and deploy content via device-to-device or web connections
Table of Contents
|
Upload User Manual
Have you got an user manual for the Elo Touch Windows 10 Intel i7 Computer Module for IDS 01 Series Displays in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElo Touch E992193 Specs | | | Device Type | Digital signage player | | Width | 10.8 in | | Depth | 9.8 in | | Height | 1.5 in | | Weight | 4.41 lbs | | OS Provided | Windows 10 | | Interfaces | USB 2.0, Gigabit Ethernet, USB 3.0 | | Key Features | Digital audio player, digital photo viewer, digital video player | | | | Manufacturer | Intel | | Type | Core i7 | | Installed Qty | 1 | | Processor Number | I7-4790S | | Number of Cores | Quad-Core | | Clock Speed | 4 GHz | | | | Technology | DDR3 SDRAM | | Installed Size | 8 GB | | Max Supported Size | 16 GB | | Slots Qty | 2 | | | | Storage Drive Type | SSD | | Capacity | 128 GB | | | | Graphics Processor | Intel HD Graphics 4600 | | | | Storage Drive Capacity | 128 GB | | Storage Drive Form Factor | 2.5" | | | | Connections | 2 x USB 2.0
2 x USB 3.0
LAN (Gigabit Ethernet)
Microphone - mini-jack
Audio line-out - mini-jack
HDMI output
DisplayPort output | | | | Compliant Standards | UL, VCCI, BSMI, cUL, CB, IC, FCC, RCM | | | | Service & Support | Limited warranty - 3 years | | | | Min Operating Temperature | 32
