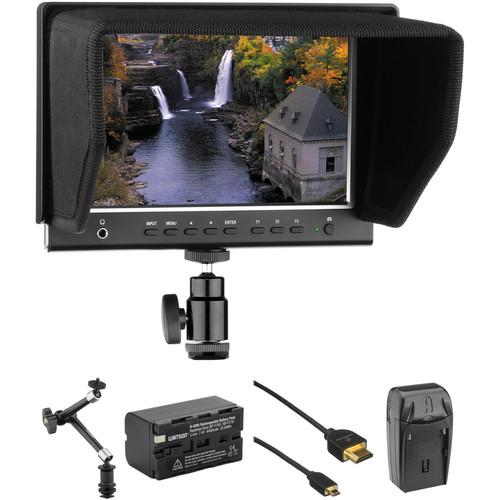

User Manual for Elvid 7" On-Camera Monitor with Battery, Articulating Arm, and HDMI Cable Kit Click to enlarge the picture
Contents of the user manual for the Elvid 7" On-Camera Monitor with Battery,
- Product category: On Camera Monitors Elvid
- Brand: Elvid
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elvid On Camera Monitors
|
User manual for the Elvid 7" On-Camera Monitor with Battery, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elvid product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elvid user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elvid product will considerably shorten its lifespan!
|
Product description This Elvid RigVision 7" On-Camera Monitor with Battery, Articulating Arm, and HDMI Cable Kit from B&H includes an on-camera monitor that can accept signals up to 1920 x 1080, and display them on its 1280 x 800 IPS screen. It features an 800:1 contrast ratio and 400 cd/m² maximum brightness for a clear picture. The monitor supports image evaluating tools such as focus peaking, 1-to-1 pixel mapping, and zebra bars.
Included in the kit is a Watson NP-770 type battery which mounts on the back of the monitor for cable-free powering. The Axler 11" articulating arm features a central knob for tightening and locking it in place, while an included cold shoe mounting foot adapter enables attaching to your camera's cold shoe or to a 1/4"-20 threaded receiver. The Pearstone HDMI to micro-HDMI cable is 3' long, providing ample slack for positioning your monitor. It supports 3D, 4K, and Audio Return Channel. - Elvid 7" RigVision Lightweight On-Camera Monitor Elvid's 7" RigVision is a very lightweight on-camera monitor offering high image quality and incorporating remote shutter release functionality. Set up and monitor your shots in 1280 x 800 high resolution and sharp 800:1 contrast ratio. Analyze focus, exposure, and other characteristics with False Color, Zebra, Pixel-to-Pixel, Histogram, and altogether over a dozen features. Connect to simultaneously active HDMI and Composite inputs, and loop out the HDMI signal to a recorder or other device. Connect a shutter release cable to a port on the side and take photos using a shutter button on the front panel. For audio monitoring, the RigVision features a built-in speaker, headphone output, and on-screen audio level meter. An assortment of supplied accessories includes two interchangeable DV battery plates, V-mount and Gold-mount plate adapter, and shutter release cables. 13 functions in total are assignable across three function buttons on the front panel. The included DV battery plates are for Sony F-970 and Canon LP-E6 compatible batteries, and they simply snap into place without any screws required, and additional plates are optionally available from Elvid. An AC power adapter is also included. Weighing less than 1 lb, the 7" RigVision rests easily on your camera while providing a large monitoring display.
- Key Features
-
- Lightweight LED backlit IPS on-camera monitor
- Remote shutter release port and shutter button
- 1280 x 800 resolution
- 800:1 contrast ratio
- 178° viewing angle
- HDMI and Composite inputs; HDMI loop output
- Fully compatible with RED cameras
- Built-in speaker and headphone output
- Includes interchangeable F-970 and LP-E6 DV battery plates
- Includes V-mount and Gold-mount plate adapter
- DC power cable included
- Canon 3-pin and Nikon 10-pin shutter release cables supplied
- Monitoring Features
-
- Histogram
- 1:1 Pixel-to-Pixel
- Picture-in-Picture (for when the HDMI and Composite inputs are used simultaneously)
- H/V Delay
- Underscan
- Center Marker
- Zoom (up to 8x)
- False Color
- Peaking
- Zebra
- Color Bar
- Image Flip
- Audio Level Meter
- Adjustable color temperature
UPC: 847628580473 - Axler AA-11 Recodo Articulating Arm (11") The Axler Recodo Articulating Arm is a flexible 11" long arm that supports up to 6 pounds for attaching and positioning available accessories to your camera or accessory mounting point. It is machined from a metal alloy for strength and features three points of articulation that tighten and loosen using a single locking twist handle.
The ends of the arm feature 1/4"-20 threaded studs set into ball joints, with each joint providing swivel adjustment and lockable position adjustment. The threaded studs feature thumb wheels that allow you to tighten accessories on the threaded studs. The arm includes a removable shoe mount that attaches to your camera's accessory hot/cold shoe. - Cold Shoe Mount Adapter
- The removable shoe mount adapter features a cold shoe foot to 1/4"-20 threaded stud, with two threaded thumbwheels that enable tightening the foot in your camera's cold shoe as well as your 1/4"-20 accessory. The cold shoe foot also features a female 1/4"-20 threaded mounting hole on the bottom, so you can mount it on a 1/4"20 threaded stud. Rounding out the shoe adapter is a 1/4"-20 coupler.
- Single Knob Tightening
- When the arm is loose, the center pivot, and both ball joint ends are flexible and can be moved to almost any position. Tightening the center twist lock tightens the center pivot as well as both ball ends at the same time.
- Center Pivot
- The center pivot features two facing rosettes that provide a secure friction source to prevent the arms from slipping.
UPC: 847628002029 - Watson NP-F770 Lithium-Ion Battery Pack (7.4V, 4400mAh) The Watson NP-F770 Lithium-Ion Battery Pack works with the same cameras as the Sony NP-F770 and NP-F750. This replacement battery pack features a capacity of 4400mAh and 7.4V of output power. Small and lightweight, lithium-ion batteries can be charged or discharged at any time without developing memory effects.
- Compatible Cameras
- Sony
- DCR-SD1000
- DCR-SR40
- DCR-TRV900
- DCR-VX2000
- DCR-VX2100
- DCR-VX2200
- HDR-AX2000
- HDR-FX1
- HDR-FX7
- HDR-FX1000
- HVR-HD1000
- HVR-V1
- HVR-Z1
- HVR-Z5
- HVR-Z7
- HXR-MC1500
- HXR-MC2000
- HXR-NX5
- HXR-NX5R
- NEX-EA50
- NEX-FS100
- NEX-FS700
UPC: 847628541061 - Pearstone HDD-103 High-Speed HDMI to Micro-HDMI Cable with Ethernet (3') The 3' HDD-103 High-Speed HDMI to Micro-HDMI Cable with Ethernet from Pearstone allows you to connect your portable devices to HDMI displays. Transfer movies, photos, and videos from devices like cell phones, digital cameras, and video cameras to view on your HDMI display. This cable supports supports Audio Return Channel, 3D content, and a resolution of of up to UHD 4K (2160p). HDMI Ethernet Channel technology consolidates video, audio, and data streams into a single HDMI cable.
- HDMI Ethernet Channel consolidates video, audio, and data streams
- 24kt gold-plated connectors for cleaner transmission and corrosion resistance
- Supports Audio Return Channel for sharing an audio signal between compatible devices
- Supports 3D and 4K resolution with compatible devices
UPC: 847628031975 - Watson Compact AC/DC Charger for L & M Series Batteries This versatile Compact AC/DC Charger from Watson charges all Sony L & M series type lithium-ion batteries via the included dedicated battery plate. The charger runs on 100 to 240 VAC power, allowing for worldwide use. It features a fold-out 2-prong US plug and is supplied with a European plug adapter as well as a 12 VDC car charger that plugs into a cigarette lighter. This makes the charger ideal for use both at home and on the road.
The Compact AC/DC Charger features a USB power output that allows you to charge and power MP3 players, phones, digital cameras, and other devices with a USB power input--even while charging your camera or camcorder batteries. With its easily interchangeable plate, the charger can also be used for other battery models via the purchase of an additional battery adapter plate. - Compatibility
- Compatible with any Sony NP-F550, NP-F570, NP-F730H, NP-F750, NP-F770, NP-F930, NP-F950, NP-F960, NP-F970, NP-FM30, NP-FM50, NP-FM500H, NP-FM55H, NP-FM70, NP-FM90, NP-FM91, NP-QM71, NP-QM71D, NP-QM91, NP-QM91D type batteries.
- Compact
- Charger features a fold-out AC plug for easy storage and travel.
- Versatile
-
- Comes with an included Euro plug adapter for charging in Europe.
- Included DC adapter with car lighter plug lets you charge while on the road.
- USB Output
- Charge or supply power for MP3 devices, mobile phones, digital cameras, and other related devices with a USB power input.
- Safety Features
- The charger features protection against overcharging and overheating.
UPC: 847628541566 In the Box - 7" RigVision Lightweight On-Camera Monitor dzseutarsexbzqsqxueuuybtfvturbusz
- 12V AC Power Adapter
- Elvid Battery Plate for F-970 Compatible Batteries
- Elvid Battery Plate for LP-E6 Compatible Batteries
- V-Mount / Gold-Mount Adapter Panel
- Sun Shade Cover
- Sun Shade Bracket
- Canon 3-Pin Shutter Release Cable
- Nikon 10-Pin Shutter Release Cable
- HDMI to Mini HDMI Cable
- Shoe Mount Adapter
- User Manual
- Limited 1-Year Warranty
- Axler - AA-11 Recodo Articulating Arm (11")
- Watson - NP-F770 Lithium-Ion Battery Pack (7.4V, 4400mAh)
- Pearstone - HDD-103 High-Speed HDMI to Micro-HDMI Cable with Ethernet (3')
- Watson - Compact AC/DC Charger for L & M Series Batteries
Table of Contents
|
Upload User Manual
Have you got an user manual for the Elvid 7" On-Camera Monitor with Battery, Articulating Arm, and HDMI Cable Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Elvid 7" RigVision Lightweight On-Camera Monitor
| | | Panel Type | IPS-Type LCD | | Display Size | 7.0" / 17.8 cm | | Screen Resolution | 1280 x 800 | | Aspect Ratio | 16:10 | | Viewing Angle | Horizontal: 178° (89/89)
Vertical: 178° (89/89) | | Maximum Brightness | 400 cd/m2 | | Contrast Ratio | 800:1 | | Image Controls | False Color, Focus Peaking, Image Flip, Picture-in-Picture, Pixel-to-Pixel Zoom, Screen Markers, Underscan | | | | Video | 1 x HDMI Type A Input
1 x 3.5 mm (Composite) Input
1 x HDMI Type A Output | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | 1 | | Card Slot | None | | | | DC Input Power | 7 to 24 VDC | | Battery Type | 1 x LP-E6 or L-Series | | Operating Current | 900 mA | | Power Consumption | 12 W (Maximum) | | | | Dimensions (W x H x D) | 7.3 x 5.2 x 0.9" / 18.5 x 13.2 x 2.3 cm | | Weight | 0.8 lb / 365 g | | | | Box Dimensions (LxWxH) | 8.74 x 6.063 x 4.567" | - Axler AA-11 Recodo Articulating Arm (11")
| Load Capacity | 6 lb / 2.7 kg | | Length | Unfolded: 11" / 27.9 cm (end-to-end without the coupler) | | Width | Widest: 2.25" / 5.7 cm | | Weight | 8.8 oz / 250 g | | | | Box Dimensions (LxWxH) | 7.3 x 2.9 x 1.7" | - Watson NP-F770 Lithium-Ion Battery Pack (7.4V, 4400mAh)
| Mount / Series Type | Sony L-Series | | Chemistry | Lithium-Ion | | Amp-Hours | 4400 mAh | | Output Voltage | 7.4 VDC | | Dimensions (W x H x D) | 2.8 x 1.5 x 1.6" / 70.0 x 38.0 x 40.0 mm | | Weight | 7.2 oz / 204 g | | | | Box Dimensions (LxWxH) | 5.35 x 2.95 x 1.95" | - Pearstone HDD-103 High-Speed HDMI to Micro-HDMI Cable with Ethernet (3')
| Connector 1 | HDMI Type-A Male | | Connector 2 | HDMI Type-D Male | | Cable Length | 3' / 0.91 m | | Maximum Resolution Support | 4096 x 2160 | | 3D Support | Yes | | Ethernet Channel | Yes | | | | Box Dimensions (LxWxH) | 6.221 x 5.6 x 0.158" | - Watson Compact AC/DC Charger for L & M Series Batteries
| Compatible Battery Series | Sony L
Sony M | | Charging Time | 2 to 6 Hours | | USB Output Ports | 1 x USB Type-A (5 VDC at 1 A) | | Output Voltage | 4.2 to 8.4 VDC at 800 mA | | DC Power Input | Car Adapter: 12 to 24 VDC | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 100 mA | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions | 2 x 1.3 x 3.5" / 5.1 x 3.3 x 9 cm | | Weight | 3.1 oz / 88 g | | | | Box Dimensions (LxWxH) | 7.05 x 4.15 x 2.9" |
