Product description Elvid's 7" RigVision is a very lightweight on-camera monitor offering high image quality and incorporating remote shutter release functionality. Set up and monitor your shots in 1280 x 800 high resolution and sharp 800:1 contrast ratio. Analyze focus, exposure, and other characteristics with False Color, Zebra, Pixel-to-Pixel, Histogram, and altogether over a dozen features. Connect to simultaneously active HDMI and Composite inputs, and loop out the HDMI signal to a recorder or other device. Connect a shutter release cable to a port on the side and take photos using a shutter button on the front panel. For audio monitoring, the RigVision features a built-in speaker, headphone output, and on-screen audio level meter. An assortment of supplied accessories includes two interchangeable DV battery plates, V-mount and Gold-mount plate adapter, and shutter release cables. 13 functions in total are assignable across three function buttons on the front panel. The included DV battery plates are for Sony F-970 and Canon LP-E6 compatible batteries, and they simply snap into place without any screws required, and additional plates are optionally available from Elvid. An AC power adapter is also included. Weighing less than 1 lb, the 7" RigVision rests easily on your camera while providing a large monitoring display. - Key Features
-
- Lightweight LED backlit IPS on-camera monitor
- Remote shutter release port and shutter button
- 1280 x 800 resolution
- 800:1 contrast ratio
- 178° viewing angle
- HDMI and Composite inputs; HDMI loop output
- Fully compatible with RED cameras
- Built-in speaker and headphone output
- Includes interchangeable F-970 and LP-E6 DV battery plates
- Includes V-mount and Gold-mount plate adapter
- DC power cable included
- Canon 3-pin and Nikon 10-pin shutter release cables supplied
- Monitoring Features
-
- Histogram
- 1:1 Pixel-to-Pixel
- Picture-in-Picture (for when the HDMI and Composite inputs are used simultaneously)
- H/V Delay
- Underscan
- Center Marker
- Zoom (up to 8x)
- False Color
- Peaking
- Zebra
- Color Bar
- Image Flip
- Audio Level Meter
- Adjustable color temperature

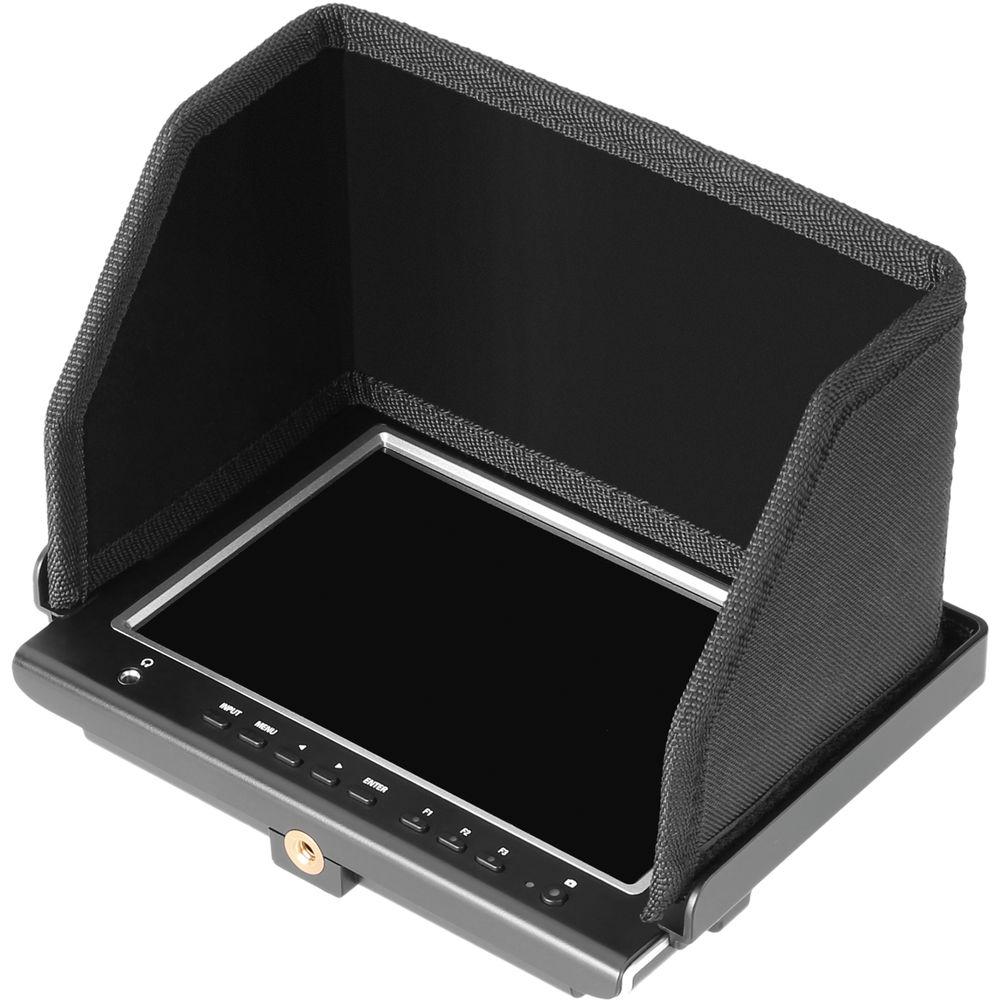

UPC: 847628580473 In the Box Elvid 7" RigVision Lightweight On-Camera Monitor 12V AC Power Adapter Elvid Battery Plate for F-970 Compatible Batteries Elvid Battery Plate for LP-E6 Compatible Batteries V-Mount / Gold-Mount Adapter Panel Sun Shade Cover Sun Shade Bracket Canon 3-Pin Shutter Release Cable Nikon 10-Pin Shutter Release Cable HDMI to Mini HDMI Cable Shoe Mount Adapter User Manual Limited 1-Year Warranty User Manual PDF 1.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Elvid 7" RigVision Lightweight On-Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElvid RVM-7B-ALT Specs | | | Panel Type | IPS-Type LCD | | Display Size | 7.0" / 17.8 cm | | Screen Resolution | 1280 x 800 | | Aspect Ratio | 16:10 | | Viewing Angle | Horizontal: 178° (89/89)
Vertical: 178° (89/89) | | Maximum Brightness | 400 cd/m2 | | Contrast Ratio | 800:1 | | Image Controls | False Color, Focus Peaking, Image Flip, Picture-in-Picture, Pixel-to-Pixel Zoom, Screen Markers, Underscan | | | | Video | 1 x HDMI Type A Input
1 x 3.5 mm (Composite) Input
1 x HDMI Type A Output | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | 1 | | Card Slot | None | | | | DC Input Power | 7 to 24 VDC | | Battery Type | 1 x LP-E6 or L-Series | | Operating Current | 900 mA | | Power Consumption | 12 W (Maximum) | | | | Dimensions (W x H x D) | 7.3 x 5.2 x 0.9" / 18.5 x 13.2 x 2.3 cm | | Weight | 0.8 lb / 365 g | | | | Package Weight | 3.35 lb | | Box Dimensions (LxWxH) | 8.74 x 6.063 x 4.567" |
