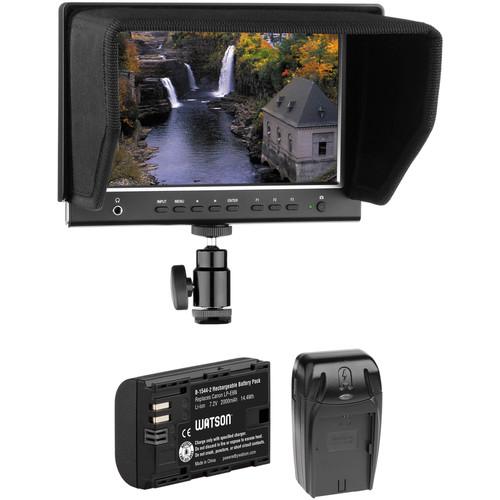

User Manual for Elvid 7" RigVision On-Camera Monitor with Battery & Charger Kit

• Product category: On Camera Monitors Elvid
• Brand: Elvid
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Elvid On Camera Monitors

Product description

• Elvid 7" RigVision Lightweight On-Camera Monitor Elvid's 7" RigVision is a very lightweight on-camera monitor offering high image quality and incorporating remote shutter release functionality. Set up and monitor your shots in 1280 x 800 high resolution and sharp 800:1 contrast ratio. Analyze focus, exposure, and other characteristics with False Color, Zebra, Pixel-to-Pixel, Histogram, and altogether over a dozen features. Connect to simultaneously active HDMI and Composite inputs, and loop out the HDMI signal to a recorder or other device. Connect a shutter release cable to a port on the side and take photos using a shutter button on the front panel. For audio monitoring, the RigVision features a built-in speaker, headphone output, and on-screen audio level meter. An assortment of supplied accessories includes two interchangeable DV battery plates, V-mount and Gold-mount plate adapter, and shutter release cables. 13 functions in total are assignable across three function buttons on the front panel. The included DV battery plates are for Sony F-970 and Canon LP-E6 compatible batteries, and they simply snap into place without any screws required, and additional plates are optionally available from Elvid. An AC power adapter is also included. Weighing less than 1 lb, the 7" RigVision rests easily on your camera while providing a large monitoring display.
  Key Features
  • • Lightweight LED backlit IPS on-camera monitor
    • Remote shutter release port and shutter button
    • 1280 x 800 resolution
    • 800:1 contrast ratio
    • 178° viewing angle
    • HDMI and Composite inputs; HDMI loop output
    • Fully compatible with RED cameras
    • Built-in speaker and headphone output
    • Includes interchangeable F-970 and LP-E6 DV battery plates
    • Includes V-mount and Gold-mount plate adapter
    • DC power cable included
    • Canon 3-pin and Nikon 10-pin shutter release cables supplied
  Monitoring Features
  • • Histogram
    • 1:1 Pixel-to-Pixel
    • Picture-in-Picture (for when the HDMI and Composite inputs are used simultaneously)
    • H/V Delay
    • Underscan
    • Center Marker
    • Zoom (up to 8x)
    • False Color
    • Peaking
    • Zebra
    • Color Bar
    • Image Flip
    • Audio Level Meter
    • Adjustable color temperature
  UPC: 847628580473
• Watson LP-E6N Lithium-Ion Battery Pack (7.2V, 2000mAh) The Watson LP-E6N Lithium-Ion Battery Pack works with all cameras and camcorders that take the Canon LP-E6N or LP-E6. This replacement battery pack with a Japanese-made cell features a 2000mAh capacity, 7.2V of output power, and 14.4 watt-hours. Small and lightweight, lithium-ion batteries can be charged or discharged at any time without developing memory effect.
  Compatible Cameras
  • Canon EOS DSLRs:
    • 5D Mark II
    • 5D Mark III
    • 5D Mark IV
    • 5DS
    • 5DS R
    • 60D
    • 60Da
    • 70D
    • 80D
    • 6D
    • 6D Mark II
    • 7D
    • 7D Mark II
    • 7DSV

    Canon Camcorders:
    • XC15 4K UHD Camcorder
    • XC10 4K Professional Camcorder
  UPC: 847628598393
• Watson Compact AC/DC Charger for LP-E6 & LP-E6N Battery This versatile Compact AC/DC Charger from Watson charges any LP-E6 or LP-E6N lithium-ion battery via the included, dedicated battery plate. The charger runs on 100-240 VAC power, allowing for worldwide use. It features a fold-out, 2-prong US plug and is supplied with a European plug adapter, as well as a 12 VDC car charger that plugs into a cigarette lighter. This makes it ideal for use both at home and on the road. The Compact AC/DC Charger features a USB output that allows you to charge and power MP3 players, phones, digital cameras, and other devices with a USB power input - even while charging your camera or camcorder batteries. As the adapter plates are easily interchangeable, the charger can also be used with other batteries via the purchase of the required plates.
  Compatibility
  • Compatible with any Canon LP-E6 or LP-E6N type battery.
  Compact
  • Charger features a fold-out AC plug for easy storage and travel.
  Versatile
  • Includes a Euro plug adapter for charging in Europe, as well as a DC adapter with a cigarette lighter plug that lets you charge while on the road.
  USB Output
  • Charge or supply power to MP3 players, mobile phones, digital cameras, and other related devices with a USB power input.
  Safety Features
  • Offers protection against overcharging and overheating.
  UPC: 847628545618

• 7" RigVision Lightweight On-Camera Monitor rrsvrvftdrzaettsrqdcvudcauutyys
• 12V AC Power Adapter
• Elvid Battery Plate for F-970 Compatible Batteries
• Elvid Battery Plate for LP-E6 Compatible Batteries
• V-Mount / Gold-Mount Adapter Panel
• Sun Shade Cover
• Sun Shade Bracket
• Canon 3-Pin Shutter Release Cable
• Nikon 10-Pin Shutter Release Cable
• HDMI to Mini HDMI Cable
• Shoe Mount Adapter
• User Manual
• Limited 1-Year Warranty

• Watson - LP-E6N Lithium-Ion Battery Pack (7.2V, 2000mAh)

• Watson - Compact AC/DC Charger for LP-E6 & LP-E6N Battery

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Elvid 7" RigVision Lightweight On-Camera Monitor

  Panel Type	IPS-Type LCD
  Display Size	7.0" / 17.8 cm
  Screen Resolution	1280 x 800
  Aspect Ratio	16:10
  Viewing Angle	Horizontal: 178° (89/89) Vertical: 178° (89/89)
  Maximum Brightness	400 cd/m2
  Contrast Ratio	800:1
  Image Controls	False Color, Focus Peaking, Image Flip, Picture-in-Picture, Pixel-to-Pixel Zoom, Screen Markers, Underscan

  Video	1 x HDMI Type A Input 1 x 3.5 mm (Composite) Input 1 x HDMI Type A Output
  Audio	1 x 3.5 mm Headphone Output
  Built-In Speaker	1
  Card Slot	None

  DC Input Power	7 to 24 VDC
  Battery Type	1 x LP-E6 or L-Series
  Operating Current	900 mA
  Power Consumption	12 W (Maximum)

  Dimensions (W x H x D)	7.3 x 5.2 x 0.9" / 18.5 x 13.2 x 2.3 cm
  Weight	0.8 lb / 365 g

  Box Dimensions (LxWxH)	8.74 x 6.063 x 4.567"

• Watson LP-E6N Lithium-Ion Battery Pack (7.2V, 2000mAh)

  Chemistry	Lithium-ion
  Capacity	2000 mAh
  Output Voltage	7.2 V
  Watt-Hours	14.4Wh
  Operating Temperature	15 to 105°F / -10 to 40°C
  Storage Temperature	59°F / 15°C recommended

  Box Dimensions (LxWxH)	6.5 x 3.5 x 1.5"

• Watson Compact AC/DC Charger for LP-E6 & LP-E6N Battery

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	12 / 24 VDC
  Output Voltage	4.2 to 8.4 VDC at 800 mA
  Charging Time	1 to 3 Hours
  USB Port	1 x USB Type-A
  USB Output Current	1000 mA
  Operating Temperature	32 to 104°F / 0 to 40°C
  Storage Temperature	-4 to 140°F / -20 to 60°C
  Dimensions (W x H x D)	2.0 x 1.3 x 3.5" / 5.1 x 3.3 x 9.0 cm
  Weight	3.1 oz / 88 g

  Box Dimensions (LxWxH)	6.9 x 4.8 x 2.1"
