User Manual for Elvid FieldVision 4KV2 7" On-Camera Monitor Click to enlarge the picture
Contents of the user manual for the Elvid FieldVision 4KV2 7" On-Camera Monitor
- Product category: On Camera Monitors Elvid
- Brand: Elvid
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elvid On Camera Monitors
|
User manual for the Elvid FieldVision 4KV2 7" On-Camera Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elvid product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elvid user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elvid product will considerably shorten its lifespan!
|
Product description Perfect for DSLR and mirrorless cameras, or any other video or cinema camera with an HDMI output, the Elvid FieldVision 4KV2 7" On-Camera Monitor allows you to monitor SD, HD, and 4K video signals on its high-resolution 1920 x 1200 IPS LCD screen. Monitoring tools such as focus peaking, zebras, 1:1 pixel mapping, and more make it easy to assess your image on the FieldVision 4KV2.The IPS LCD panel on the FieldVision 4KV2 has a contrast ratio of 1200:1 and a brightness of 450 cd/m², making it easily viewable indoors. In bright sunlit outdoor conditions, or other situations with bright direct light, use the included sun hood to block any glare for a clear view of the screen.Power can be supplied to the monitor via the included L-Series battery plate. L-Series batteries are widely available, and come in a variety of sizes. If you already own L-Series-powered cameras or accessories, powering this monitor won't be a problem. An articulated ball shoe mount, Mini HDMI to HDMI cable, and an HDMI cable locking collar are also included. - 4K Signal Support
- The FieldVision 4KV2 can display UHD and DCI 4K signals. The 1920 x 1200 display can be used to easily check the focus and framing of your high-resolution video.
- Full-Size HDMI Input
- The durable full-size HDMI input supports resolutions ranging from SD all the way up to DCI 4K. A locking cable clamp is included to prevent signal dropouts in the event of a snag.
- Analog Composite Video Input
- With a separately available 3.5mm breakout cable, composite video and audio signals from legacy or wireless video sources can be easily monitored.
- Focus Assist
- When you need to fine-tune your picture, enable the peaking filter to remove color from the image and add a red outline to any part of the image that's in focus.
- Pixel-to-Pixel Mapping
- Pixel-to-pixel mode is another feature the FieldVision 4KV2 offers for focusing accuracy. The monitor will display a 4K signal at a 1:1 resolution without any scaling or processing. When activated, the field-of-view will zoom in so you can view your picture in fine detail.
- Markers and Image Overlays
- Broadcast-specific features include a center marker and an on-screen box that functions as a safety frame marker at a set percentage of the screen size. Select between 80%, 85%, 90%, 93%, or 96%.
- Check Field Mode
- One of several included tools to perfect your picture, the Check Field mode helps you accurately calibrate the monitor by displaying only the selected color onscreen. Choose from red, green, blue, or gray for a grayscale image.
- Image Flip
- Flip image is an advanced feature that allows you to adjust the picture if you need to mount your monitor upside down, or if an adapter changes the orientation of the image.
- Freeze Image
- The image freeze option allows you to freeze the current on-screen image to analyze your frame as a still picture for quick framing reference.
- Anamorphic De-Squeeze
- This mode corrects your image based on the anamorphic ratio of the lens in use. The monitor will display the image captured by your anamorphic lens without the anamorphic squeeze, for easier monitoring.
- Zebras
- For quickly assessing your exposure for blown highlights, the zebras are animated black and white stripes through areas of the image that are overexposed. The sensitivity of the zebra switch can be set between 1 and 100 IRE.
- Audio Monitoring
- It's easy to monitor your incoming audio signal with the FieldVision 4KV2, whether it's from the built-in speaker or with the 3.5 mm headphone jack.
- Easily Accessible Menus
- Entering the menu is as simple as the push of a button. OSD menu navigation is simple and straightforward using directional buttons.
- Programmable Function Buttons
- Four programmable function buttons on the front panel let you create shortcuts to the functions you use most often. This lets you quickly access broadcast-specific functions as well as the features you need to fine-tune your image.
- Includes Sun Hood
- The included sun hood prevents glare on the monitor's screen by blocking out stray light. It's indispensable when shooting outdoors or in other brightly lit environments.

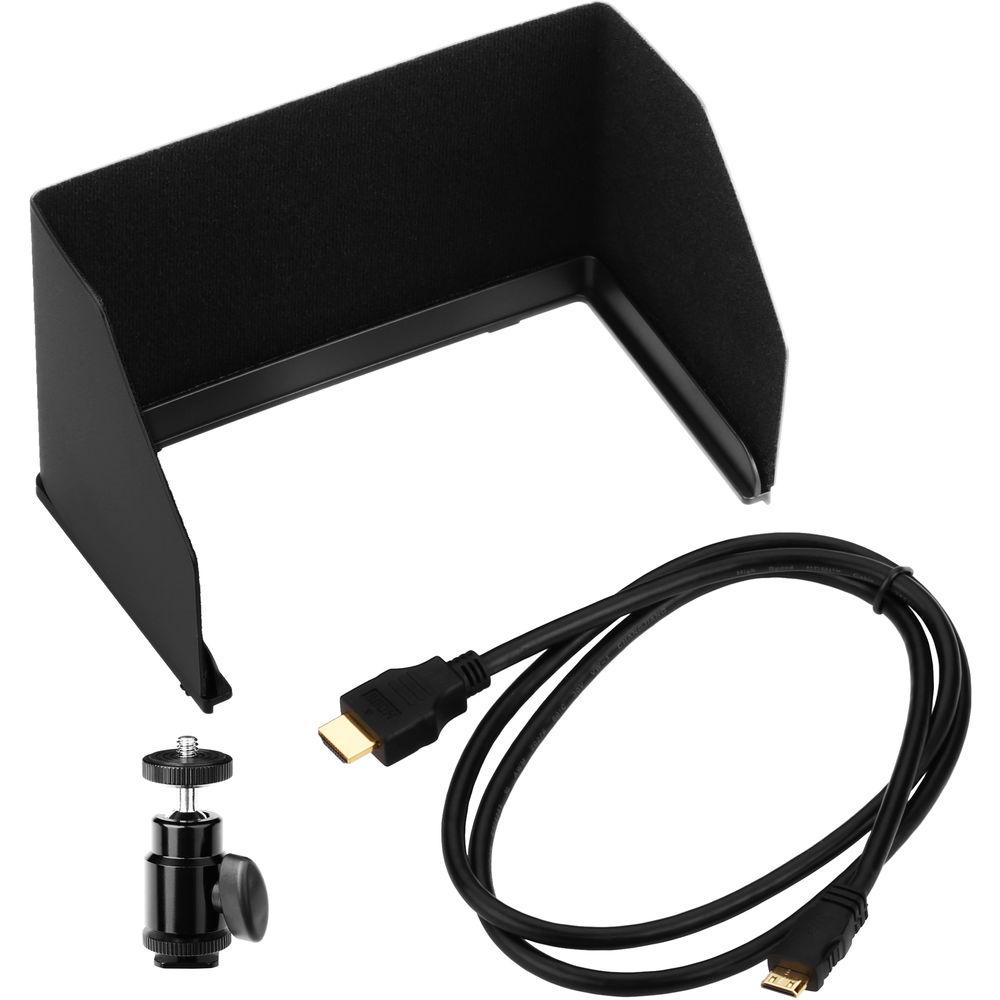

UPC: 847628002920 In the Box Elvid FieldVision 4KV2 7" On-Camera Monitor Ball Shoe Mount Frame for Sun Hood Sun Hood Mini HDMI to HDMI Cable HDMI Locking Collar Limited 1-Year Warranty User Manual PDF 1.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Elvid FieldVision 4KV2 7" On-Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElvid OCM-7B-4KV2 Specs | Panel Type | IPS-Type LCD | Display Size | 7.0" / 17.8 cm | Screen Resolution | 1920 x 1200 | Aspect Ratio | 16:10 | Viewing Angle | Horizontal: 160° Vertical: 160° | Touchscreen | No | Maximum Brightness | 450 cd/m2 | Contrast Ratio | 1200:1 | Dot Pitch | 0.07875 x 0.07875 mm | Real-Time LUT Monitoring | No | Image Controls | Blue Only, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, Screen Markers | | Video | 1 x HDMI Type A (HDMI 1.4) Input 1 x 3.5 mm (Composite) Input | Embedded Audio | HDMI | Audio | 2 x 3.5 mm Headphone Input/Output | Built-In Speaker | 1 | Other I/O | None | Card Slot | None | | Video Format | HDMI (12-Bit) DCI 4K UHD 4K 1080p 1080PsF 1080i 720p 576p 480p NTSC PAL | | DC Input Power | 7 to 24 VDC | Battery Type | 1 x L-Series | Power Consumption | 8 W (Maximum) | | Mounting | 1 x 1/4"-20 Female | | Dimensions (W x H x D) | 6.9 x 5.1 x 0.7" / 17.53 x 12.95 x 1.78 cm, Including Sun Hood | Weight | 10 oz / 284 g 13.1 oz / 371 g, Including Sun Hood | | Package Weight | 1.915 lb | Box Dimensions (LxWxH) | 9.0 x 7.6 x 2.65" |
