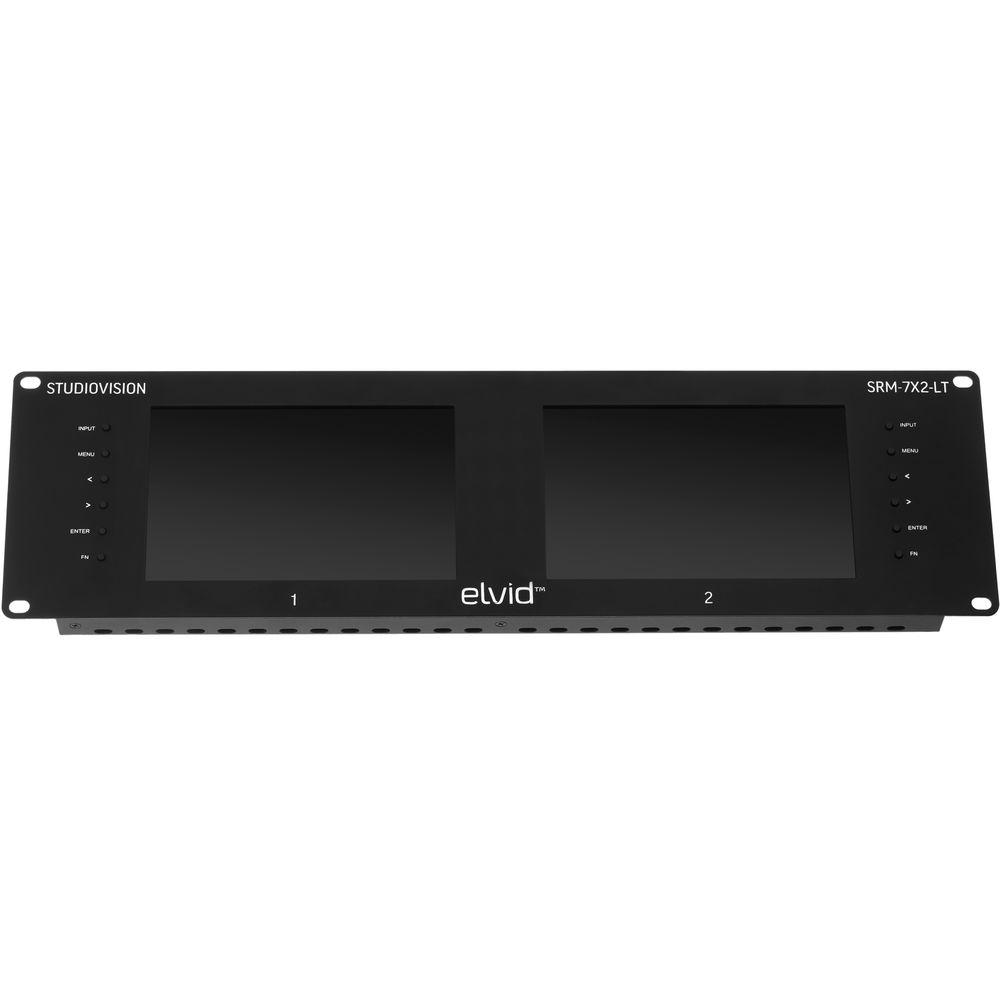

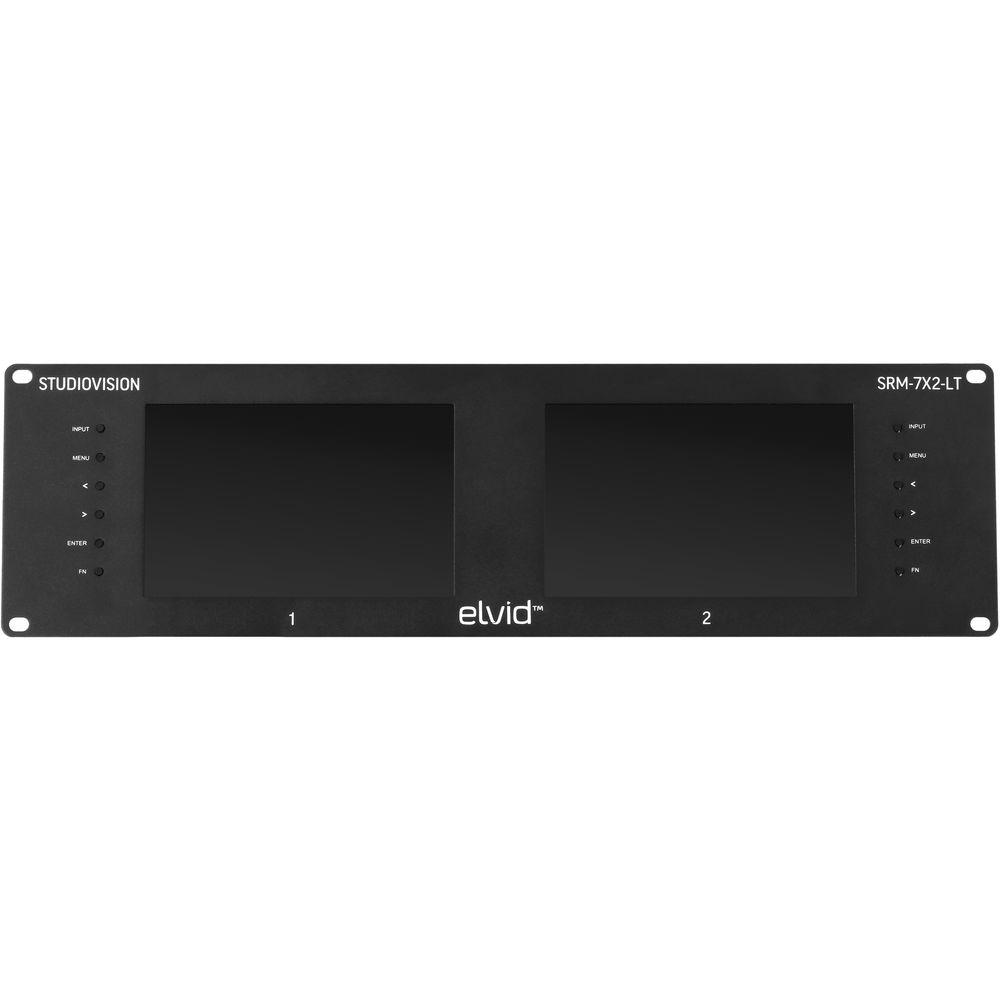

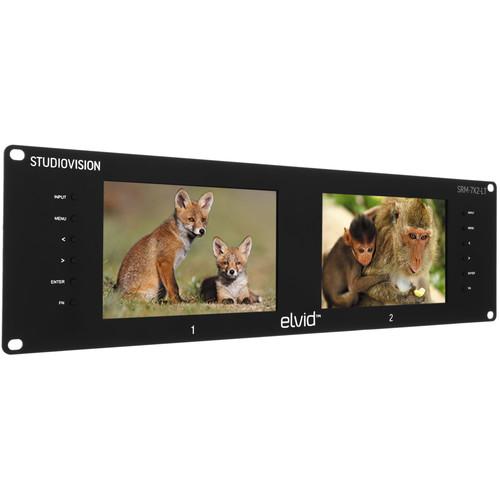

Product description Monitor two signals in high image quality with Elvid's StudioVision Dual 7" Monitor Rackmount for 19" racks. View your images in 1280 x 800 resolution and 800:1 contrast ratio. Switch between simultaneously active 3G-SDI, HDMI, and analog inputs per monitor, and loop out all the signals at the same time. Operate each monitor using dedicated front panel buttons or with the included control software via an Ethernet connection. Apply Pixel-to-Pixel, Picture-in-Picture, Zoom, H/V Delay, and altogether about a dozen features. And connect your tally system to a 15-pin tally port.
The StudioVision has a robust build and sleek design. The front panel also features an assignable function button for each monitor. The Picture-in-Picture feature can also be set as Picture-by-Picture, which shows the images side-by-side and scaled, or as Picture-over-Picture, which displays images side-by-side and stretched. - Key Features
-
- Two LED backlit IPS monitors in a 19" rackmount
- 1280 x 800 resolution
- 800:1 contrast ratio
- 178° viewing angle

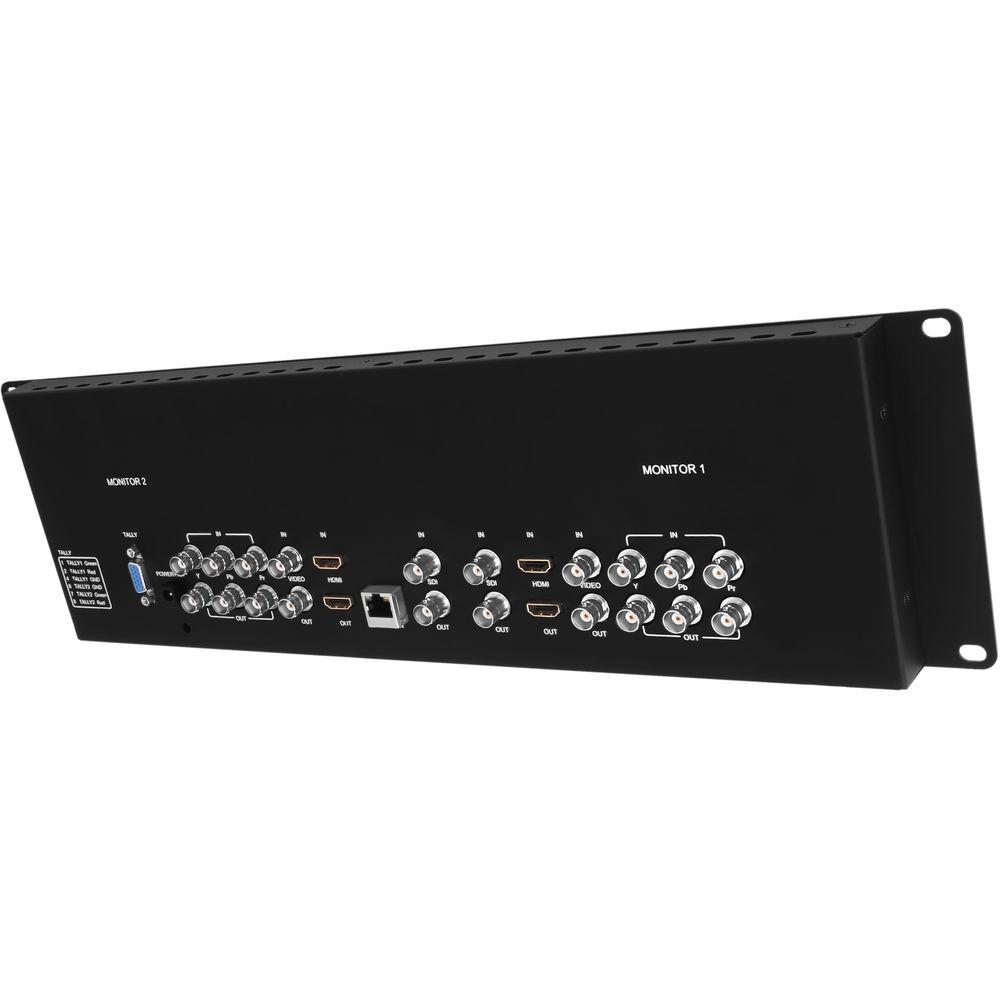

- 3G-SDI, HDMI, Composite, and Component inputs and loop outputs
- DB-15 tally connector
- Software control via Ethernet connection (software included)
- Dedicated control buttons and function button per monitor
- 16:10, 16:9, 4:3, 1.85:1, 2.35:1 aspect ratios
- Bare end tally adapter included
- HDCP compliant
- Monitoring Features
-
- H/V Delay
- Underscan
- Center Marker
- Safety Marker
- Picture-in-Picture
- 1:1 Pixel-to-Pixel
- Zoom (up to 8x)
- Check Field
- Color Bar
- Image Flip
- Freeze Input
- Adjustable color temperature

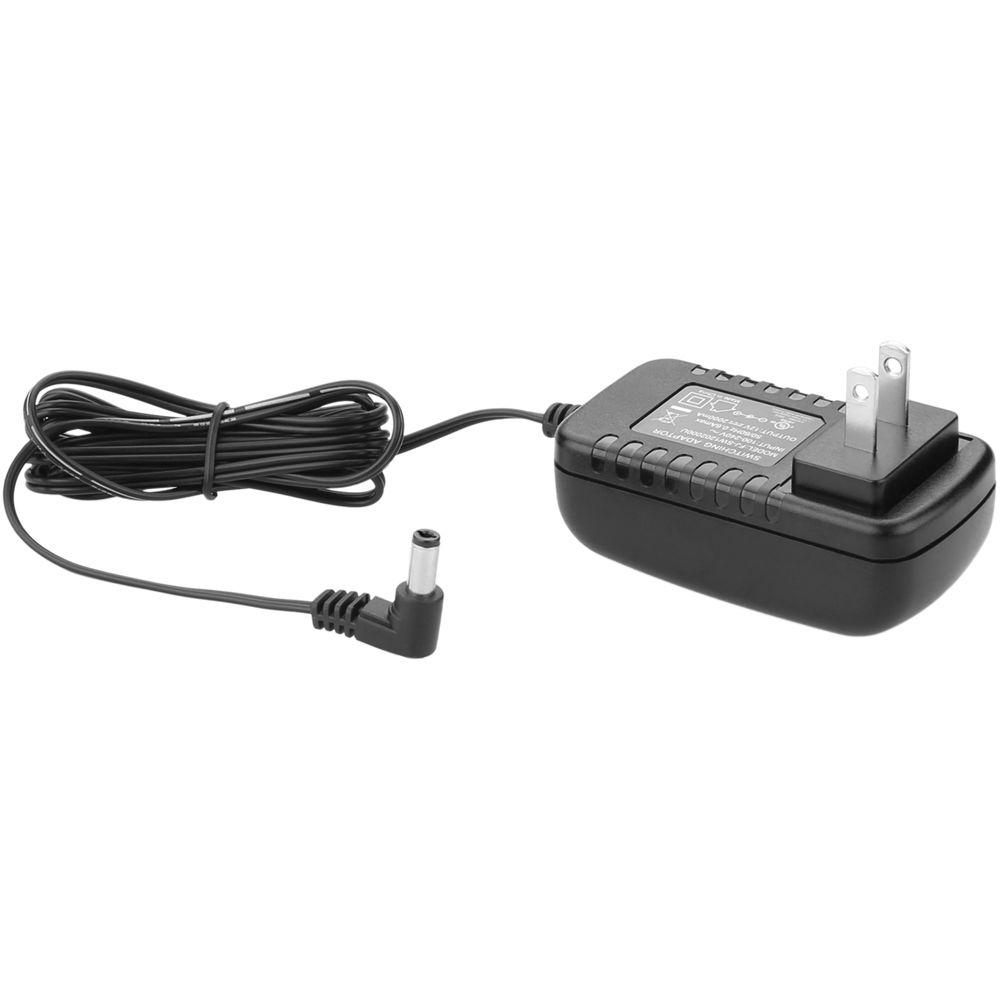

UPC: 847628580701 In the Box Elvid StudioVision Dual 7" Monitor Rackmount 12VDC Power Adapter Tally Adapter (Bare End) Control Software on Disc User Manual Limited 1-Year Warranty User Manual PDF 832kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Elvid StudioVision Dual 7" Monitor Rackmount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElvid SRM-7X2-LT Specs | | | Panel Type | IPS-Type LCD | | Display Size | 7.0" / 17.8 cm | | Screen Resolution | 1280 x 800 | | Aspect Ratio | 16:10 | | Viewing Angle | Horizontal: 178° (89/89)

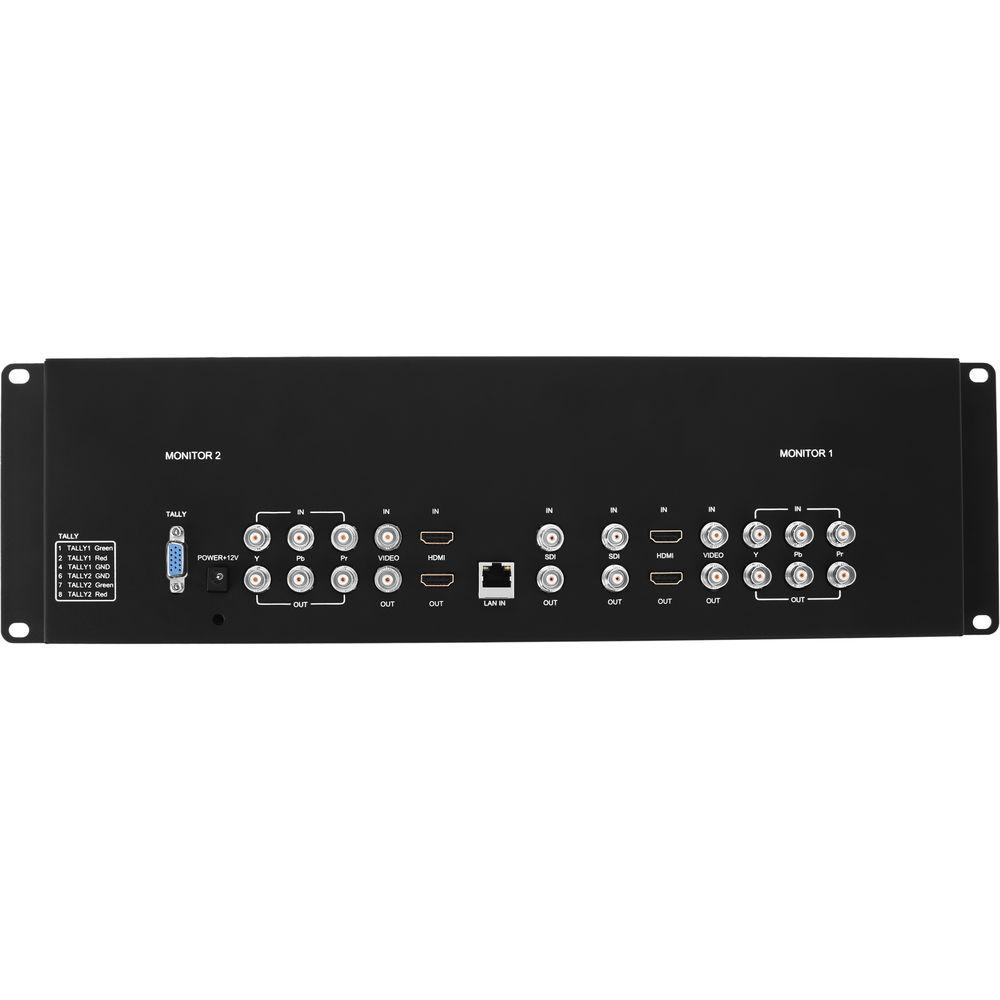

Vertical: 178° (89/89) | | Maximum Brightness | 400 cd/m2 | | Contrast Ratio | 800:1 | | Image Controls | Blue Only, Image Flip, Pixel-to-Pixel Zoom, Screen Markers, Underscan | | | | Video | 2 x BNC (3G-SDI) Output
2 x HDMI Type A Output
2 x 3BNC (Component) Output
2 x BNC (Composite) Output
2 x BNC (3G-SDI) Input
2 x HDMI Type A Input
2 x BNC (Composite) Input
2 x 3BNC (Component) Input | | HDCP Support | Yes | | Audio | None | | Built-In Speaker | None | | Other I/O | 1 x Tally (DE-15/DB-15)
1 x LAN (RJ45) | | Card Slot | None | | | | DC Input Power | 7 to 24 VDC at 1.5 A | | Battery Type | None | | Operating Current | 1500 mA | | Power Consumption | 18 W (Maximum) | | | | Dimensions (W x H x D) | 18.9 x 5.3 x 1" / 48 x 13.5 x 2.5 cm | | Weight | 6.4 lb / 2.9 kg | | | | Package Weight | 6.4 lb | | Box Dimensions (LxWxH) | 23.386 x 7.008 x 3.937" |
