User Manual for EMAX Hawk 5 5" FPV Racing Drone Click to enlarge the picture
Contents of the user manual for the EMAX Hawk 5 5" FPV Racing
- Product category: See All Drones EMAX
- Brand: EMAX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EMAX See All Drones
 |
User manual for the EMAX Hawk 5 5" FPV Racing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EMAX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EMAX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EMAX product will considerably shorten its lifespan!
|

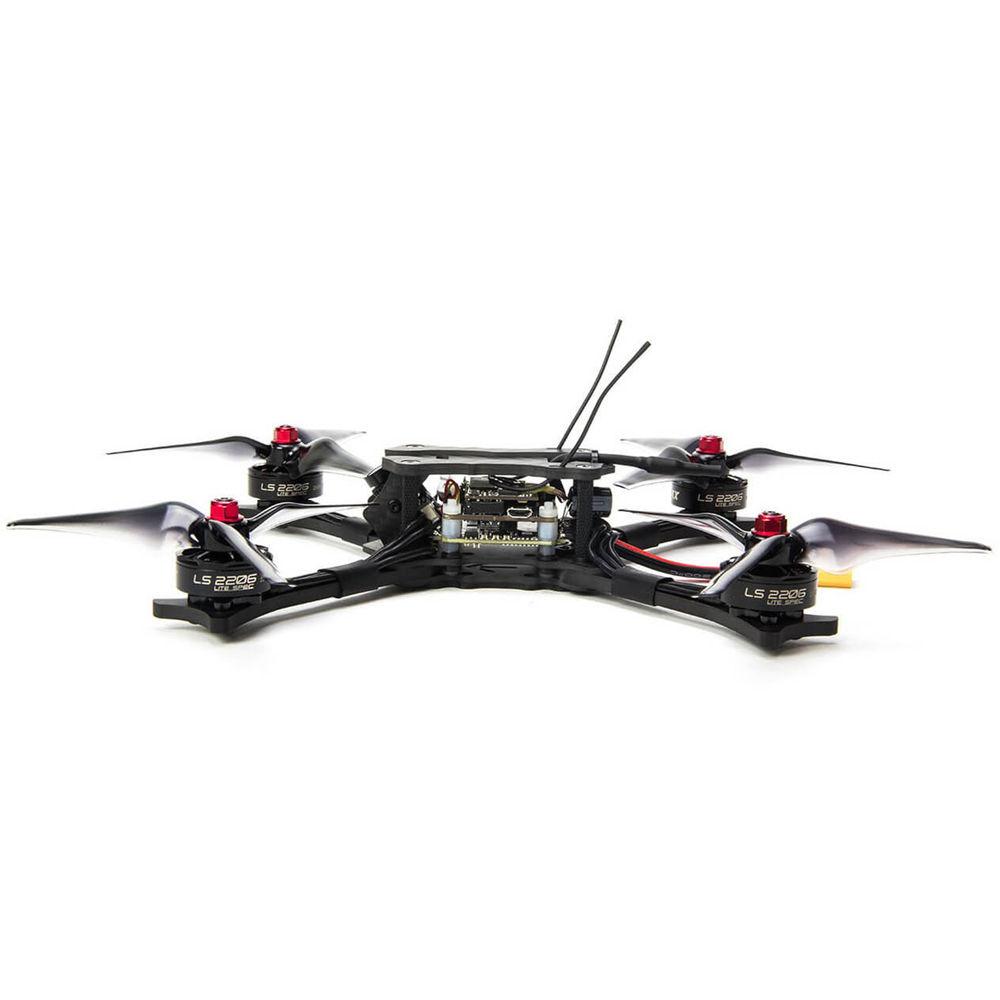

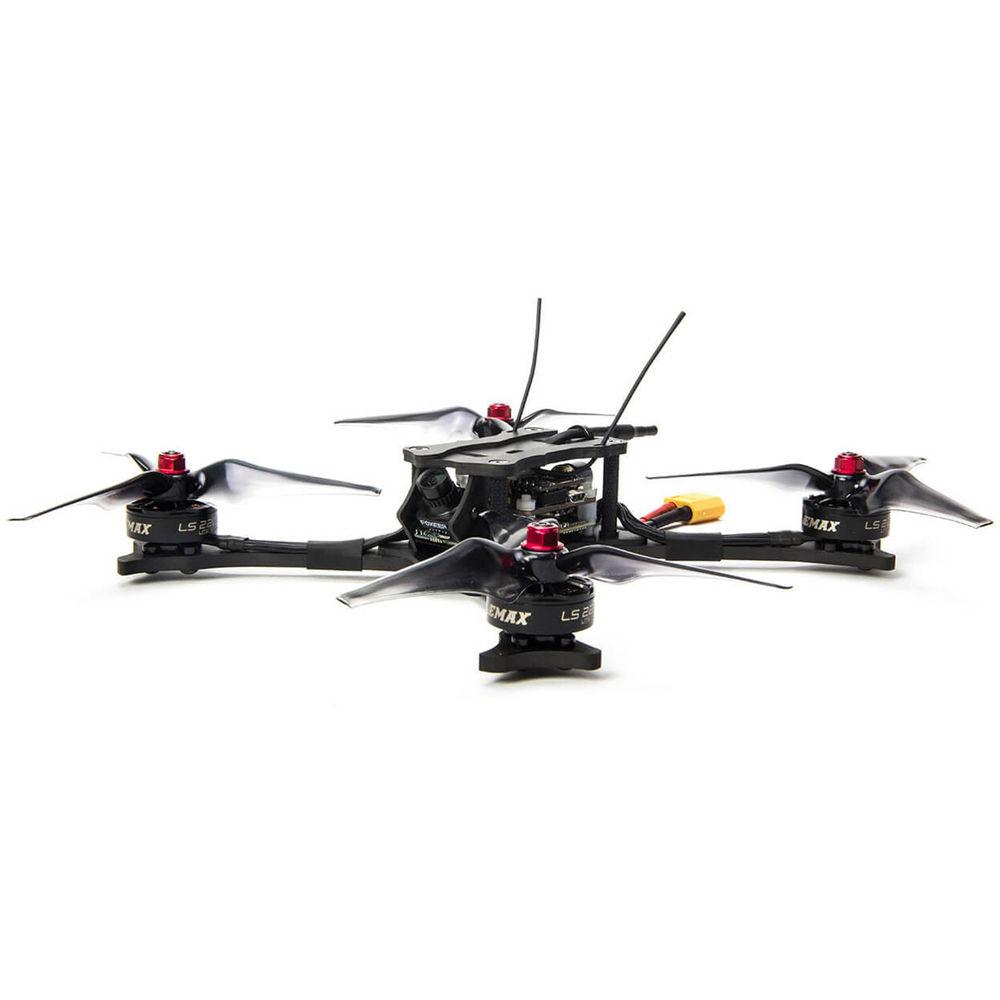

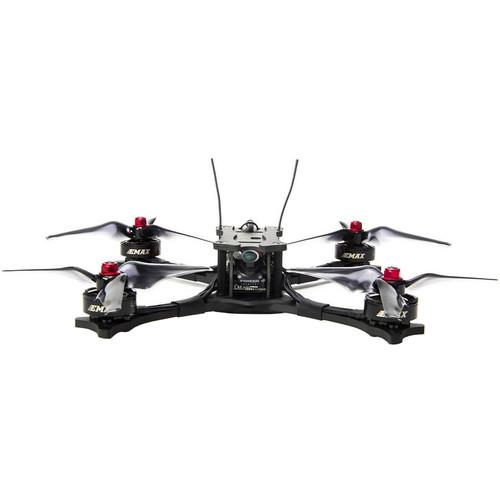

Product description Aerial Photography and Drone Glossary Read More Experience the rush of FPV drone racing with the Hawk 5 5" FPV Racing Drone from EMAX. The Hawk 5 is a BNF drone, so all you need to get up in the air and racing is a transmitter (sold separately) that's compatible with the Hawk's FrSky XM+ receiver. Once airborne, you'll be able to enjoy the speed that the EMAX LS2206 2300Kv brushless motors provide. When it comes to racing, speed is essential, which is why EMAX constructed the Hawk 5 to be as compact and lightweight as possible. In fact, the frame of the Hawk 5 is made entirely from carbon fiber, bringing it in at only 9.5 oz with the propellers attached. - Wide Angle & Stable FPV

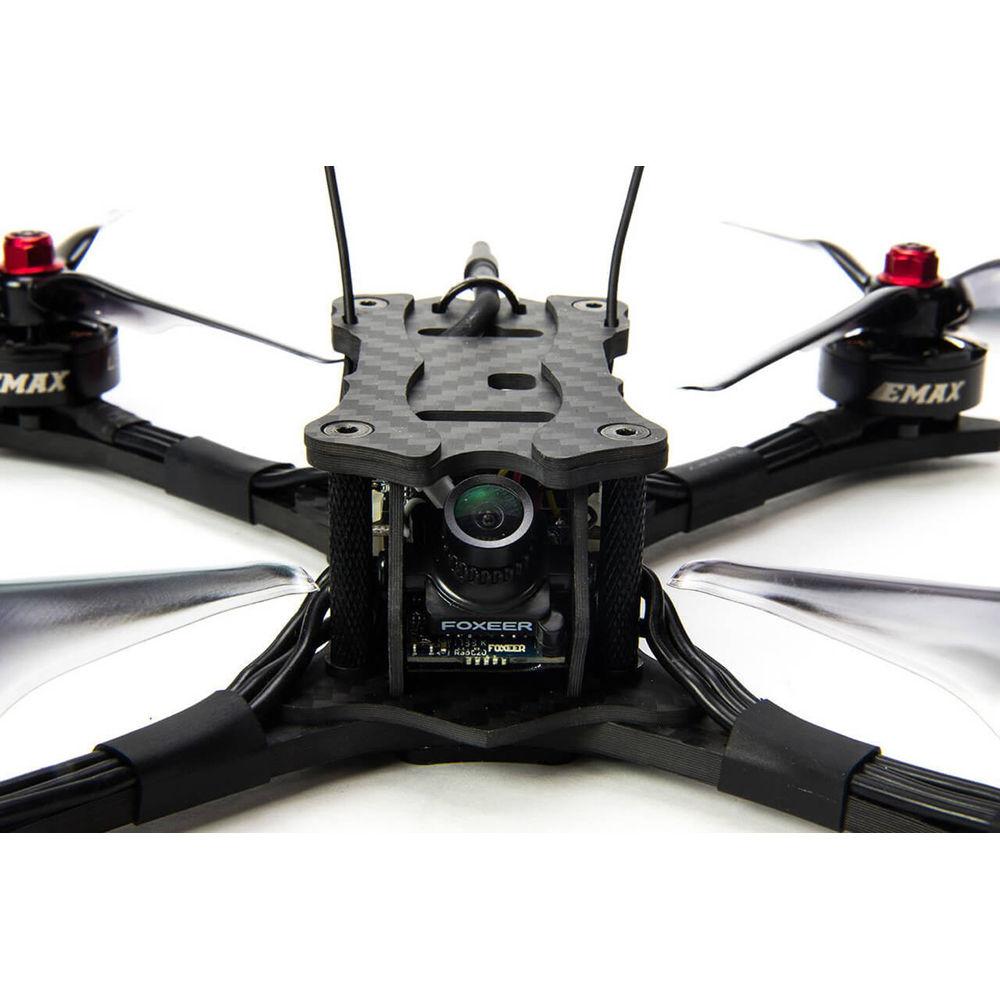

- FPV video is provided via the Foxeer Arrow Micro v2 600TVL CCD camera which delivers a 150° wide-angle image to help you see more of the terrain. EMAX also incorporated a vibration dampening suspension system into the Hawk 5 designed to help keep the video signal stable. Transferring that video to your FPV goggles (sold separately) is a 25/200mW 48-channel 5 GHz VTX.
- Versatile Battery Placement
- The frame of the Hawk 5 is designed to accommodate for three different styles of LiPo battery placement using the included battery straps. You can store your separately available battery on top, under, or on the side of the Hawk 5.
- Additional Features
-
- Magnum F4 Tower System keeps things compact by stacking your boards vertically
- Stackable Omnibus F4 flight controller
- 4 x 30a DSHOT 600 ESC
- Built-in OSD with real-time readouts for battery voltage, flight time, and receiver signal strength
- Avan Flow 5" propellers
UPC: 723668085249 In the Box EMAX Hawk 5 5" FPV Racing Drone (BNF, FrSky XM+) 8 x Propeller Extra Frame Arm Dipole Whip Antenna 2 x CP Antenna (Left Hand) 2 x Battery Strap Hardware Limited 1-Year Warranty Camera in the Sky: Using Drones in Wedding Photography and Videos Peter Ward_1 02/29/2016 Some Good News for Photographers and Filmmakers Who Use Drones Peter Ward_1 02/23/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the EMAX Hawk 5 5" FPV Racing Drone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEMAX Hawk 5 Specs | | | Vision System | Forward | | Forward Field of View | 150° (Horizontal) | | | | Model | LS 2206 | | Type | Brushless | | Velocity Constant | 2300 Kv | | | | Number of Rotors | 4 | | Weight | 9.52 oz / 270 g (Including Propellers, Camera) | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 10.0 x 9.7 x 2.2" |
