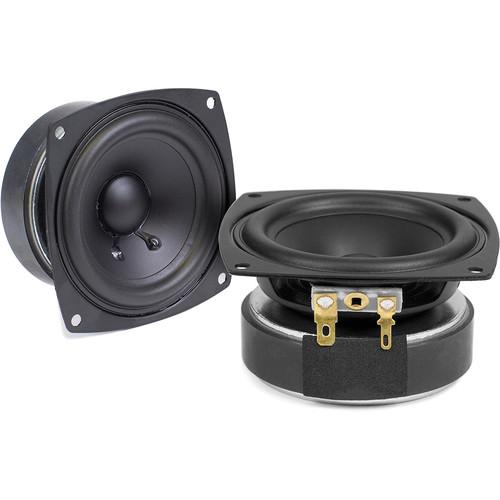

Product description Well suited for tight fitting pro audio line array and column array applications, the Eminence Alpha 3-16 American Standard Series Full Range Driver is 3" in diameter with a 0.79" copper voice coil. With a program power rating of 60W, the Alpha 3 utilizes an 8.3 oz ferrite magnet in conjunction with an internal neodymium bucking magnet for increased sensitivity, which extends the response out to 20 kHz. The highly pressed cone sandwiches paper with a layer of water-resistant polypropylene for increased stiffness and lower distortion. - Thiele and Small Parameters
-
- Resonant frequency (fs): 112 Hz
- DC resistance (Re): 10.53 Ohms
- Coil inductance (Le): 0.14mH
- Mechanical Q (Qms): 5.89
- Electromagnetic Q (Qes): 0.66
- Total Q (Qts): 0.59
- Compliance equivalent volume (Vas): 1.05 liters / 0.04 cu.ft.
- Peak diaphragm displacement volume (Vd): 7.7 cc
- Mechanical compliance of suspension (Cms): 0.93mm/N
- BL product (BL): 4.95 T-M
- Diaphragm mass inc. airload (MMs): 2.2 grams
- Efficiency bandwidth product (EBP): 169
- Maximum linear excursion (Xmax): 2.7mm
- Surface area of cone (Sd): 28.6 cm2
- Maximum mechanical limit (Xlim): 4.0mm
- Mounting Information
-
- Recommended enclosure volume
- Sealed: 1.05-1.7 liters / 0.04-0.06 cu.ft.
- Vented: 1.13-1.98 liters / 0.04-0.07 cu.ft.
- Driver volume displaced: 0.005 cu.ft. / 0.13 liters
- Major diameter: 3.98", 101.1mm
- Flat to flat diameter: 3.24", 82.3mm
- Baffle Hole Diameter: 3.04", 77.2mm
- Front sealing gasket: Yes
- Rear sealing gasket: Yes
- Mounting holes diameter: 0.16", 4.1mm
- Mounting holes (B.C.D.): 3.63", 92.1mm
- Depth: 1.76", 44.6mm
- Net weight: 0.9 lbs, 0.41 kg
- Shipping weight: 1.1 lbs, 0.5 kgs
- Material of Construction
-
- Coil construction: Copper voice coil
- Coil former: Polyimide former
- Magnet composition: Ferrite magnet
- Core details: Vented / Flux source cap
- Basket materials: Pressed steel
- Cone composition: Paper / Poly sandwich cone
- Cone edge composition: Poly cone edge
- Dust cap composition: Poly dust cap
UPC: 876358003952 In the Box Eminence Alpha 3-16 American Standard Series Full Range Driver (3" / 16 Ohms) Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Eminence Alpha 3-16 American Standard Series Full Range Driver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEminence ALPHA 3-16 Specs | Nominal Basket Diameter | 3.0" / 76.0 mm | | Nominal Impedance | 16 Ohms | | Power Rating | Program Power: 60 W
Nominal: 30 W | | Resonance | 112 Hz | | Usable Frequency Range | 150 Hz to 20 kHz | | Sensitivity | 88.2 dB | | Gap Height | 0.08" / 2.00 mm | | Voice Coil Diameter | 0.79" / 20.00 mm | | Weight | 0.9 lb / 0.4 kg |
