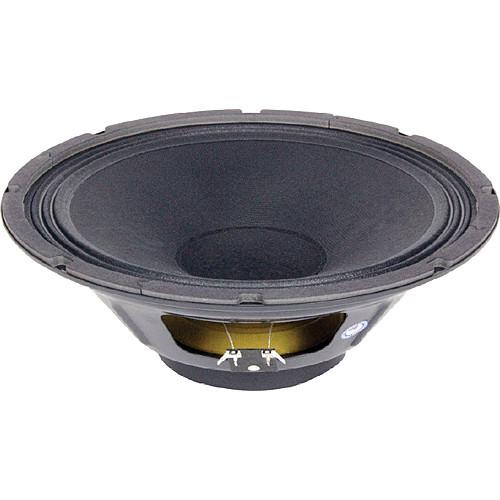

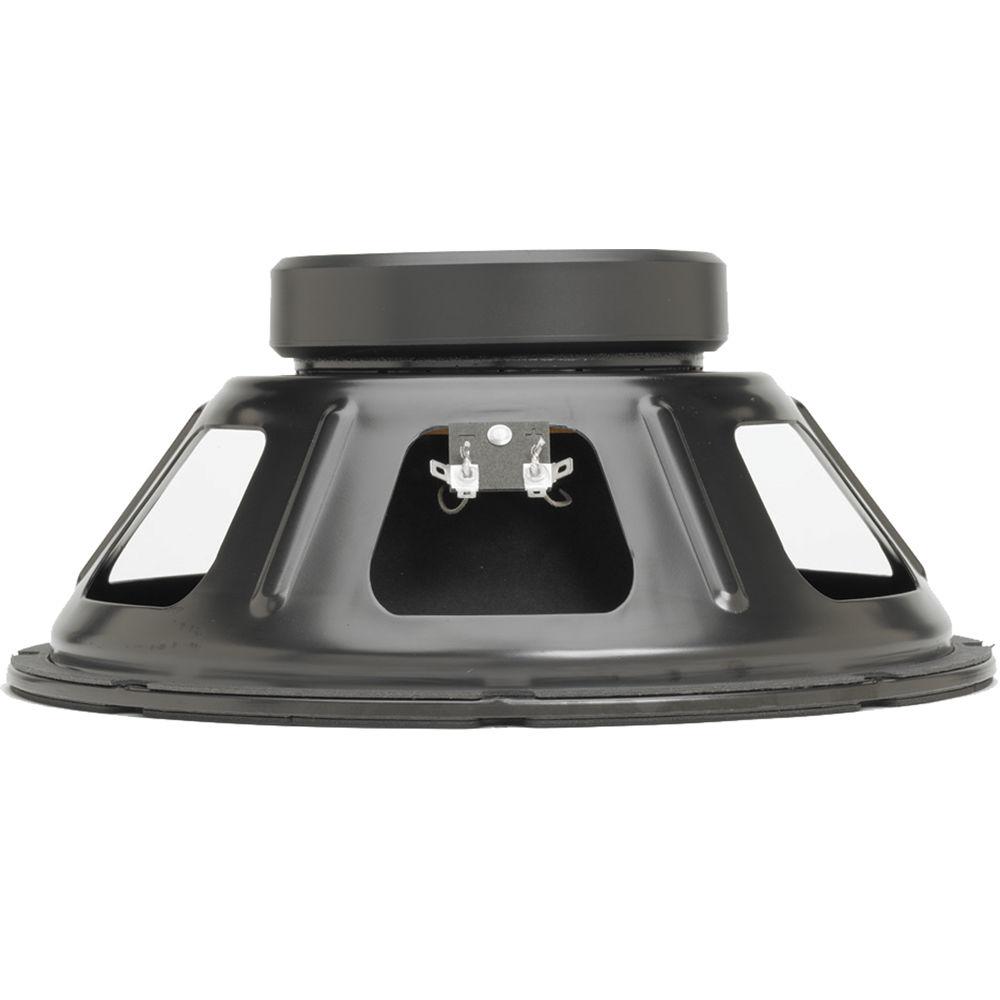

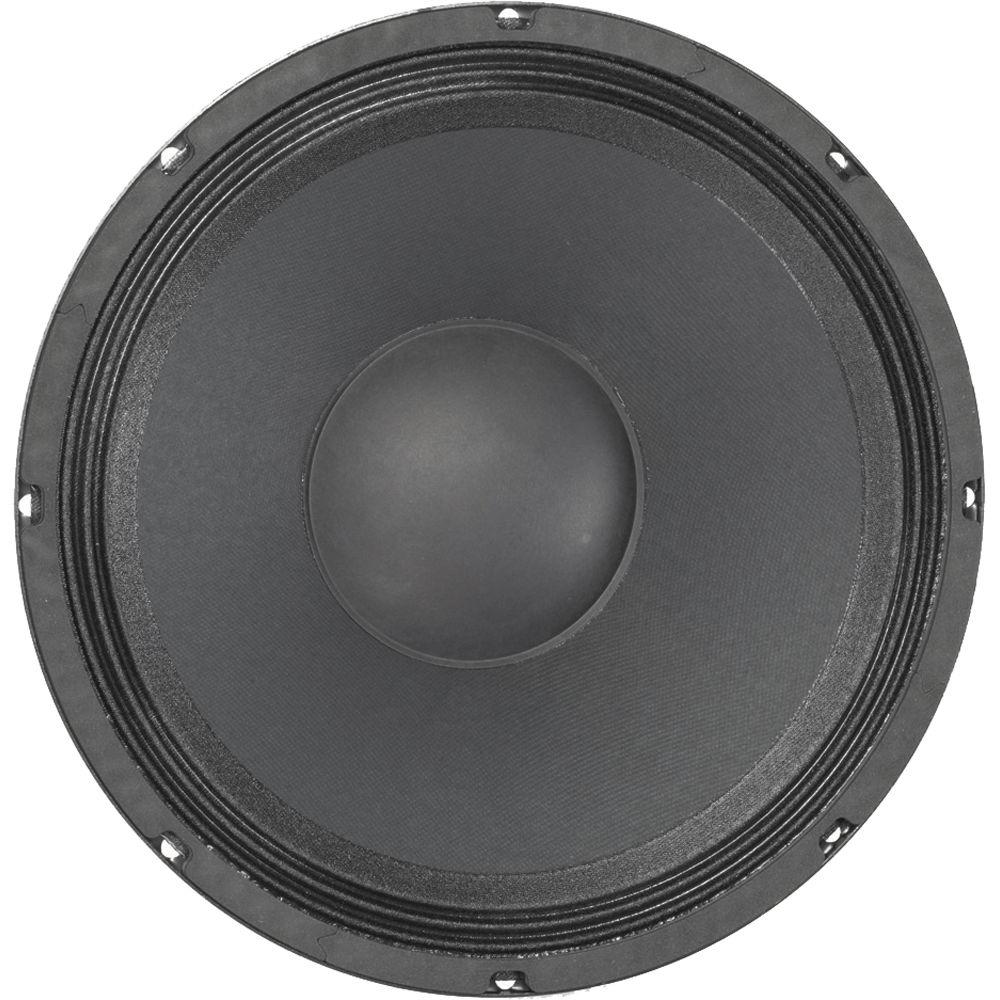

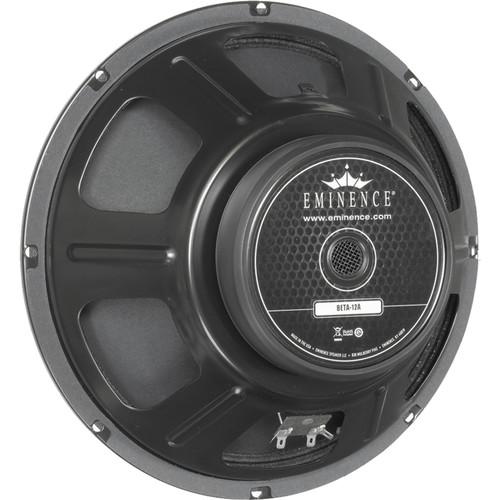

Product description The Eminence Beta-12A 12" Woofer is an 8 ohm 500 watt driver ideal for use in full-range sound reinforcement speaker cabinets, stage monitors, and instrument cabinets. The Beta-12A delivers impressive full-range audio and is backed by Eminence's 7 year manufacturer warranty. - New improved power handling of 250 watts RMS
- The Beta-12A is a 12" speaker with a 2" polymide-imide coated two-layer 32 gauge copper voice coil
- Performance optimized for sound reinforcement systems, also suitable for lead and bass guitar, keyboards, guitar combos, club music systems and stage monitors
UPC: 876358000111 In the Box Eminence Beta-12A 12" Woofer 7 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Eminence Beta-12A 12" Woofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEminence 12A Specs | | | Diameter | Nominal Basket Diameter: 12" (304.8mm)
Mounting Diameter: 12.02" (305.2mm) Bolt Circle Diameter: 11.63" (95.3mm)
Baffle Cutout Diameter: 10.97" (278.6mm)Mounting Hole Diameter: 0.275" (7mm) Overall Depth: 4.47" (113.5mm) | | Weight | Magnet Weight: 38 oz (1.07kg)
Shipping Weight: 9.7 lbs (4.4kg) | | | | Impedance | 8 Ohms | | Power Rating | RMS: 250 Watts
Program: 500 Watts | | Frequency Response | 43Hz - 3.8kHz | | Sensitivity | 98dB | | Crossover Frequencies | 3.8kHz | | Voice Coil | 2" (50.8mm) | | Enclosure | Recommended Enclosure Volume (Sealed): 0.9 - 1.25cu. ft. (25.5 - 35.4 Liters)
Recommended Enclosure Volume (Vented): 1.3 - 4.9cu. ft. (36.8 - 139 Liters) | | | | Package Weight | 10.25 lb | | Box Dimensions (LxWxH) | 18.3 x 16.8 x 7.1" |
