User Manual for Eminence Delta PRO-8A - 450W 8" 8 Ohm Mid-Range Loudspeaker Driver Click to enlarge the picture
Contents of the user manual for the Eminence Delta PRO-8A - 450W 8"
- Product category: Speaker Accessories Eminence
- Brand: Eminence
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Eminence Speaker Accessories
 |
User manual for the Eminence Delta PRO-8A - 450W 8" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Eminence product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Eminence user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Eminence product will considerably shorten its lifespan!
|

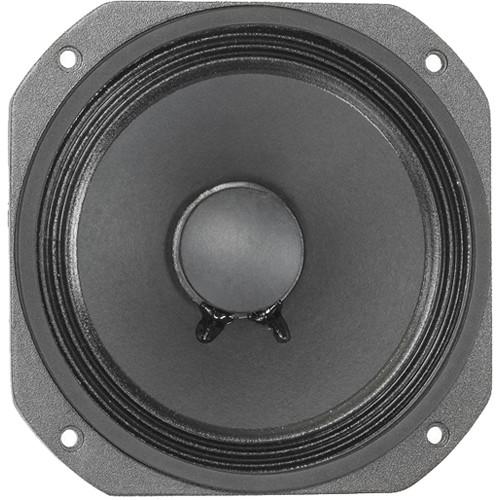

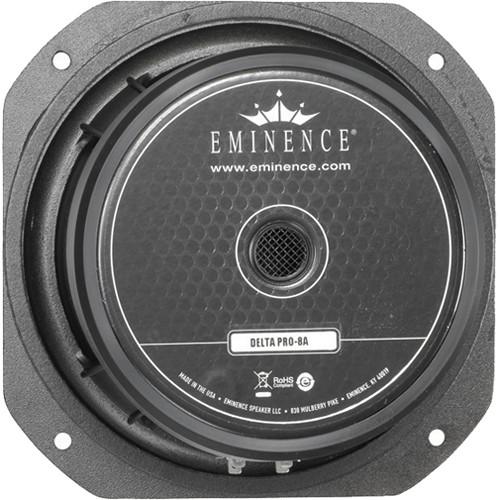

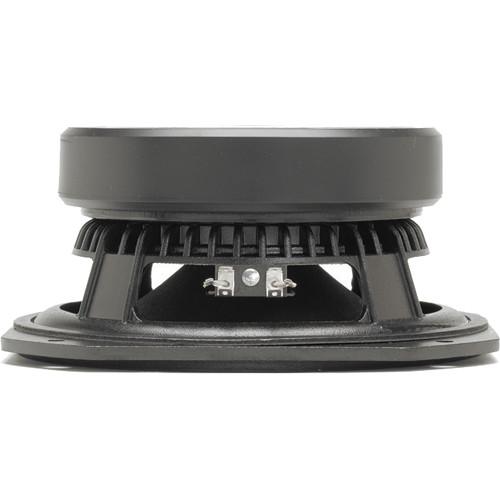

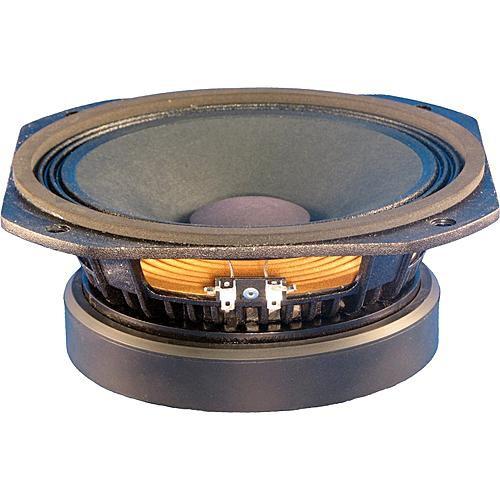

Product description The Eminence Delta PRO-8A Mid-Range Loudspeaker Driver is part of their Professional Series and is designed to install into custom made or prefabricated speaker cabinets, that will accomodate a 8" (203mm) diameter mid-range driver.The speaker will deliver up to 450W of power at 8 ohms and will adequately reproduce vocals, live musical performances, recorded music and other audio signals in professional sound reinforcement applications. Some of the many applications include sound reinforcement speakers for DJs, musicians, small and mid-sized venues, stage monitors, and much more. - High sensitivity mid-range for professional PA or monitoring
- Truncated cast-aluminum heat-sink style basket for line-array stacking
- 8" (203mm) driver for cabinet installation
- 450W (program) of power at 8 ohms
- 59 oz magnet and 2" (50.8mm) voice coil
UPC: 876358001613 In the Box Eminence Delta PRO-8A - 450W 8" (203mm) 8 Ohm Mid-Range Loudspeaker Driver 7-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Eminence Delta PRO-8A - 450W 8" 8 Ohm Mid-Range Loudspeaker Driver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEminence Delta PRO-8A Specs | Power | 225W
450W (Music Program) | | Nominal Impedance | 8 Ohms | | Sensitivity | 97.8 | | Frequency Response | Usuable 100Hz - 3kHz | | Primary DC Resistance | 5.4 | | Voice Coil | 2" (50.8mm) | | Magnet | 59 oz | | Construction | Copper Voice Coil
Magnet Composition: Ferrite Core Details: Vented and Extended Core
Basket Materials: Die-cast aluminum basket Cone Composition: Paper Cone
Cone Edge: ClothDust Cap: Papper | | Dimensions | 8.02" (203.71) Diameter
3.75" (95mm) Depth | | Weight | 10 lbs (4.5kg) | | | | Package Weight | 11.1 lb | | Box Dimensions (LxWxH) | 9.6 x 9.5 x 4.6" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 17 owners. Add your rating and experience with the product.
