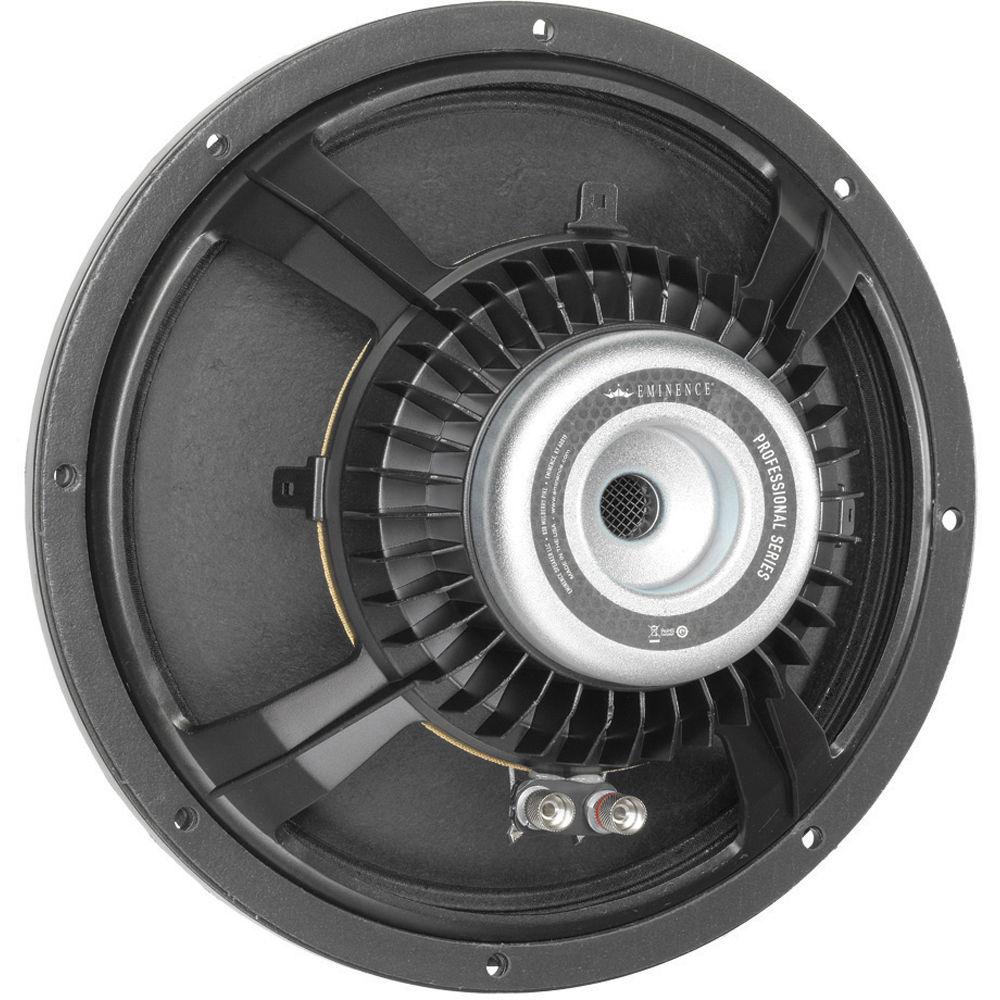

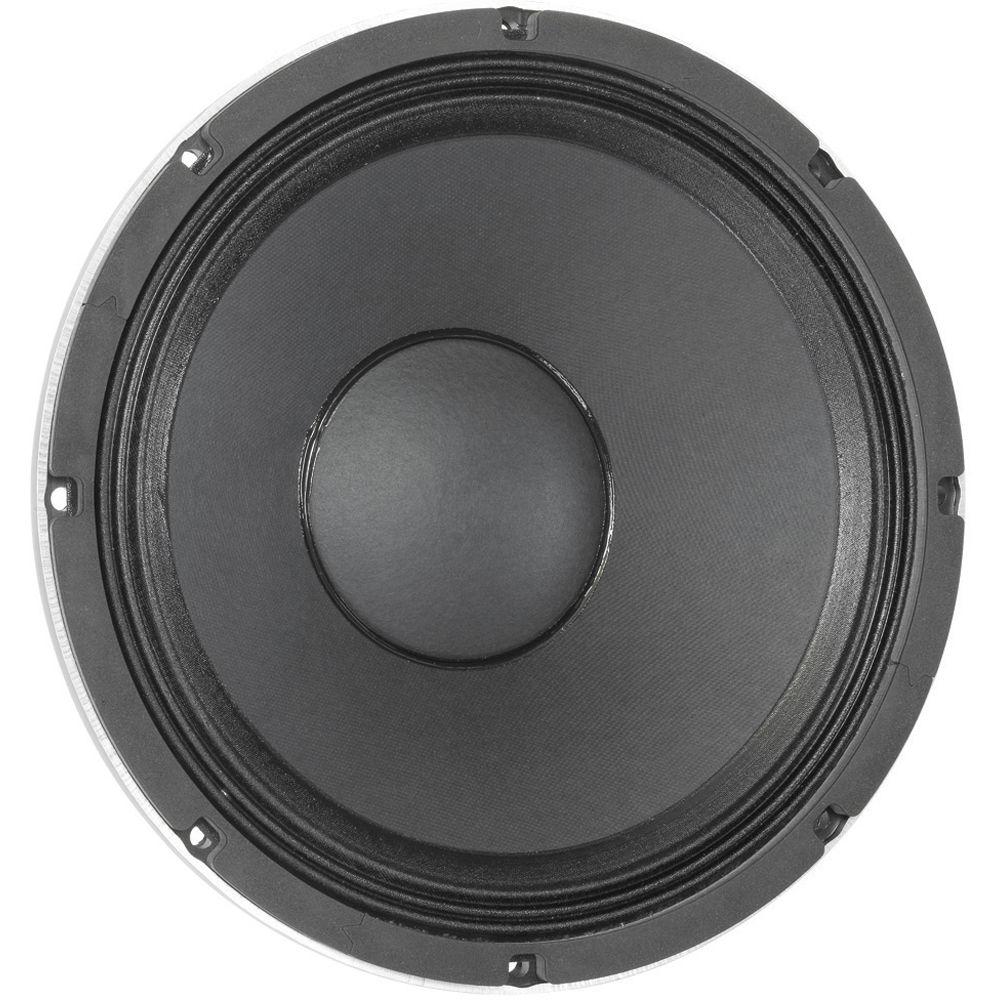

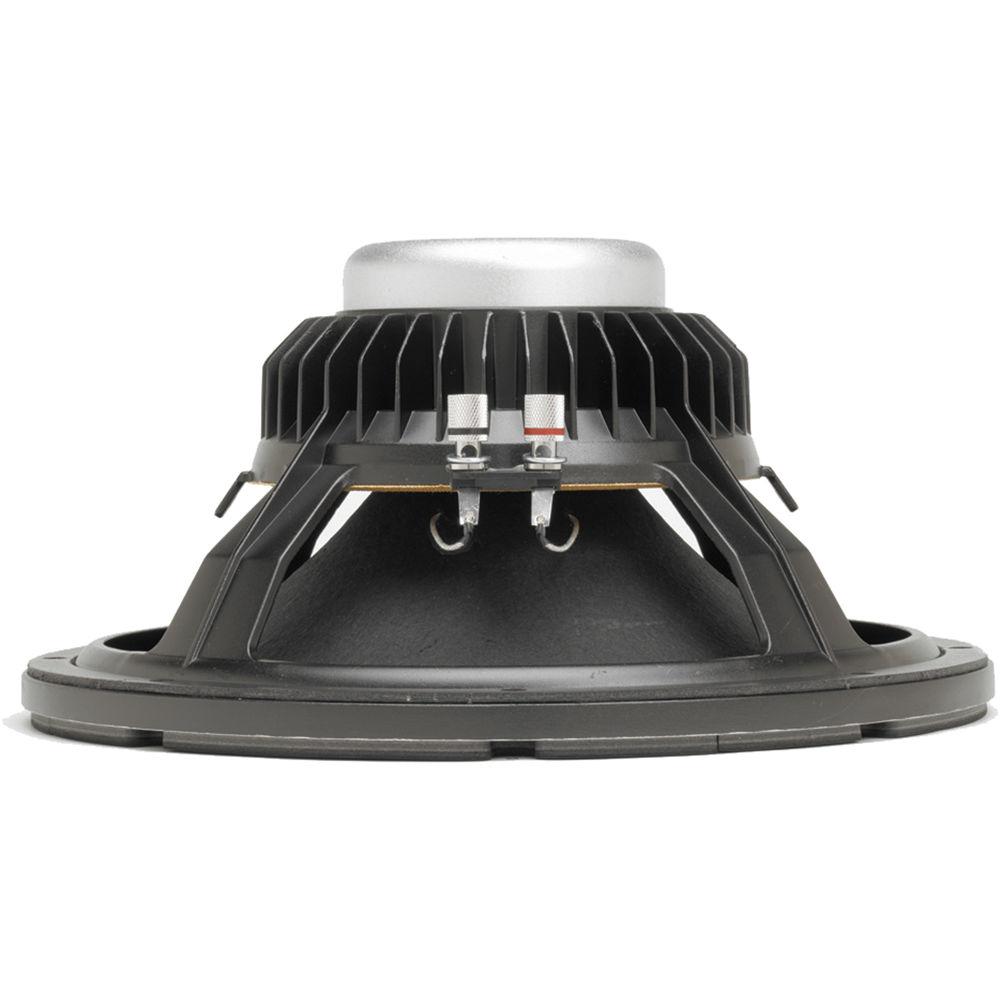

User Manual for Eminence KAPPALITE 3012LF - 900W 12" 8 Ohm Mid-Bass Loudspeaker Driver Click to enlarge the picture
Contents of the user manual for the Eminence KAPPALITE 3012LF - 900W 12"
- Product category: Speaker Accessories Eminence
- Brand: Eminence
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Eminence Speaker Accessories
|
User manual for the Eminence KAPPALITE 3012LF - 900W 12" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Eminence product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Eminence user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Eminence product will considerably shorten its lifespan!
|
Product description The Eminence KAPPALITE 3012LF Mid-Bass Loudspeaker Driver is part of their Neodymium Series and is designed to install into custom made or prefabricated speaker cabinets, that will accommodate a 12" (304.8mm) diameter mid-range driver.The speaker will deliver up to 900W of power at 8 ohms and will adequately reproduce vocals, live musical performances, recorded music and other audio signals in professional sound reinforcement applications. Its neodymium magnet provides enhanced sensitivity and light weight. Some of the many applications include sound reinforcement speakers for DJs, musicians, venues and nightclubs, stage monitors, and much more. - Recommended for professional audio and bass in a vented enclosure
- 12" (304.8mm) driver for cabinet installation
- 900W (program) of power at 8 ohms
- 11 oz magnet and 3" (76.2mm) voice coil
UPC: 876358001637 In the Box Eminence KAPPALITE 3012LF - 900W 12" (304.8mm) 8 Ohm Mid-Bass Loudspeaker Driver 7-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Eminence KAPPALITE 3012LF - 900W 12" 8 Ohm Mid-Bass Loudspeaker Driver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEminence KAPPALITE 3012LF Specs Power | 450W 900W (Music Program) | Nominal Impedance | 8 Ohms | Sensitivity | 97.1dB | Frequency Response | Usable 46Hz - 2.0kHz | Primary DC Resistance | 5.6 | Voice Coil | 3" (76.2mm) | Magnet | 11 oz | Construction | Copper Voice Coil Magnet Composition: Neodymium Core Details: Vented Core Basket Materials: Die-cast aluminum basket Cone Composition: Paper Cone Cone Edge: ClothDust Cap: Solid Composition Paper | Dimensions | 12.38" (314.5mm) Diameter 6.00" (152.4mm) Depth | Weight | 7.6 lbs (3.45kg) | | Package Weight | 8.8 lb | Box Dimensions (LxWxH) | 13.2 x 13.2 x 6.7" |
