User Manual for Eminence LA6-CBMR 300W 6.5" 8 Ohm Mid-Range Loudspeaker Driver

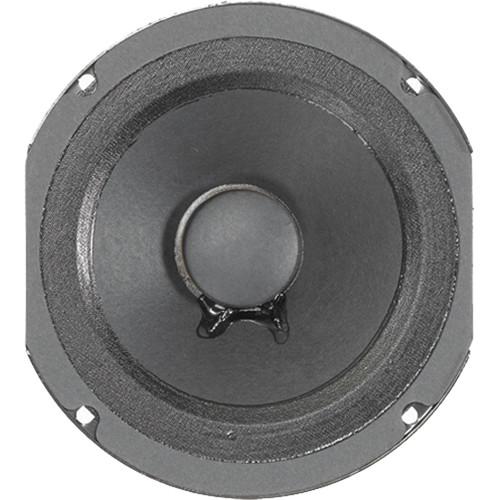

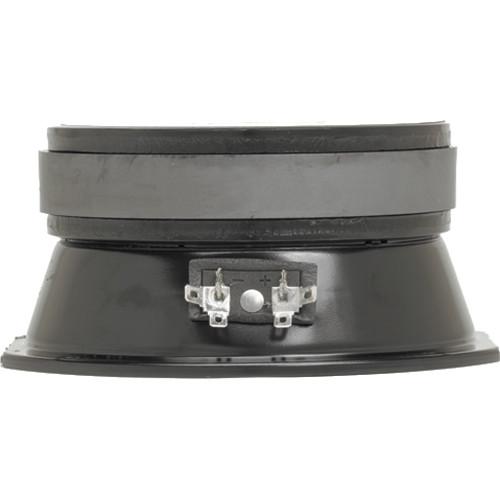

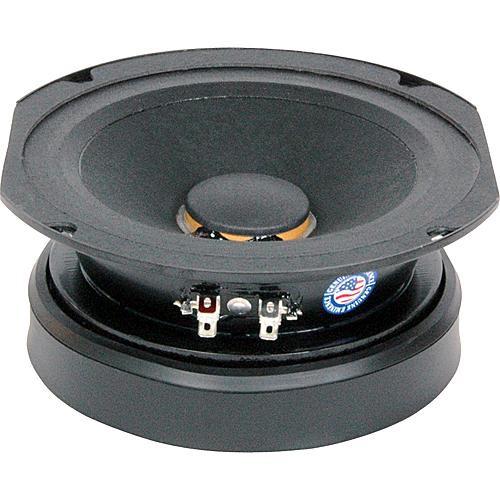

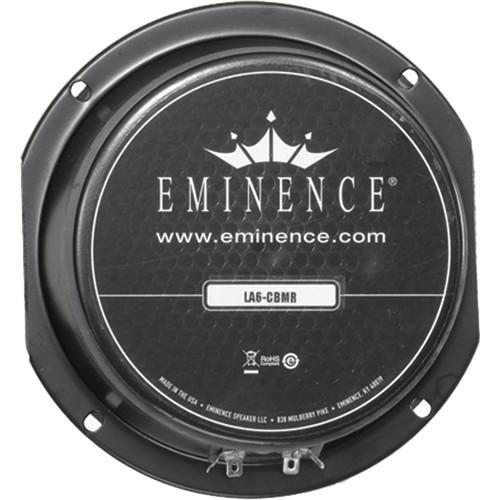

Click to enlarge the picture
Eminence LA6-CBMR 300W 6.5" 8 Ohm Mid-Range Loudspeaker Driver Contents of the user manual for the Eminence LA6-CBMR 300W 6.5" 8 Ohm
  • Product category: Speaker Accessories Eminence
  • Brand: Eminence
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Eminence Speaker Accessories

Eminence LA6-CBMR 300W 6.5" 8 Ohm Mid-Range Loudspeaker Driver Eminence LA6-CBMR 300W 6.5" 8 Ohm Mid-Range Loudspeaker Driver Eminence LA6-CBMR 300W 6.5" 8 Ohm Mid-Range Loudspeaker Driver
User manual for the Eminence LA6-CBMR 300W 6.5" 8 Ohm contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Eminence product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Eminence user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Eminence product will considerably shorten its lifespan!



Product description

The Eminence LA6-CBMR Mid-Range Loudspeaker Driver is part of their American Standard Series and is designed to install into custom made or prefabricated speaker cabinets that will accommodate a 6.5" (165mm) diameter mid-bass driver.The speaker will deliver up to 300W of power at 8 ohms and will adequately reproduce vocals, live musical performances, recorded music and other audio signals in mid-level professional sound reinforcement applications. Some of the many applications include sound reinforcement speakers for DJs, musicians, small and mid-sized venues, stage monitors, and much more.
  • 6.5" (165mm) driver for cabinet installation in line array configuration
  • 300W of power at 8 ohms
  • 38 oz magnet and 1.5" (38.1mm) voice coil
UPC: 876358000456 In the Box Eminence LA6-CBMR 300W 6.5" (165mm) 8 Ohm Mid-Range Loudspeaker Driver
  • 7-Year Limited Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Eminence LA6-CBMR 300W 6.5" 8 Ohm Mid-Range Loudspeaker Driver in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Eminence LA6-CBMR Specs

    Power 150W
    300W (Program)
    Nominal Impedance 8 Ohms
    Sensitivity 97.8
    Frequency Response 500Hz - 5.4kHz
    Primary DC Resistance 6.3
    Voice Coil 1.5" (38.1mm)
    Magnet 38 oz
    Construction Polymide Coil: Copper
    Magnet Composition: Ferrite
    Core Details: Vented and Extended
    Basket Materials: Pressed Steel with truncated sides
    Cone Composition: Paper
    Cone Edge: Cloth
    Dust Cap: Paper
    Dimensions 6.59" (167mm) Diameter
    2.77" (70mm) Depth
    Weight 6.7 lbs (3kg)
    Package Weight 7.45 lb
    Box Dimensions (LxWxH) 8.9 x 8.8 x 4.4"
