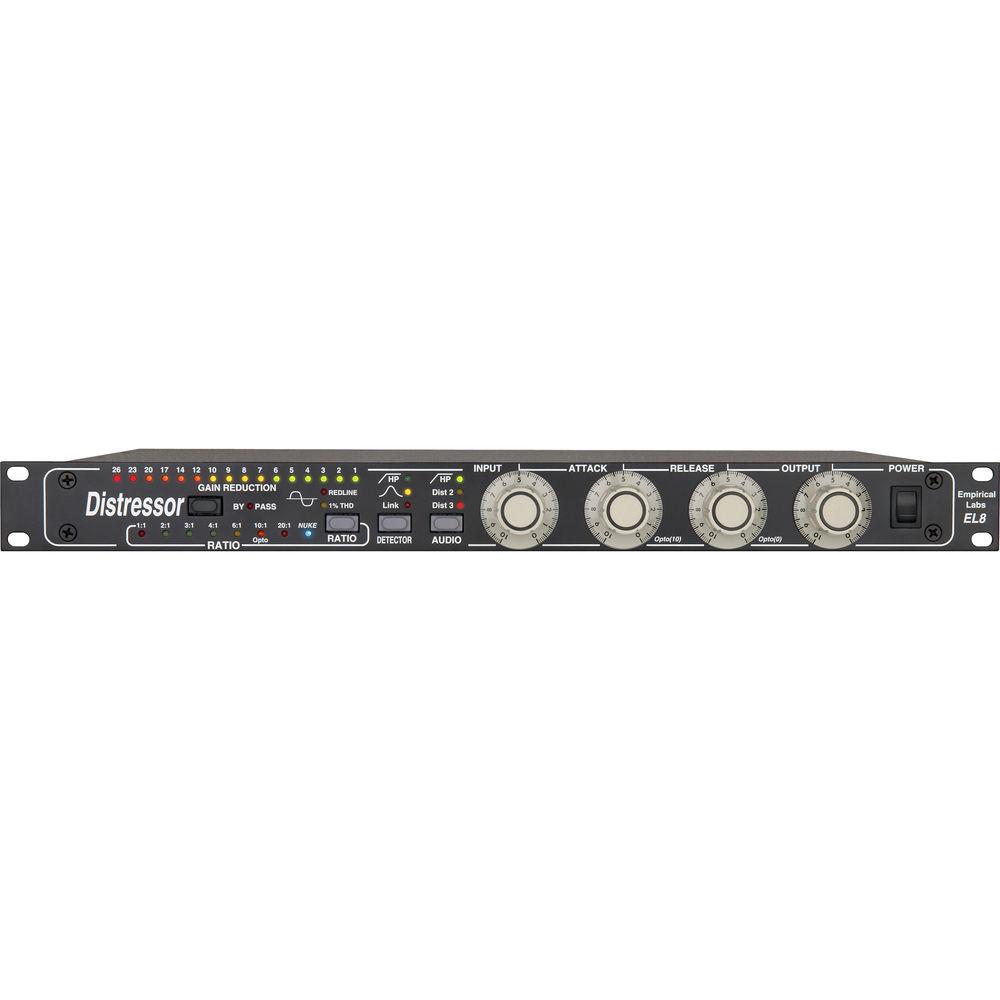

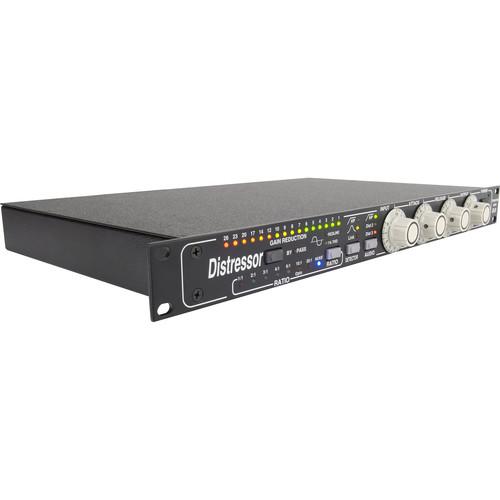

User Manual for EMPIRICAL LABS Distressor EL8 Analog Knee Compressor Click to enlarge the picture
Contents of the user manual for the EMPIRICAL LABS Distressor EL8 Analog Knee
- Product category: Dynamics Processors EMPIRICAL LABS
- Brand: EMPIRICAL LABS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EMPIRICAL LABS Dynamics Processors
 |
User manual for the EMPIRICAL LABS Distressor EL8 Analog Knee contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EMPIRICAL LABS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EMPIRICAL LABS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EMPIRICAL LABS product will considerably shorten its lifespan!
|
Product description The Distressor EL8 from Empirical Labs is a professional compressor that features a wide range of controls and feature set for studio or live applications. The Distressor offers a warm, vintage sound by using a custom designed gain control circuit. All eight of the Distressor's curves are distinctive, from the 1:1 mode that simply warms up signal with low order harmonics without intentional compression, to the Nuke setting, a brick wall limiting curve that shines on live drum room mics. Some curves have different circuitry, and are effectively different compressors. The 10:1 Opto ratio uses separate detector circuitry to emulate the oldest light controlled devices, such as the LA-2A.
The Distressor features three modes that color the signal, even without compression. These extended audio modes were designed to allow emulation of some very old vintage compressors and limiters, and let the Distressor deliver a classic knee sound all its own by providing user programmable, warm harmonic distortion. In addition to the basic distortion mode, Distort 2 emphasizes tube-like 2nd order harmonics, while in the Distort 3 setting the distortion becomes dominated by 3rd harmonics more closely resembling tape. Two HP filters, with one in the audio path, one in the detector path, are also available to help with low frequencies that can cause pumping and breathing. - Classic Knee Sound
- Improved noise specs and performance
- Programmable Analog Distortion/Warmth
- Three audio modes provide user programmable, warm harmonic distortion. Emphasized tubelike, 2nd harmonic in clean and Distort 2 mode. In Distort 3 mode, the distortion becomes dominated by 3rd harmonic, more similar to tape
- Distortion Indicator Lights
- A 1% LED and a Redline (3%) LED providing no hard clipping until a few dB past Redline
- Advanced Built-In Sidechain EQ
- High mid-band emphasis and low-cut keeps the low sum and difference frequencies from pumping the upper frequencies of source material
- Eight Unique Curves
- From the 1:1 mode that warms up signal with low order harmonics without intentional compression, to the Nuke setting, each curve has its own personality, and release shape. The 10:1 Opto ratio uses separate circuitry to emulate the oldest light controlled devices, such as the LA-2A
- Large Knobs with High Resolution Numbering
- They're large for easy readability and repeatable settings, and go to 10.5
- Locked, Calibrated, Output Level
- Allows speed in setting tape and live mix levels
- Switchable 115/230 Volt Operation
- Extra fuse provided inside unit
- Over Designed Power Supplies
- Runs cool, allowing cabinet to be sealed without heat vents and features long life components
- True Bypass
- All contacts doubled up for maximum reliability with no internal audio connectors
- XLR and 1/4" Phone Inputs and Outputs
- The XLRs are fully balanced with a transformerless design (pin 2 hot, changeable by user to pin 3 hot)
- All metal film and Roederstein resistors in the audio path
UPC: 854682006009 In the Box EMPIRICAL LABS Distressor EL8 Analog Knee Compressor (Single Compressor) 2 x Power Cords Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EMPIRICAL LABS Distressor EL8 Analog Knee Compressor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEMPIRICAL LABS EL8 DISTRESSOR Specs | Frequency Response | 2 Hz to 160 kHz in clean audio mode (+0, -3 dB), response is shaped in distortion modes (Dist 2, Dist 3). | | Dynamic Range | 110 dB from maximum output to minimum output in 1:1 mode | | Signal to Noise | > 100 dB in distortion 3 | | Distortion Range | 0.02 and 20% | | Outputs | DC coupled | | Attack Time | 50 uS to 30 mS | | Release Time | 0.05 to 3.5 seconds, release goes up to 20 seconds in 10:1 Opto mode | | Power Consumption | Typical: 10 W
Maximum: 14 W |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 18 owners. Add your rating and experience with the product.
