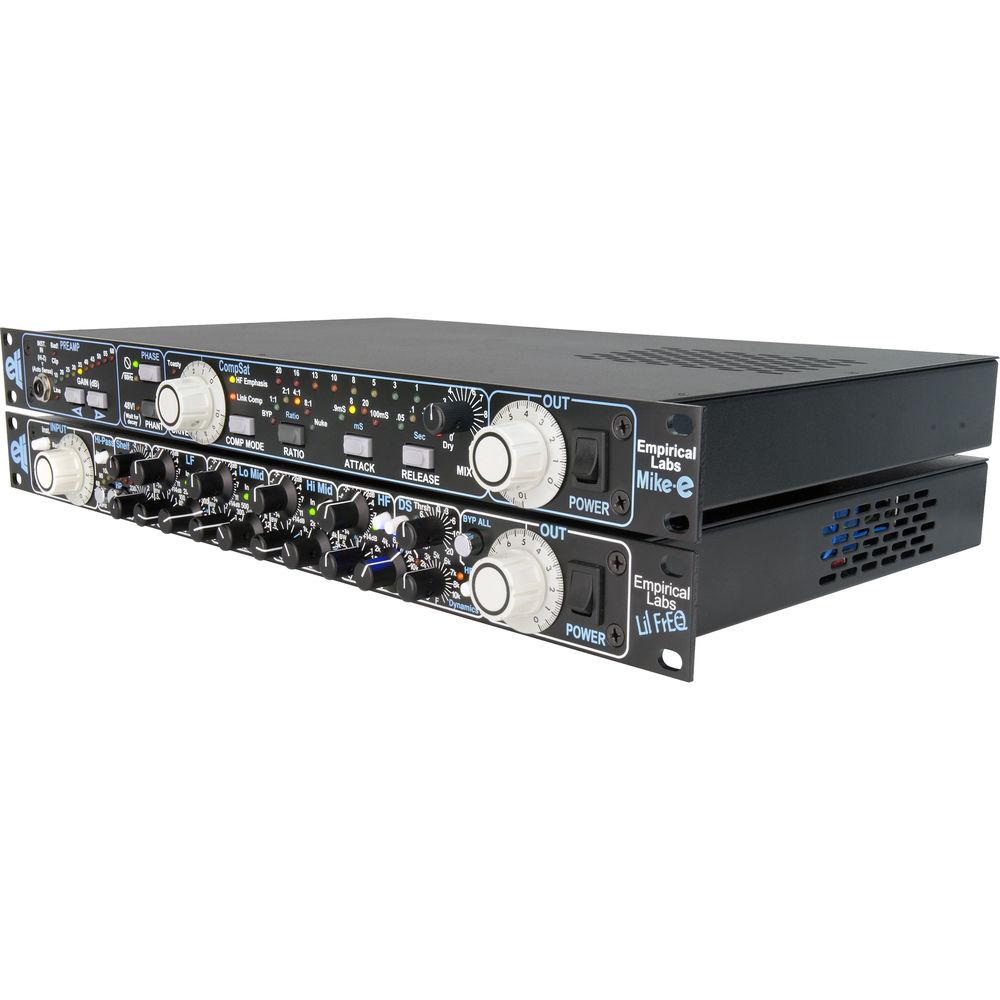

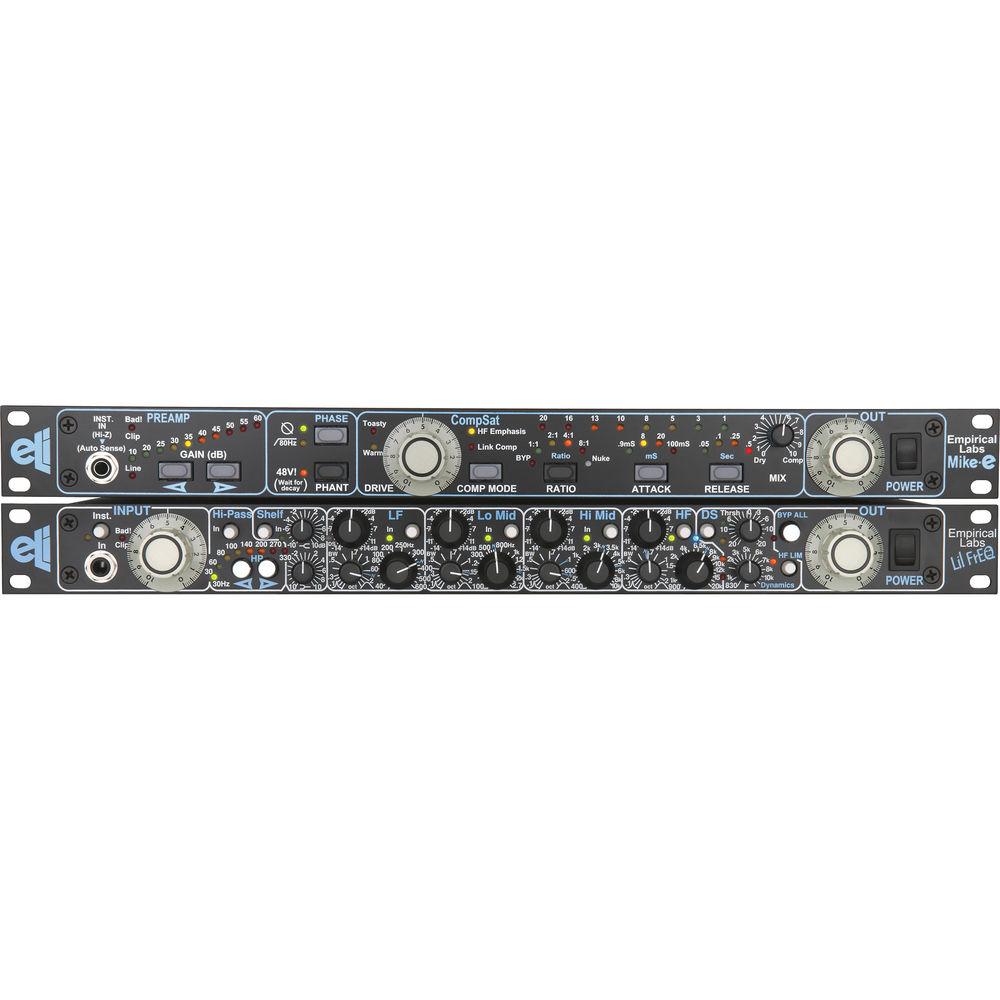

EMPIRICAL LABS Trak Pak Channel Strip

User Manual for EMPIRICAL LABS Trak Pak Channel Strip - Mike-E Mic Pre and Lil Freq EQ

• Product category: Channel Strips EMPIRICAL LABS
• Brand: EMPIRICAL LABS
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for EMPIRICAL LABS Channel Strips

Product description

• EL-9 Mike-e Microphone Preamp and Compressor/Saturator The EL-9 Mike-e from Empirical Labs is a transformer-coupled mic preamp with compressor/saturator circuits that deliver classic knee compression, as well as versatile tonal coloring. This low noise transformer input amplifier section offers precise digital control over gain and has a signal-to-noise ratio of 130 dB. It features stepped control knobs for gain control and a "BAD!" LED indicator for alerting the user when input signal is overloading the circuit.The front panel instrument input that allows the unit to function as an ultra-clean Direct Box. The saturator is a multi-stage soft-clipping circuit that provides triode-type saturation effects, while severely flattening out the peaks. The compressor circuit is based on the Distressor, but with a longer attack time. Preset ratios include 2:1, 4:1, 8:1, and Nuke. Emphasis improves the signal to noise ratio, while soft-clipping high frequencies before the CompSat circuit and cutting the frequencies after it.Mix provides the parallel compression technique achieved by mixing between the compressed and the dry, uncompressed signal. This can often help maintain transients and a sense of dynamic range while enhancing the low level nuances. A stereo link connector allows two Mike-e processors to be used for stereo buss functions, while the optional send/return insert modification allows for additional processors, such as the Lil Freq EQ, to be connected between the mic preamp and compressor, forming a powerful and flexible channel strip. The Mike-e ships with a standard IEC power cord.
  • • Versatile and simple microphone pre-amplifier with a deep feature set
    • Pre-amplifier section offers a transformer input. Low signal-to-noise exceeds 130 dB, well below the self-noise of any microphone
    • Super long life gain switching with 5 dB increments in preamp section and output pot for fine resolution gain setting. Sealed relays used throughout
    • CompSat section soft saturates the peaks of waveforms to warm things up and offers a world-class compressor with detented parameter selections
    • Germanium circuitry in the CompSat section to offer new warming characteristics
    • Two CompSat LED indicators, one “WARM” and one “TOASTY” LED, indicating internal saturation circuitry
    • Emphasis function tames high frequency build-up, while offering frequency dependent saturation, which enhances Mike-E’s popular tape-like tone
    • High performance high-pass filter at 80 Hz, 18 dB per octave
    • Built in Instrument preamp/direct box with auto sensing passes the signal through the input transformer for some “IRON” in its sound
    • Renowned Empirical Labs digitally controlled analog topology
    • Huge "DISTRESSOR" knobs with high resolution numbering for easy readability and repeatable settings
    • A “BAD!” hard clip LED indicates the signal is within .5 dB of hard clipping. It monitors many sections of the Preamp for internal clipping
    • Locked and calibrated output level allows speed in setting record and live mix levels
    • Extremely useful as a mixdown processor, too. Great for fitting the mixes together.
    • Discrete and integrated combination offering the best of speed/linearity with repeatability. Hand tested & selected components. All metal film and Roederstein resistors in the audio path
    • Top quality components, most being high temperature military spec parts
    • Upgradeable transformer output option
    • Switchable 115/230 volt operation - Extra fuse provided inside unit

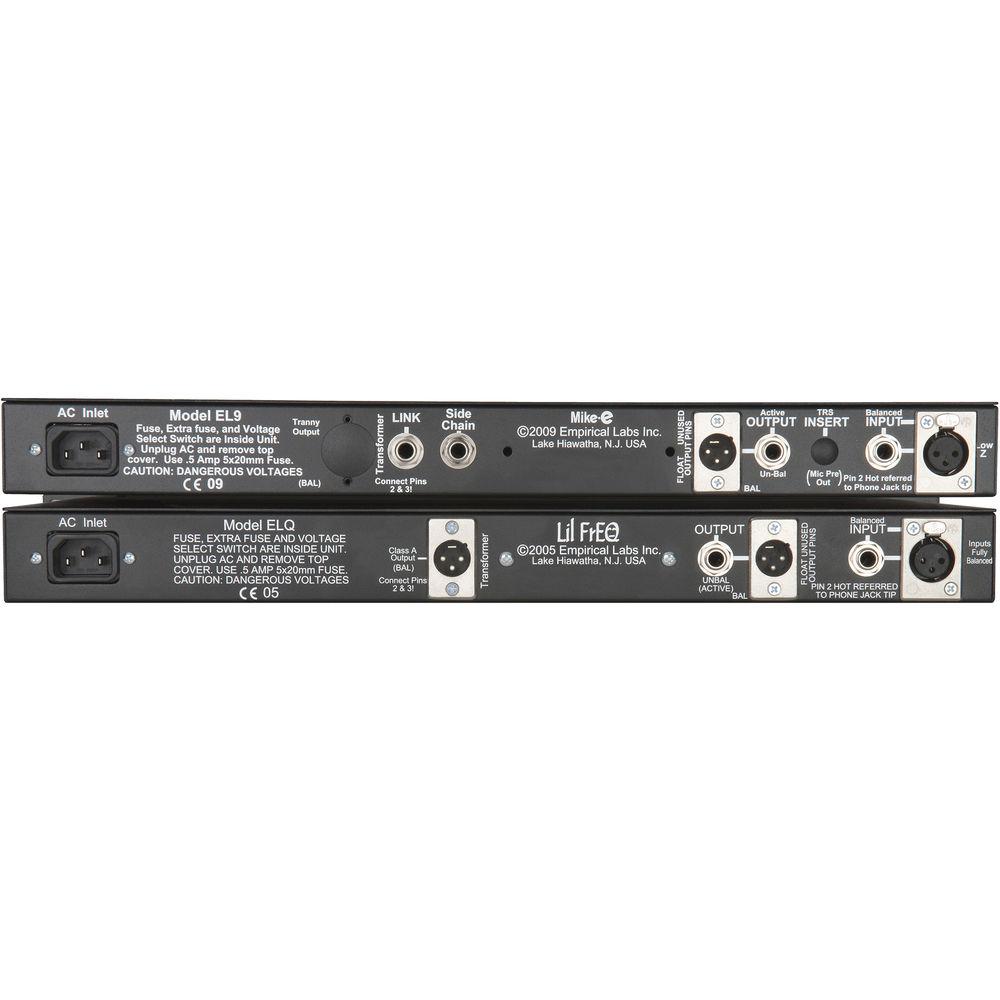

    • XLR and 1/4" phone ins and outs - XLR fully balanced design, pin-2 hot
    • No internal connectors, high reliability parts and military grade switches and relays. All contacts doubled up for maximum reliability
    • Linkable Compressor section
    • Hand wired and calibrated in USA
  UPC: 854682006061
• Lil Freq Equalizer The Lil Freq from Empirical Labs is a mastering quality equalizer with eight processing sections including two shelf equalizers, a high-pass (low-cut) filter, four fully parametric equalizer bands, and a dynamic equalizer section for de-essing and high-frequency limiting. The Lil Freq utilizes traditional and digitally controlled analog circuitry combined in a new topology, which offers a performance that exceeds most digital EQs in terms of distortion and noise.

  The high-pass section offer eight preset frequencies covering 30 to 330 Hz to remove low frequency content, while the high and low shelving sections offer musically smooth boost and cut on high and low frequencies. The fully parametric EQ section covers 4 overlapping frequency ranges (LF, Lo-Mid, Hi-Mid, and HF) with complete control over frequency selection, cut or boost, and bandwidth. The DS or dynamic EQ section combines tunable filters with a compressor-like circuit that can help control excessive high frequency content, such as sibilants or other sharp transients. The circuit also functions as a soft-knee high-frequency limiter.

  There are both XLR and 1/4" / 6.35mm line-level inputs, each being DC coupled. The XLR output includes a Class-A transformer, which offers isolation from ground loops and hum with soft saturation and a beefy low end often associated with vintage gear. Additionally, there is a 1/4" / 6.35mm instrument input on the front panel, which effectively turns the Lil Freq into an instrument DI for studio recording and live performance applications. The Lil Freq is hand-wired in the USA and ships with a standard IEC power cord.
  • • Eight sections of processing
    • Two shelving equalizers, special 3rd order HP (Low Cut) section with 8 selectable frequencies, 4 fully parametric bands, and one dynamic equalizer section
    • Dynamic section that can be used for de-essing and high frequency softening
    • Movable dynamic section allows de-esser to be before or after EQ
    • High audio performance with the total harmonic distortion typically below .0006% with all EQ bands engaged
    • Built in Instrument Preamp/Direct box – Just plug a guitar or bass into the front panel and engage the instrument switch, and you have the high performance direct box. Distortion is below .0007% on the instrument preamp, 114 dB dynamic range
    • Three Outputs, including a Class-A transformer output to give you an isolated output with soft saturation and beefy low end often associated with vintage gear
    • Traditional and digitally controlled analog combined in new topology
    • Huge "DISTRESSOR" knobs with high resolution numbering offers easy readability and repeatable settings
    • A “BAD!” Hard Clip Indicator light that lets the user know they are within 1 dB of hard clipping. It monitors every section of the EQ for internal clipping
    • Locked and calibrated output level allows for speed in setting tape and live mix levels
    • Discrete and integrated combination offering the best of speed/linearity with repeatability. Hand tested & selected components. All metal film and Roederstein resistors in the audio path with top quality components, most being high temperature military spec parts
    • Switchable 115/230 volt operation - Extra fuse provided inside unit
    • True EQ bypass
    • XLR and 1/4" phone ins and outs. (XLR fully balanced design, pin-2 hot. Changeable by user to pin-3 hot)
    • No internal connectors, high reliability parts and military grade switches and relays. All contacts doubled up for maximum reliability
    • Limited three year warranty.
    • Hand wired, calibrated in USA.

• Limited 2-Year Warranty

• Power Cord

• Limited 3-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• EL-9 Mike-e Microphone Preamp and Compressor/Saturator

  Frequency Response	No CompSat: 3 Hz to 200 kHz CompSat: 3 Hz to 150 kHz Optional Transformer Output: 6 Hz to 80 KHz
  Signal to Noise	130 dB at 40 dB gain Maximum Output: 28 dBu
  Distortion Range	0.0006 to 15% depending on mode and settings
  Input / Output	Transformer coupled Input, active and transformer outputs available High quality audio caps used internally
  Impedance	Input Impedance: 600 ohms at all frequencies, transformer coupled Output Impedance: less than 38 ohms Instrument Input Impedance: 332 kOhms
  Attack	0.9 to 70 msec
  Decay	0.15 to 1 sec
  Power Consumption	15 W maximum
  Dimensions	(1 U) 1.7 x 19.0 x 10.0" / 4.3 x 48.3 x 25.4 cm
  Weight	11 lb / 5 kg

• Lil Freq Equalizer

  Frequency Response	Transformerless Inputs and Outputs (-3 dB points): 3 Hz to 180 kHz Transformer Output: 6 Hz to 100 kHz (Measurements with EQ "In" but 8 sections "Out")
  Dynamic Range	Maximum Output: 122 dB (0.5% THD soft clipping) to minimum output Transformerless Noise Floor: -95 dBV typical
  Distortion Range	.0005% and .005% depending on mode and settings
  Inputs and Outputs	Input: XLR and 1/4" / 6.35 mm Instrument Input: 1/4" / 6.35 mm Output: XLR and 1/4" / 6.35 mm DC coupled input and outputs and one transformer coupled output
  Input Impedance	20 kOhm
  Output Impedance	< 38 ohms
  De-Esser	D-S Dynamics Time Constants: Attack Time: >1 ms Release Time: .04 sec, fixed internally
  Power Consumption	Maximum: 34 W Typical: 16 W
  Dimensions (W x D x H)	19.0 x 1.8 x 10.0" / 48.3 x 4.4 x 25.4 cm
  Weight	12.0 lb / 5.4 kg
