User Manual for ENERGEN DroneMax M10 Portable Charging Station for DJI Mavic Pro Click to enlarge the picture
Contents of the user manual for the ENERGEN DroneMax M10 Portable Charging Station
- Product category: DJI Accessories ENERGEN
- Brand: ENERGEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ENERGEN DJI Accessories
 |
User manual for the ENERGEN DroneMax M10 Portable Charging Station contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ENERGEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ENERGEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ENERGEN product will considerably shorten its lifespan!
|

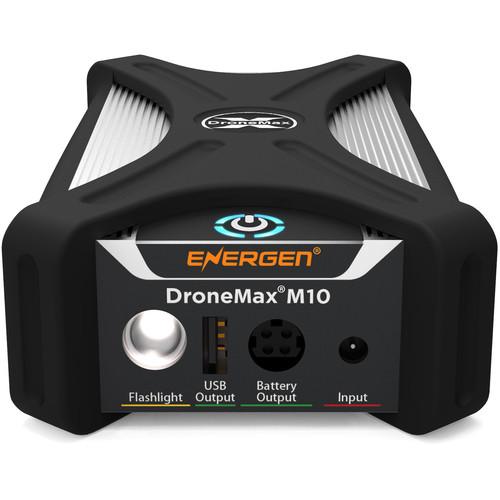

Product description Charge your Mavic Pro flight batteries while you're in the field with the DroneMax M10 from ENERGEN. This portable charging station is designed specifically for your Mavic Pro quadcopter. It features a fast-charging port designed to recharge your batteries quicker than the standard charger. The M10 also features a USB port, so you can recharge all your compatible mobile devices as well. A splitter cable is included, which lets you charge two batteries at once, as well as a weather-resistant carrying case. - Portable Battery Charging Station
- With the DroneMax M10, you can charge your Mavic Pro drone batteries in the field
- Faster Charge Times
- DroneMax M10 is designed to recharge your Mavic Pro batteries 20% faster, so you'll be back in the air sooner than with standard charging methods

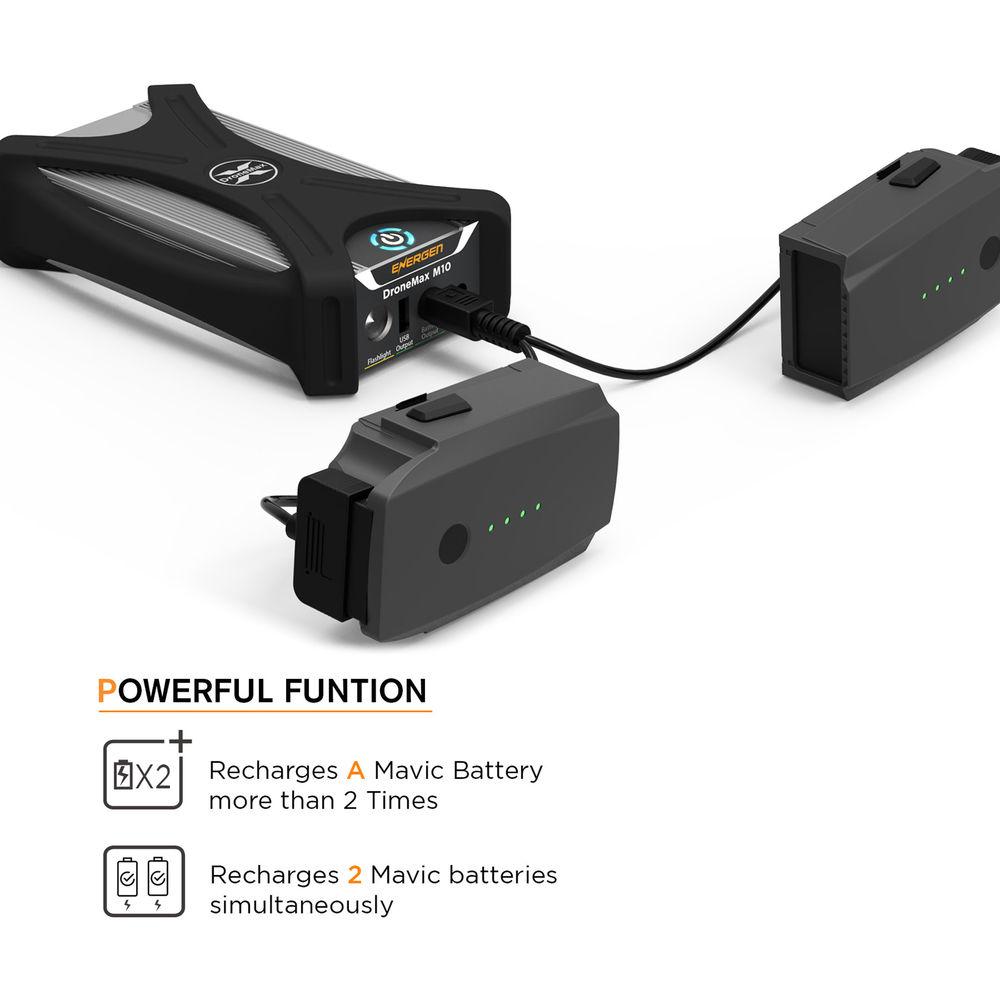

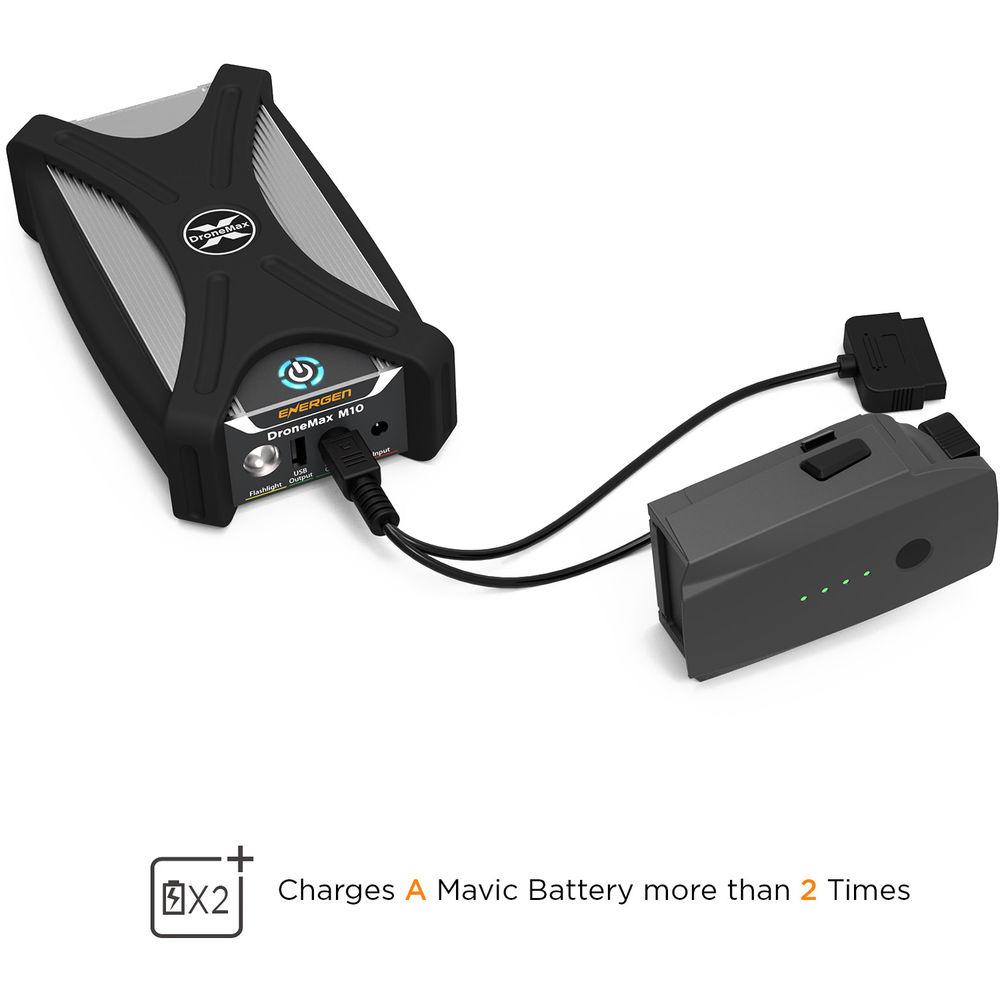

- Charge 2 at Once
- With the included splitter cable, the DroneMax M10 can charge 2 Mavic batteries at the same time

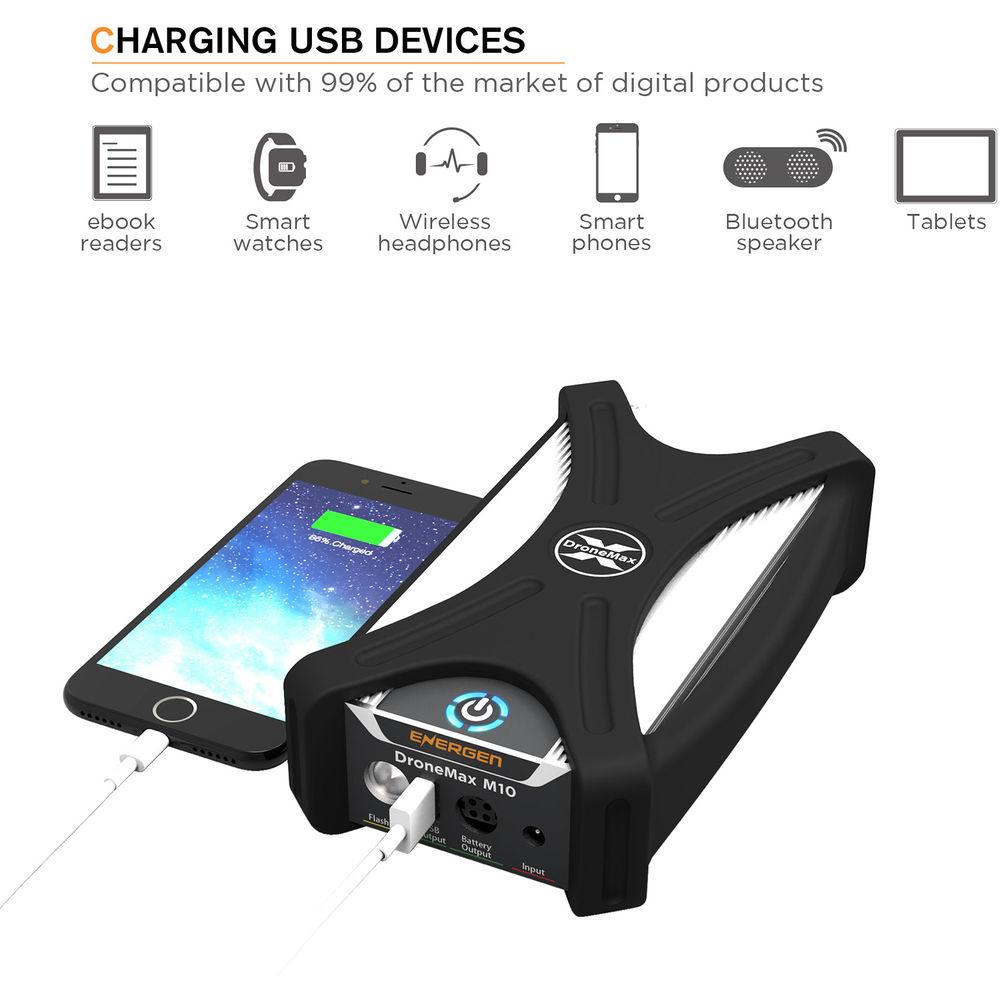

- USB Compatible
- The DroneMax M10 provides an additional USB port that can be used to charge all your compatible USB-powered devices

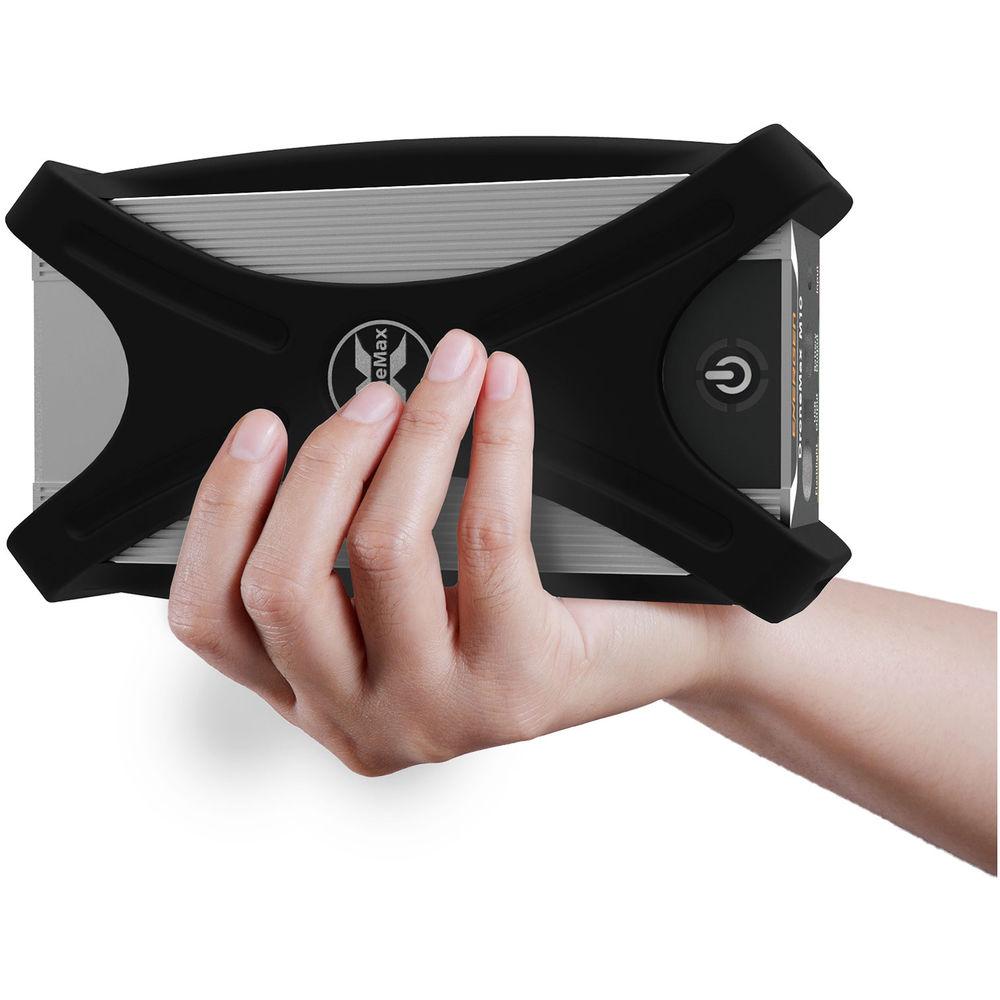

- Durable Design
- The DroneMax M10's aluminum casing and rubber bumper provide heat dissipation and protection, so it can withstand even the toughest environments.

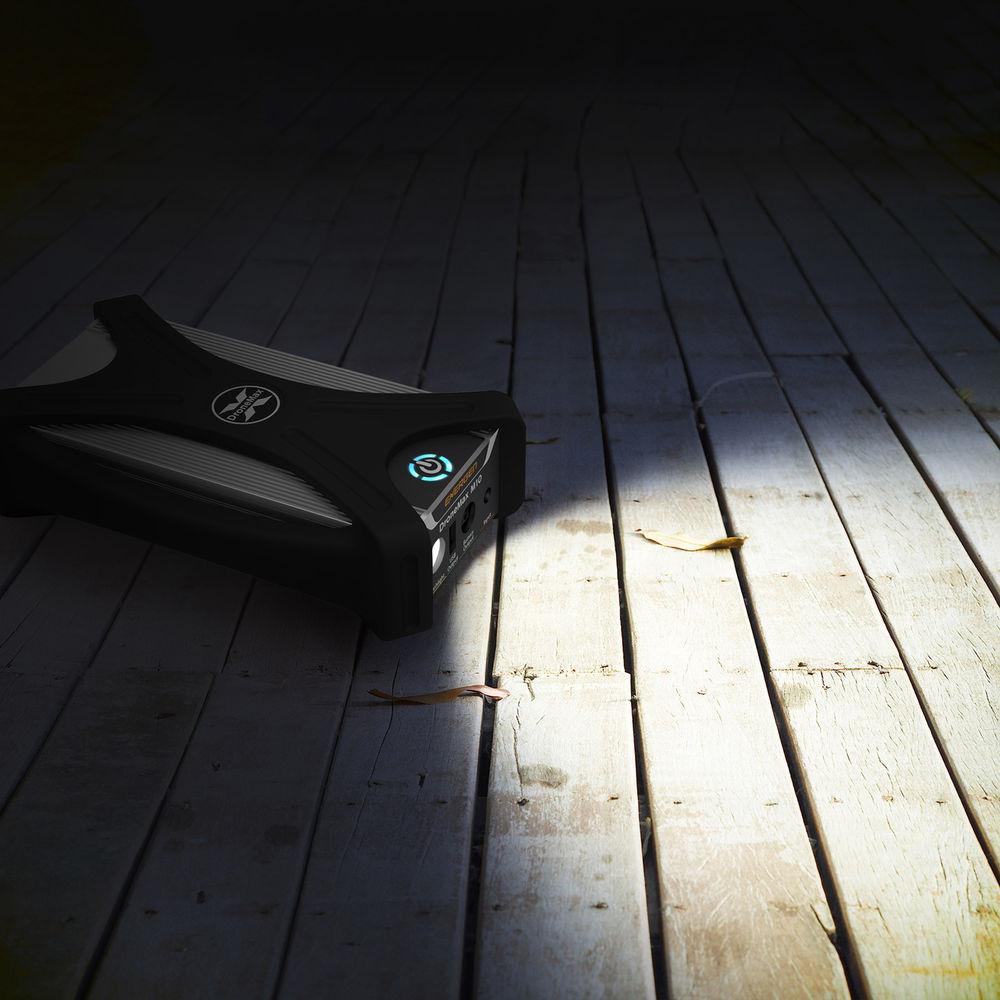

- Built-In Flashlight
- The M10's built-in LED flashlight has a bright and long-lasting LED bulb that provides 86 lumens of brightness and a long lifespan of up to 100,000 hours. The flashlight has three modes of operation: standard, strobe, and SOS.

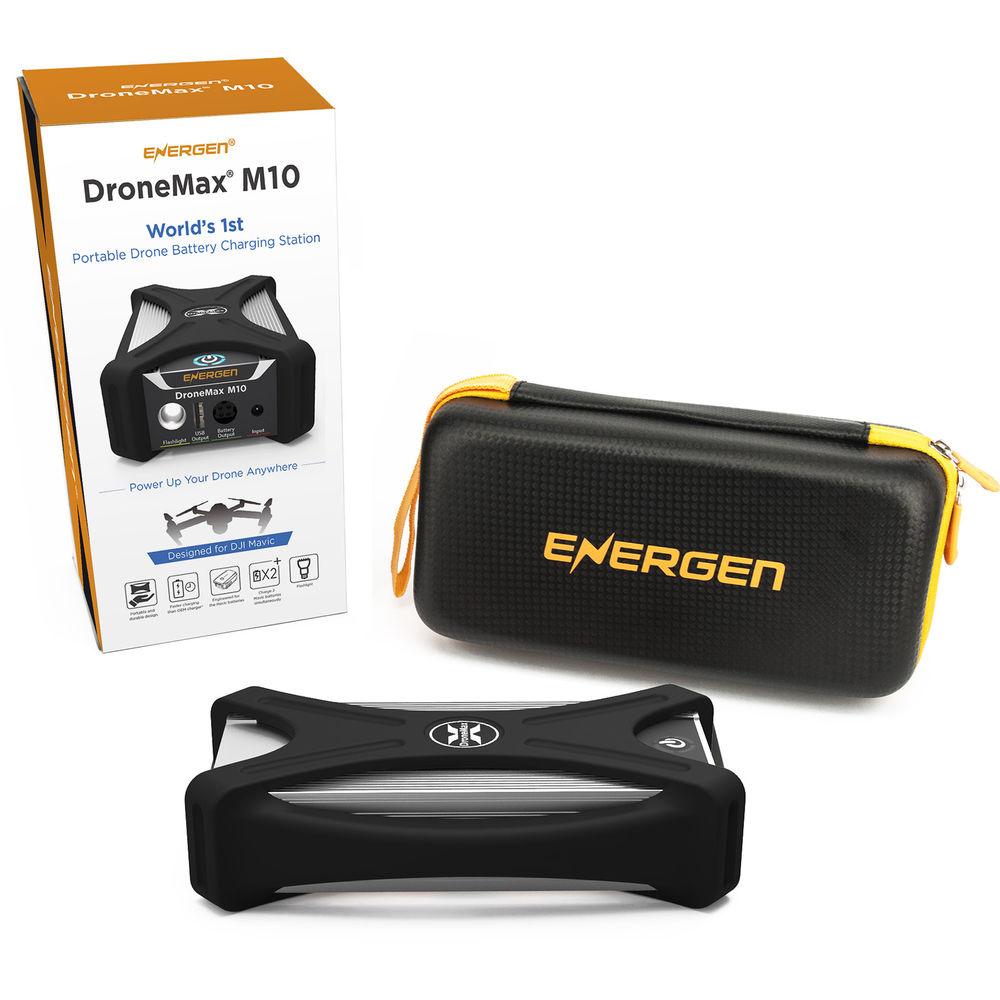

UPC: 859435005377 In the Box ENERGEN DroneMax M10 Portable Charging Station for DJI Mavic Pro Carrying Case Power Adapter Battery Splitter Charging Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ENERGEN DroneMax M10 Portable Charging Station for DJI Mavic Pro in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

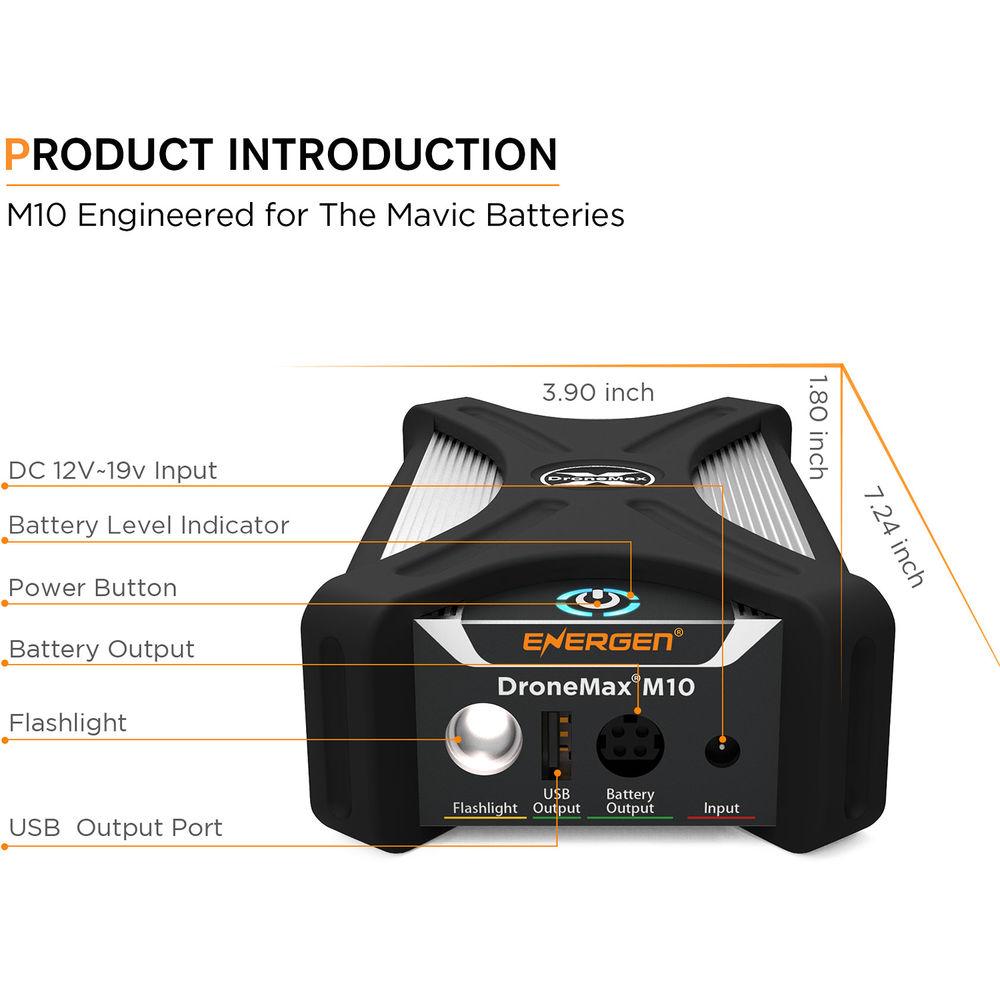

Technical parametersENERGEN EN-DM-M10 Specs | Battery Capacity | 99 Wh | | Battery Lifetime | <500 cycles | | Charging Time | Approximately 4 hours | | Outputs | 1x Battery charging port
1x USB charging port | | Input | 1x Power | | Output Power | Battery Port: 6 A, 13.05 VDC (total)
USB Ports: 2.4 A, 5 V (2x) | | Input Power | 21 VDC | | Operating Temperature | 23 to 104°F (-5 to 40°C) | | Dimensions | 4.09 x 1.80 x 7.25" (104 x 46 x 184 mm) | | Weight | 2.2 lb (0.97 kg) | | | | Package Weight | 3.5 lb | | Box Dimensions (LxWxH) | 9.5 x 5.4 x 4.3" |
