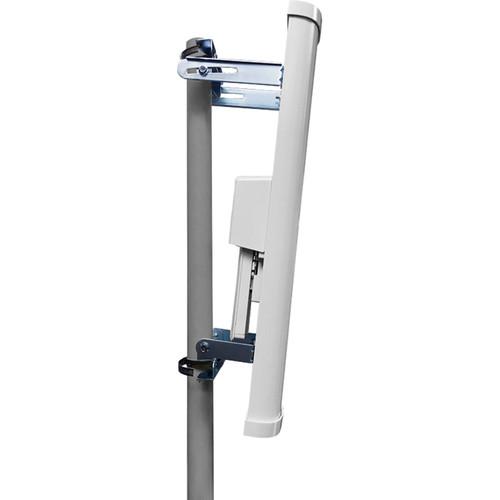

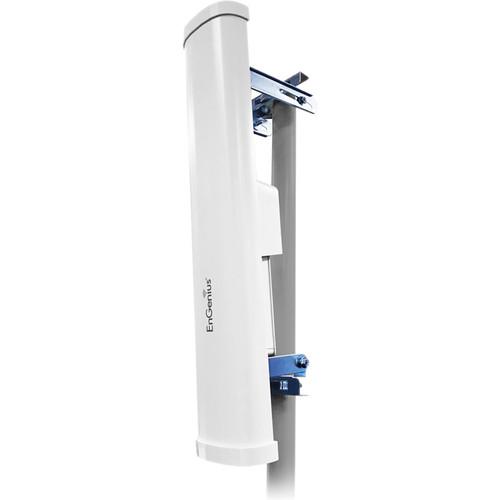

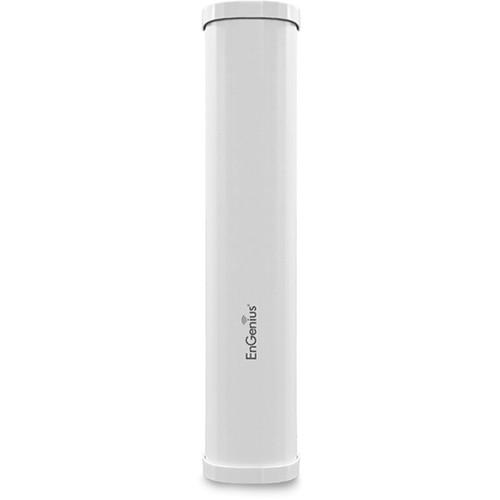

User Manual for EnGenius 3x3 MIMO 2.4 GHz 12dBi Sector Antenna Click to enlarge the picture
Contents of the user manual for the EnGenius 3x3 MIMO 2.4 GHz 12dBi
- Product category: Antennas & Accessories EnGenius
- Brand: EnGenius
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EnGenius Antennas & Accessories
 |
User manual for the EnGenius 3x3 MIMO 2.4 GHz 12dBi contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EnGenius product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EnGenius user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EnGenius product will considerably shorten its lifespan!
|
Product description Extend your network's range and coverage with the 3x3 MIMO 2.4 GHz 12dBi Sector Antenna from EnGenius. This sector antenna operates on the 2.4 GHz band and features 3x3 MIMO technology that minimizes errors and optimizes data speed. It provides a high-gain, 120-degree sector coverage that can reach up to 1.86 miles, and can be combined with additional antennas for a full 360-degree covered network. The antenna's u-bracket can tilt up to ten degrees for direct line of sight coverage or to reduce interference. Furthermore, its IP55-rating ensures that it can withstand harsh outdoors environments such as prolonged exposure to sunlight, extreme cold, frost, snow, rain, hail, heat, humidity, and wind gusts up to 125 mph. - Wide Sector Coverage
- The EnGenius Sector Antenna supports 120-degree sector coverage for high-capacity networks at up to 1.86 miles. Combine it with additional sector antennas to create a complete, 360-degree covered network.
- Cross-Platform Compatibility
- Connect an EnGenius access point using the sector antenna's plug-in mounting system or any 3x3 MIMO 2.4 GHz outdoor access point, with the appropriate cable to create a powerful and flexible wireless base station.
- Improved Coverage
- Tilt the antenna's u-bracket up to ten degrees to provide direct line of sight coverage, or to reduce interference.
UPC: 655216007826 In the Box EnGenius 3x3 MIMO 2.4 GHz 12dBi Sector Antenna 2 x U-Brackets 2 x Pole Brackets 2 x Pole Clamps 4 x Serrated Flange Bolts 4 x Serrated Flange Hex Nuts 3 x Mount Bracket Bolts Protective Shroud Access Point Mounting Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EnGenius 3x3 MIMO 2.4 GHz 12dBi Sector Antenna in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnGenius SA2312 Specs | | | Operating Frequency | 2.3 - 2.7 GHz | | Radio Chains/Spatial Streams | 3x3 MIMO | | Gain | 12 dBi | | Polarization | Dual-Linear | | Vertical Beamwidth | 9-Degrees | | Horizontal Beamwidth | 120-Degrees (6dB) | | Max VSWR | 2:1 | | Cross-Pol Isolation | 25 dB | | Impedance | 50 ohms | | Mechanical Specifications | Antenna Port/Type: 3/N-Type Plug, Female | | | | Connectors | EnGenius and most other outdoor APs with external antenna connectors | | | | Operating Temperature | -4°F to 158°F (-20°C to 70°C) | | Storage Temperature | -30°F to 80°F (-22°C to 176°C) | | Operating Humidity | 90% or less | | Storage Humidity | 90% or less | | Wind Survivability | 125 MPH (201 KMH) | | | | Dimensions (W x H x D) | 5.9 x 29.13 x 2.6" (150 x 740 x 66 mm) | | Weight | 5 lb (2.2 kg) | | | | Package Weight | 9.0 lb | | Box Dimensions (LxWxH) | 40.0 x 8.0 x 5.5" |
