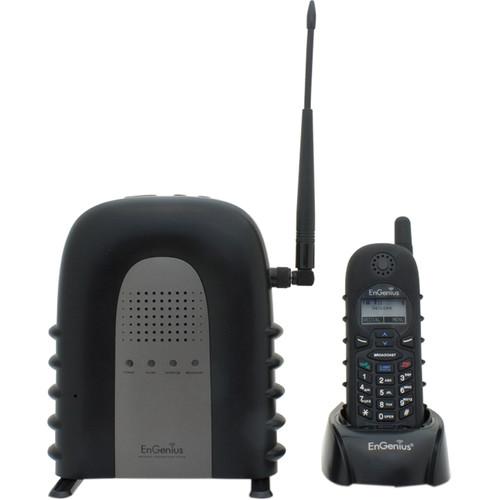

User Manual for EnGenius DURAFON 1X Single Line Industrial Cordless Phone System Click to enlarge the picture
Contents of the user manual for the EnGenius DURAFON 1X Single Line Industrial
- Product category: Telephones EnGenius
- Brand: EnGenius
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EnGenius Telephones
|
User manual for the EnGenius DURAFON 1X Single Line Industrial contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EnGenius product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EnGenius user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EnGenius product will considerably shorten its lifespan!
|
Product description With long range coverage, the DURAFON 1X Single Line Industrial Cordless Phone System from EnGenius offers a communication solution for real world applications including restaurants, large resorts, farms, manufacturing plants, and more. This basic system includes one DuraFon 1X receiver/base and one DuraFon 1X handset but the system is scalable allowing for the addition of up to nine (separately sold) handsets that can be assigned to one DuraFon 1X base/receiver; or expanding the system with the purchase of additional base stations and handsets.
DuraFon 1X is an ideal starter phone system for small companies or as a complementary system with an existing PBX or IP-PBX phone system when companies need a longer range communication solution than what DECT or Wi-Fi phones can deliver. Businesses can add to their system, choosing between the full functionality of portable, ruggedized DuraFon 1X handsets or if they just need a durable 2-Way (walkie-talkie) solution for more internal communication. - Enhanced Range & Coverage
- Up to 12 floors in-building penetration; up to 250,000 sq. ft. of facility coverage and up to 3,000 acres of property, open land coverage.
- Upgradable and Scalable System
- Add up to nine phone handsets for each base station. Add 2-Wy DuraWalkie 1X units for expanded user capacity.
- Complementary Addition to Any PBX or IP-PBX Phone System
- For companies that require a longer range phone solution than what DECT or Wi-Fi can deliver, the DuraFon 1X system can complement their existing system as it works behind any analog port (PBX, VoIP, PSTN, FXS, or POTS).
- Versatile Communication Tools
- Broadcast Page half duplex (PTT) between DuraFon and DuraWalkie handsets and wireless full duplex intercom between DuraFon 1X and DuraWalkie 1X handsets. Includes Auto Attendant with call redirect assistance.
- Ruggedized Handset
- Features a tested, rugged housing specifically designed for work in industrial environments. Finely constructed and drop tested for durability in a variety of environments. Each handset holds up to six hours of talk time and up to 50 hours stand-by time when fully charged.
UPC: 655216002364 In the Box EnGenius DURAFON 1X Single Line Industrial Cordless Phone System Li-Ion Battery Pack AC Charging Cradle w/ Power Adapter Belt Clip Optimal Performance Antenna Low Profile Antenna Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EnGenius DURAFON 1X Single Line Industrial Cordless Phone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnGenius DuraFon 1X Specs | | | Frequency | 902-928 MHz | | RF Power | Peak: 708 mW
Average: 304 mW | | Channel Spacing | 200 kHz | | Number of Channels | 128 | | Modulation | GMSK | | Access | Multiple Access: Frequency hopping TDD | | Frequency Hopping Rate | 100 per second | | TDMA Frame Length | 10 ms | | Number of Slots | 4 | | Antenna Connector | Reverse TNC | | Antenna Gain | 2 dBi / 5 dBi external (optional) | | Telephone Interface | 2 x RJ-11 | | Speech Coding | 8 kbps G.729A | | Channel Coding Section | 8 kbps Convolutional+CRC | | Transmission Data Rate | 170.678 kbps | | User Data Rate | 128 kbps duplex | | Duplex Mode | Time Division Duplex (TDD) | | Voice Quality | TIA/EIA-470B | | Number of System IDs | 65,536 | | Ring Signal | 20-50 Hz, 12-90 Vrms | | Flash Time | 100-900 ms programmable | | Power Source | 120 V / 12 V AC/DC adapter | | Regulation Compliance | FCC Part 15, Part 68 CAN/DOC RSS210, CS03 | | Temperature & Humidity | Operating Temperature: 14 to 140°F / -10 to 60°C
Storage Temperature: 14 to 158°F / -10 to 70°C
Humidity: 20 to 75% | | Dimensions | 6.3 x 1.7 x 7.4" / 161 x 42 x 188 mm | | Weight | 0.93 lb / 424 g | | | | Frequency | 902-928 MHz | | RF Power | Peak: 708 mW
Average: 76 mW | | Channel Spacing | 200 kHz | | Number of Channels | 128 | | Modulation | GMSK | | Multiple Access | Frequency Hopping TDD | | Frequency Hopping Rate | 100 per second | | TDMA Frame Length | 10 ms | | Number of Slots | 4 | | Antenna Connector | Non-standard | | Antenna Gain | 0.5 dBi (short antenna)
2 dBi (long antenna) | | Tx Power Control | 100-78 mW | | Speech Coding | 8 kbps G.729A | | Channel Coding Section | 8 kbps Convolutional+CRC | | Transmission Data Rate | 176.678 kbps | | User Data Rate | 128 kbps duplex | | Duplex Mode | Time Division Duplex (TDD) | | Voice Quality | TIA/EIA-470B | | Number of System IDs | 65,536 | | Power Source | 3.6V 1700 mAh Li-ion battery | | Charger Current | 600 mAh (900 mAh for spare battery slot) | | Charge Time | 4 hours (from empty) | | Regulation Compliance | FCC Part 15, Part 68, CAN/DOC RSS210, CS03, Hearing Aid Compatible | | Temperature & Humidity | Operating Temperature: 14 to 140°F / -10 to 60°C
Storage Temperature: 14 to 158°F / -10 to 70°C
Humidity: 20 to 75% | | Dimensions | 2.3 x 1.2 x 6.3" / 58 x 31 x 161 mm | | Weight | 6.2 oz / 175 g | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 16.5 x 12.4 x 3.8" |
