User Manual for EnGenius DURAFON-PRO-HC Expansion Handset Click to enlarge the picture
Contents of the user manual for the EnGenius DURAFON-PRO-HC Expansion Handset
- Product category: Telephones EnGenius
- Brand: EnGenius
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EnGenius Telephones
 |
User manual for the EnGenius DURAFON-PRO-HC Expansion Handset contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EnGenius product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EnGenius user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EnGenius product will considerably shorten its lifespan!
|

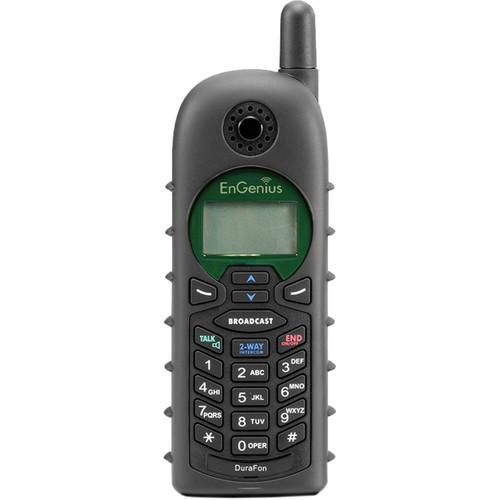

Product description With long range connectivity and a rugged, durable housing, the DURAFON-PRO-HC Expansion Handset from EnGenius is suitable for use in a variety of environments. The phone supports up to 6 hours of talk time and up to 50 hours of standby time on a single charge and can be used as a cordless phone or 2-way communication device. With intercom mode you can chat directly with another DuraFon while background chatter is eliminated from the conversation. Broadcast mode allows for important messages or emergency bulletins to be delivered to one handset or to a group of handsets simultaneously. When the battery begins to drain hot swappable charging allows for the battery to be charged while the call is on hold. - Intercom Mode
- Independent of the base unit, group chatter is undetectable and the device includes push to talk capabilities, keeping conversations private.
- Rugged Housing with Durable Design
- The DuraFon Pro features a tested, rugged housing specifically designed for work in industrial environments. This phone has also been drop tested for durability in a variety of environments.
- Broadcasting
- Sends direct announcements to all handsets, or a group of handsets for emergencies and company wide messages.
- Line Broadcast
- With line broadcast the DuraFon is capable of broadcasting through L3 or L4.
- Battery Hot Swapping
- With battery hot swapping the battery can be charged while the call is on hold.
UPC: 655216003163 In the Box EnGenius DURAFON-PRO-HC Expansion Handset Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EnGenius DURAFON-PRO-HC Expansion Handset in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnGenius DuraFon PRO Specs | Frequency | 902 - 928 MHz | | RF Power | Peak: 708 mW
Average: 76 mW | | Channel Spacing | 200 kHz | | Number of Channels | 128 | | Modulation | MSK | | Multiple Access | Freq. Hopping TDMA | | Frequency Hopping Rate | 100 per second | | TDMA Frame Length | 10 ms | | Number of Slots | 8 | | Number of Users | 4 | | Receiver Sensitivity | < -108 dBm (@ BER 10-2 | | Antenna Connector | Non-standard | | Antenna Gain | 2 dBi Tall Handset Antenna

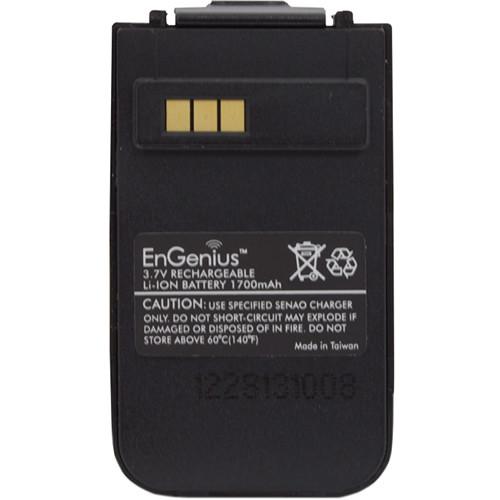

0.5 dBi Low Profile Antenna | | Speech Coding | 8 kbps G.729A | | Transmission Data Rate | 170.678 kbps | | User Data Rate | 128 kbps duplex | | Duplex Mode | Time Division Duplex (TDD) | | Voice Quality | TIA / EIA-470B | | Number of System IDs | 65,536 | | Auto-Attendant Coding | 8 kbps G.729 | | Power Source | 3.6 V, 1700 mAh Li-Ion Battery | | Charger Current | 500 mA | | Charge Time | 4 Hours (from empty) | | Regulation Compliance | FCC Part 15, Part 68
CAN/DOC RSS210, CS03
Hearing Aid Compatible | | Temperature & Humidity | Operating Temperature: 14 to 140°F / -10 to 70°C
Storage Temperature: 14 to 158°F / -10 to 70°C
Humidity: 20 to 75% | | Dimensions | 2.3 x 1.2 x 6.3" / 58 x 31 x 161 mm | | Weight | 6.17 oz / 175 g | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 11.4 x 7.7 x 2.8" |
