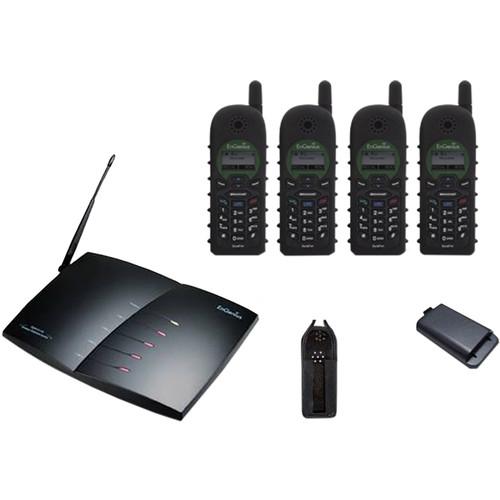

User Manual for EnGenius DuraFon Pro Multiple Handset Starter Kit Long Range Phone System Click to enlarge the picture
Contents of the user manual for the EnGenius DuraFon Pro Multiple Handset Starter
- Product category: Telephones EnGenius
- Brand: EnGenius
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EnGenius Telephones
|
User manual for the EnGenius DuraFon Pro Multiple Handset Starter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EnGenius product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EnGenius user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EnGenius product will considerably shorten its lifespan!
|
Product description With the DuraFon Pro Multiple Handset Starter Kit Long Range Phone System from EnGenius you get a single DuraFon Base Unit, four DuraFon handsets, eight Li-ion battery packs, four charging cradles, four belt clips, four handset antennas, four low-profile handset antennas, and four DuraPouch handset holsters. This kit includes everything you need for your employees to communicate with each other over long distances such as job sites and expansive office buildings. Each handset comes with a durable housing allowing it to stand up to the elements and features a hot-swappable battery to keep the phone going the entire day. Once implemented, you can stay in constant contact with others and view important information right on the handsets 4-line LCD display. Additionally, intercom mode provides instant two-way communication between handsets even when out of range of the base unit. - Rugged Housing with Durable Design
- The DuraFon features a rugged housing specifically designed for work in industrial environments. Each handset is finely constructed and drop tested for durability in a variety of environments.
- Keep Your Employees Connected
- This kit features extra battery packs, belt clips, handset antennas, and DuraPouches to get your business up and running.
- High Capacity Li-ion Battery
- Take advantage of 6 hours of talk time and 50 hours of standby time, allowing for extensive use.
- Speakerphone
- Each handset comes equipped with a speakerphone for hands-free communication.
- No Recurring Costs
- With no subscriptions or contracts and no monthly service charges or fees you benefit from a lower total cost of ownership.
UPC: 655216003835 In the Box EnGenius DuraFon Pro Multiple Handset Starter Kit Long Range Phone System DuraFon Pro Base Unit 4 x DuraFon Pro Handsets 8 x Li-ion Battery Packs 4 x AC Charging Cradles w/ Power Adapters 4 x Belt Clips 4 x Optimal Performance Handset Antennas 4 x Low Profile Handset Antennas 4 x DuraPouch - Handset Holsters Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EnGenius DuraFon Pro Multiple Handset Starter Kit Long Range Phone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnGenius DuraFon PRO Specs | | | Frequency | 902-928 MHz | | RF Power | Peak: 708 mW
Average: 304 mW | | Channel Spacing | 200 kHz | | Number of Channels | 128 | | Modulation | MSK | | Multiple Access | Frequency Hopping TDMA | | Frequency Hopping Rate | 100 per second | | TDMA Frame Length | 10 ms | | Number of Slots | 8 | | Number of Users | 4 | | Antenna Connector | Reverse TNC | | Antenna Gain | 2 dBi
5 dBi external (optional) | | Telephone Interface | 4 x RJ-11 | | Speech Coding | 8 kbps G.729A | | Channel Coding Section | 8 kbps Convolutional + CRC | | Transmission Data Rate | 170.678 kbps | | User Data Rate | 128 kbps duplex | | Duplex Mode | Time Division Duplex (TDD) | | Voice Quality | TIA/EIA-470B | | Number of System IDs | 65,536 | | Ring Signal | 20-50 Hz, 12-90 Vrms | | Auto-Attendant Coding | 8 kbps G.729 | | Flash Time | 100-900 ms programmable | | Power Source | 120 V / 7 V, AC/DC adapter | | Regulation Compliance | FCC Part 15, Part 68 | | Temperature & Humidity | Operating Temperature: 14 to 140°F / -10 to 60°C
Storage Temperature: 14 to 158°F / -10 to 70°C
Humidity: 20 to 75% | | Dimensions | 11.0 x 2.1 x 8.5" / 215 x 53 x 280 mm | | Weight | 32 oz / 907 g | | | | Frequency | 902-928 MHz | | RF Power | Peak: 708 mW
Average: 76 mW | | Channel Spacing | 200 kHz | | Number of Channels | 128 | | Modulation | MSK | | Multiple Access | Frequency Hopping TDMA | | Frequency Hopping Rate | 100 per second | | TDMA Frame Length | 10 ms | | Number of Slots | 8 | | Number of Users | 4 | | Antenna Connector | Non-standard | | Antenna Gain | 2 dBi (long)
0.5 dBi (short) | | Tx Power Control | 100-708 mW | | Speech Coding | 8 kbps G.729A | | Channel Coding Section | 8 kbps convolutional + CRC | | Transmission Data Rate | 170.678 kbps | | User Data Rate | 128 kbps duplex | | Duplex Mode | Time Division Duplex (TDD) | | Voice Quality | TIA/EIA-470B | | Number of System IDs | 65,536 | | Auto-Attendant Coding | 8 kbps G.729 | | Power Source | 3.6 V, 1700 mAh Li-ion battery | | Charger Current | 500 mA | | Charge Time | 4 hours (from empty) | | Regulation Compliance | FCC Part 15, Part 68 | | Temperature & Humidity | Operating Temperature: -10 to 60°C
Storage Temperature: -10 to 70°C
Humidity: 20 to 75% | | Dimensions | 2.28 x 1.22 x 6.34" / 58 x 31 x 161 mm | | Weight | 6.17 oz / 175 g |
