User Manual for EnGenius DuraFon PRO-PIB20 Multi-Handset Bundle with External Antennas

Click to enlarge the picture
EnGenius DuraFon PRO-PIB20 Multi-Handset Bundle with External Antennas Contents of the user manual for the EnGenius DuraFon PRO-PIB20 Multi-Handset Bundle with
  • Product category: Telephones EnGenius
  • Brand: EnGenius
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for EnGenius Telephones

User manual for the EnGenius DuraFon PRO-PIB20 Multi-Handset Bundle with contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any EnGenius product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official EnGenius user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a EnGenius product will considerably shorten its lifespan!



Product description

When long-range communication is needed, the DuraFon PRO-PIB20 Multi-Handset Bundle with External Antennas from EnGenius is the solution. This bundle comes with everything needed to implement a long-range phone system including the DuraFon PRO Handset base, four DuraFon PRO Handsets, eight battery packs, four charging cradles, and much more. With the included external high gain antenna, the phones are accessible throughout 250,000 square feet of coverage and through floors inside a building. Configuration is simple as the entire setup can be worked into existing PBX, VoIP, PSTN, FXS, or POTS phone systems. Once configured, the possibilities are virtually limitless as the user capacity can be expanded to up to 90 handsets by adding an additional 7 base stations.
    Powerful Range & Distance
  • Extends in-building signal through 12 floors with 250,000 square feet of facility coverage or 3,000 acres of open land coverage.
    Upgradable and Scalable System
  • Supports up to 90 DuraFon PRO or DuraWalkie handsets and is expandable to 8 bases for 32 line/ports for expanded user capacity.
    Compatibility
  • Works behind any analog port (PBX, VoIP, PSTN, FXS or POTS) for more flexible deployments.
    Rugged Housing with Durable Design
  • Features a tested, rugged housing specifically designed for work in industrial environments. Finely constructed and drop tested for durability in a variety of environments.
    Broadcasting
  • Sends direct announcements to all handsets, or a group of handsets for emergencies and company wide messages.

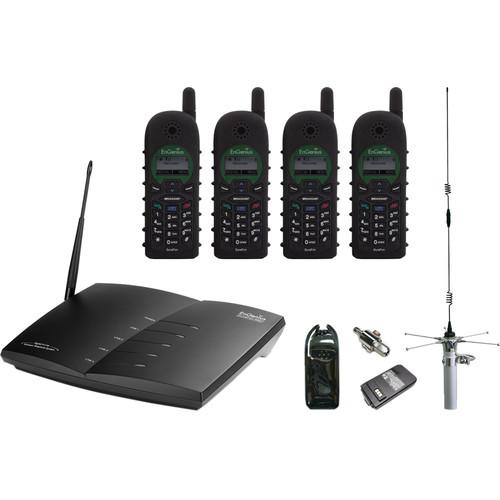

In the Box EnGenius DuraFon PRO-PIB20 Multi-Handset Bundle with External Antennas
  • DuraFon PRO Base Unit
  • 4 x DuraFon PRO Handsets
  • 8 x Li-Ion Battery Packs
  • 4 x AC Charging Cradles w/ Power Adapters
  • 4 x Belt Clips
  • 4 x Optimal Performance Antennas
  • 4 x Low Profile Antennas
  • 4 x DuraPouches - Handset Holsters
  • External High Gain Antenna Kit w/66' Low Loss Coax Cable
  • Lightning Protection Kit
  • Limited 1-Year Manufacturer Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the EnGenius DuraFon PRO-PIB20 Multi-Handset Bundle with External Antennas in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    EnGenius DuraFon PRO Specs

    Frequency 902-928 MHz
    RF Power Peak: 708 mW
    Average: 304 mW
    Channel Spacing 200 kHz
    Number of Channels 128
    Modulation MSK
    Multiple Access Frequency Hopping TDMA
    Frequency Hopping Rate 100 per second
    TDMA Frame Length 10 ms
    Number of Slots 8
    Number of Slots 4
    Antenna Connector Reverse TNC
    Antenna Gain 2 dBi
    5 dBi external (optional)
    Telephone Interface 4 x RJ-11
    Speech Coding 8 kbps G.729A
    Channel Coding Section 8 kbps Convolutional + CRC
    Transmission Data Rate 170.678 kbps
    User Data Rate 128 kbps duplex
    Duplex Mode Time Division Duplex (TDD)
    Voice Quality TIA/EIA-470B
    Number of System IDs 65,536
    Ring Signal 20-50 Hz, 12-90 Vrms
    Auto-Attendant Coding 8 kbps G.729
    Flash Time 100-900 ms programmable
    Power Source 120 V / 7 V, AC/DC Adapter
    Regulation Compliance FCC Part 15, Part 68
    Temperature & Humidity Operating Temperature: 14 to 140°F / -10 to 60°C
    Storage Temperature: 14 to 158°F / -10 to 70°C
    Humidity: 20 o 75%
    Dimensions 11.0 x 2.1 x 8.5" / 215 x 53 x 280 mm
    Weight 32 oz / 907.18 g
    Frequency 902-928 MHz
    RF Power Peak: 708 mW
    Average: 76 mW
    Channel Spacing 200 kHz
    Number of Channels 128
    Modulation MSK
    Multiple Access Frequency Hopping TDMA
    Frequency Hopping Rate 100 per second
    TDMA Frame Length 10 ms
    Number of Slots 8
    Number of Users 4
    Antenna Connector Non-Standard
    Antenna Gain 2 dBi (Long)
    0.5 dBi (short)
    Tx Power Control 100-708 mW
    Speech Coding 8 kbps G.729A
    Channel Coding Section 8 kbps Convolutional + CRC
    Transmission Data Rate 170.678 kbps
    User Data Rate 128 kbps duplex
    Duplex Support Time Division Duplex (TDD)
    Voice Quality TIA/EIA-470B
    Number of System IDs 65,536
    Auto-Attendant Coding 8 kbps G.729
    Power Source 3.6V, 1700 mAh Li-ion Battery
    Charger Current 500 mA
    Charge Time 4 hours (from empty)
    Regulation Compliance FCC Part 15, Part 68
    Temperature & Humidity Operating Temperature: 14 to 140°F / -10 to 60°C
    Storage Temperature: 14 to 158°F / -10 to 70°C
    Humidity: 20 o 75%
    Dimensions 0.31 x 1.22 x 6.34" / 8 x 31 x 161 mm
    Weight 0.17 oz / 4.82 g
