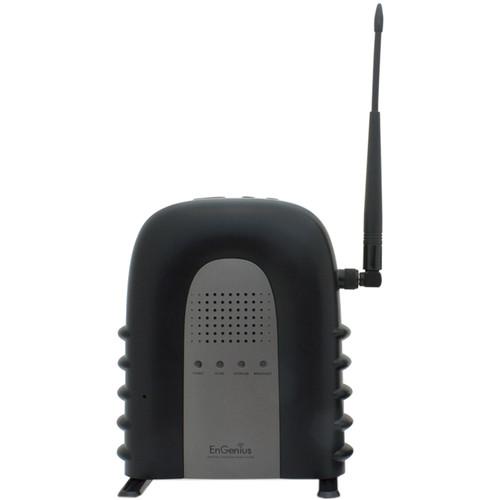

User Manual for EnGenius DuraFon Single Line Industrial Phone System Click to enlarge the picture
Contents of the user manual for the EnGenius DuraFon Single Line Industrial Phone
- Product category: VoIP Accessories EnGenius
- Brand: EnGenius
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EnGenius VoIP Accessories
|
User manual for the EnGenius DuraFon Single Line Industrial Phone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EnGenius product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EnGenius user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EnGenius product will considerably shorten its lifespan!
|
Product description When long-range communication is needed, the base station DuraFon Single Line Industrial Phone System from EnGenius is the solution. The base station supports up to nine phone handsets with a coverage of up to 250,000 square feet and penetration through 12 floors when inside a building. You can easily upgrade your phone deployment by adding additional base stations and the system is simple to set up as it comes compatible with a variety of phone configurations including PBX, VoIP, PSTN, FXS, or POTS. - Powerful Range & Distance
- Extends signal through 12 floors in-building penetration and covers 250,000 sq. ft. of facility coverage or 3,000 acres of property, open land coverage.
- Upgradable and Scalable System
- Add up to 9 phone handsets for each base station. Add 2-Way DuraWalkie 1X units for expanded user capacity.
- Compatibility
- For companies that require a longer range phone solution than what DECT or Wi-Fi can deliver, the DuraFon 1X system can complement their existing system as it works behind any analog port (PBX, VoIP, PSTN, FXS, or POTS).
- Versatile Communication Tool
- Broadcast Page half duplex (PTT) between DuraFon and DuraWalkie handsets and wireless full duplex intercom between DuraFon 1X & DuraWalkie 1X handsets. Includes Auto Attendant with call redirect assistance.
UPC: 655216002906 In the Box EnGenius DuraFon Single Line Industrial Phone System (Base Unit) Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EnGenius DuraFon Single Line Industrial Phone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnGenius DuraFon 1X Specs | | | Frequency | 902-928 MHz | | RF Power | Peak: 708 mW
Average: 304 mW | | Channel Spacing | 200 kHz | | Number of Channels | 128 | | Modulation | GMSK | | Multiple Access | Frequency Hopping TDD | | Frequency Hopping Rate | 100 per second | | TDMA Frame Length | 10 ms | | Number of Slots | 4 | | Antenna Connector | Reverse TNC | | Antenna Gain | 2 dBi
5 dBi external (optional) | | Telephone Interface | 2 x RJ-11 | | Speech Coding | 8 kbps G.729A | | Channel Coding Section | 8 kbps Convolutional + CRC | | Transmission Data Rate | 170.678 kbps | | User Data Rate | 128 kbps duplex | | Duplex Mode | Time Division Duplex (TDD) | | Voice Quality | TIA/EIA-470B | | Number of System IDs | 65,536 | | Ring Signal | 20-50 Hz, 12-90 Vrms | | Flash Time | 100-900 ms programmable | | Power Source | 120 V / 12 V, AC/DC Adapter | | Regulation Compliance | FCC Part 15, Part 68?CAN/DOC RSS210, CS03 | | Temperature & Humidity | Operating Temperature: 14 to 140°F / -10 to 60°C
Storage Temperature: 14 to 158°F / -10 to 70°C
Humidity: 20 to 75% | | Dimensions | 6.34 x 1.65 x 7.40" / 161 x 42 x 188 mm | | Weight | 14.96 oz / 424 g | | | | Package Weight | 2.005 lb | | Box Dimensions (LxWxH) | 12.8 x 7.9 x 2.8" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 83 owners. Add your rating and experience with the product.
