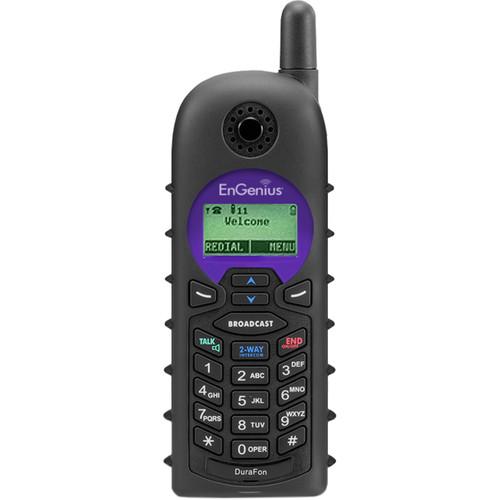

User Manual for EnGenius DuraFon-SIP Cordless Phone System Handset Click to enlarge the picture
Contents of the user manual for the EnGenius DuraFon-SIP Cordless Phone System Handset
- Product category: Telephones EnGenius
- Brand: EnGenius
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EnGenius Telephones
|
User manual for the EnGenius DuraFon-SIP Cordless Phone System Handset contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EnGenius product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EnGenius user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EnGenius product will considerably shorten its lifespan!
|
Product description The rugged and durable DuraFon-SIP Cordless Phone System Handset from EnGenius supports SIP and PSTN based telephone networks when connected to the appropriate base unit. Once implemented you can take advantage of enhanced coverage with the ability to penetrate up to 12 floors when indoors and cover areas of up to 25,000 square feet outside. Operating on the 900 MHz frequency this handset offers support for secure communications and with the implementation of single cell technology EnGenius has managed to eliminate the need for added base stations and repeaters altogether. In addition to phone based communications, the DuraFon-SIP supports 2-way intercom and broadcast functionality allowing users to communicate directly separate of the base unit as well as the ability to broadcast messages to all users or to a select handsets. - Lower CAPEX, Faster Deployment
- This DuraFon-SIP handset features EnGenius' high power single-cell technology that covers up to 250,000 sq. ft. indoors, 3,000 acres outdoors and penetrates up to 12 floors, minimizing the amount of equipment required.
- Reduced OPEX, Less Downtime
- With a rugged housing the DuraFon-SIP will survive in the most challenging environments where handsets are subjected to drops and shocks.
- Flexible and Easy-to-Deploy
- Easily configured via the Base Station web interface, DuraFon-SIP supports both PSTN and SIP functions, and works with any IP-PBX system that supports the standard SIP protocol. In addition to long-range connectivity, the multi-mode system also enables users to communicate via two-way intercom and PTT Broadcast modes.
- Phone Book and System Configuration Management
- Easily configure and manage the master phone book via the DuraFon-SIP Base Station Web Interface and effortlessly transfer updates to each Handset via air.
- Operates Independently of Wi-Fi Networks
- The DuraFon-SIP operates independently of your existing Wi-Fi network, which means you don't need to be concerned with roaming or QoS issues that are typical with voice communications on a WLAN. By using the 900 MHz frequency, there is also no need to worry about the DuraFon-SIP receiving or causing interference to existing 2.4 GHz and 5 GHz Wi-Fi.
- Independent 2-Way Intercom
- The DuraFon-SIP's Handset provides direct handset-to-handset communication without going through the Base Station for quick contact with specific users without group chatter.
- Broadcast Feature
- The DuraFon-SIP offers the favored, "Push-to-Talk" feature through the Handset's Broadcast button, allowing users to create one-way communications for 1-to-All or 1-to-A Handset Group for instant response without the wait.
- Dual Interface
- Support for both SIP and PSTN lines permit the connection of the Base Station to a legacy PBX, IP-PBX or preference service provider and gives users up to four talk paths via four digital calls or three digital calls and one analog line.
UPC: 655216007680 In the Box EnGenius DuraFon-SIP Cordless Phone System Handset Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EnGenius DuraFon-SIP Cordless Phone System Handset in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnGenius DuraFon SIP Specs | | | Buttons | Left & Right Soft-Key
Up
Down
Talk/Speaker
2-Way Intercom
End & Power
Broadcast
0-9, *, # | | Earphone Jack | Earphone
DC | | | | Frequency | 902-928 MHz | | RF Power | Peak: 708 mW
Average: 88.5 mW | | Channel Spacing | 200 kHz | | Number of Channels | 128 | | Modulation | MSK | | Multiple Access | Frequency Hopping TDMA | | Frequency Hopping Rate | 100 per second | | TDMA Frame Length | 10 ms | | Number of Talk Paths | 2 | | Receiver Sensitivity | < -108 dBm (@ BER 10-2) | | Antenna Connector | Non-Standard | | Antenna Gain | 2 dBi (long)
0.5 dBi (short) | | Tx Power Control | 100-708 mW | | Speech Coding | 8 kbps G.729A | | Channel Coding Section | 8 kbps Convolutional + CRC | | Transmission Data Rate | 170.667 kbps | | User Data Rate | 128 kbps Duplex | | Duplex Mode | Time Division Duplex (TDD) | | Voice Quality | TIA/EIA-470B | | Number of System IDs | 65,536 | | Power Source | 3.7 V, 1700 mAh Li-ion Battery | | Charge Time | 4 Hours (from empty) @ 500 mA | | Battery Talk Time | Talk: 6 Hours
Standby: 50 Hours | | | | Regulations | FCC Part 15, Part 68 | | Temperature & Humidity | Operating Temperature: 14 to 140°F / -10 to 60°C
Storage Temperature: 14 to 158°F / -10 to 70°C
Humidity: 20 to 75% | | Dimensions | 6.3 x 2.2 x 1.2" / 161 x 58 x 31 mm | | Weight | 1.6 lb / 0.7 kg | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 9.7 x 7.9 x 3.4" |
