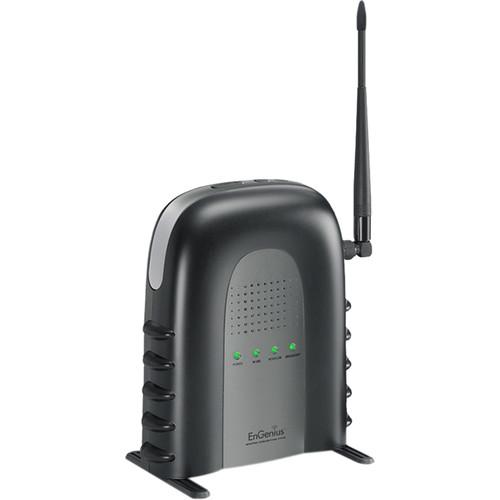

User Manual for EnGenius DURAFON-SIP Durable, Long-Range SIP Cordless Phone System Click to enlarge the picture
Contents of the user manual for the EnGenius DURAFON-SIP Durable, Long-Range SIP Cordless
- Product category: VoIP Accessories EnGenius
- Brand: EnGenius
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EnGenius VoIP Accessories
|
User manual for the EnGenius DURAFON-SIP Durable, Long-Range SIP Cordless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EnGenius product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EnGenius user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EnGenius product will considerably shorten its lifespan!
|
Product description When long-range communications are a necessity, the DuraFon-SIP Durable, Long-Range SIP Cordless Phone System from EnGenius provides a secure wireless signal at distances of up to 250,000 square feet and can penetrate through 12-floors when used indoors. This cordless phone system supports the SIP protocol making it easy to integrate this system into an existing VoIP configuration. Once configured, the DuraFon-SIP supports up to four simultaneous SIP calls or three SIP calls and a single PSTN call. In addition to multiple call support, an integrated 2-way intercom allows for instant, private communication between two users on the network. Operating on the secure 900 MHz frequency, calls and communication remain secure while the durable, rugged design ensures this base unit can withstand harsh conditions. - Faster Deployments
- This DuraFon-SIP features EnGenius' high-power, easy-to-deploy single-cell technology that covers up to 250,000 sq. ft. indoors, 3,000 acres outdoors and penetrates up to 12 floors, minimizing the amount of equipment required.
- Flexible and Easy-to-Deploy
- The DuraFon-SIP can be easily configured via the Base Station web interface, DuraFon-SIP supports both PSTN and SIP functions, and works with any IP-PBX system that supports the standard SIP protocol. In addition to long-range connectivity, the multi-mode system also enables users to communicate via 2-Way Intercom and PTT Broadcast modes.
- Easy Phone Book and System Configuration Management
- Easily configure and manage the master phone book via the DuraFon-SIP Base Station Web Interface and effortlessly transfer updates to each Handset via air.
- Durable, Ruggedized Design
- The DuraFon-SIP's durable, rugged Handset is designed for use in harsh environments and tested to withstand 6-foot drops, over 50 times onto concrete floors without breaks.
- Long-Range Performance
- The DuraFon-SIP implements a high-powered 900 MHz proprietary air protocol, with high RF transmission and sensitivity to provide superior range and coverage for the industrial market; covering up to 250,000 sq. ft. indoors, 3,000 acres outdoors and penetrating up to 12 floors.
- Secure Wireless Communications
- Adopting 900 MHz (902~928 MHz) FHSS (Frequency Hopping Spread Spectrum) technology, the DuraFon-SIP ensures secure communications during conversations.
- Single Cell Technology Minimizes Equipment Needs
- Designed to simplify deployment, the DuraFon-SIP features single cell technology that leverages a single 900 MHz Base Station for long-range coverage, eliminating the need for added Base Stations or repeaters, helping companies lower their capital expenses through faster deployment.
- Operates Independently of Wi-Fi Networks
- The DuraFon-SIP operates independently of your existing Wi-Fi network, which means you don't need to be concerned with roaming or QoS issues that are typical with voice communications on a WLAN. By using the 900 MHz frequency, there is also no need to worry about the DuraFon-SIP causing interference to existing 2.4 GHz and 5 GHz Wi-Fi.
In the Box EnGenius DURAFON-SIP Durable, Long-Range SIP Cordless Phone System (Base Unit) AC/DC Adapter Charger AC/DC Adapter RJ-11 Telephone Cable RJ-45 Ethernet Cable 2 x Feet 2 x Screws Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EnGenius DURAFON-SIP Durable, Long-Range SIP Cordless Phone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnGenius DuraFon SIP Specs | Buttons | Volume UP
Volume DOWN
1 x REG
1 x RESET
Broadcast
Intercom | | Jack | Line x 1
LAN x 1
Audio-In x 1
Type-B USB x 1
DC x 1
Grounding | | LED Indicators | POWER
In-Use
Intercom
Broadcast | | Frequency | 902-928 MHz | | RF Power | Peak: 708 mW
Average: 354 mW | | Channel Spacing | 200 kHz | | Number of Channels | 128 | | Modulation | MSK | | Multiple Access | Frequency Hopping TDMA | | Frequency Hopping Rate | 100 per second | | TDMA Frame Length | 10 ms | | Number of Talk Paths | 4 | | Receiver Sensitivity | < -108 dBm (@ BER 10-2) | | Antenna Connector | Reverse TNC | | Antenna Gain | 2 dBi (included)
6 dBi outdoor (optional)
2.7 dBi indoor (optional) | | Telephone Interface | 1 x RJ-11 | | VoIP Interface | 1 x RJ-45 | | Default IP Address | 192.168.1.156 | | Default User Name & Password | admin/admin | | SIP | RFC 3261 | | Speech Coding | 64 kbps G.711a, G.711u
8 kbps G.729A | | Channel Coding Section | 8 kbps Convolutional + CRC | | Transmission Data Rate | 170.667 kbps | | User Data Rate | 128 kbps Duplex | | Duplex Mode | Time Division Duplex (TDD) | | Voice Quality | TIA/EIA-470B | | Number of System IDs | 65,536 | | Ring Signal | 20-50 Hz, 15-90 Vrms | | Flash Time | 100-900 ms programmable | | Power Source | 100~240 V / 12 V; AC/DC Adapter | | Regulation Compliance | FCC Part 15, Part 68 | | Temperature & Humidity | Operating Temperature: 32 to 122°F / 0 to 50°C
Storage Temperature: 14 to 158°F / -10 to 70°C
Humidity: 20 to 75% | | Dimensions | 6.3 x 16.5 x 7.4" / 161 x 42 x 188 mm (without antenna) | | Weight | 1.90 lb / 0.86 kg |
