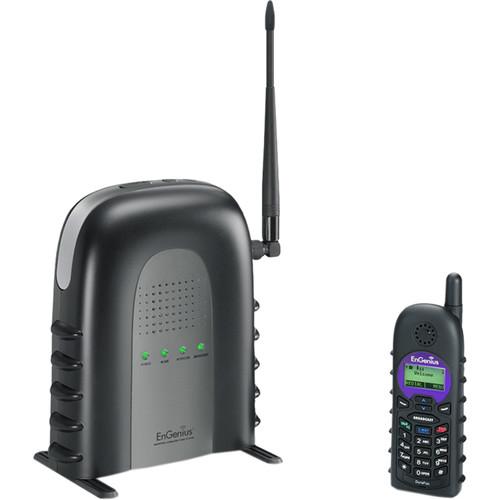

Product description With the ability to penetrate up to 12 floors and a coverage range of up to 250,000 square feet, the DuraFon-SIP System Long-Range SIP Cordless Phone System from EnGenius is designed to simplify communications in the office or on the job site. Installation and configuration is simple as this unit comes compatible with any IP-PBX phone system that supports the Standard SIP protocol or traditional PSTN line setup. Once configured the included base station is capable of handling up to four calls simultaneously which greatly enhances workflows. This SIP phone system also supports two way intercom functionality when conversations need to be kept private and a broadcast feature for instant communication with multiple handsets at once. - Durable, Ruggedized Design

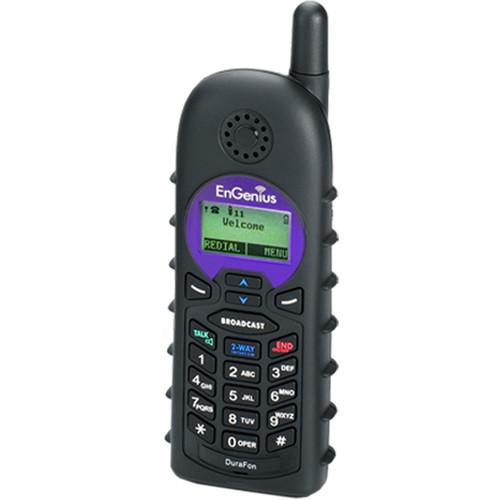

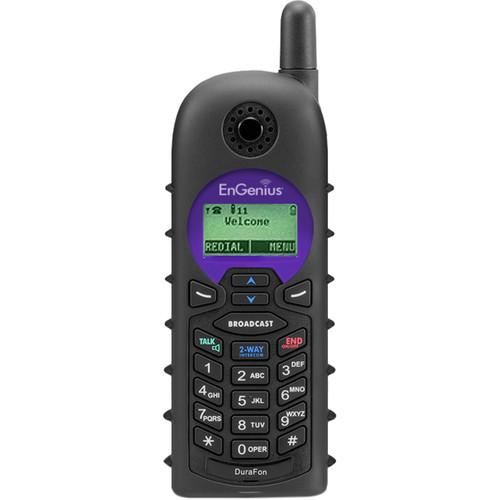

- The DuraFon-SIP's durable, rugged Handset is designed for use in harsh environments and tested to withstand 6-foot drops, over 50 times onto concrete floors without breaks.
- Long-Range Performance
- DuraFon-SIP implements a high-powered 900 MHz proprietary air protocol, with high RF transmission and sensitivity to provide superior range and coverage for the industrial market; covering up to 250,000 sq. ft. indoors, 3,000 acres outdoors, and penetrating up to 12 floors.
- Highly Secure Wireless Communications
- Adopting 900 MHz (902~928 MHz) FHSS (Frequency Hopping Spread Spectrum) technology, the DuraFon-SIP ensures secure communications during conversations.
- Single Cell Technology Minimizes Equipment Needs
- Designed to simplify deployment, the DuraFon-SIP features single cell technology that leverages a single 900 MHz Base Station for long-range coverage, eliminating the need for added Base Stations or repeaters, helping companies lower their capital expenses through faster deployment.
- Lower Total Cost of Ownership Available for SIP Deployments
- Unlike other SIP systems, the DuraFon-SIP offers a low TCO available for SIP deployments. By simplifying and expediting system deployments, the DuraFon-SIP lowers overall equipment costs and ensures less downtime through its proven reliability, reducing overall operating expenses for the life of the system.
- Easy Phone Book and System Configuration Management
- Easily configure and manage the master phone book via the DuraFon-SIP Base Station Web Interface and effortlessly transfer updates to each Handset via air.
- Operates Independently of Wi-Fi Networks
- DuraFon-SIP operates independently of your existing Wi-Fi network, which means you don't need to be concerned with roaming or QoS issues that are typical with voice communications on a WLAN. By using the 900 MHz frequency, there is also no need to worry about the DuraFon-SIP receiving or causing interference to existing 2.4 GHz and 5 GHz Wi-Fi.
- Independent 2-Way Intercom
- The DuraFon-SIP's Handset provides direct handset-to-handset communication without going through the Base Station for quick contact with specific users without group chatter.
- Broadcast Feature
- DuraFon-SIP offers the favored, "Push-to-Talk" feature through the Handset's Broadcast button, allowing users to create one-way communications for 1-to-All or 1-to-A Handset Group for instant response without the wait.
- Dual Interface
- Support for both SIP and PSTN lines permit the connection of the Base Station to a legacy PBX, IP-PBX or preference service provider and gives users up to four talk paths via four digital calls or three digital calls and one analog line.

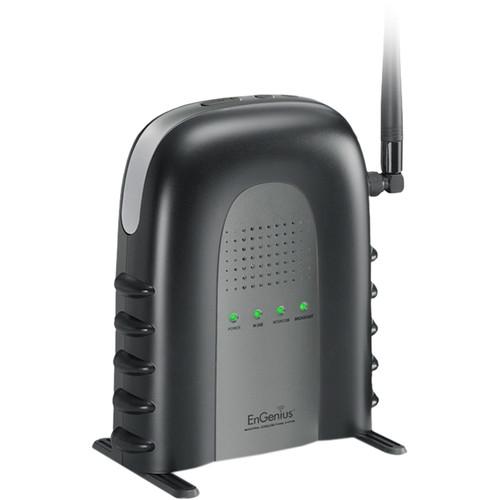

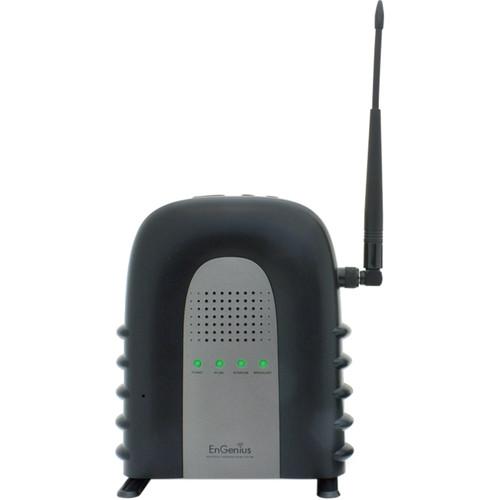

UPC: 655216007673 In the Box EnGenius DuraFon-SIP System Long-Range SIP Cordless Phone System Base Station Handset 1700 mA Li-ion Battery Pack Desktop Charger Telephone Cord RJ-45 Cable Base Feet and Screws Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EnGenius DuraFon-SIP System Long-Range SIP Cordless Phone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnGenius DuraFon SIP Specs | | | Physical Specifications | Buttons
Volume UP
Volume DOWN
REG x 1
RESET x 1
Broadcast
Intercom
Jack
1 x Line x 1
LAN x 1
Audio-In x 1
Type-B USB x 1
DC x 1
Grounding
LED Indicators
POWER
In-Use
Intercom
Broadcast | | Electrical Specifications | Frequency
902-928 MHz
RF Power
Peak: 708 mW
Average: 354 mW
Channel Spacing
200 kHz
Number of Channels
128
Modulation
MSK
Multiple Access
Frequency Hopping TDMA
Frequency Hopping Rate
100 per second
TDMA Frame Length
10 ms
Number of Talk Paths
4
Receiver Sensitivity
< -108 dBm (@ BER 10-2)
Antenna Connector
Reverse TNC
Antenna Gain
2 dBi (included)
6 dBi Outdoor (Optional)
2.7 dBi Indoor (Optional)
Telephone Interface
1 x RJ-11
VoIP Interface
1 x RJ-45
Default IP Address
192.186.1.156
Default User Name & Password
admin/admin
SIP Protocol
RFC 3261
Speech Coding
64Kbps G.711a, G.711u
8 kbps G.729A
Channel Coding
8 kbps Convolutional + CRC
Transmission Data Rate
170.667 kbps
User Data Rate
128 kbps Duplex
Duplex
Time Division Duplex (TDD)
Voice Quality
TIA/EIA-470B
Number of System ID
65,536
Ring Signal
20-50 Hz, 15-90 Vrms
Flash Time
100-900 ms Programmable
Power Source
100~240V/12V AC/DC Adapter | | Regulation Compliance | FCC Part 15, Part 68 | | Temperature & Humidity | Operating Temperature: 32 to 122°F / 0 to 50 °C
Storage Temperature: 14 to 158°F / -10 to 70°C
Humidity: 20 to 75% | | Dimensions | 6.3 x 16.5 x 7.4" / 161 x 42 x 188 mm | | Weight | 1.9 lb / 0.9 kg | | | | Physical Specifications | Buttons
Left & Right Soft-Key
Up
Down
Talk/Speaker
2-Way Intercom
End & Powerv Broadcast
0-9, *, #
Jack
Earphone
DC | | Electrical Specifications | Frequency
902-928 MHz
RF Power
Peak: 708 mW
Average: 88.5 mW
Channel Spacing
200 kHz
Number of Channels
128
Modulation
MSK
Multiple Access
Frequency Hopping TDMA
Frequency Hopping Rate
100 per second
TDMA Frame Length
10 ms
Number of Talk Paths
2
Receiver Sensitivity
< -108 dBm (@ BER 10-2)
Antenna Connector
Non-Standard
Antenna Gain
2 dBi (Long)
0.5 dBi (Short)
TX Power Control Range
100-708 mW
Speech Coding
8 kbps G.729A
Channel Coding
8 kbps Convolutional + CRC
Transmission Data Rate
170.667 kbps
User Data Rate
128 kbps Duplex
Duplex
Time Division Duplex (TDD)
Voice Quality
TIA/EIA-470B
Number of System ID
65,536
Power Source
3.7 V, 1700 mAh Li-ion Battery
Charge Time, Current
4 Hours (from empty) @ 500 mA
Battery Talk & Standby Time
6 Hours / 50 Hours | | Regulation Compliance | FCC Part 15, Part 68 | | Temperature & Humidity | Operating Temperature: 14 to 140°F / -10 to 60°C
Storage Temperature: 14 to 158°F / -10 to 70°C
Humidity: 20 to 75% | | Dimensions | 6.3 x 2.2 x 1.2" / 161 x 58 x 31 mm | | Weight | 1.6 lb / 0.7 kg | | | | Package Weight | 4.05 lb | | Box Dimensions (LxWxH) | 16.5 x 12.6 x 3.9" |
