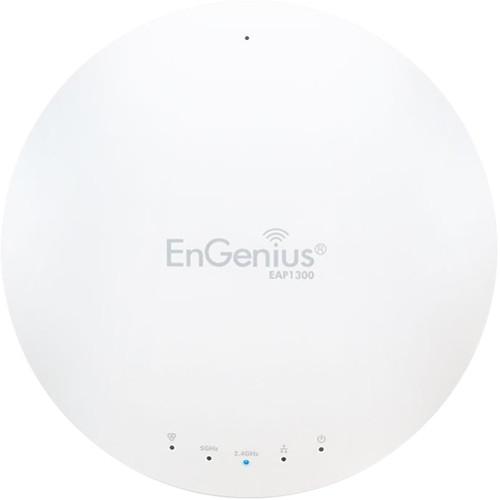

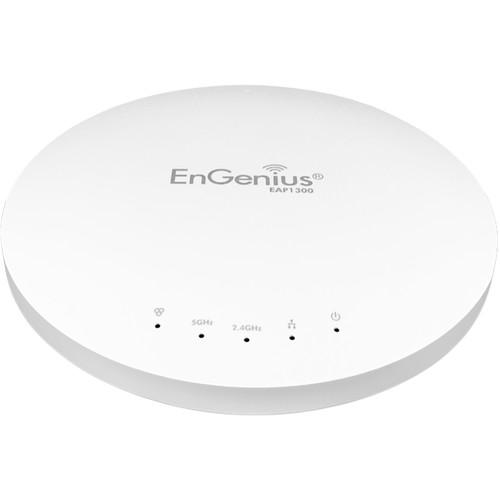

Product description Supporting the 802.11ac Wave 2 Wi-Fi standard, the EAP1300 Wave 2 11ac Dual-Band Wireless Indoor Access Point from EnGenius is designed to offer enhanced wireless data transfer rates up to 30% faster than 802.11ac Wave 1 devices. This access point is easy to install, as it comes with both wall- and ceiling-mount kits, making it easy to place the access point virtually anywhere. This EnGenius access point also supports the 802.3af PoE standard, eliminating the need for a standalone power source and further simplifying the installation process. In addition to support for the 802.11ac Wave 2 Wi-Fi standard, this access point operates on both the 2.4- and 5-GHz frequencies, giving clients the ability to connect to the band that best suits their network activities.
This EnGenius access point comes with a variety of management utilities to simplify the process of administering your network. With the included ezMaster Software suite, you can take advantage of centralized management functionality including the ability to configure, manage, and monitor your access points. - Indoor Form & Function
- Clean lines and low profile housing ensure the EAP1300's ceiling-mount design blends seamlessly into most deployment environments.
- Far-Reaching Wireless Blankets Coverage
- Wide reaching, detachable 360-degree antennas minimize interference for blanketed coverage through floors, ceilings and walls to provide far-reaching reliable connectivity.
- Reliable Connectivity & Network Protection
- Configure multiple APs to ensure seamless, reliable connectivity for users as they move about the network with standards-based roaming. Efficiently steer dual-band clients to the less-congested 5 GHz band for improved traffic management. Quickly detect and avoid network threats through a suite of advanced security features including guest networks and email alerts.
- Flexible Power Options
- Connect and power the EnTurbo Indoor APs via their Gigabit 802.3af Power-over-Ethernet ports for discrete placement in locations where power outlets are limited or unavailable, such as ceilings, hallways, rafters and attics. Place the APs up to 328 feet from a PoE-compliant switch or PoE adapter.
- Network Management
- The EnTurbo Indoor APs can operate as a stand-alone AP or as part of a scalable EnGenius Wireless Network Management Solution, centrally managed by ezMaster, and expandable as your network needs grow.
- Manage Up to 50 EnTurbo APs with EnGenius Managed Switches
- Any EnGenius Gigabit Managed Switch can also manage up to 50 EnTurbo APs. Through the switch, access all connected EnGenius devices and a full array of wireless and Layer 2 management tools. Choose between PoE+ and non-PoE switch models with flexible deployment and management options and no AP license or subscription fees.
- ezMaster Network Management Software

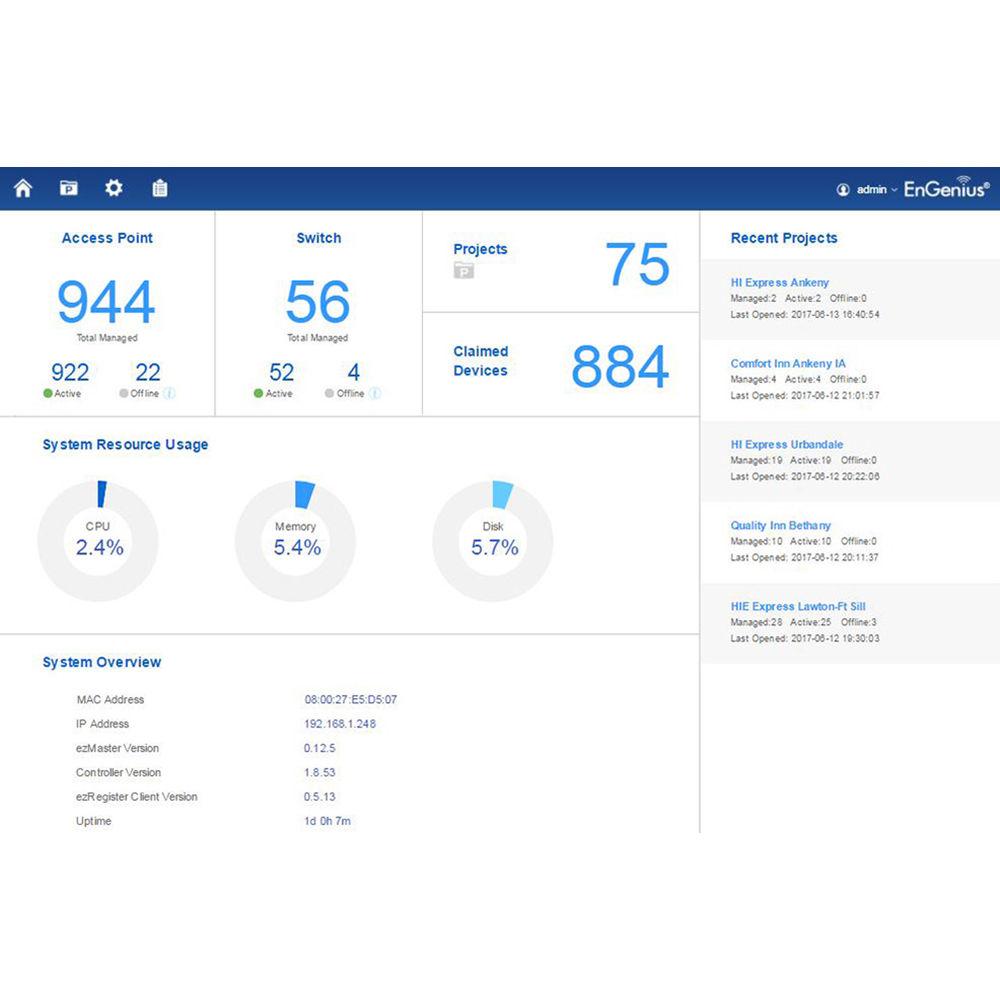

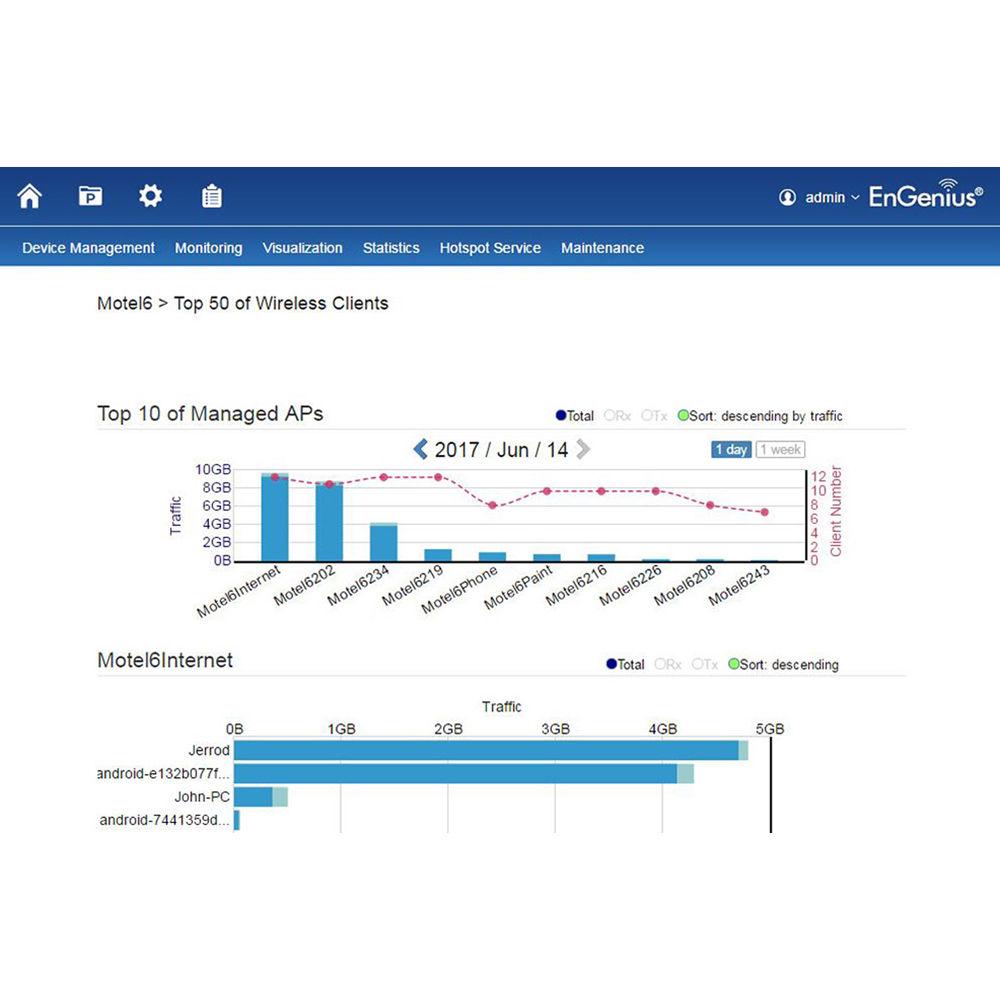

- EnGenius ezMaster Software's intuitive Web-based interface allows flexible access-point monitoring, locally or remotely. Quickly and easily set up, manage, monitor, and troubleshoot multiple APs at the same time. See real-time network performance and monitor AP traffic through ezMaster's at-a-glance dashboard.
EzMaster provides business-class features, unlimited scalability and centralized management of hundreds of EnTurbo Access Points and EnGenius Switches, locally, remotely or via a cloud-based service, with no licensing or subscription fees. - Management Features
- Stand-Alone (individually managed)
Managed Mode (w/ezMaster & Neutron Switch)
Auto Channel Selection
Auto Transmit Power
Wireless STA (Client) Connected List
Guest Network
Fast Roaming (802.11k & 802.11r)
Pre-Authentication (802.11i, 802.11x)
PMK Caching (802.11i)
RSSI Threshold
Band Steering
Traffic Shaping
VLANs for Access Point - Multiple SSIDs
Backup/Restore Settings
Auto Reboot
E-Mail Alert
Site Survey
Save Configuration as Default - Control Features
- Managed Mode (w/ezMaster/Neutron Switch)
Distance Control (ACK Timeout)
Multicast Supported
Wi-Fi Scheduler
Client Traffic Status
RADIUS Accounting (802.1x)
Power Save Mode (U-APSD Support)
CLI Support
HTTPS - Wireless Management Features (with ezMaster & Neutron Switch)
- AP Auto Discovery & Provisioning
AP Auto IP Assignment
AP Group Management
Auto AP Rebooting
AP Device Name Editing
AP Radio Settings
Band Steering
Traffic Shaping
Fast Roaming (802.11k & 802.11r)
Pre-Authentication (802.11i, 802.11x)
PMK Caching (802.11i)
RSSI Threshold
AP Client Limiting
Client Fingerprinting
AP VLAN Management
VLANs for AP - Multiple SSIDs
Secured Guest Network
Access Point Status Monitoring
Wireless Client Monitoring
Email Alert
Wireless Traffic & Usage Statistics
Real-Time Throughput Monitoring
Visual Topology View
Floor Plan View
Map View
Wireless Coverage Display
Secure Control Messaging (SSL Certificate)
Local MAC Address Database
Remote MAC Address Database (RADIUS)
Unified Configuration Import/Export
Bulk Firmware Upgrade Capability
One-Click Update
Intelligent Diagnostics
Kick/Ban Clients
Wi-Fi Scheduler UPC: 655216008618 In the Box EnGenius EAP1300 Wave 2 11ac Dual-Band Wireless Indoor Access Point Power Adapter T-Rail Mounting Kits Ceiling & Wall Mount Screw Kits Mounting Brackets RJ45 Ethernet Cables Limited 1-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the EnGenius EAP1300 Wave 2 11ac Dual-Band Wireless Indoor Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnGenius EAP1300 Specs | Standards | IEEE 802.11b/g/n on 2.4 GHz
IEEE802.11a/n/ac on 5 GHz | | Processor | Qualcomm 717 MHz quad-core CPU

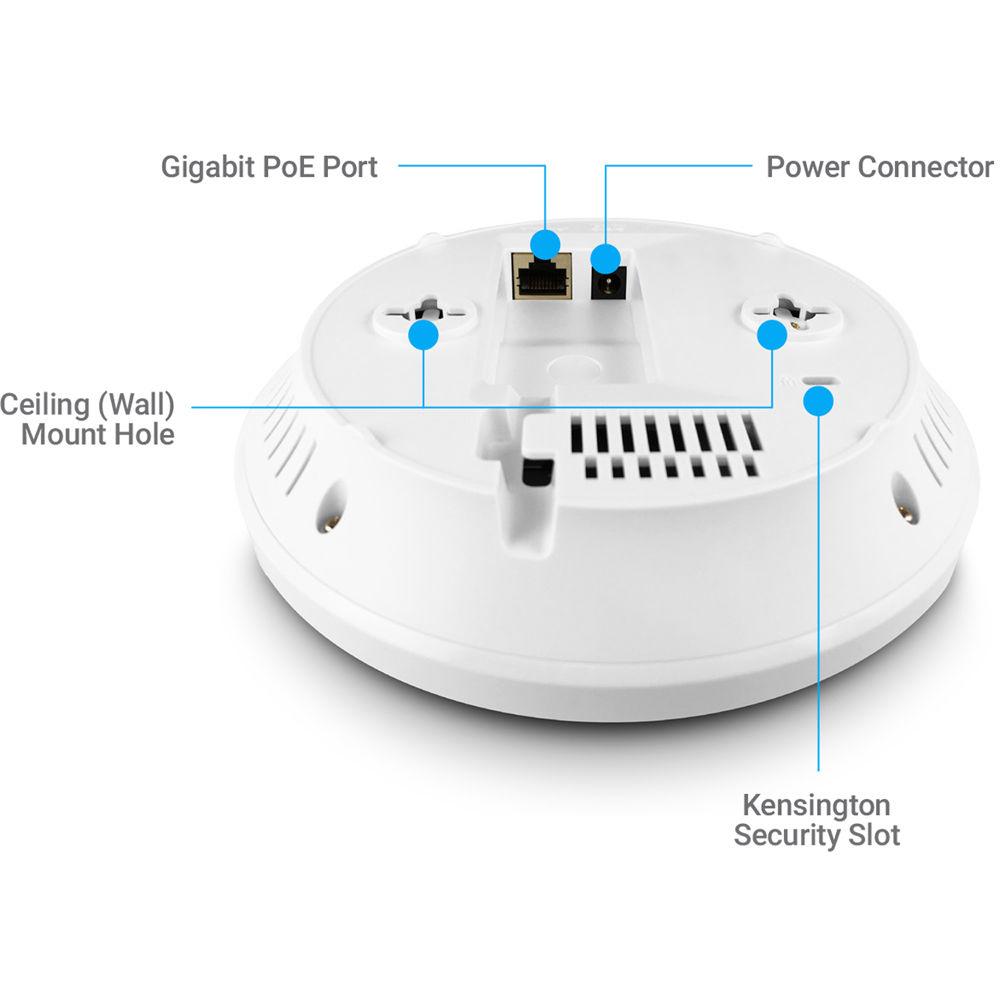

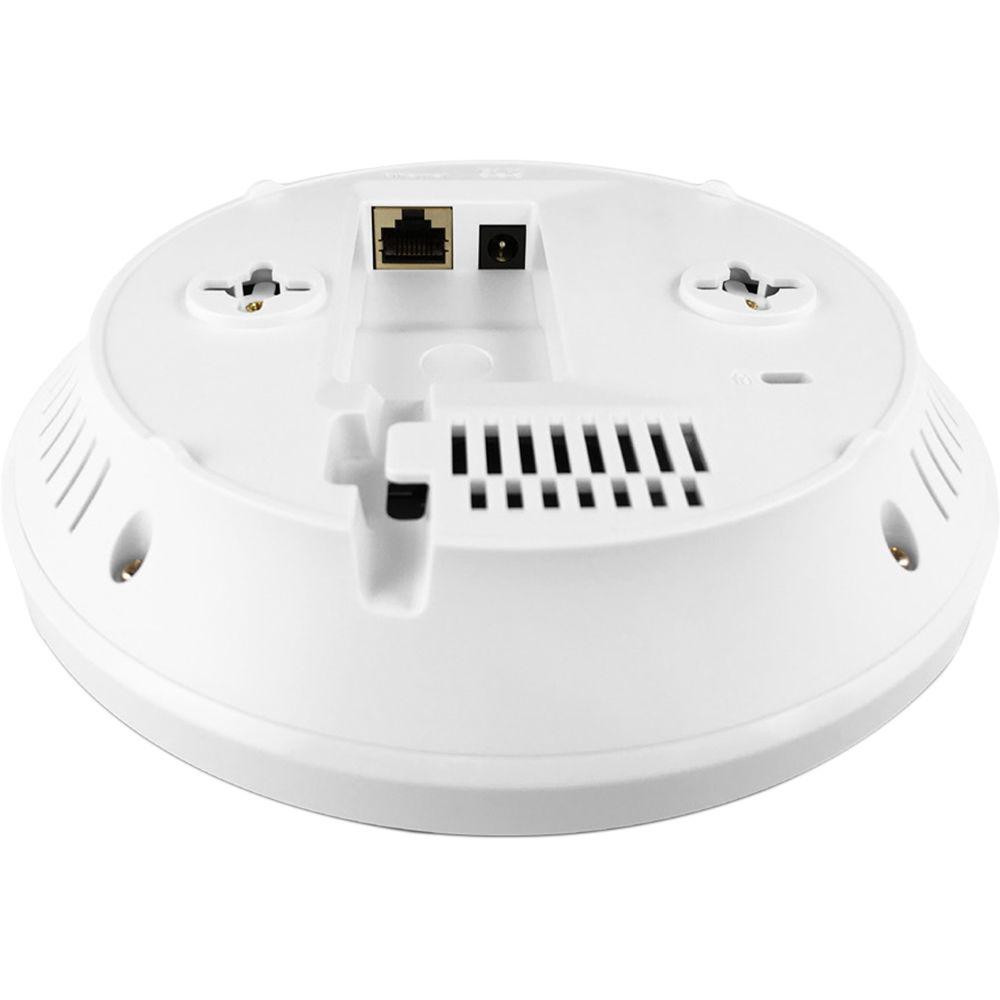

4x ARM Cortex A7 | | Antennas | 2 x 5 dBi omni-directional (integrated) | | Physical Interfaces | 10/100/1000 Gigabit Ethernet port
DC jack
Reset button

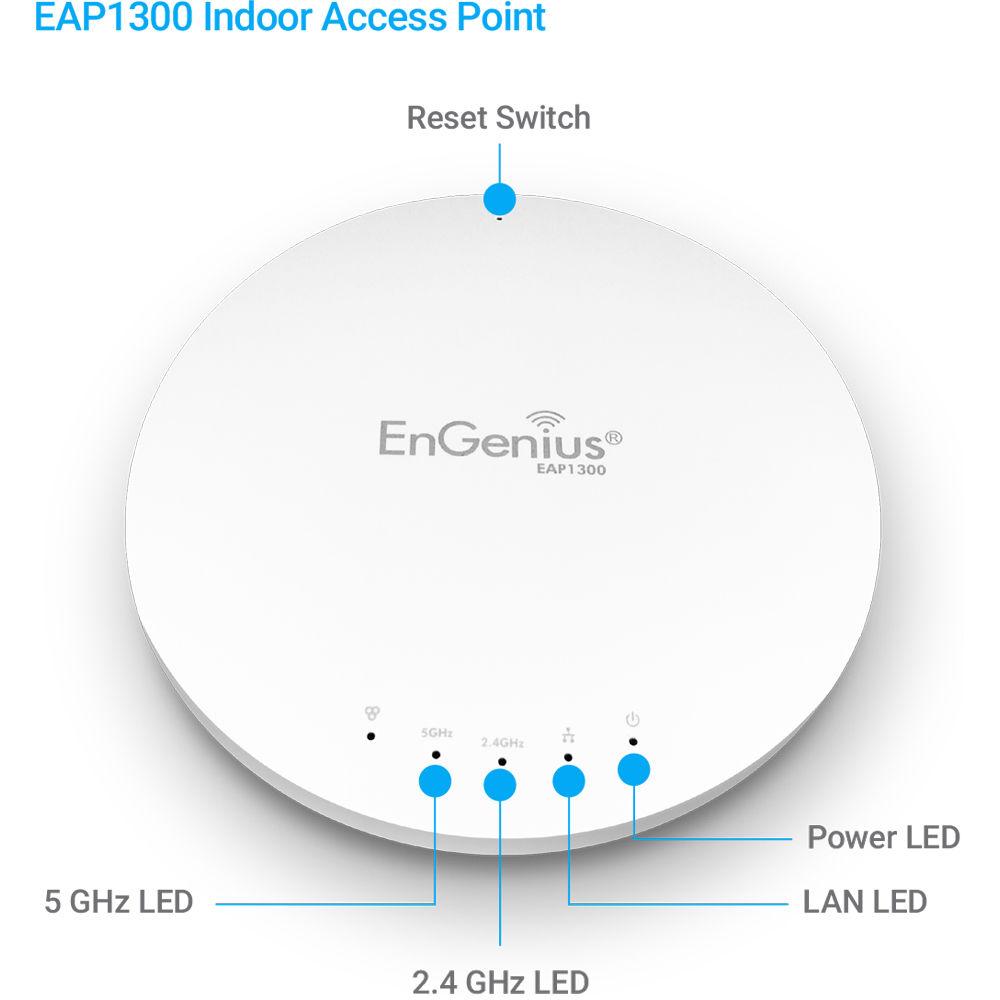

Kensington Security Slot | | LED Indicators | Power
LAN
2.4 GHz
5 GHz | | Power Source | Power-over-Ethernet: 802.3af input
IEEE 802.11e Compliant Source
12 VDC /1 A power adapter | | Power Consumption | 9 W | | Surge Protection | 0.5 KV | | Operating Frequency | Dual-radio concurrent 2.4 GHz & 5 GHz | | Operation Modes | Access Point Mode (AP mode)
WDS: WDS AP, WDS Bridge | | Radio | Frequency Radio
2.4 GHz: 2400~2472 MHz
5 GHz: 5150~5250 MHz, 5250~5350 MHz, 5470~5725 MHz, 5725~5850 MHz
Supported Radio Technologies
802.11b: Direct-Sequence Spread Spectrum (DSSS)
802.11a/g/n/ac: Orthogonal Frequency-Division
Multiplexing (OFDM)
802.11n/ac: 2x2 MIMO with 2 streams | | Transmit Power | 2.4 GHz: 23 dBm
5 GHz: 23 dBm | | WLAN Spatial Streams | Radio Chains/Spatial Streams
2x2:2 | | MIMO Technology | SU-MIMO
2 x spatial streams SU-MIMO up to 1267 Mbps to a single client
MU-MIMO
2 x spatial streams MU-MIMO up to 1267 Mbps to two
2 x MU-MIMO capable wireless devices simultaneously | | Supported Data Rates | 2.4 GHz: Max 400
5 GHz: Max 867
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 400 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2) | | Channels | Channelization
802.11ac Supports Very High Throughput (VHT)-VHT 20/40/80 MHz
802.11n Supports High Throughput (HT)-HT 20/40 MHz
802.11n Supports Very High Throughput (VHT) Under the 2.4 GHz Radio-VHT 40 MHz (256-QAM)
802.11n/ac Packet Aggregation: AMPDU, ASPDU | | Modulation | Supported Modulation
802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM | | Management | Multiple BSSID
Supports 16 SSIDs (8 SSIDs per band)
VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN
Spanning Tree
Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service)
Compliant with IEEE 802.11e standard
WMM
SNMP
v1, v2c, v3
MIB
I/II, Private MIB | | Wireless Security | WEP Encryption 64/128/152 bit
WPA/WPA2 Enterprise (WPA-EAP using TKIP or AES)
Hide SSID in Beacons
MAC Address Filtering, up to 32 MACs per SSID
Wireless STA (Client) Connected List
SSH Tunnel
Client Isolation | | Temperature & Humidity | Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-22 to 176°F / -30 to 80°C
Operating Humidity
90% or less
Storage Humidity
90% or less | | Certifications | FCC, CE | | System Requirements | Recommended Environment for Managing up to 500 APs
CPU: Intel Core i7 quad-core or above
RAM: 4 GB minimum
HDD: 500 GB (actual requirement dependent on log size)
OS: Microsoft Windows 7 or later + VMware Player 7.0 or compatible virtualization software
Recommended Environment for Managing up to 1,000+ APs
CPU: Intel Xeon Processor E3 or above
RAM: 4 GB minimum
HDD: 500 GB (actual requirement dependent on log size)
OS: Microsoft Windows 7 or later + VMware Player 7.0 or compatible virtualization software
Browser Requirements
Internet Explorer 10 or better
Firefox 34.0 or better
Chrome 31.0 or better
Safari 8.0 or better
Network Topology Requirements
At sites where APs are deployed: A DHCP-enabled network for APs to obtain an IP address | | Dimensions | 6.36 x 1.64" / 161.54 x 41.66 mm | | Weight | 0.62 lb / 0.28 kg | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 12.2 x 9.0 x 3.2" |
