User Manual for EnGenius ECB1750 Dual Band Wireless AC 1750 Indoor Access Point Client Bridge Click to enlarge the picture
Contents of the user manual for the EnGenius ECB1750 Dual Band Wireless AC
- Product category: Wireless Access Points EnGenius
- Brand: EnGenius
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EnGenius Wireless Access Points
 |
User manual for the EnGenius ECB1750 Dual Band Wireless AC contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EnGenius product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EnGenius user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EnGenius product will considerably shorten its lifespan!
|
Product description Leverage the speed of Wireless 802.11ac technology to boost your workflow with the ECB1750 Dual Band Wireless AC 1750 Indoor Access Point / Client Bridge from EnGenius. In addition to IEEE 802.11ac connectivity this access point is backwards compatible with IEEE 802.11a/b/g/n networking standards and operates on both the 2.4 GHz and 5 GHz frequencies. You can take advantage of three separate data streams on the 5 GHz frequency and three streams on the 2.4 GHz frequency allowing tasks that require more bandwidth to be allocated to the faster less congested 5 GHz frequency.

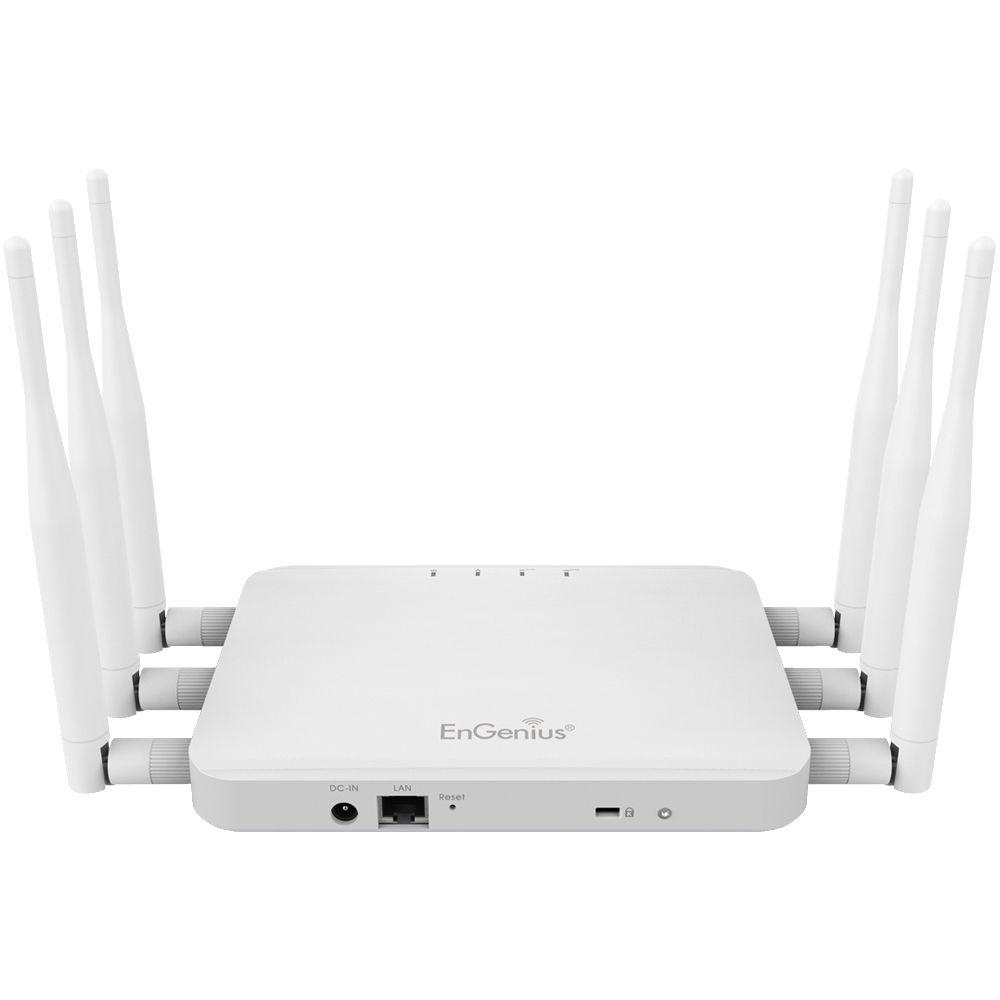

The ECB1750 features transmit power of up to 29 dBm allowing the signal to penetrate most floors, ceilings, and walls. This ensures you can connect more devices at greater distances to help minimize the need for additional access points. On the device itself you will find six omni-directional antennas three of which operate on the 2.4 GHz frequency and three operating on the 5 GHz frequency.

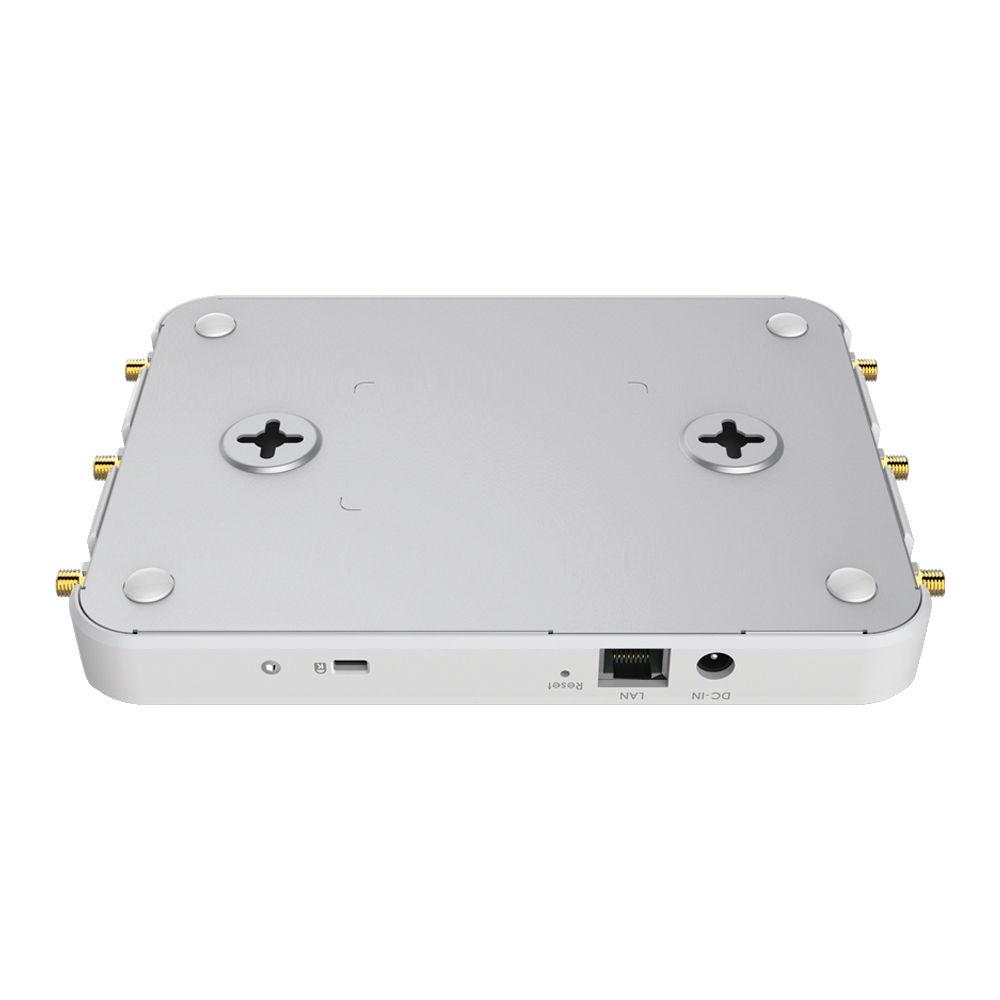

Along with enhanced wireless capabilities, this access point comes equipped with one RJ-45 Gigabit Ethernet port, one reset button, and one power jack. Inside you will find 128 MB of RAM memory and 16MB of flash memory to ensure smooth, efficient operation when processing multiple data streams. - 3 Stream 802.11ac Wireless Speeds
- Up to 1300 Mb/s on its 5 GHz for faster file transfers and smoother video streaming.
- 3 Stream 802.11n Wireless Speeds
- 2.4 GHz and 5 GHz frequency bands for expanded user capacity. Greater number of channels available on the 5 GHz frequency spectrum to support higher bandwidth applications like HD video streaming.
- High Power and Long-Range Coverage
- Up to 29 dBm transmit power enables the wireless signal to penetrate floors, ceilings, and walls for greater device connectivity. Features 3 detachable 5 dBi high gain Omni-directional antennas for 2.4 GHz and 3 detachable 5 dBi high gain Omni-directional antennas for 5 GHz.
- Supports Separate Mode Configuration per Frequency Band
- Choose one of three modes available to the ECB1750 depending on user needs: Access Point, Client Bridge, or WDS (AP, Station, & Bridge).
- Simplified Monitoring and Management
- For easier monitoring and maintenance after deployment, users can monitor the device remotely with SNMP-based EZ Controller wireless Access Point software for Windows, Mac OSX, and Linux.
Please note software available online as a free download - Band Steering
- Detects and allows Dual Band capable clients to shift to the 5 GHz band from the 2.4 GHz band, relieving network congestion and maintain optimal data traffic flow.
- SSID-to-VLAN Tagging
- Can be configured to broadcast up to eight SSIDs per frequency band. Each SSID can be tagged to a specified company network VLAN for different user access based on established access rights.
UPC: 655216006850 In the Box EnGenius ECB1750 Dual Band Wireless AC 1750 Indoor Access Point / Client Bridge 12 V / 2 A Power Adapter RJ-45 Ethernet Cable Limited 1-Year Warranty Brochure PDF 1.1mbfsusyqcweduuxdvdaqbecxxvacrzydferurc More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the EnGenius ECB1750 Dual Band Wireless AC 1750 Indoor Access Point Client Bridge in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnGenius ECB1750 Specs | | | Wireless Frequency Bands | 2.4 GHz, 5 GHz | | Number of Antennas | 6 | | WLAN Mode | 802.11ac | | Sensitivity | -73 to -95 dBm | | Antenna Gain | 5 dBi | | Transmit Power | 7 to 27 dBm | | Supported Protocols | WMM
SNMPv1
SNMPv2c
SNMPv3 | | Antenna Placement | External | | | | Ports | 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ | | | | Wireless Security | WPA, AES, TKIP | | Lock Slot | Yes | | | | Operation Modes | Access Point, Bridge, Repeater | | Max SSIDs Supported | 8 | | Throughput | 2.4 GHz: 450 Mb/s
5 GHz: 1300 Mb/s | | | | RAM | 128 MB | | Storage Capacity | 16 MB | | Supported IEEE Standards | 802.11i, 802.1d, 802.1q, 802.1x, 802.3af, 802.3at | | | | DC Input Power | 12 VDC at 2 A | | Power Consumption | 22 W | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 90% | | Storage Humidity | 90% | | | | Dimensions | 5.5 x 7.4 x 1" / 14 x 18.9 x 2.6 cm | | Weight | 1.2 lb / 0.5 kg | | | | Package Weight | 2.35 lb | | Box Dimensions (LxWxH) | 12.0 x 9.1 x 3.0" |
