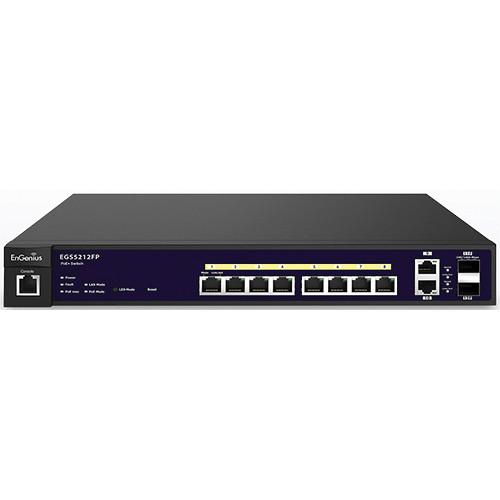

Product description The EGS5212FP 8-Port Gigabit PoE+ L2 Managed Switch with 2 Gigabit Ports & 2 Dual-Speed SFP from EnGenius is a full-featured Gigabit Ethernet switch with comprehensive Layer 2 switching capabilities and PoE+ support. With rich layer 2 management features, the EGS5212FP allows quick deployment, simplified maintenance as well as seamless upgrades, making it a suitable networking solution for businesses looking for a combination of features, performance, and value. - IEEE802.3af/at-compliant Power over Ethernet Support
- Provides 8 Gigabit ports that supports 802.3af/at-compliant PoE, with a total PoE power budget of 130W, allocating 15.4W PoE output for all 8 ports simultaneously or 30W on 4 ports, powerful and flexible enough for deploying high-powered PoE devices such as PTZ cameras, 11ac Wireless Access Points and Video/VoIP phones.
- Advanced Management and Security Features
- Besides supporting VLAN, QoS, bandwidth control, IGMP/MLD Snooping features for priority based application, such as IP surveillance or video/voice transitions,EGS5212FPalso support a complete lineup of advanced layer 2 features including Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol (LACP), SNMPv1/v2c/v3, RMON, Access Control List for easy network security and much more.
- L2 Software
- IEEE802.3ad Link Aggregation
Port Mirroring
Spanning Tree Protocol
802.1D Spanning Tree (STP), 802.1w Rapid Spanning Tree (RSTP)
802.1s Multiple Spanning Tree (MSTP)
IGMP Snooping v1/v2/v3
IGMP Fast Leave
MLD Snooping
VLAN Group
Voice VLAN
Queue
CoS based on 802.1p priority, CoS based on physical port, CoS based on TOS, CoS based on DSCP
IEEE802.1X Port-based Access Control
IEEE802.1X Guest VLAN
Port Security
Storm Control
Port Isolation
Attack Prevention
Access Control List (ACL)
PoE Management
Power on/off per port
Power class configuration
Power feeding with priority
User define power limit
SSH Server
Telnet Server
TFTP Client
BootP/DHCP Client
SNMP v1/v2c/v3 support
TFTP Upgrade
Command Line Interface (CLI)
SNTP
RMONv1
SYSLOG
Cable Diagnostic
MIB Support
RFC1213, RFC1493, RFC1757, RFC2674 UPC: 655216006799 In the Box EnGenius EGS5212FP 8-Port Gigabit PoE+ L2 Managed Switch with 2 Gigabit Ports & 2 Dual-Speed SFP Power Cord RJ45 Console Cable Rack Mount Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EnGenius EGS5212FP 8-Port Gigabit PoE L2 Managed Switch with 2 Gigabit Ports & 2 Dual-Speed SFP in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnGenius EGS5212FP Specs | | | Ports | 10 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE (Type 1)
2 x 10/100/1000 Mb/s Gigabit SFP
1 x Ethernet (RJ45) (Console) | | | | Transmission Method | Store-and-Forward | | | | Switching Bandwidth | 24 Gb/s | | | | Flash Memory | 32 MB | | Memory | 256 MB | | | | PoE Power Budget | 130 W | | PoE per Port | 30 W | | | | Operating Temperature | 32 to 132°F / 0 to 50°C | | Operating Humidity | 5 to 95% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | | | Indicator Lights | Diagnostic, Link, PoE, Power | | Dimensions | 13 x 9 x 1.7" / 33 x 23 x 4.4 cm | | Weight | 4 lb / 2 kg | | | | Package Weight | 6.8 lb | | Box Dimensions (LxWxH) | 15.6 x 12.2 x 4.1" |
