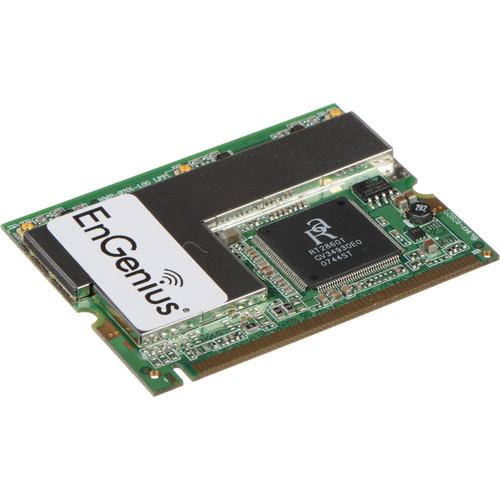

User Manual for EnGenius EMP-9701 802.11n Wireless USB 2.0 Adapter Click to enlarge the picture
Contents of the user manual for the EnGenius EMP-9701 802.11n Wireless USB 2.0
- Product category: Wireless Adapters & Cards EnGenius
- Brand: EnGenius
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EnGenius Wireless Adapters & Cards
|
User manual for the EnGenius EMP-9701 802.11n Wireless USB 2.0 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EnGenius product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EnGenius user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EnGenius product will considerably shorten its lifespan!
|
Product description Supporting data transfer rates of up to 300 Mbps, the EMP-9701 802.11n Wireless USB 2.0 Adapter from EnGenius makes it easy to stream multimedia content, download files, and more wirelessly. This Mini-PCI type III A adapter supports the 802.11b/g/n networking standards as well as WPA/WPA2 encryption to secure your Wi-Fi connection. - Up to 300 Mbps wireless data transfer rate
- Up to 12X Faster and 4X Farther than 802.11g
- Enable enhanced reception from farther distances
- Backward compatible with 802.11g and 802.11b networks
UPC: 655216003699 In the Box EnGenius EMP-9701 802.11n Wireless USB 2.0 Adapter Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EnGenius EMP-9701 802.11n Wireless USB 2.0 Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnGenius EMP-9701 Specs | | | Data Rates | 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54, 72, 84, 150 and 300 Mbps
(with 2-stream on both ends) | | Standards and Compliance | IEEE802.3, IEEE802.3u, IEEE802.11b, IEEE802.11g, 802.11n 2.0 | | Security | WPA/WPA2 (AES, 64,128-WEP with shared-key authentication)
Cisco CCS V1.0, V2.0 and V3.0compliant | | Regulation Approval | FCC Part 15, ETSI 300/328/CE | | Operating Voltage | 3.3 V ± 0.15 V | | Drivers | Windows 2000/XP/Vista | | | | Form Factor | Mini-PCI type III A | | Operating Voltage | 5 V ± 0.25 V | | Current Consumption | Tx: 695 mA @ 2 T (max.)
Rx: 407 mA @ MCS 15, 40 MHz | | | | Temperature & Humidity | Operating Temperature: -4 to 158°F / -20 to 70°C
Storage Temperature: -22 to 176°F / -30 to 80°C
Humidity: 5 to 95% (typical) | | | | Frequency Bands | 802.11b/g: U.S., Europe and Japan product covering 2.4 to 2.484 GHz | | Media Access Protocol | Carrier Sense Multiple Access with Collision Avoidance (CSMA/CA) | | Modulation Technology | 802.11g: OFDM (64-QAM, 16-QAM, QPSK, BPSK)
802.11b: DSSS (DBPSK, DQPSK, CCK) | | Operating Channels | 11 for North America | | Receive Sensitivity | 2.412~2.472 G (IEEE802.11b) (1Rx)
-93 dBm @ 1 Mbps
-91 dBm @ 11 Mbps
2.412~2.472 G (IEEE802.11g) (2Rx)
-92 dBm @ 6 Mbps
-79 dBm @ 54 Mbps
2.412~2.472 G (IEEE802.11N) (2Rx)
-90 dBm MCS 8
-70 dBm MCS 15 | | Available Transmit Power | 2.412~2.472 G (IEEE802.11b)
19 dBm @ 1~11 Mbps
2.412~2.472 G (IEEE802.11g)
19 dBm @6 Mbps
16 dBm @54 Mbps
2.412~2.472 G (IEEE802.11N)
20 dBm MCS 8
16 dBm MCS 15 | | Antenna Configuration | 2 U.FL antenna connectors (IPEX) | | | | Dimensions | 2.3 x 2.0" / 59.60 x 50.90 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 0.04 lb | | Box Dimensions (LxWxH) | 2.75 x 2.15 x 0.3" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 07 owners. Add your rating and experience with the product.
