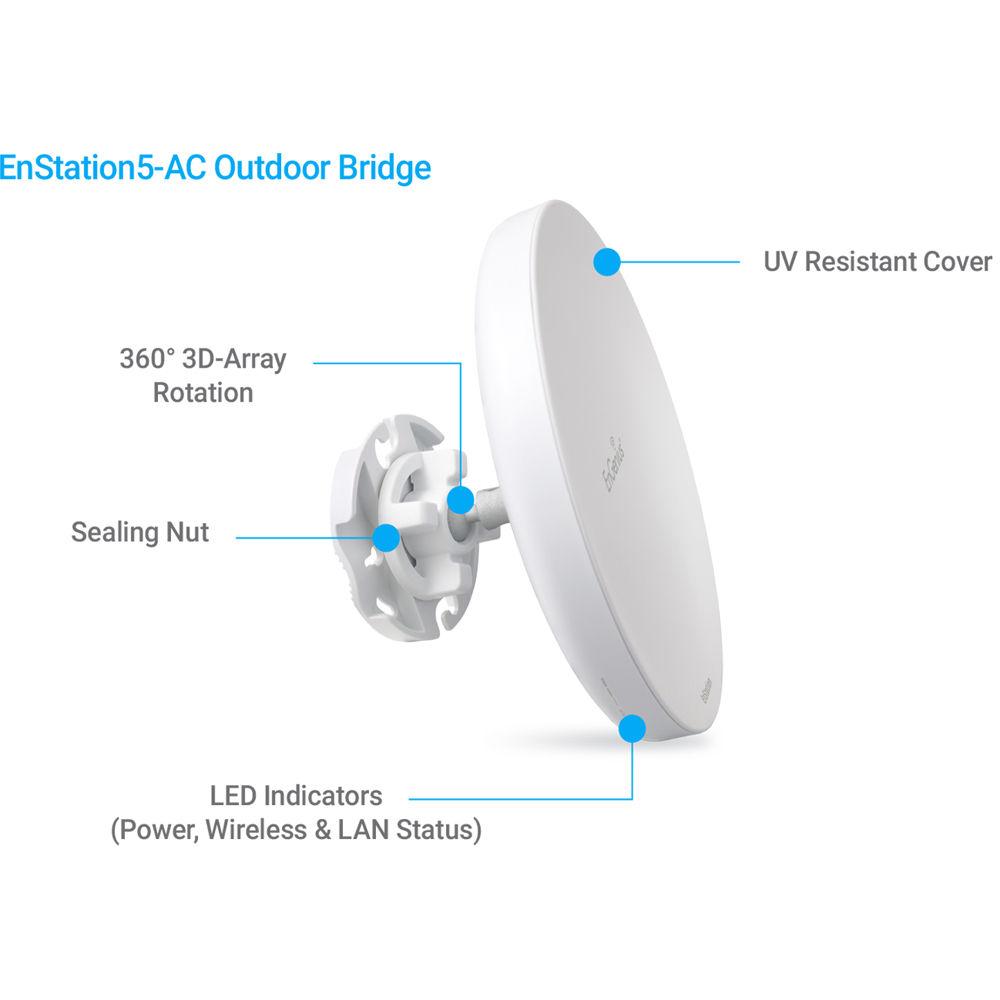

Product description Supporting the 802.11ac Wave 2 Wi-Fi standard, the EnStation5-AC EnTurbo Advanced Wave 2 11ac 5 GHz Wireless Outdoor Bridge from EnGenius is designed to offer enhanced wireless data transfer rates up to 30% faster than offered by 802.11ac Wave 1. This network bridge is easy to install, as it comes with pole-mounting brackets and a wall-mount screw set making it easy to place it virtually anywhere.
This EnGenius network bridge also supports 24V proprietary PoE connectivity, eliminating the need for a standalone power source and further simplifying the installation process. In addition to support for the 802.11ac Wave 2 Wi-Fi standard, this bridge operates the 5 GHz frequency offering enhanced wireless connectivity with less congestion when compared to the slower 2.4 GHz frequency.

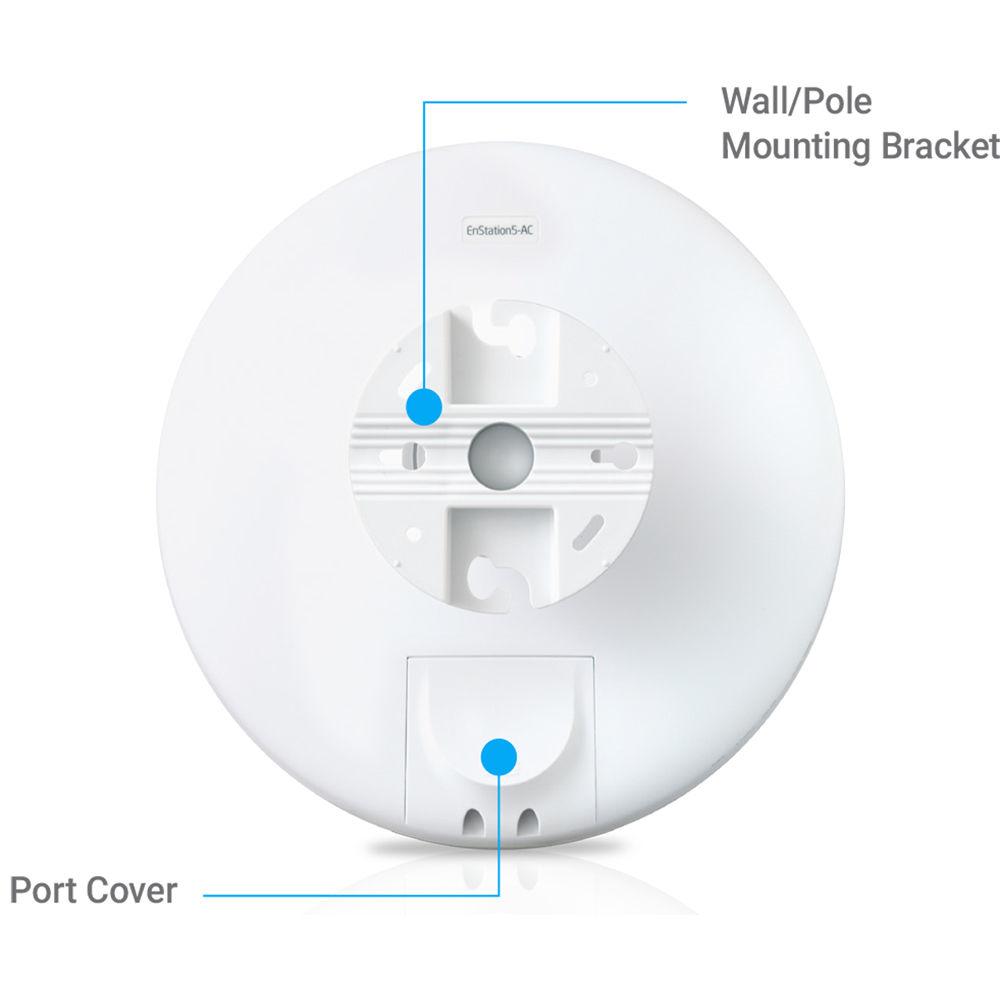

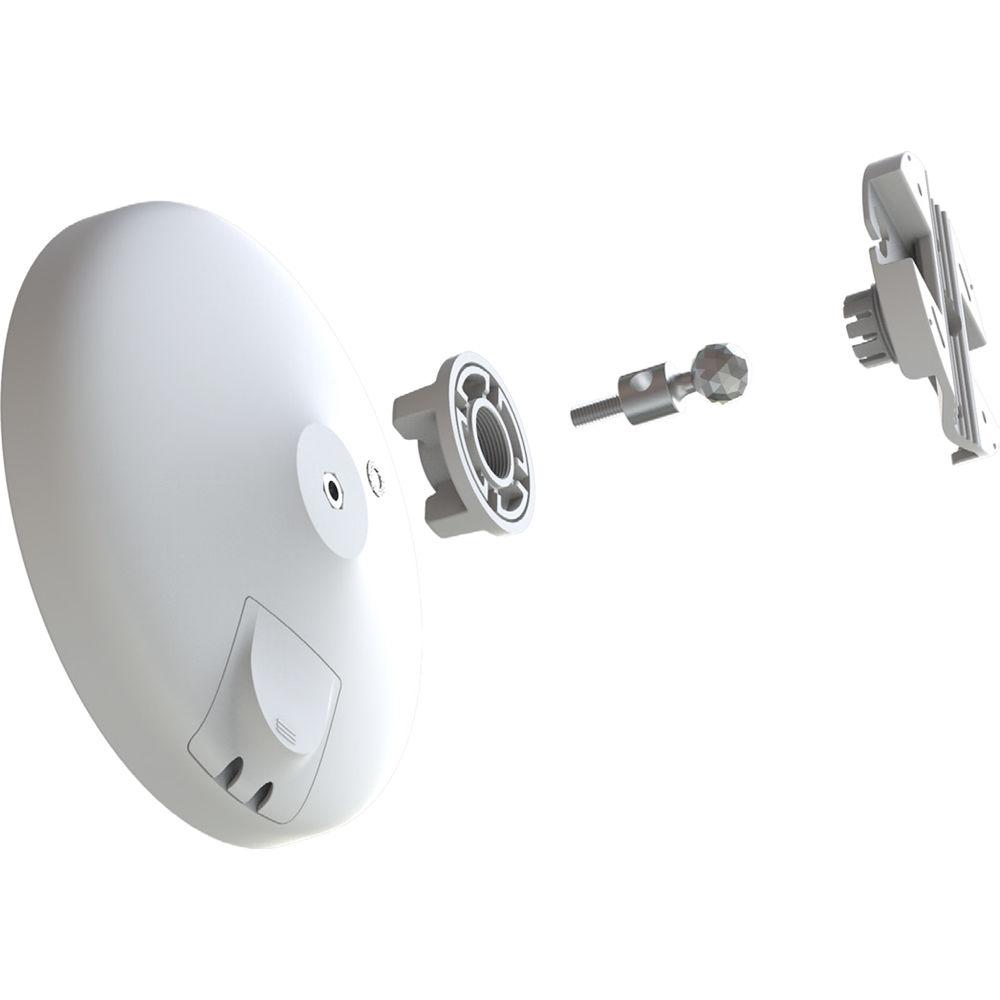

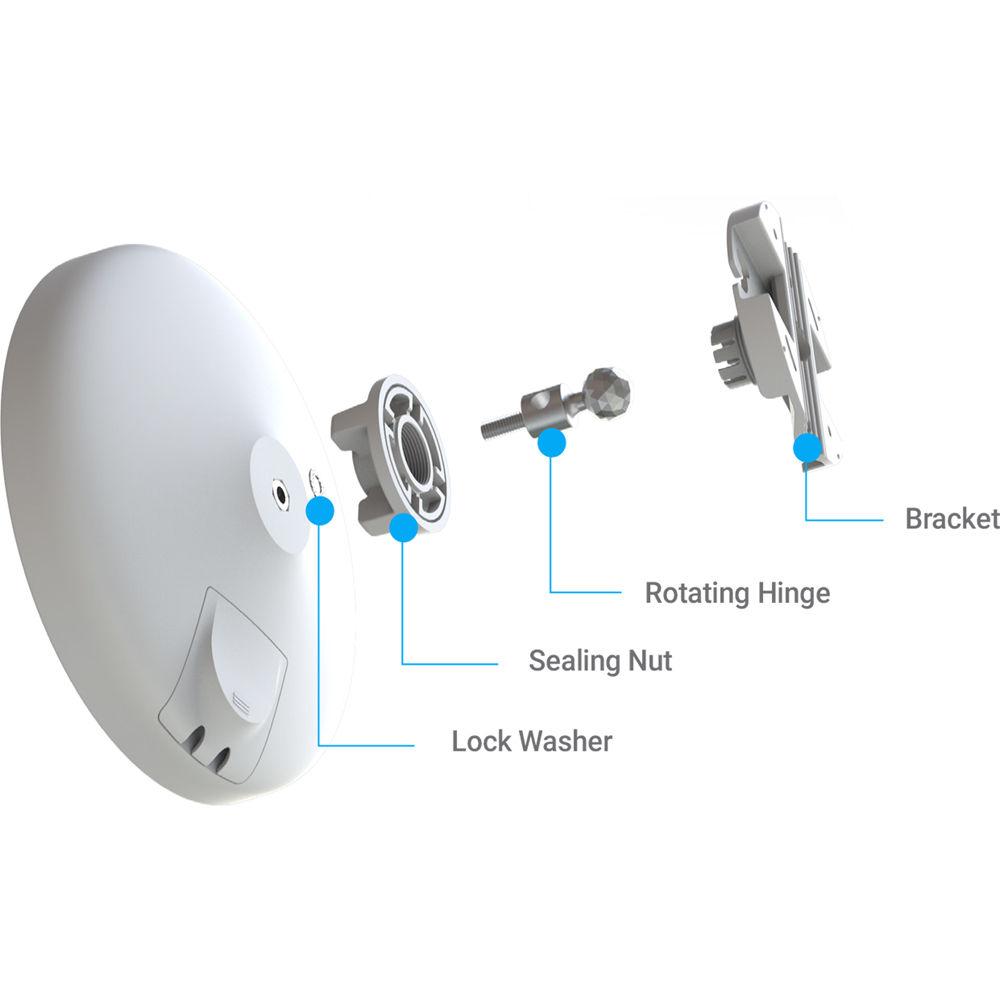

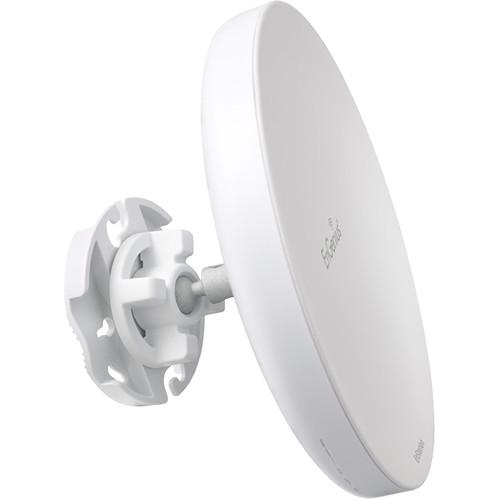

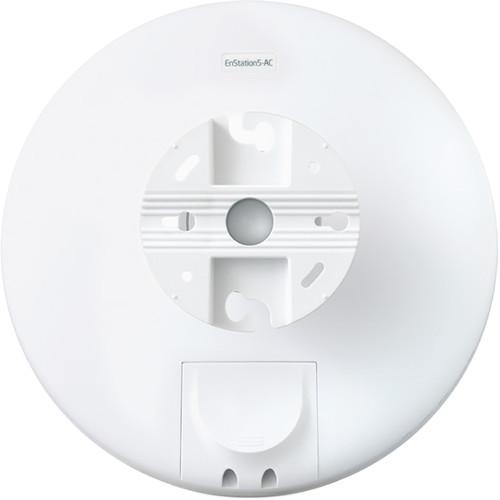

The EnStation5-AC features an IP55-rated waterproof enclosure, making it easy to install it outdoors in the elements. Install it on the side of buildings for long-range point-to-point connections, eliminating the hassle of installing wired connections. Additionally, this EnGenius network bridge can be configured as an access point, client bridge, or set to WDS mode to suit the needs of nearly any network configuration.
This EnGenius bridge comes with a variety of management utilities to simplify the process of administering your network. With the included ezMaster Software suite, you can take advantage of centralized management functionality including the ability to configure, manage, and monitor your network. - Outdoor Access Points
- Provide broad-reaching, fast 11ac Wave 2 access to users in a variety of settings. EnTurbo outdoor APs are flexible and small enough for use in either indoor or outdoor environments. Achieve high-powered, long-range connections with integrated or detachable antenna options.
- Outdoor Long-Range Bridges
- Extend the wireless network in locations where cabling is not possible or practical, while eliminating the expense of extended cable runs. Connect a secondary device such as an IP surveillance camera or access point for greater deployment flexibility. Deliver precise short and long-range point-to-point links in settings such as:
• Between Buildings • Across Large Campuses & Stadiums • Over Vast Acreage: Parks, Golf Courses, Ranches • City Blocks, Parking Lots & Marinas • In Sizeable Indoor Structures: Distribution Centers & Arenas - EnStation5-AC: Precise, Long-Range Point-to-Point Connectivity

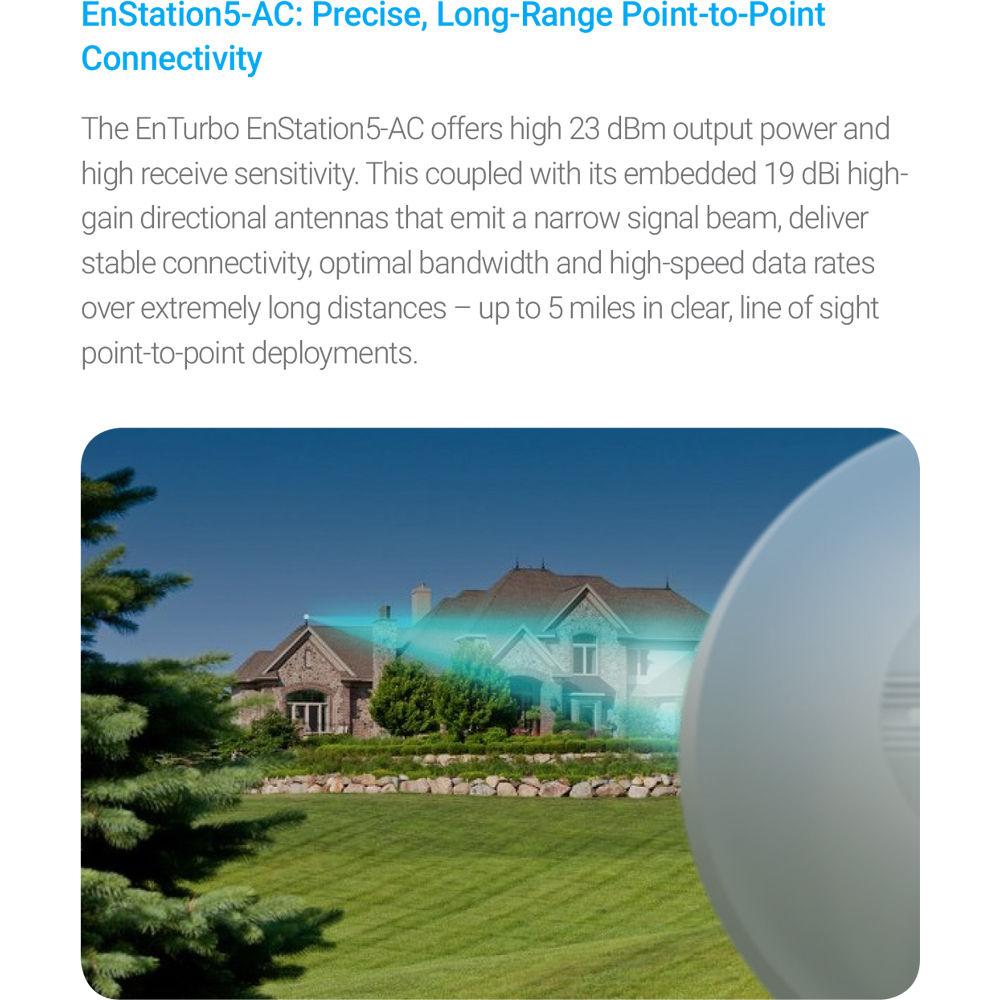

- The EnTurbo EnStation5-AC offers high 23 dBm output power and high receive sensitivity. This coupled with its embedded 19 dBi high-gain directional antennas that emit a narrow signal beam, deliver stable connectivity, optimal bandwidth and high-speed data rates over extremely long distances up to 5 miles in clear, line-of-sight point-to-point deployments.
- Position for Maximum Connectivity
- Easily position EnStation5-AC for maximum connectivity with its 360-degree, 3-axis pivoting arm that locks in place to ensure precise alignment between other EnStation5-AC devices.
- PoE Supports Flexible Power Options

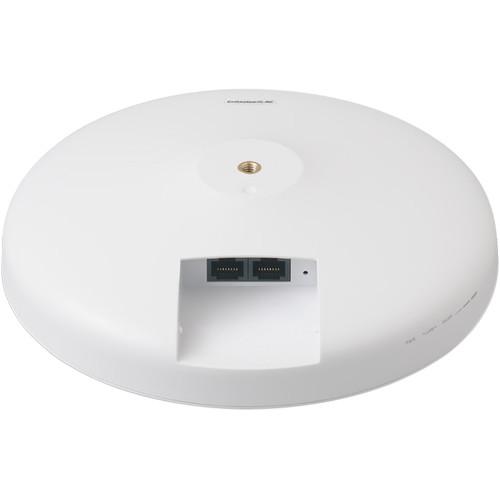

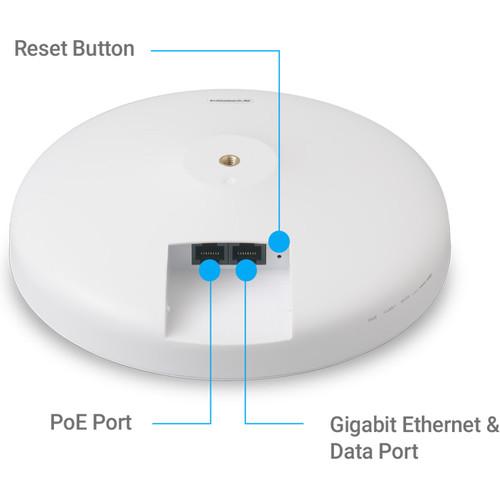

- Connect and power EnTurbo outdoor APs and bridges via their dual PoE Gigabit ports and included PoE adapter for placement in locations where power outlets are unavailable such as on roofs, poles or other remote areas.
- Flexible Operation & Configuration Options
- Access Point, Client Bridge, and WDS modes broaden the adaptability to your network needs. With multiple operation modes, these flexible devices offer versatility in point-to-point or point-to-multipoint deployments.
- Optimal Performance in Harsh Environments
- EnTurbo Outdoor APs and Bridges are designed to perform in harsh conditions and feature ruggedized IP55-rated enclosures. Ensure your network operates in extreme outdoor climates and indoor industrial environments where temperature is a factor. EnTurbo is protected from prolonged exposure to sunlight, cold, frost, snow, rain, hail, heat and humidity.
- Network Management
- The EnTurbo outdoor APs and bridges can operate as standalone devices or as part of a scalable network management solution. Manage EnTurbo APs and bridges while in AP mode via Neutron Switches or remotely with ezMaster and expand easily as your network needs grow.
- Manage Up to 50 EnTurbo APs with EnGenius Managed Switches
- Any EnGenius Gigabit managed switch can also manage up to 50 EnTurbo APs or bridges when in AP mode. Through the switch, you can access all connected EnGenius devices operating in AP mode, as well as a full array of wireless and Layer 2 management tools. Choose between PoE+ and non-PoE switch models with flexible deployment and management options and no AP license or subscription fees.
- ezMaster Network Management Software
- EnGenius ezMaster Software's simple, intuitive Web-based interface allows flexible access point monitoring, locally or remotely. Quickly and easily set up, manage, monitor, and troubleshoot multiple APs at the same time. See real-time network performance and monitor AP traffic through ezMaster's at-a-glance dashboard.
EzMaster provides business-class features, unlimited scalability and centralized management of hundreds of EnTurbo access points and EnGenius switches, locally, remotely, or via a cloud-based service, with no licensing or subscription fees. UPC: 655216008519 In the Box EnGenius EnStation5-AC EnTurbo Advanced Wave 2 11ac 5 GHz Wireless Outdoor Bridge PoE Adapter Pole-Mounting Brackets Wall-Mount Screw Set Power Cord Limited 1-Year Warranty More from Manufacturer bwwfabvasaywetfyxraeuxbssvsscrcybayb Table of Contents
|
Upload User Manual
Have you got an user manual for the EnGenius EnStation5-AC EnTurbo Advanced Wave 2 11ac 5 GHz Wireless Outdoor Bridge in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnGenius ENSTATION5-AC Specs Standards | IEEE802.11a/n/ac on 5 GHz | Processor | Qualcomm 717 MHz Quad-Core CPU 4x ARM Cortex A7 | Antenna | 2 x 19 dBi directional integrated | Physical Interfaces | 2 x 10/100/1000 Gigabit Ethernet ports (Link Aggregation achieves 2 Gbps throughput) Reset Button | LED Indicators | Power WLAN 5 GHz 2 x LAN | Power Source | Power-over-Ethernet: Proprietary 24 V PoE IEEE 802.11e Compliant Source Active Ethernet (PoE) | Power Consumption | 7.5 W (minimum) | Surge Protection | Line to Line: 1 KV Line to Ground: 2 KV | ESD Protection | Contact: 4 KV Air: 8 KV | Operating Frequency | 5 GHz | Operation Modes | Access Point Mode (AP mode) Client Bridge Mode (CB Mode) WDS: WDS AP, WDS Bridge, WDS Station | Radio | 5 GHz: 5150~5250 MHz, 5250~5350 MHz, 5470~5725 MHz, 5725~5850 MHz | Transmit Power | 5 GHz: 23 dBm | WLAN Spatial Streams | 2x2:2 | MIMO Technology | SU-MIMO 2 x Spatial Stream SU-MIMO up to 867 Mbps to a single client
MU-MIMI 2 x Spatial Streams MU-MIMO up to 867 Mbps 2 x 1x1 wireless devices simultaneously | Supported Data Rates | 5 GHz: Max 867 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 802.11n: 6.5 to 300 Mbps (MCS0 to MCS15) 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2) | Supported Radio Technologies | 802.11a/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM) 802.11n/ac: 2x2 MIMO with 2 streams | Channels | Channelization 802.11ac Supports Very High Throughput (VHT)-VHT 20/40/80 MHz 802.11n Supports High Throughput (HT)-HT 20/40 MHz 802.11n/ac Packet Aggregation: AMPDU, ASPDU | Modulation | 802.11a/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM | Management | Multiple BSSID Supports 8 SSIDs
VLAN Tagging Supports 802.1q SSID-to-VLAN Tagging Management VLAN VLAN Pass-Through
Spanning Tree Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service) Complaint with IEEE 802.11e Standard WMM
SNMP v1, v2c, v3
MIB I/II, Private MIB | Wireless Security | WEP Encryption 64/128/152 bit WPA/WPA2 Enterprise (WPA-EAP using TKIP or AES) Hide SSID in Beacons MAC Address Filtering, up to 32 MACs per SSID Wireless STA (Client) Connected List SSH Tunnel Client Isolation | Temperature & Humidity | Operating Temperature -4 to 140°F / -20 to 60°C Storage Temperature -22 to 176°F / -30 to 60°C Operating Humidity 90% or less Storage Humidity 90% or less | Waterproof | IP55-Rated Enclosure | Certifications | FCC, CE | Dimensions | 7.48 x 1.49" / 190 x 38 mm | Weight | 1.11 lb / 460 g | | Package Weight | 2.3 lb | Box Dimensions (LxWxH) | 12.5 x 9.7 x 3.5" |
