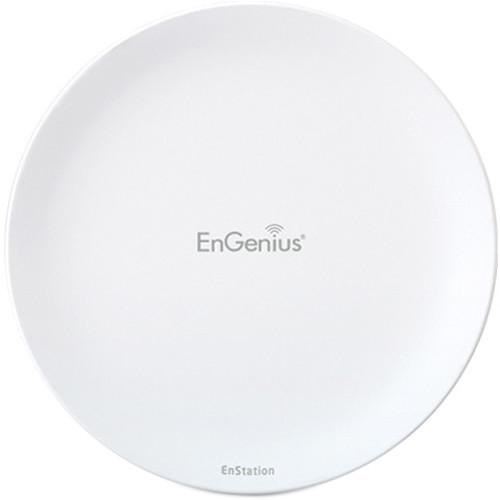

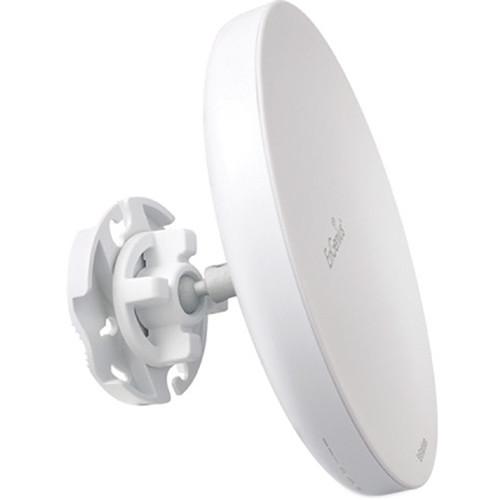

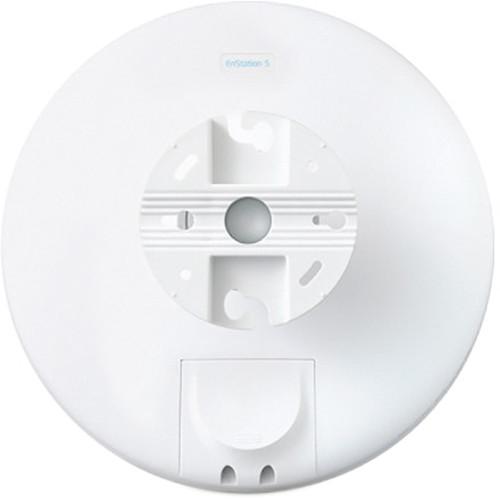

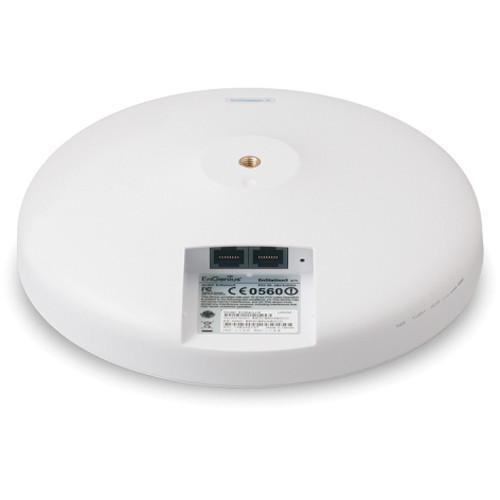

User Manual for EnGenius EnStation5 Long-Range Wireless 5 GHz Outdoor AP Bridge Click to enlarge the picture
Contents of the user manual for the EnGenius EnStation5 Long-Range Wireless 5 GHz
- Product category: Wireless Access Points EnGenius
- Brand: EnGenius
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EnGenius Wireless Access Points
 |
User manual for the EnGenius EnStation5 Long-Range Wireless 5 GHz contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EnGenius product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EnGenius user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EnGenius product will considerably shorten its lifespan!
|
Product description With a data transfer rate of up to 300 Mbps and IP55 rated waterproof housing, the EnStation5 Long-Range Wireless 5 GHz Outdoor AP/Bridge from EnGenius makes it easy to transmit your wireless data signal outdoors over long distances.
The internal 19 dBi dual polarization directional high-gain antenna features narrow beam functionality to direct the signal to its intended recipient for a stronger, more reliable signal. The signal emitted from this AP/bridge is IEEE 802.11a/n compliant ensuring broad compatibility with nearly any Wi-Fi enable device. Installation has also been simplified as the EnStation5 comes equipped with 24 V proprietary PoE support eliminating the need for a power adapter. - Delivers Long-Range Point-to-Point Connectivity
- When used with another EnStation5 in a Point-to-Point deployment, the devices' up to 26 dBm transmit power and internal 19 dBi directional high-gain antenna delivers a robust longer range signal to each other - up to 5 miles. Ideal for PtP applications that need to cover large distances where Ethernet or even Fiber cabling is not possible or practical.
- Versatile and Reconfigurable Operation Modes
- Choose from three operation modes, Access Point, Client Bridge, or WDS Bridge.
- Compact Form Factor
- The small form factor makes EnStations an acceptable solution to add to home exteriors for most homeowner associations.
- Faster File Transfers and Smoother Video Streaming
- Up to 300 Mbps wireless speed.
- Prioritizes Applications and Maintains Quality of Experience (IEEE 802.11e)
- Intelligent QoS (Quality of Service) prioritizes bandwidth intensive applications like HD video or bandwidth sensitive applications like VoIP telephone calls.
- Simplified AP Monitoring and Management
- For easier monitoring and maintenance after deployment on rooftops and other hard to reach places, users can monitor the Access Point remotely with SNMP-based EZ Controller wireless Access Point software for Windows, Mac OSX, and Linux.
UPC: 655216007376 In the Box EnGenius EnStation5 Long-Range Wireless 5 GHz Outdoor AP/Bridge PoE Injector (EPE-212) with Power Adapter (24 V / 0.6 A) Pole/Wall Mounting Kit Mounting Screw Set Limited 1-Year Warranty Brochure PDF 826.6kbbvrtqfsyzuztbdcvtqftvarrzvszdffwza More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the EnGenius EnStation5 Long-Range Wireless 5 GHz Outdoor AP Bridge in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnGenius ENSTATION5 Specs | | | Wireless Frequency Bands | 5 GHz | | MU-MIMO Support | 2 x 2 | | WLAN Mode | 802.11n | | Antenna Gain | 19 dBi | | Transmit Power | 26 dBm | | | | Ports | 2 x 10/100 Mb/s Ethernet (RJ45) | | | | Wireless Security | WEP, WPA, WPA2 | | | | Throughput | 5 GHz: 300 Mb/s | | | | RAM | 64 MB | | Storage Capacity | 16 MB | | Supported IEEE Standards | 802.1x | | | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Storage Temperature | -22 to 176°F / -30 to 80°C | | Operating Humidity | 90% | | Storage Humidity | 0 to 90% | | | | IP Rating | IP55 | | Dimensions | 7.48 x 1.5" / 190 x 38 mm | | Weight | 1.0 lb / 460.0 g | | | | Package Weight | 2.35 lb | | Box Dimensions (LxWxH) | 12.6 x 9.7 x 3.4" |
