User Manual for EnGenius EPD-4824 Gigabit 802.3at af PoE Converter Click to enlarge the picture
Contents of the user manual for the EnGenius EPD-4824 Gigabit 802.3at af PoE
- Product category: Power over Ethernet (PoE) EnGenius
- Brand: EnGenius
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EnGenius Power over Ethernet (PoE)
|
User manual for the EnGenius EPD-4824 Gigabit 802.3at af PoE contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EnGenius product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EnGenius user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EnGenius product will considerably shorten its lifespan!
|

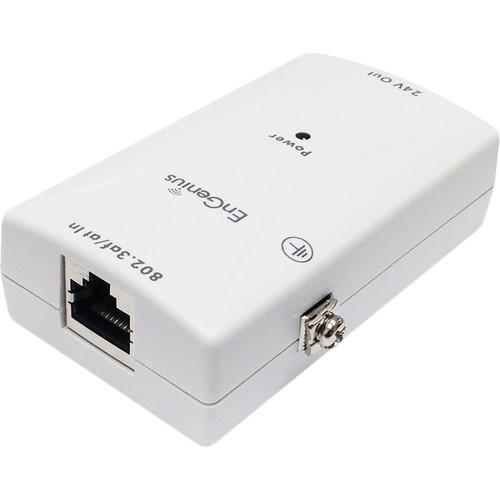

Product description The EPD-4824 Gigabit 802.3at/af PoE Converter from EnGenius helps users connect to Power over Ethernet (PoE) capable access points and other PoE client devices through an Ethernet cable from a PoE Gigabit Ethernet switch. This is accomplished by converting the 48V 802.3af/at power source into a 24V power output. It has an MTTF rating of 25,000 hours.
Designed to work with the EnGenius ENS202, ENS202EXT, ENS500EXT, ENH500EXT, ENH202, and ENH500 Wireless Outdoor Access Points, and equipped with a power output of up to 24W, the EPD-4824 provides users with the option to place PoE-client devices and access points outdoors and in other environments where power outlets may not be readily available. The EPD-4824 lets you connect PoE-client devices and access points to an existing network without having to run extended lengths of power cabling. The EPD-4824 features two Gigabit Ethernet (10/100/1000 Mbps) ports. One is used for connecting a PoE Ethernet switch, while the other is used for connecting to a PoE-enabled device, with the EPD-4824 converting its 48V/802.3af/at power source into a 24V power output.
The EPD-4824 uses an IEEE pin definition to power the device and comes with a 48V power supply. Pins 1, 2 and 3, 6 are used for data transmission, while pins 4, 5 and 7, 8 are used for sending power to the device via center tap. The EPD-4824G generates power over CAT6, Cat5, and Cat5e cabling of up to 300' and by sending out 48V, Ethernet terminals such as Wireless LAN access points can be powered remotely from an Ethernet switch. These protective measures help make the EPD-4824 a well suited outdoor wireless solution for compatible ENS and ENH Series Access Points in virtually any locale or venue including ski and beach resorts, sports arenas, college and corporate campuses, indoor industrial environments, and businesses located in snowy, rainy, and arid climates. - Connect to a Variety of Power Sources
- Converts its 48V 802.3af/at power source into 24V power output
- File Transfers and Smoother Video Streaming
- Utilizes Gigabit Ethernet standard speeds of up to 1000 Mbps for faster file transfers and video streaming
- Extend Range and Reach
- Allows wireless devices to be mounted on the wall, ceiling, or where external power is not readily accessible with cabling up to 300'
- Compatible with Many EnGenius Outdoor Devices
- Compatible with EnGenius ENS202, ENS202EXT, ENS500EXT, ENH500EXT, ENH202, and ENH500 Wireless Outdoor Access Points
UPC: 655216007383 In the Box EnGenius EPD-4824 Gigabit 802.3at/af PoE Converter Limited 1-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the EnGenius EPD-4824 Gigabit 802.3at af PoE Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnGenius EPD-4824 Specs | | | Standards | IEEE 802.3 10Base-T
IEEE 802.3u 100Base-T
IEEE 1000Base-T | | Protocol | CSMA/CD | | Ports | 1 x RJ45 Connector for Proprietary 48 V Input
1 x RJ45 Connector for 24 V Output | | Data Lines | Pin1, Pin2, Pin3, Pin6 | | Power Lines | Pin4, Pin5, Pin7, Pin8 | | Diagnostic LEDs | Power: Green | | Power Output | Provides up to 24 W
Input: IEEE 802.3af/at
Output: DC 24 V (802.3at Input = 24 W, 802.3af Input 12.32 W) | | Reliability/MTTF | 25,000 hours | | | | Temperature Range | Operating: 32 to 122°F / 0 to 50°C
Storage: -4 to 176°F / -20 to 80°C | | Humidity (Non-Condensing) | 0 - 90% | | Surge/ESD Protection | Surge Protection 6 KV | | | | Dimensions | 1.75 x 3.25 x 0.95" / 4.45 x 8.26 x 2.41 cm | | Weight | 0.15 lb / 0.07 kg | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 5.2 x 3.1 x 1.3" |
