User Manual for EnGenius EWS500AP Neutron Series Wireless Wall Plate Access Point Click to enlarge the picture
Contents of the user manual for the EnGenius EWS500AP Neutron Series Wireless Wall
- Product category: Wireless Access Points EnGenius
- Brand: EnGenius
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EnGenius Wireless Access Points
 |
User manual for the EnGenius EWS500AP Neutron Series Wireless Wall contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EnGenius product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EnGenius user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EnGenius product will considerably shorten its lifespan!
|

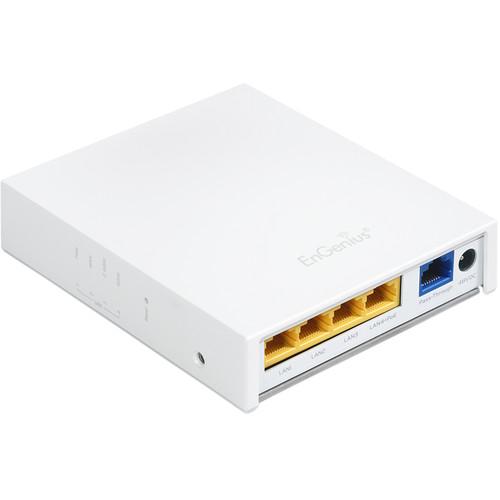

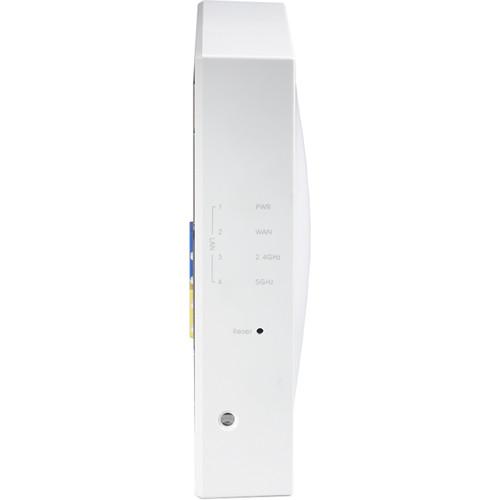

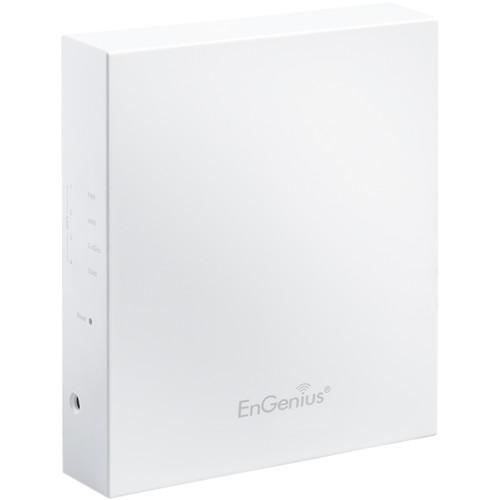

Product description Expand the reach of a network with the EWS500AP Neutron Series Wireless Wall Plate Access Point from EnGenius. This access point is designed to provide Internet access to a large number of users in buildings such as hotels, dorms, classrooms, and other high traffic environments. With support for 802.11n/g/n networking standards you can connect nearly Wi-Fi enabled device to the network. In addition to wireless access, the EWS500AP comes equipped with three Fast Ethernet access ports to connect Ethernet equipped devices to the Internet. Dedicated LED indicators allow you to see the status of the access point including power and network conditions. Inside you will find 128 MB of RAM and 16 MB of flash memory to ensure smooth operation even when multiple users are connecting at the same time. - In-Room Wireless Connectivity
- Traditional APs deployed in the hallways of hotels, dorms and multi-tenant dwellings don't always provide individual rooms with the level of connectivity demanded by today's users. RF-blocking walls, and doors can make providing high-speed Internet access challenging and expensive in these environments.
- Quick, Easy Deployment Lowers Wireless Implementation Costs

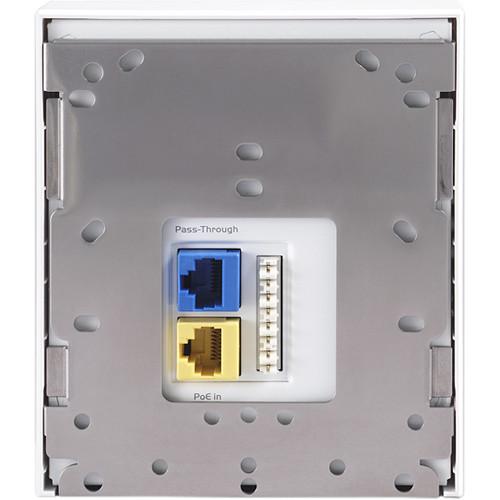

- The Wall Plate AP is designed for quick, discrete in-room installation directly onto an existing electrical or data junction box utilizing existing in-room CAT5/6 wall cabling. Installs easily in minutes, eliminating time consuming planning and additional wire-runs while supporting lower wireless implementation costs for hotel guest rooms, student residences, retirement facilities, multi-tenant dwellings and classrooms.
- All-in-One Communication Hub

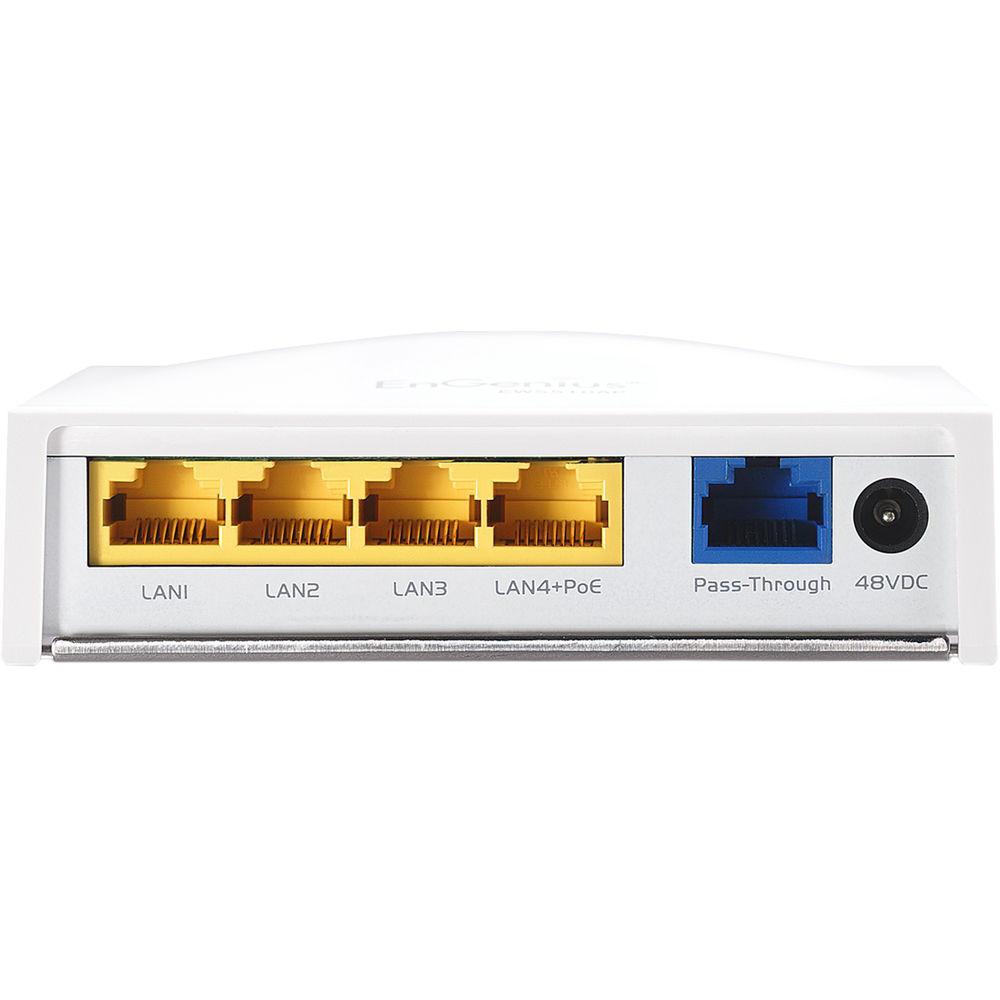

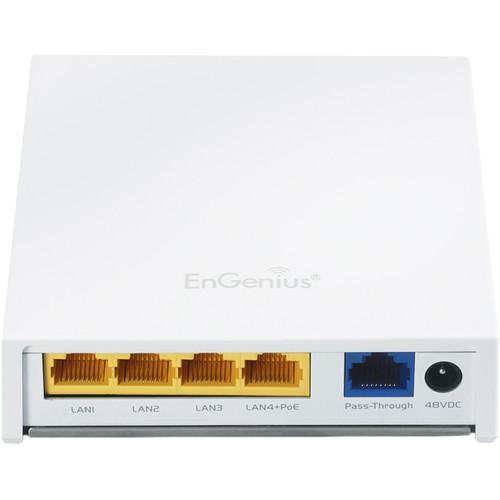

- This access point provides in-room wireless, Power-over-Ethernet and wired connectivity in a single, high performance device. Connect IPTVs, networked minibars, printers or game consoles via its 10/100Mbps ports; phone/fax machines via the passive RJ45 port and link/power VoIP phones through its PoE port. Power the AP via an 802.3af/at-compliant PoE switch or a separate DC48V power adapter.
- Wireless LAN Management with ezMaster
- Deploy as a standalone wireless AP or part of a scalable Neutron WLAN Management Solution and managed via a WLAN Controller Switch or centrally managed via ezMaster Network Management Software. Together with Neutron Switches and Access Points, ezMaster is a flexible, highly scalable solution offering centralized network management with rich reporting and analytics, business-class features and no AP licensing or annual subscription fees.
- Unlimited Flexibility and Scalability
- Deployed on a local or remote server - or in the Cloud, ezMaster lowers total operating costs, speeding deployments and monitoring of a network with minimal IT assistance. Manage a few or 1,000+ APs and Switches on networks in different locations from a single location. Easily manage 10 or 10,000 concurrent users through a comprehensive at-a-glance network dashboard with rich analytics and reporting.
- Simplified Communication
- With the EnGenius ezMaster Network Management Software, Neutron APs are quickly auto-discovered and provisioned. Once your APs are connected to the ezMaster server, they are automatically synched to existing project groups, saving you time and trouble. With single-click individual or bulk configurations and upgrades you can save even more time.
In the Box EnGenius EWS500AP Neutron Series Wireless Wall Plate Access Point Mounting Bracket Bracket Screw Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EnGenius EWS500AP Neutron Series Wireless Wall Plate Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnGenius EWS500AP Specs | | | Wireless Frequency Bands | 2.4 GHz | | Number of Antennas | 2 | | MU-MIMO Support | 2 x 2 | | WLAN Mode | 802.11n | | Antenna Gain | 4 dBi | | Transmit Power | 20 dBm | | Supported Protocols | WMM | | | | Ports | 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink)
3 x 10/100 Mb/s Ethernet (RJ45)
1 x 10/100 Mb/s Ethernet (RJ45) PoE
2 x Ethernet (RJ45) (Pass-Through) PoE+ | | | | Wireless Security | WEP, WPA | | | | Operation Modes | Access Point | | Max SSIDs Supported | 8 | | Throughput | 2.4 GHz: 300 Mb/s | | | | RAM | 128 MB | | Storage Capacity | 16 MB | | Supported IEEE Standards | 802.11i, 802.3af, 802.3at | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 90% | | Storage Humidity | 90% | | | | Dimensions | 1.5 x 4.3 x 5.2" / 3.7 x 11 x 13 cm | | Weight | 0.7 lb / 0.3 kg |
