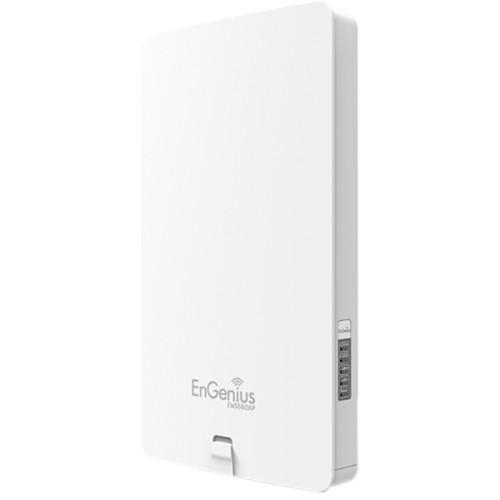

User Manual for EnGenius EWS660AP Neutron Series Dual Band Wireless AC1750 Managed Outdoor Access Point Click to enlarge the picture
Contents of the user manual for the EnGenius EWS660AP Neutron Series Dual Band
- Product category: Wireless Access Points EnGenius
- Brand: EnGenius
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EnGenius Wireless Access Points
|
User manual for the EnGenius EWS660AP Neutron Series Dual Band contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EnGenius product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EnGenius user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EnGenius product will considerably shorten its lifespan!
|
Product description With the ability to automatically steer dual band compatible devices to the optimal frequency, the EWS660AP Neutron Series Dual Band Wireless AC1750 Managed Outdoor Access Point from EnGenius is capable of providing reliable bandwidth to each connected device. In addition to concurrent dual-band 2.4 GHz/5 GHz functionality, this access point supports 802.11a/b/g/n/ac network standards along with maximum data throughput of up to 1750 Mbps. Installation is simple thanks to the single RJ-45 Gigabit Ethernet interface with support for 802.3at/af PoE, eliminating the need to run a separate power source. The EWS660AP features an IP65 rated enclosure designed to withstand harsh weather conditions including sever and prolonged exposure to sunlight, extreme cold, frost, snow, rainfall, hail, and humidity. - Neutron Series Managed Access Point
- The EWS660AP can be configured, managed and monitored with several Neutron Series Access Points from the browser-based interface of one Neutron Series Wireless Management Layer 2 PoE+ Switch. After a Neutron Series Layer PoE+ Switch discovers the EWS660AP it can be "added" and set to be "managed" by the Switch. The Neutron Wireless Management solution supports bulk firmware upgrades and other features that can be set and managed across deployed Neutron Series Access Points simultaneously.
- Dual Band for Expanded User Capacity
- With 802.11n/ac concurrent dual band Wi-Fi you can connect to both the 2.4 GHz and 5 GHz frequency bands for expanded user capacity. The EWS660AP can support over 100 users.
- High Power Long Range Coverage
- With high transmit power on each band you benefit from more than twice the wireless coverage over mainstream competitors.
- Band Steering
- The EWS660AP automatically detects dual band client devices in the network and shifts their traffic to the wider and less congested 5 GHz frequency band in order to minimize congestion on the 2.4 GHz in an effort to optimize overall bandwidth traffic on the network.
- Wireless Speeds
- Delivers faster file transfers and smoother video streaming with up to 450 Mbps on the 2.4 band and up to 1300 Mbps on the 5 GHz frequency band for faster throughput AC client devices.
- Made For Harsh Outdoor Environments
- The EWS660AP comes with an IP65-rated enclosure, one of the highest waterproof and dustproof ratings available, designed to withstand extremely harsh environmental conditions including severe and prolonged exposure to sunlight, extreme cold, frost, snow, rainfall, hail and humidity. The housing of the Access Point also has been manufactured to repel ultraviolet (UV) radiation from the sun.
- SSID-to-VLAN Tagging
- Configure the EWS660AP to broadcast up to eight (16) SSIDs (8 SSIDs per frequency band). Each SSID can be tagged to a specified network VLAN for different user access tiers based on established access rights.
In the Box EnGenius EWS660AP Neutron Series Dual Band Wireless AC1750 Managed Outdoor Access Point 12V / 2A Power Adapter Pole Mounting Bracket RJ-45 Ethernet Cable Limited 1-Year Warranty More from Manufacturer ttbydrfztyzbuzctusceurytwbyfwtvwyb Table of Contents
|
Upload User Manual
Have you got an user manual for the EnGenius EWS660AP Neutron Series Dual Band Wireless AC1750 Managed Outdoor Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnGenius EWS660AP Specs | | | Wireless Frequency Bands | 2.4 GHz, 5 GHz | | WLAN Mode | 802.11ac | | Supported Protocols | WMM
SNMPv1
SNMPv2c
SNMPv3 | | Antenna Placement | Internal | | | | Ports | 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ | | | | Wireless Security | WPA, AES, TKIP | | Lock Slot | Yes | | | | Operation Modes | Access Point, Mesh | | Max SSIDs Supported | 8 | | Throughput | 2.4 GHz: 450 Mb/s
5 GHz: 1300 Mb/s | | | | RAM | 128 MB | | Storage Capacity | 16 MB | | Supported IEEE Standards | 802.11i, 802.1d, 802.1q, 802.1x, 802.3at | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC at 2 A | | | | Operating Temperature | -4 to 158°F / -20 to 70°C | | Storage Temperature | -22 to 176°F / -30 to 80°C | | Operating Humidity | 90% | | Storage Humidity | 90% |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 38 owners. Add your rating and experience with the product.
