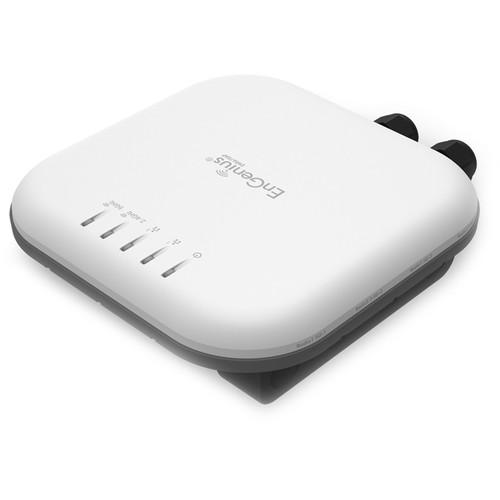

User Manual for EnGenius EWS870AP Neutron EWS 11ac Wave 2 Managed Outdoor Access Point Click to enlarge the picture
Contents of the user manual for the EnGenius EWS870AP Neutron EWS 11ac Wave
- Product category: Wireless Access Points EnGenius
- Brand: EnGenius
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EnGenius Wireless Access Points
 |
User manual for the EnGenius EWS870AP Neutron EWS 11ac Wave contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EnGenius product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EnGenius user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EnGenius product will considerably shorten its lifespan!
|

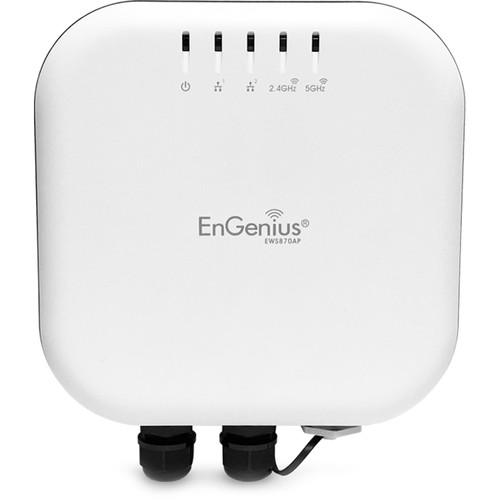

Product description With support for the 802.11ac Wave 2 Wi-Fi standard, the EWS870AP Neutron EWS 11ac Wave 2 Managed Outdoor Access Point from EnGenius supports wireless data transfer rates of up to 2.5 Gbps. On the inside of the EWS870AP access point are four internal omni-directional antennas designed to offer enhanced coverage to help eliminate dead zones. In addition to dual band support, this access point comes compatible with the 802.11a/b/g/n/ac Wi-Fi network standards ensuring nearly any Wi-Fi enabled device will be able to access the network.
Installation of this outdoor access point has been greatly simplified with support for the 802.3at PoE network standard which eliminates the need to run a standalone power source directly to the AP. Once installed, the dual Gigabit Ethernet ports allow for pass-through power to connect additional PoE compatible devices to the network such as IP cameras, additional AP's and more. All of the components of the EWS870AP reside inside an industrial-grade IP67 rated enclosure designed to protect it from both water and dust allowing it to be installed in nearly any environment.
EnGenius has built in to this access point Beamforming technology to provide enhanced reception and coverage by directing wireless signals to connected devices. Combine Beamforming technology with MU-MIMO (multi-user, multiple input multiple output) functionality and multiple users get their own dedicated connection to the access point. Additionally, a network administrator can manage the entire network using a WLAN controller switch or use ezMaster software which offers a wealth of tools including centralized management, reporting and analytics capabilities, and more. - Ultra-Fast for Multi-User Support
- The EWS870AP supports 11ac Wave 2 functionality for enhanced speed and performance for wireless access points supporting enhanced bandwidth available for connected Wi-Fi devices with speeds reaching 2.5 Gbps. Users also benefit from Multi-MIMO 11ac access providing multiple streams to multiple devices simultaneously expanding the bandwidth and capacity of the network.
- Industrial-Grade Waterproof Housing

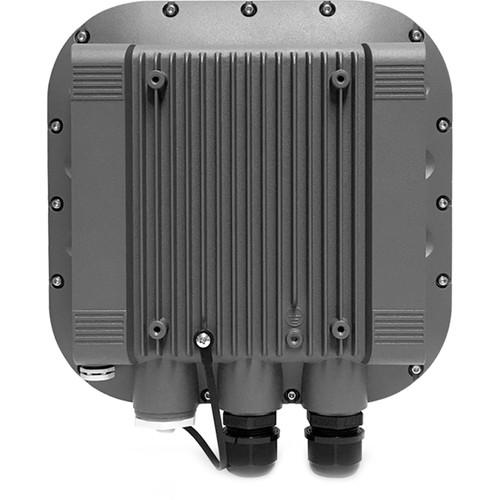

- Designed to perform in harsh environments, the EWS870AP outdoor ruggedized AP features IP67-rated waterproof and dustproof casing that ensures the AP can withstand extreme outdoor climates and indoor industrial environments. This includes prolonged exposure outdoors to sunlight, extreme cold, frost, snow, rain, hail, heat, and humidity, and indoors where temperatures are a factor.
- Future Proof, Crowd Proof Network
- This AP handles densely crowded client environments through its four spatial streams and Beamforming technology, which focuses signals directly to client devices, providing optimal signal and reception reliability for users.
- Flexible Power Options with Power-over-Ethernet Support

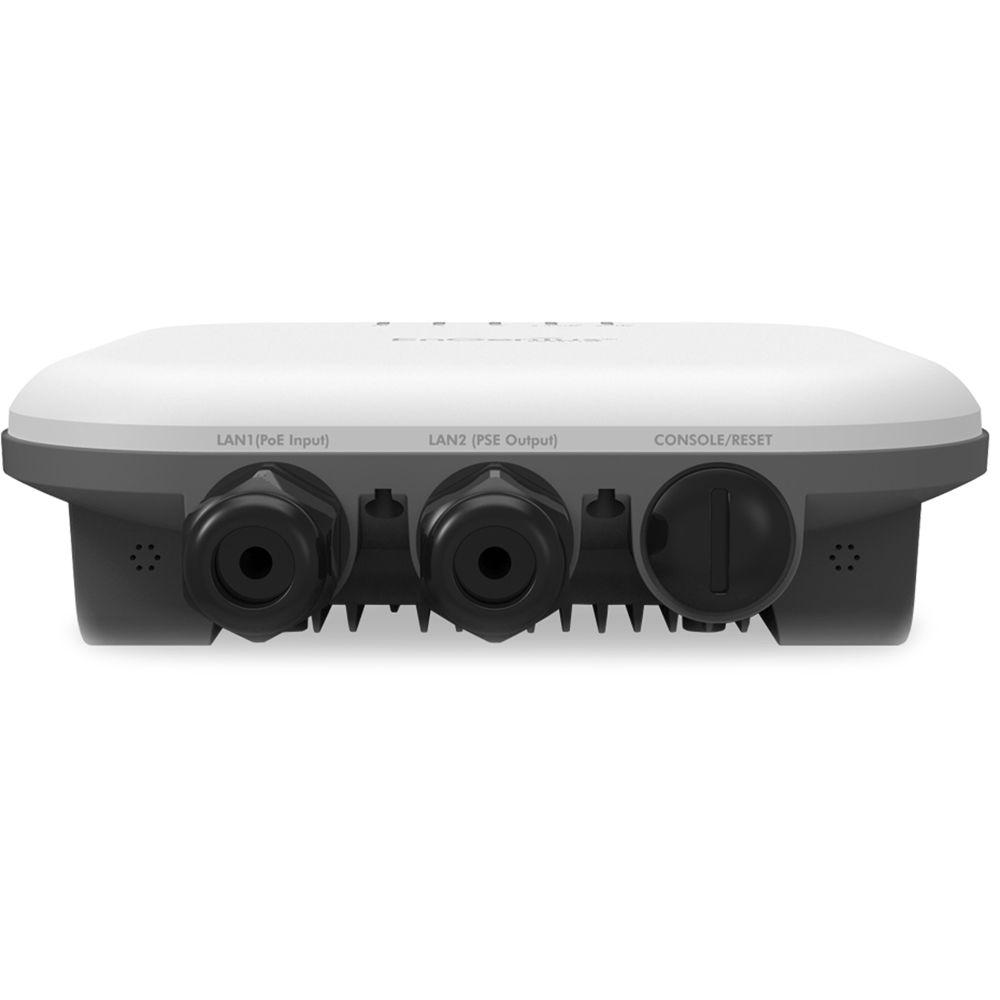

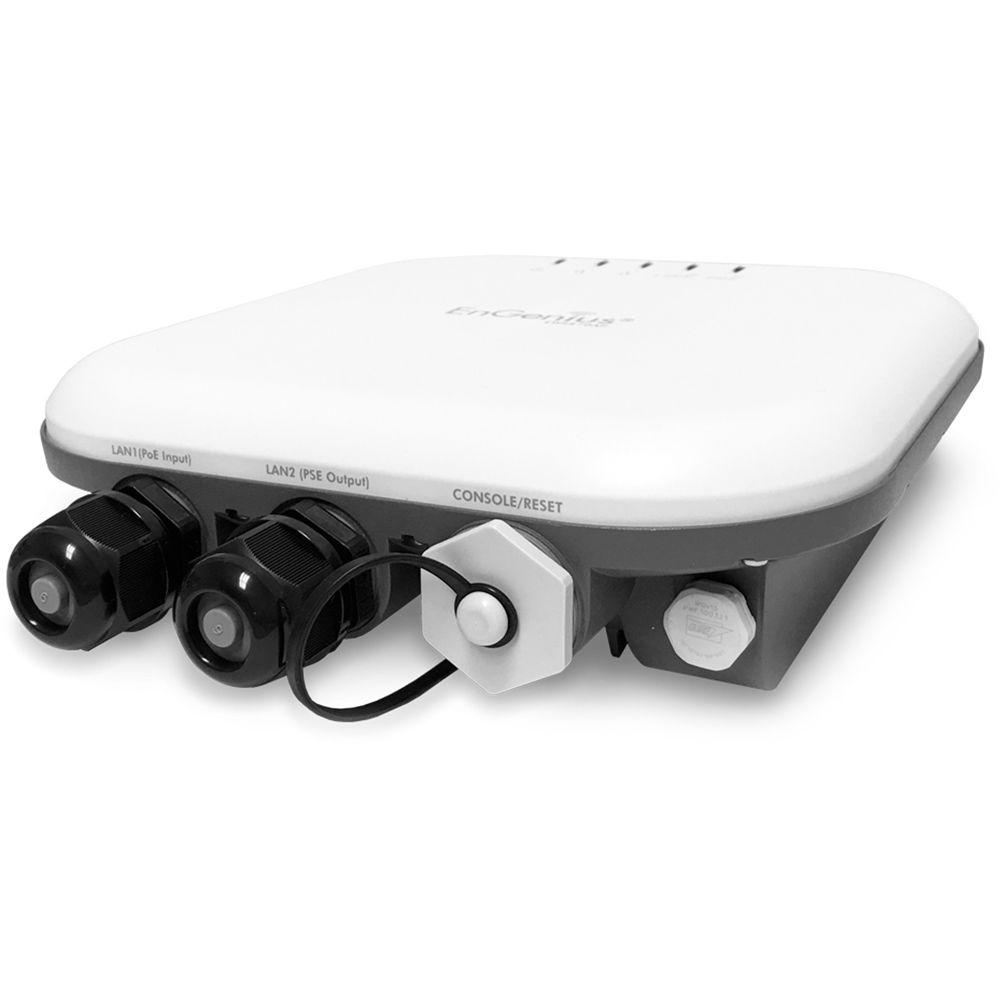

- Designed for placement where power outlets may be scarce, the EWS870AP features a Gigabit Power-over-Ethernet (PoE) port, for powering the AP through a connected Ethernet cable to a PoE 802.3at-capable Switch or with a PoE adapter up to 328 feet from the wiring closet. Utilize the secondary PoE pass-through port to power an additional connected device such as a remote IP surveillance camera or ancillary access point.
- Flexible, Simplified Network Management
- Neutron EWS Access Points are easily deployed as a part of a scalable Neutron Distributed Network Management Solution and managed via a WLAN Controller Switch or centrally managed via ezMaster software. Together with Neutron Switches and APs, ezMaster is a flexible, highly scalable solution offering simplified, centralized management with rich reporting and analytics, enterprise-class features and no AP licensing, subscription or technical support fees.
UPC: 655216008144 In the Box EnGenius EWS870AP Neutron EWS 11ac Wave 2 Managed Outdoor Access Point 48 V / 1.25 A Power Adapter PoE Injector Pole Mounting Kit Mounting Screw Kit Limited 1-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the EnGenius EWS870AP Neutron EWS 11ac Wave 2 Managed Outdoor Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnGenius EWS870AP Specs | | | Wireless Frequency Bands | 2.4 GHz, 5 GHz | | Number of Antennas | 4 | | MU-MIMO Support | 3 x 3 | | WLAN Mode | 802.11ac | | Antenna Gain | 3 dBi | | Transmit Power | 27 dBm | | Supported Protocols | WMM | | Antenna Placement | Internal | | | | Ports | 2 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
1 x Ethernet (RJ45) (Console) PoE+ | | | | Wireless Security | WEP, WPA, AES, TKIP | | | | Operation Modes | Access Point | | Max SSIDs Supported | 16 | | Throughput | 2.4 GHz: 600 Mb/s
5 GHz: 1733 Mb/s | | | | Supported IEEE Standards | 802.11i, 802.11k, 802.11r, 802.1x, 802.3af, 802.3at | | | | Operating Temperature | -4 to 158°F / -20 to 70°C | | Storage Temperature | -22 to 176°F / -30 to 80°C | | Operating Humidity | 90% | | Storage Humidity | 90% | | | | IP Rating | IP67 | | Dimensions | 8.2 x 9.5 x 2.4" / 20.9 x 24.1 x 6 cm | | Weight | 6.6 lb / 3.0 kg |
