User Manual for EnGenius FreeStyl 1 Scalable Cordless Phone System with 1 Handset Click to enlarge the picture
Contents of the user manual for the EnGenius FreeStyl 1 Scalable Cordless Phone
- Product category: Telephones EnGenius
- Brand: EnGenius
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EnGenius Telephones
|
User manual for the EnGenius FreeStyl 1 Scalable Cordless Phone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EnGenius product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EnGenius user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EnGenius product will considerably shorten its lifespan!
|

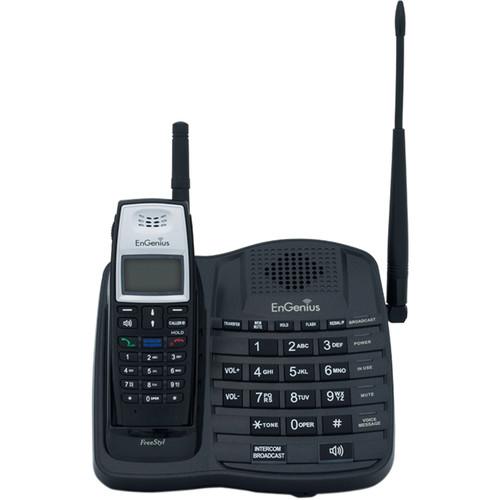

Product description The FreeStyl 1 Scalable Phone System with 1 Handset from Engenius can act as a complimentary addition to an existing digital desk phone system, DECT phone system, or Wi-Fi phone system. It can also connect to both digital and analog PBX systems and gives companies or homeowners a solution that provides connectivity far beyond DECT or Wi-Fi phones, particularly on properties where outdoor Wi-Fi is unavailable or not an option.
Not just a cordless phone system, the FreeStyl 1 features a built-in speakerphone on both the base and handset and also works as a two-way radio for instant communication. The wireless intercom is private and secure and works as a two-way radio from handset to handset or handset to base. - A Scalable Solution
- Individual FreeStyl 1 handsets are available for purchase from EnGenius authorized resellers so users can continue to add to their system. Each FreeStyl 1 base station supports up to 9 individual FreeStyl 1 handsets. Each handset includes its own charging station.
- Enhanced Range & Coverage
- Up to 25,000 sq. ft. of facility coverage and up to 6 floors multi-story penetration.
- Scalable System
- Expandable to 9 total handsets for increased user capacity.
- Versatile
- The multi-function cordless system offers walkie talkie functionality and point-to-point communication while operating independently of the base station.
- Business Friendly Features
- The FreeStyl 1 can send simultaneous broadcasts to multiple handsets from any handset. Plug directly into a phone jack on the wall or plug directly into an analog port of a PBX. This phone system also includes auto attendant call redirect assistance.
- No Reoccurring Costs or Fees
- No subscriptions or contracts and no monthly service charges or fees for a lower total cost of ownership.
UPC: 655216004665 In the Box EnGenius FreeStyl 1 Scalable Cordless Phone System with 1 Handset 2 x 5 VDC / 1 A, 100~240 VAC Power Adapter Desktop Charger CD with User's Manual in PDF Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EnGenius FreeStyl 1 Scalable Cordless Phone System with 1 Handset in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnGenius FreeStyl 1 Specs | Frequency | 902-928 MHz | | RF Power | Peak - 27 dBm
Average - 21 dBm | | Channel Spacing | 101 kHz | | Number of Channels | 252 | | Modulation | Differently Encoded MSK | | Multiple Access | Frequency Hopping TDMA | | Frequency Hopping Rate | 100 per second | | TDMA Frame Length | 10 ms | | Number of Slots | 4 | | Antenna Connector | Reverse TNC | | Antenna Gain | 2.5 dBi | | Speech Coding | 8 kbps G.729A | | Data Transmission Speed | 85.333 kbps | | User Data Rate | 64 kbps duplex | | Duplex Support | Time Division Duplex (TDD) | | Voice Quality | TIA/EIA-470B | | Number of System IDs | 65,536 | | | | Battery | AC/DC 100~240 V / 12 V, 1 A | | Charger Current | 550 mA | | Charge Time | 3 hours | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Operating Humidity | Operating Humidity: 20 to 75% | | | | Regulation Compliance | FCC Part 15, Part 68 | | Dimensions | Base Station: 7.4 x 6.3 x 1.7" / 188 x 161 x 42 mm
Handset: 7.4 x 2.3 x 1.2" / 161 x 58 x 31 mm | | Weight | Base Station: 0.93 lb / 424 g
Handset: 0.39 lb / 175 g | | | | Package Weight | 2.7 lb | | Box Dimensions (LxWxH) | 10.2 x 9.3 x 4.1" |
