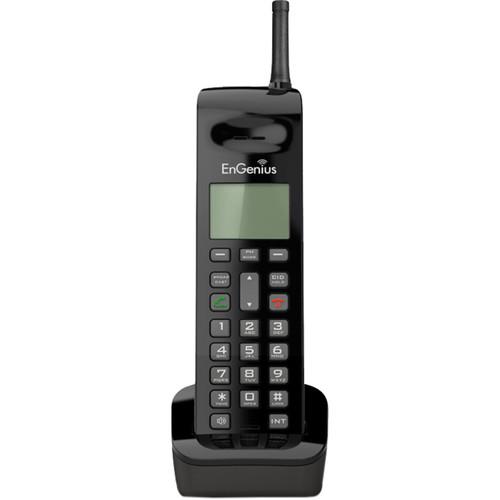

User Manual for EnGenius FreeStyl 2 900 MHz Cordless Expansion Handset Click to enlarge the picture
Contents of the user manual for the EnGenius FreeStyl 2 900 MHz Cordless
- Product category: Telephones EnGenius
- Brand: EnGenius
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EnGenius Telephones
|
User manual for the EnGenius FreeStyl 2 900 MHz Cordless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EnGenius product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EnGenius user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EnGenius product will considerably shorten its lifespan!
|
Product description With enhanced range and coverage, the FreeStyl 2 900 MHz Cordless Expansion Handset from EnGenius gives you the ability to expand your communications across the job site or office with no additional fees or charges. This handset supports a coverage area of up to 25,000 sq ft and can penetrate up to 6 floors when indoors. This scalable phone solution can be easily expanded as each base station supports a total of 9 handsets. In addition to phone functionality, this handset can also be used as a walkie talkie or a point-to-point communication device when you are out of range of the base unit. - Enhanced Range & Coverage
- The FreeStyl 2 supports coverage of up to 6 floors or 25,000 sq ft that vastly exceeds DECT (Digital Enhanced Cordless Telecommunications) or Wi-Fi phones.
- Scalable System
- Expand your communications with up to 9 handsets in an existing one-line system to greatly expand user capacity.
- No Recurring Costs
- With no subscriptions or contracts and no monthly service charges, the FreeStyl 2 features a lower cost of ownership.
- Versatile
- This multi-functional cordless system offers walkie talkie functionality and point-to-point communication while operating independently of the base station.
UPC: 655216006010 In the Box EnGenius FreeStyl 2 900 MHz Cordless Expansion Handset Power Adapter Battery Pack Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EnGenius FreeStyl 2 900 MHz Cordless Expansion Handset in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnGenius FreeStyl 2-HC Specs | Frequency | 902-928 MHz | | RF Power | Peak - 26 dBm
Average - 20 dBm | | Channel Spacing | 101 kHz | | Number of Channels | 252 | | Modulation | Differently Encoded MSK | | Multiple Access | Frequency Hopping TDD | | Frequency Hopping Rate | 100 per second | | TDMA Frame Length | 10 ms | | Number of Slots | 4 | | Receiver Sensitivity | Antenna Connector: Non-Standard | | Antenna Gain | 2.5 dBi (Long)
1.5 dBi (Short) | | Speech Coding | 8 kbps G.729A | | Transmission Data Rate | 85.333 kbps | | User Data Rate | 64 kbps duplex | | Duplex Mode | Time Division Duplex (TDD) | | Voice Quality | TIA/EIA-470B | | Number of System IDs | 65,536 | | Temperature & Humidity | Operating Temperature: 14 to 140°F / -10 to 60°C
Operating Humidity: 20 to 75%
Storage Temperature: -40 to 158°F / -40 to 70°C | | Regulation Compliance | FCC Part 15, Part 68 | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 11.5 x 7.7 x 2.8" |
