User Manual for EnGenius FreeStyl 2 Extreme Range Scalable Cordless Phone System Click to enlarge the picture
Contents of the user manual for the EnGenius FreeStyl 2 Extreme Range Scalable
- Product category: Telephones EnGenius
- Brand: EnGenius
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EnGenius Telephones
|
User manual for the EnGenius FreeStyl 2 Extreme Range Scalable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EnGenius product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EnGenius user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EnGenius product will considerably shorten its lifespan!
|

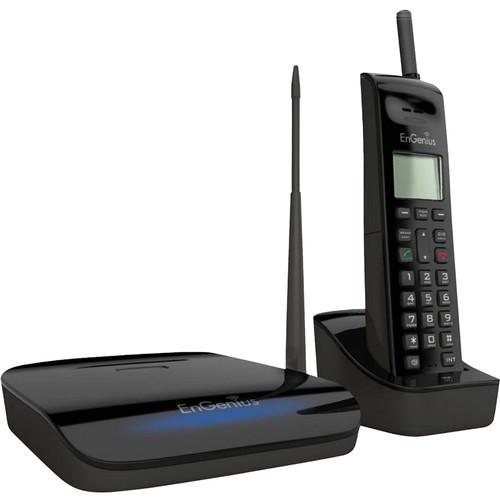

Product description The easy-to-use FreeStyl 2 System from EnGenius delivers significantly more range than typical DECT and Wi-Fi phone systems. The system can operate as a standalone system or as a long-range cordless analog extension to a PBX phone system. Offering exceptional wireless range, this phone provides clear, reliable phone and two-way intercom communication indoors. This extensive wireless range offers coverage through as many as six floors or up to 25,000 square feet.
A Scalable Premises Wireless solution - each FreeStyl 2 base station supports up to nine individual FreeStyl 2 handsets. Each handset includes its own charging station. The new FreeStyl 2 system is ideal for businesses with employees who roam beyond the confines of their offices or cubicles, or for expansive properties such as resorts, and luxury estates for users who do not require our rugged DuraFon, but prefer something with a little more style. - Going Where DECT and Wi-Fi Phones Rarely Go
- The FreeStyl in many cases is a complimentary addition to an existing digital desk phone systems, DECT phone systems and Wi-Fi phone systems. It connects behind any analog line or port and provides companies or homeowners a solution that provides connectivity far beyond DECT or Wi-Fi phones, particularly on properties where outdoor Wi-Fi is unavailable or not an option.
- A Scalable Solution
- Individual FreeStyl 2 handsets are available for purchase from EnGenius authorized resellers so users can continue to add to their system. Each FreeStyl 2 base station supports up to 9 individual FreeStyl 2 handsets. Each handset includes its own charging station.
UPC: 655216006003 In the Box EnGenius FreeStyl 2 Extreme Range Scalable Cordless Phone System 2 x 5 VDC / 1 A, 100~240 VAC Power Adapter Desktop Charger Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EnGenius FreeStyl 2 Extreme Range Scalable Cordless Phone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnGenius FreeStyl 2 Specs | Electrical Specifications | Frequency: 902-928 MHz
RF Power: Peak - 27 dBm ; Average - 21 dBm
Channel Spacing: 101 kHz
Number of Channels: 252
Modulation: Differently encoded MSK
Multiple Access: Frequency hopping TDD
Frequency Hopping Rate: 100 per second
TDMA Frame Length: 10 ms
Number of Slots/Frame: 4
Antenna Connector: Reverse TNC
Antenna Gain: 2.0 dBi
Speech Coding: 8 kbps G.729Ab
Transmission Data Rate: 85.333 kbps
User Data Rate: 64 kbps duplex
Duplex: Time Division Duplex (TDD)
Voice Quality: TIA/EIA-470B
No. of System ID: 65,536
Battery Capacity: AC/DC 100~240 V / 12 V, 1 A
Charger Current: 550 mA
Charge Time: 3 hours (from empty) | | Temperature & Humidity | Operating Temperature: 32 to 122°F / 0 to 50°C
Storage Temperature: -40 to 158°F / -40 to 70°C
Operating Humidity: 20 to 75% | | Regulation Compliance | FCC Part 15, Part 68 | | Dimensions | Base Station: 5.05 x 5.48 x 1.35" / 12.83 x 13.92 x 3.43 cm
Handset: 1.83 x 7.64 x 1.31" / 4.65 x 19.41 x 3.33 cm | | Weight | Base Station: 0.60 lb / 0.27 kg
Handset: 0.34 lb / 0.15 kg | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 10.2 x 9.1 x 4.4" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 32 owners. Add your rating and experience with the product.
