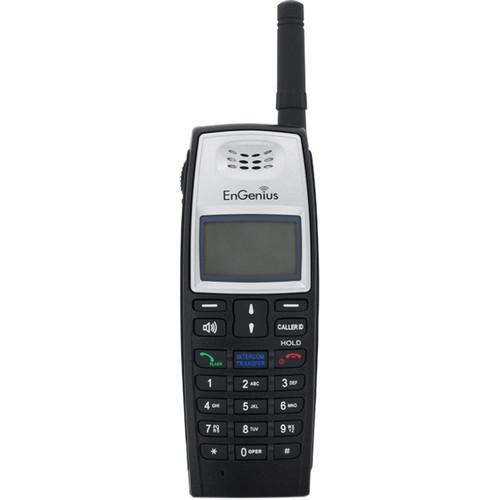

User Manual for EnGenius FreeStyl1 Extreme Range Cordless Telephone Handset Click to enlarge the picture
Contents of the user manual for the EnGenius FreeStyl1 Extreme Range Cordless Telephone
- Product category: Telephones EnGenius
- Brand: EnGenius
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EnGenius Telephones
|
User manual for the EnGenius FreeStyl1 Extreme Range Cordless Telephone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EnGenius product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EnGenius user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EnGenius product will considerably shorten its lifespan!
|
Product description Designed for use with the FreeStyl1 System, the powerful FreeStyl1 Extreme Range Cordless Telephone Handset from EnGenius features a range of up to 25,000 square feet and can penetrate 6 floors when used indoors so you're never out of range. When away from the base unit, this handset can also be used as a walkie talkie and a 2-way intercom to communicate with other users. With the FreeStyl1 you can even broadcast messages to multiple handsets from any handset making it easy to send out notifications, emergency bulletins, and more. - Enhanced Range and Coverage
- Up to 25,000 sq. ft. of facility coverage and up to 6 floors multi-story penetration.
- Outperforms 2.5 GHz or 5.8 GHz DECT Solution
- High power/high sensitivity coverage penetrates concrete, wood and drywall.
- Scalable System
- Expandable to 9 total handsets for expanded user capacity.
- Versatile
- This multi-functional cordless system offers walkie talkie functionality and point-to-point communication while operating independently of the base station.
- Business Friendly Features
- The FreeStyl1 handset can send simultaneous broadcasts to multiple handsets from any handset. This handset can also be plugged directly to a phone jack on the wall or the analog port of a PBX.
UPC: 655216004672 In the Box EnGenius FreeStyl1 Extreme Range Cordless Telephone Handset Power Adapter Battery Pack Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EnGenius FreeStyl1 Extreme Range Cordless Telephone Handset in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnGenius FreeStyl 1-HC Specs | Frequency | 902-928 MHz | | RF Power | Peak - 26 dBm
Average - 20 dBm | | Channel Spacing | 101 kHz | | Number of Channels | 252 | | Modulation | Differently encoded MSK | | Multiple Access | Frequency hopping TDMA | | Frequency Hopping Rate | 100 per second | | TDMA Frame Length | 10 ms | | Number of Slots | 4 | | Receiver Sensitivity | Antenna Connector: Non-standard | | Antenna Gain | 2.5 dBi (Long)
1.5 dBi (Short) | | Speech Coding | 8 kbps G.729A | | Transmission Data Rate | 85.333 kbps | | User Data Rate | 64 kbps duplex | | Duplex Mode | Time Division Duplex (TDD) | | Voice Quality | TIA/EIA-470B | | Number of System IDs | 65,536 | | Battery Capacity | 3.7 V, 1100 mAh Li-ion battery | | Charger Current | 550 mA | | Charge Time | 3 hours (from empty) | | Temperature & Humidity | Operating Temperature: 14 to 140°F / -10 to 60°C
Storage Temperature: -40 to 158°F / -40 to 70°C
Humidity: 20 to 75% | | Regulations | FCC Part 15, Part 68 | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 11.5 x 7.7 x 2.9" |
