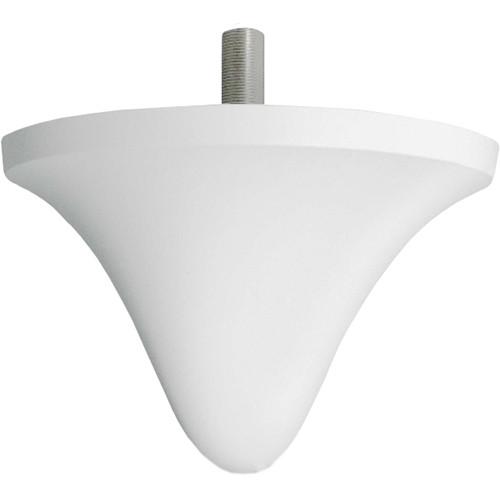

User Manual for EnGenius SN-UL-AK20L-IND 900 MHz Indoor External Antenna Kit Click to enlarge the picture
Contents of the user manual for the EnGenius SN-UL-AK20L-IND 900 MHz Indoor External
- Product category: Antennas & Accessories EnGenius
- Brand: EnGenius
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EnGenius Antennas & Accessories
|
User manual for the EnGenius SN-UL-AK20L-IND 900 MHz Indoor External contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EnGenius product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EnGenius user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EnGenius product will considerably shorten its lifespan!
|
Product description Extend the reach of the DuraFon or FreeStyl phone systems indoors with the SN-UL-AK20L-IND 900 MHz Indoor External Antenna Kit from EnGenius. This kit includes 66 ft (20 m) of LMR-400 cable to ensure the antenna can be installed in the most effective location. Once installed, users benefit from a peak gain of 2.7 dBi for increased signal strength and reduced interference as this indoor antenna operates on the 863~930 MHz frequency. - 900 MHz external antenna kit which connects to base stations for EnGenius DuraFon or FreeStyl phone systems
In the Box EnGenius SN-UL-AK20L-IND 900 MHz Indoor External Antenna Kit LMR-400 Cable (66 ft / 20 m) Limited 90-Day Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EnGenius SN-UL-AK20L-IND 900 MHz Indoor External Antenna Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnGenius SN-UL-AK20L-IND Specs | Electrical | Frequency
863 - 930 MHz
Peak Gain
2.1 dBi @ 863~865 MHz
2.7 dBi @ 900~930 MHz
VSWR
2.0:1 (max.)
Half Power Beam Width
83° ±3°
Polarization
Linear, Vertical
Impedance
50 Ohm
Power Handling
10 W (cw)
Connector
N Jack | | Compatibility | FreeStyl 1 Systems
FreeStyl 2 Systems
DuraFon 1X Systems
DuraFon 4X Systems
DuraFon PRO Systems
DuraFon SIP Systems
EP-490 Systems
EP-436 Systems
SN-920 Systems
SN-900 Systems | | Temperature | Operating Temperature: -4 to 149°F / -20 to 65°C | | Radome Material | ABS, UL94V0 (white) | | Dimensions | 6.69 x 4.25" / 170 x 108 mm | | Weight | 11.3 oz / 320 g |
