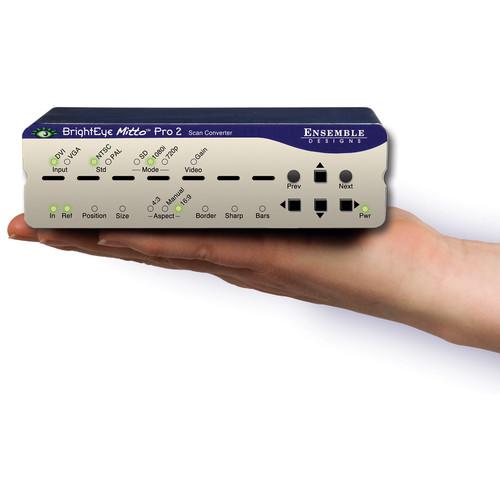

User Manual for Ensemble Designs BEM-4 BrightEye Mitto Pro 2 Scan Converter Click to enlarge the picture
Contents of the user manual for the Ensemble Designs BEM-4 BrightEye Mitto Pro
- Product category: Signal Converters Ensemble Designs
- Brand: Ensemble Designs
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ensemble Designs Signal Converters
|
User manual for the Ensemble Designs BEM-4 BrightEye Mitto Pro contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ensemble Designs product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ensemble Designs user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ensemble Designs product will considerably shorten its lifespan!
|
Product description The BEM-4 BrightEye Mitto Pro 2 is a scan converter from Ensemble Designs that converts DVI video input into SDI and HD-SDI formats, while also allowing the user to select which part of the screen to output. VGA and HDMI input are also supported, but require the use of additional adapters; this unit comes with two VGA to DVI adapters. Analog audio input is supported via a 3.5mm socket, and audio output can be embedded onto the SDI outputs.The BEM-4, in conjunction with the included BrightEye Software for Mac and Windows, allows computer video to be used for the most demanding applications including broadcast, high-end military, medical, classroom, church, and corporate events. Even a small part of the screen, such as a Skype window, can be selected with a mouse and converted to full screen HD. Resize the selection window by clicking and dragging with your mouse. From your desktop, you have intuitive control over video and audio parameters. The BEM-4 provides the functionality and control to operate as a router or switcher. - Converts DVI input to SDI and HD-SDI video output
- Users can select specific areas of the video input to send to the output
- Supports VGA and HDMI I/O with optional adapters
- Includes two (2) DVI to VGA adapters
- Proprietary scaling and filtering system provides maximum detail, flicker-free video output
- Used with Mac and Windows devices including laptops, iPhone, and iPad
- Intuitive front-panel controls
- Easily adjust video parameters and select video output format
- Genlock and Time-to-House Reference, fully timeable
- Memory presets for your favorite settings
- Includes BrightEye Mac and Windows software and free upgrades
In the Box Ensemble Designs BEM-4 BrightEye Mitto Pro 2 Scan Converter USB Cable 2 x VGA to DVI Adapter Modular Power Supply BrightEye Software for Mac and Windows Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ensemble Designs BEM-4 BrightEye Mitto Pro 2 Scan Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnsemble Designs BEM-4 Specs | | | Connector | 1 x DVI-I (supports HDMI or VGA with adapter) | | Resolution | Up to 1920 x 1200 | | | | Connector | 1 x BNC | | Formats | 1 Vpp, Composite Video
PAL, NTSC, Tri-Level Sync | | Impedance | 75 Ohms | | Return Loss | > 40 dB
When no reference is provided, Mitto runs from an internal "sync gen grade" precision frequency reference. | | | | Connector | 1 x 3.5 mm (1/8")
| | Format | Analog stereo | | Impedance | > 15 Ohms | | Line Max Input Level | 24 dBu | | Quantization | 24 bits, 128x oversampled | | Sample Rate | 48 kHz | | Reference Level | -10 dBu or +4 dBu | | Frequency Response | ± 0.1 dB, 20 Hz to 20 kHz | | Crosstalk | < 106 dB | | Dynamic Range | > 106 dB | | | | Connectors | 2 x BNC | | Formats | 270 Mb/s SD SDI, SMPTE 259M
1.485 Gb/s HD SDI,SMPTE 274M, 292M, 296M
| | Processing | 16-bit processing
12- and 14-bit up-conversion | | Delay | Adjustable from 16 to 40 ms
Output is fully timeable with respect to the reference input. | | | | Impedance | 75 Ohms | | Return Loss | > 15 dB to 1.485 GHz
>10 dB to 2.97 GHz | | Output | None (AC coupled) | | SMPTE Standards Supported | 1080i (SMPTE 274M -4,5,6); 50, 59.94 or 60 Hz
720p (SMPTE 296M -1,2,3); 50, 59.94 or 60 Hz
525i, 625i (SMPTE 259M)
| | | | Connector | 1 x BNC
| | Format | Composite PAL or NTSC (when SD is selected on the SDI output) | | Return Loss | > 40 dB | | Output | < 100 mV | | | | Number | 1 x DVI-I (supports HDMI or VGA with adapter) | | Format | Follows input | | | | Power | 12 V, 12 W
100-230 VAC modular power supply | | Ambient Temperature Range | 32 to 104F (0 to 40°C) | | Relative Humidity | 0 to 95% non-condensing | | Altitude | 0 to 10,000' | | Dimensions (W x H x D) | 5.63 x 1.65 x 6.01" (143 x 42 x 153 mm)
Includes connectors and flange | | Weight | 1.37 lb (0.62 kg) | | | | Package Weight | 3.1 lb | | Box Dimensions (LxWxH) | 8.8 x 7.9 x 4.7" |
