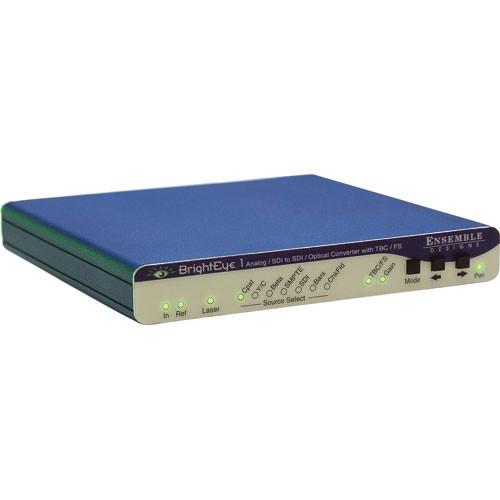

Product description The BrightEye 1 Analog-SDI to SDI-Optical Converter with TBC and Frame Sync from Ensemble Designs is a device designed to convert analog component, analog composite S-video (Y/C), and SDI video inputs into simultaneous SDI (electrical) and optical outputs. Front-panel controls allow you to select the input source and format, as well as adjust video gain. Video levels can also be adjusted through the BrightEye software package included with the unit, and which is compatible with both Windows and Mac operating systems.
A built-in time-base corrector & frame synchronizer provide steady output, even with marginal inputs. Reference input on the converter is used to genlock its output to house reference a color, such as black. Also included are color bars and SDI checkfield (pathological) test patterns to facilitate transmission path testing. This unit offers 12-bit resolution. Note: Please note that a power supply is not included with the unit and must be purchased separately. - Analog-SDI to SDI-Optical Conversion
- Use this device to convert analog component, analog composite S-video (Y/C), and SDI video inputs into simultaneous SDI (electrical) and optical outputs.
- Controls

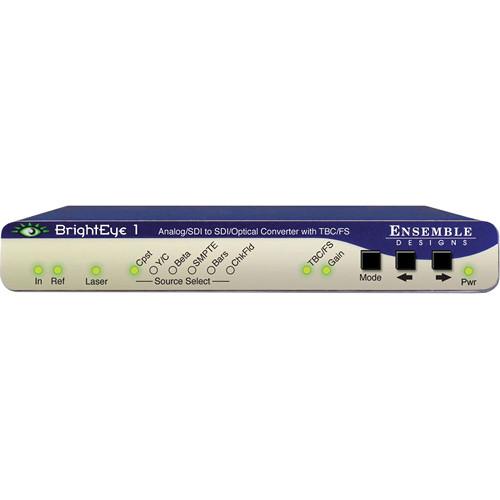

- The unit can be controlled through the push buttons on the converter's faceplate or through the proprietary software package included with the unit.
- OS Compatibility
- The converter will work on both Windows and Mac operating systems.
- TBC, Frame Synchronizer & Genlock
- This model features a built-in time-base corrector, a frame synchronizer, and genlock to ensure solid high-quality output.
- Transmission Path Testing
- Color bars and SDI checkfield (pathological) test patterns are included for transmission path testing.
- 12-Bit Resolution
- The unit offers 12-bit resolution.
In the Box Ensemble Designs BrightEye 1 Analog-SDI to SDI-Optical Converter with TBC and Frame Sync Converter Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ensemble Designs BrightEye 1 Analog-SDI to SDI-Optical Converter with TBC and Frame Sync in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

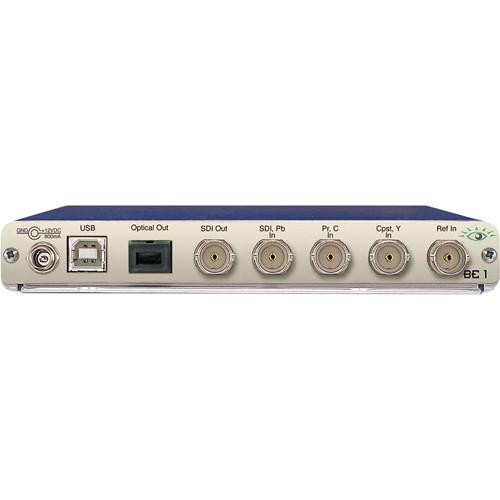

Technical parametersEnsemble Designs BE1 Specs | Construction | Metal, plastic | | Finish | Blue, silver | | Inputs | SERIAL DIGITAL INPUT
Quantity: x1
Signal type: 270Mb/s SD serial digital (SMPTE 259M)
Impedance: 75Ω
Return Loss: >15dB
Maximum cable length: 300m ANALOG INPUT
Quantity: x1
Type:
Beta/SMPTE, Y, Pr, Pb
NTSC, PAL composite
NTSC, PAL S-video
Impedance: 75Ω
Return loss: >40dB
Input: DC +/-1VDC
Input hum: <100mV | | Outputs | SERIAL DIGITAL OUTPUT
Quantity: x1
Type: 270Mb/s SD serial digital (SMPTE 259M)
Impedance: 75Ω
Return loss: >15dB
Output: DC none (AC coupled) OPTICAL OUTPUT
Quantity: x1
Type: 270Mb/s SD serial digital (SMPTE 259M), (Optical equivalent of 259M)
Wavelength: 1310nm
Power: –7dBm
Maximum length: 20km
Fiber Type:
Single-mode
Multi-mode compatible with 8dB attenuation at transmit end
Connector: SC | | Conversion | ANALOG-to-SDI PERFORMANCE
Bit resolution:
12-bit input quantization
4x oversampling
Signal to noise: >62dB, weighted
Frequency response:
Composite and Y ±0.1 dB, 0 to 5.5MHz
Pr, Pb ±0.1 dB, 0 to 2.75MHz
Minimum delay: 90 μSec REFERENCE INPUT
Quantity: x1
Type: 1Vp-p composite video, PAL or NTSC
Impedance: 75Ω
Return loss: >40dB | | Power | 12V, 7W
*100 to 230VAC modular power supply not included | | Dimensions (HxWxD) | 0.8 x 5.625 x 5.5" ( 20 x 143 x 140mm) | | Weight | Not specified by manufacturer |
