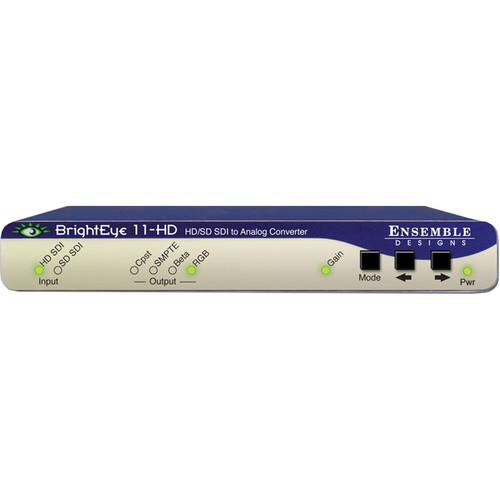

Product description The BrightEye 11-HD HD/SD-SDI to Analog Converter from Ensemble Designs is a device designed to convert an HD-SDI or SD-SDI input to a wide range of analog output formats. When an HD input is present, HD RGB or YPrPb is output. When an SD input is present, Beta, SMPTE, RGB or composite with simultaneous Y/C is output. Processing, encoding and conversion are performed digitally at 12-bit resolution with 8X oversampling.
Front-panel controls allow you to select the input source and format, as well as adjust video gain. Video levels can also be adjusted through the BrightEye software package that is included with the unit and compatible with both Windows and Mac operating systems. Note: Please note that a power supply is not included with the unit and must be purchased separately. - HD/SD-SDI to Analog Conversion
- Use this device to convert an HD-SDI or SD-SDI input to a wide range of analog output formats.
- Controls
- The unit can be controlled through the push buttons on the converter's faceplate or through the proprietary software package included with the unit.
- OS Compatibility
- The converter will work on both Windows and Mac operating systems.
- 12-Bit Resolution
- The unit offers 12-bit resolution.
In the Box Ensemble Designs BrightEye 11-HD HD/SD-SDI to Analog Converter Converter Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ensemble Designs BrightEye 11-HD HD SD-SDI to Analog Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnsemble Designs 11-HD Specs | Construction | Metal, plastic | | Finish | Blue, silver | | Inputs | SERIAL DIGITAL INPUT
Quantity: x1
Type:
HD serial digital 1.485 Gb/s
SMPTE 274M or 296M
SD serial digital 270Mb/s SMPTE 259M-C
Impedance: 75Ω
Return loss: >15dB
Maximum cable length:
(328) 100m for HD
(984) 300m for SD
(Belden 1694A or equiv.)
HD standards supported:
1080i (SMPTE 274M -4,5,6) 50, 59.94 or 60Hz
720p (SMPTE 296M -1,2,3) 59.94 or 60Hz
1080p (SMPTE 274M -9,10,11) 23.98,24, 25
1080sF (RP211 -14,15,16) 23.98, 24, 25Hz | | Outputs | ANALOG OUTPUT
-HD input yields HD analog out
-SD input yields SD analog out
Quantity:
x1 component, or
x1 composite & x1 Y/C
Type:
Beta/SMPTE, Y, Pr, Pb
RGB
NTSC, PAL Composite
NTSC, PAL S-Video
Return loss: >40dB
Output: DC none (AC coupled) SERIAL DIGITAL OUTPUT
Quantity: x1
Type: follows input
Impedance: 75Ω
Return loss: >15dB
Maximum cable length:
328 ft (100m) for HD
(Belden 1694A or equiv.) | | Conversion | SDI-to-ANALOG PERFORMANCE
Bit resolution:
12-bit output reconstruction
8X oversampling
Signal to noise: >65dB
Frequency response: ±0.1dB, 0 to 5.5MHz
K Factor: <1%
ScH phase error: <±2°
Differential phase: <1°
Differential gain: <1% | | Power | 12V, 7W
*100 to 230VAC modular power supply not included | | Dimensions (HxWxD) | 0.8 x 5.625 x 5.5" ( 20 x 143 x 140mm) | | Weight | Not specified by manufacturer | | | | Package Weight | 2.55 lb | | Box Dimensions (LxWxH) | 8.8 x 8.0 x 4.8" |
