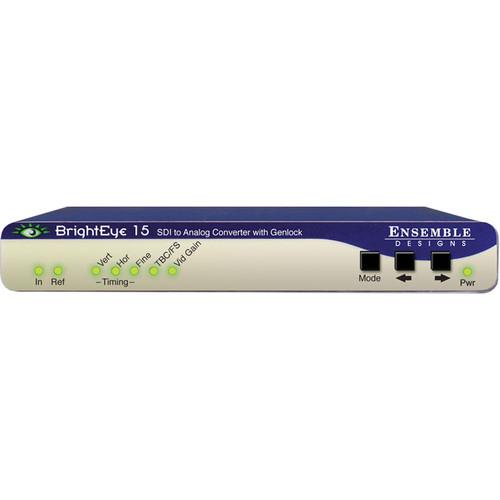

Product description The BrightEye 15 SDI-to-Analog Converter with Frame Sync & Genlock from Ensemble Designs is a device designed to convert digital video to analog with timetable output. This unit is ideally suited for feeding analog switchers and routers that require signal timing.
It features an SDI and reference input. The input signal is converted to analog composite video and genlocked to the referenced signal. The analog composite output is fully timed with the reference, including ScH phase. Vertical interval can be passed or blanked.
Front-panel controls allow you to select the input source and format, as well as adjust video gain. Video levels, gain, chroma, pedestal, and hue can also be adjusted through the BrightEye software package that is included with the unit and compatible with both Windows and Mac operating systems. Note: Please note that a power supply is not included with the unit and must be purchased separately. - SDI-to-Analog Conversion
- Use this device to convert an SDI input to an analog composite video output.
- Controls
- The unit can be controlled through the push buttons on the converter's faceplate or through the proprietary software package included with the unit.
- OS Compatibility
- The converter will work on both Windows and Mac operating systems.
- Genlock & Frame Sync
- The unit offers both genlock and frame-sync functionality.
In the Box Ensemble Designs BrightEye 15 SDI-to-Analog Converter with Frame Sync & Genlock Converter Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ensemble Designs BrightEye 15 SDI-to-Analog Converter with Frame Sync & Genlock in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnsemble Designs 15 Specs | Construction | Metal, plastic | | Finish | Blue, silver | | Inputs | SERIAL DIGITAL INPUT
Quantity: x1
Signal type: 270Mb/s SD serial digital (SMPTE 259M)
Impedance: 75Ω
Return loss: >15dB
Maximum cable length: 984 ft (300m) REFERENCE INPUT
Quantity: x1
Type: 1Vp-p composite video, PAL or NTSC
Impedance: 75Ω
Return Loss: >40dB | | Outputs | ANALOG VIDEO OUTPUT
Quantity: x2
Type: composite PAL or NTSC (follows input)
Return loss: >40dB
Output: DC < 100mV | | Conversion | SDI-to-ANALOG PERFORMANCE
Bit resolution:
12-bit output reconstruction
8 X oversampling
Signal to noise: >65 dB
Timing window: infinite (with respect to reference)
Output: ScH phase matches reference
Timing resolution: adjustable to within 1° of subcarrier
Frequency response: ±0.1dB, 0 to 5.5MHz
K Factor: <1%
ScH phase error: <±2°
Differential phase: <1°
Differential gain: <1% | | Power | 12V, 7W
*100 to 230VAC modular power supply not included | | Dimensions (HxWxD) | 0.8 x 5.625 x 5.5" ( 20 x 143 x 140mm) | | Weight | Not specified by manufacturer |
