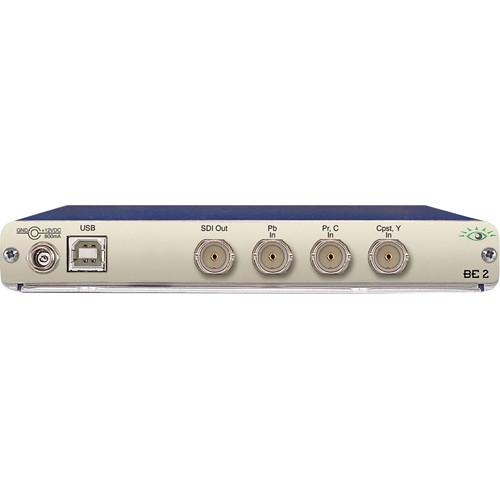

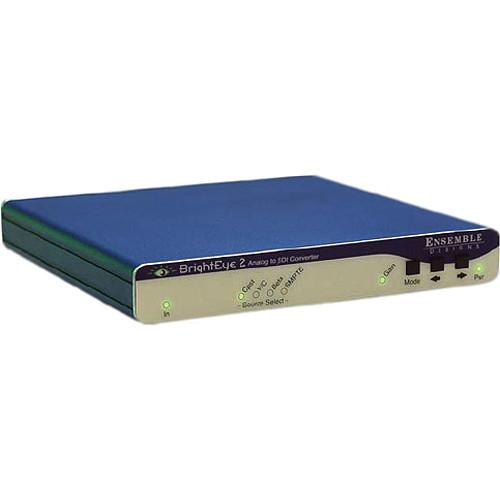

User Manual for Ensemble Designs BrightEye 2 Analog-to-SDI Converter Click to enlarge the picture
Contents of the user manual for the Ensemble Designs BrightEye 2 Analog-to-SDI Converter
- Product category: Signal Converters Ensemble Designs
- Brand: Ensemble Designs
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ensemble Designs Signal Converters
 |
User manual for the Ensemble Designs BrightEye 2 Analog-to-SDI Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ensemble Designs product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ensemble Designs user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ensemble Designs product will considerably shorten its lifespan!
|
Product description The BrightEye 2 Analog-to-SDI Converter from Ensemble Designs, is a device designed for analog-to-digital conversion of component and composite video. The unit will support Beta and SMPTE component, composite, and Y/C formats. Composite video is processed through an adaptive comb filter decoder and PAL or NTSC format is automatically detected. This converter is ideal for use with VTRs and cameras, among other possible uses.

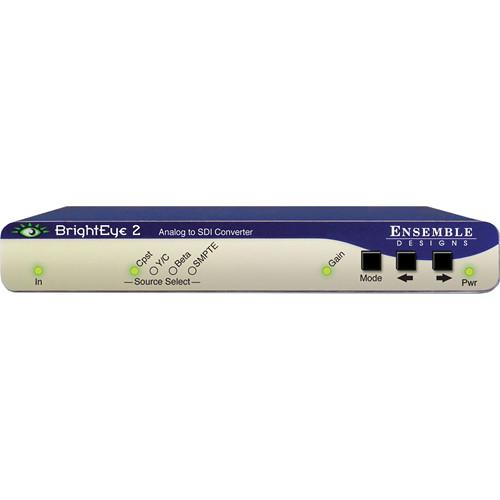

Front-panel controls allow you to select the input source and format, as well as adjust video gain. Video levels can also be adjusted through the BrightEye software package that is included with that unit and compatible with both Windows and Mac platforms. Note: Please note that a power supply is not included with the unit and must be purchased separately. - Analog-to-SDI Conversion
- Use this device for the analog-to-digital conversion of component and composite video.
- Controls
- The unit can be controlled through the push buttons on the converter's faceplate or through the proprietary software package included with the unit.
- OS Compatibility
- The converter will work on both Windows and Mac operating systems.
- 12-Bit Resolution
- The unit offers 12-bit resolution.
In the Box Ensemble Designs BrightEye 2 Analog-to-SDI Converter Converter Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ensemble Designs BrightEye 2 Analog-to-SDI Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnsemble Designs BE2 Specs | Construction | Metal, plastic | | Finish | Blue, silver | | Inputs | Analog input: x1
Type:
Beta/SMPTE, Y, Pr, Pb
NTSC, PAL Composite
NTSC, PAL S-Video
Impedance: 75Ω
Return loss: >40dB
Input: +/-1VDC
Input hum: <100mV | | Outputs | Serial digital output: x1
Type: 270Mb/s SD serial digital (SMPTE 259M)
Impedance: 75Ω
Return loss: >15dB
Output: DC none (AC coupled) | | Conversion | Bit resolution:
12-bit input quantization
4 X oversampling
Signal to noise: >62dB, weighted
Frequency response:
Composite and Y ±0.1 dB, 0 to 5.5MHz
Pr, Pb ±0.1 dB, 0 to 2.75MHz
Minimum delay: 90 µSec | | Power | 12V, 7W
*100 to 230VAC modular power supply not included | | Dimensions (HxWxD) | 0.8 x 5.625 x 5.5" ( 20 x 143 x 140mm) | | Weight | Not specified by manufacturer | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 8.8 x 7.9 x 2.4" |
