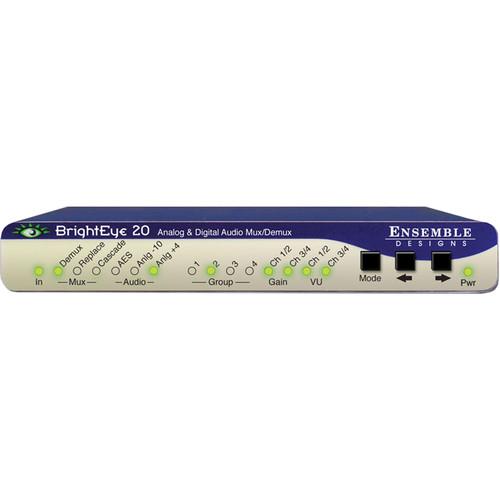

Product description The Ensemble Design BrightEye 20 is an audio embedder and disembedder for SDI digital video signals. This device will input or extract a digital or analog audio signal to an SDI video signal. Note: Power Supply Purchased Separately - Digital or Analog
- The user can utilize analog or digital audio for optimal field usage.
- Audio Capability
- Two AES audio streams or four analog audio channels can be input or extracted.
- Adjustable
- Audio mixing, level adjustments and channel shuffling can be accomplished in both modes.
In the Box Ensemble Designs BrightEye 20 Audio Embedder and Disembedder - SDI, Analog and Digital Audio, BNC and Multipin Connections 5 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ensemble Designs BrightEye 20 Audio Embedder and Disembedder - SDI, Analog and Digital Audio, BNC and Multipin Connections in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnsemble Designs BrightEye 20 Specs | Input | SDI Video, SMPTE 259, with or without embedded audio, on a BNC connector
AES/EBU Audio x2, two channels, AES3id, @ 75 ohms, on BNC connectors
Balanced Analog Audio x4, @ 30 ohms, on a mulitpin connector
PC or Mac Connectivity, on a USB connector | | Output | SDI Video, SMPTE 259, with or without embedded audio, on a BNC connector
AES/EBU Audio x2, two channels, AES3id, @ 75 ohms, on BNC connectors
Balanced Analog Audio x4, @ 30 ohms, on a mulitpin connector
PC or Mac Connectivity, on a USB connector | | Processes | Embedding and Disembedding Digital and Analog Audio on an SDI Digital Video Signal Stream | | Control | Front Panel or Remote Computer Via USB:
Embed or Disembed
Digital or Analog Audio
Signal Level Adjustment
Channel Selection | | Power Source | 12 VDC from an external power source (not included) | | Dimensions (WxHxD) | 5.625 x 0.8 x 5.5"
14.3 x 2 x 14cm | | Weight | Not Specified by Manufacturer | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 8.7 x 7.9 x 2.5" |
